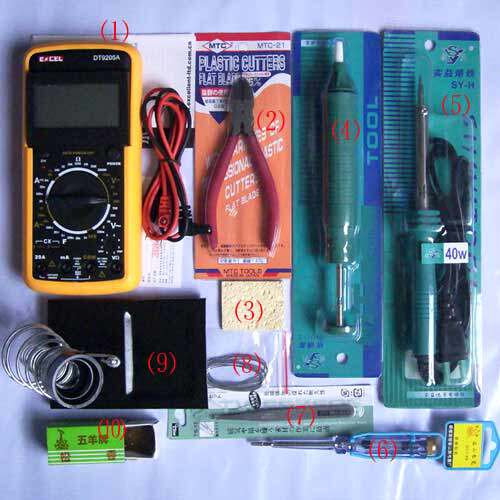

Tool Kit 10 (1) consists of the following tools: (1) Digital Multimeters



Manufacturers: EXCEL Ke Saier
Model: DT9205A

DC voltage profile:

Function ...... ...... ............... Range Resolution
DC voltage profile 1 ...... 200mV ...... 0.1mV
DC voltage range 2 ...... 2V ...... 1mV
DC voltage profile 3 ...... 20V ...... 10mV
DC voltage profile 4 ...... 200V ...... 100mV
DC voltage profile 5 ...... 1000V ...... 1V

DC current file:
Function ...... ...... ............... Range Resolution

DC current file 1 ...... 2mA ...... 1uA

DC current file 2 ...... 20mA ...... 10uA

DC current file 3 ...... 200mA ...... 100uA

DC current file 4 ...... 20A ...... 10mA

AC current file:

Function ...... ...... ............... Range Resolution
AC voltage profile 1 ...... 200mV ...... 0.1mV

AC voltage profile 2 ...... 2V ...... 1mV

AC voltage profile 3 ...... 20V ...... 10mV

AC voltage profile 4 ...... 200V ...... 100mV

AC voltage profile 5 ...... 750V ...... 1V

AC current file:
Function ...... ...... ............... Range Resolution

AC current file 1 ...... 20mA ...... 1uA

AC current file 2 ...... 200mA ...... 10uA

AC current profile 3 ...... 20A ...... 100mA

Resistance profile:

Function ............ ...... ...... Range Resolution
Resistance profile 1 ...... 200Ω ...... 0.1Ω

Resistance profile 2 ...... 2KΩ ...... 1Ω

Resistance profile 3 ...... 20KΩ ...... 10Ω

Resistance profile 4 ...... 200KΩ ...... 100Ω

Resistance profile 5 ...... 2MΩ ...... 1KΩ

Resistance profile 6 ...... 20MΩ ...... 10KΩ

Resistance profile 7 ...... 2000MΩ ...... 1MΩ

Capacitance file:

Function ...... ...... ......... Range Resolution
Capacitance profile 1 ...... 2n ...... 1P

Capacitance profile 2 ...... 20n ...... 10P

Capacitance profile 3 ...... 200n ...... 100P

Capacitance profile 4 ...... 2u ...... 0.001u

Capacitance profile 5 ...... 20u ...... 0.01u

Capacitance profile 6 ...... 200u ...... 0.1u



Diode measurement: Yes (with buzzer)

Folding stand: Yes

Power: 9V laminated battery

Full accessories: a host, one pair of leads, brochures, product certification.


(2) clipper


125mm outlet clamp, trim component pin, cutting wire and so on.

(3) soldering iron cleaning sponge

After the thickness of the sponge can be increased more than five times the water retention, if electric iron is dirty, clean and can throw on this sponge Note: The sponge must add water to use before you use dip water, and then work. the tip on which the wipe can clean dirty iron head, more suitable for welding.

(4) the strong vacuum suction tin


The need for any addition to tin, compact design, beautiful appearance, strong suction tin, and very efficient.

(5) 40W external thermal electric iron tip


Manufacturer: Beneficial


Model: SY-H




(6) test pencil




This pencil is suitable for the direct detection and indirect detection of AC 220v AC zero line, phase and breakpoints.




(7) Tweezers


A good tool for gripping small electronic components. Such as replacement of resistance, especially like such a small chip resistor capacitor element.


Lips: fine, beak, stainless steel.


Length: 14 cm



(8) small roll of solder




0.8mm diameter about 1m






(10) rosin




Heat conduction from the welding process, the solder melts quickly.



(9) iron frame

Iron!
