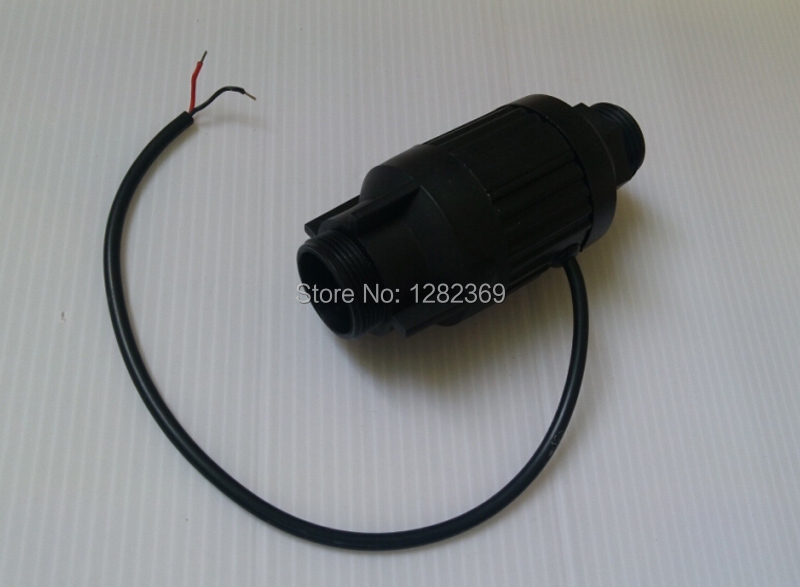

DC 12V 18W 1020LPH 4.5M, Mini Pipe Booster Inline Brushless DC Water Pump Small Fountain, Aquarium, Water Circulation, Micro Pump







Model Number:		MP-20
Customized Available:		Yes
Power:		Electric, DC
Structure:		Single-stage Pump
Product Type:		Brushless Water Pump
Pressure:		Low Pressure
Application:		Submersible
Standard or Nonstandard:		Nonstandard
Usage:		clear water, inline
Theory:		Centrifugal Pump
Power Sources:		Battery, Switch power supply,adapter, etc.

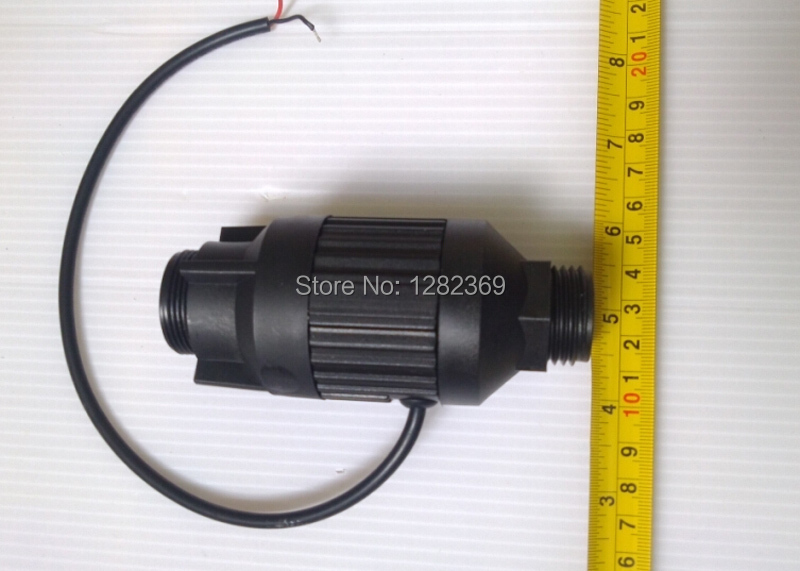

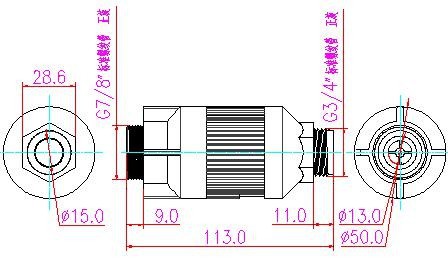

Size:		50 x 50 x 113
Net Weight:		240g

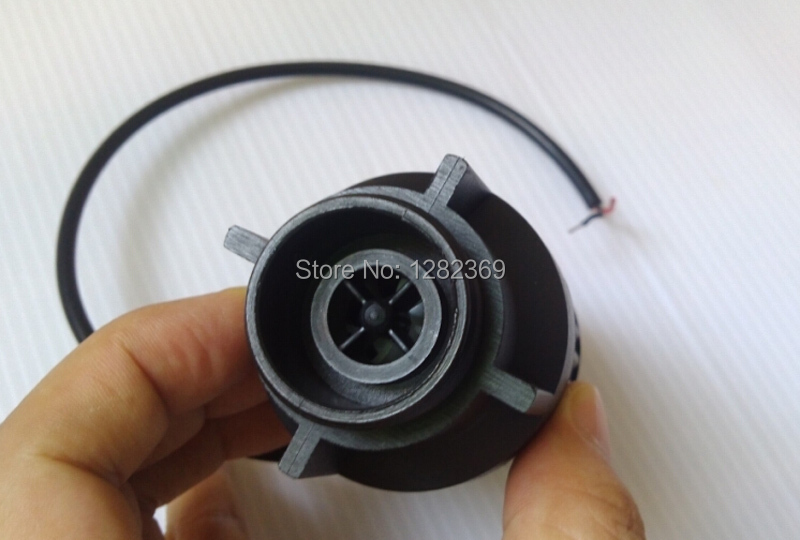

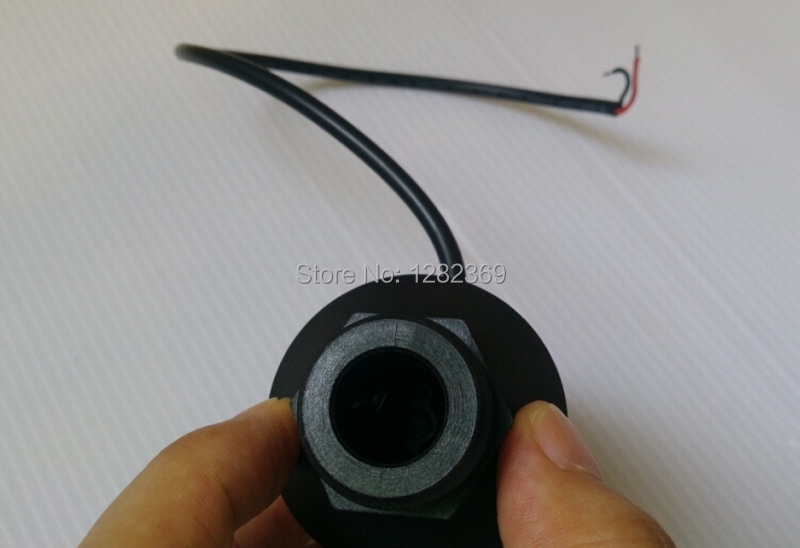

Inlet: (OD)		7/8 Inch Thread (M29mm)

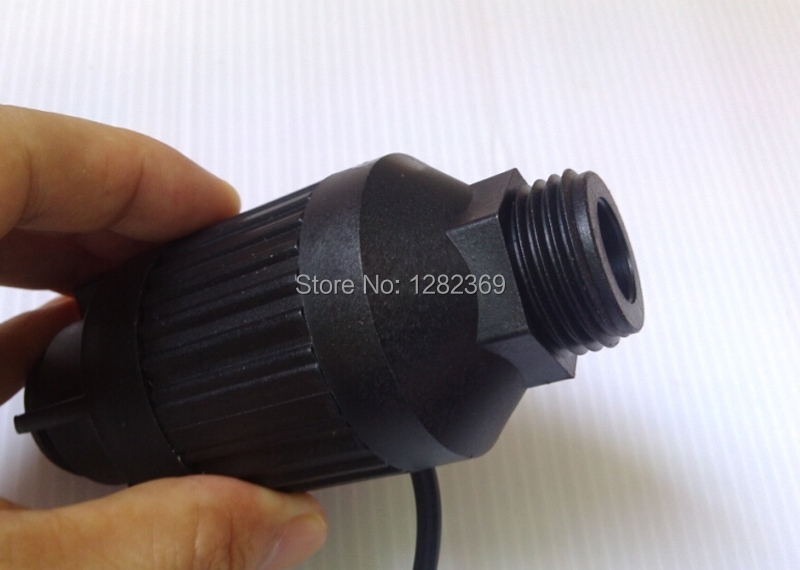

Outlet: (OD)		3/4 Inch Thread (M26.5mm)
Flow Rate: (Max)		1020L/Hour (222.5 gallon per hour)
Static Head: (water lift)		4.5 m (14.7 Feet)
Power Consumption:		Max 18W
Rated Voltage:		12V.
Max Liquid Temperature:		70 °C (158°F)
Speed adjustable:		No

Cable/Wire Length:                     300mm



Lifespan: >20000Hr (at rated speed)

Working Environment: Liquid: From weak acid to weak base, workable in water (Submerged)

Max Noise: 1M, distance <40dB



Liquid Temperature: ≤70°C

Application: Pipeline hot water circulation, Solar water heater, Small fountain, Aquarium, etc.





Notice:



When ordering pump, please send message to me the pump’s technical factors as:

1.     Your power source type: solar panel, battery, switching power supply
2.     The power source’s rated output voltage, power(watt)
3.     The pump using: in water, on land, or both.
4.     Liquid type and its max temperature.
