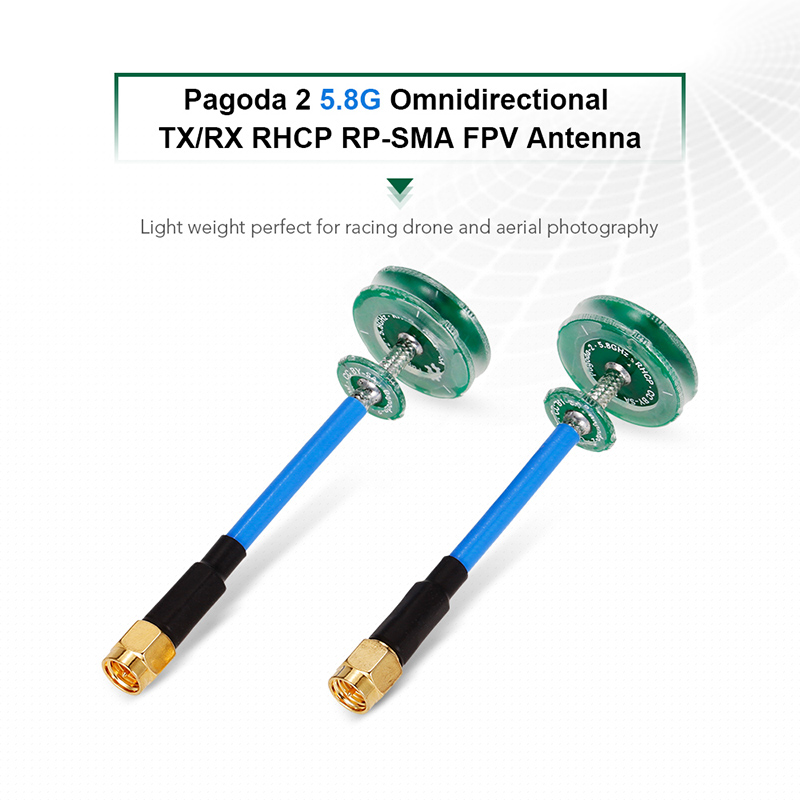

his new version of Pagoda 5.8GHz omnidirectional TX/RX RHCP RP-SMA FPV antenna for FPV racing drone and goggles. The new design is highly durable and specially designed to withstand hard crashes and protect the antenna.
Features:
5.8GHz circular antenna can be used as VTx antenna and VRx antenna
Suitable for 5.8G RC racing drones and 5.8G goggles
High quality and durable antenna， can withstand heavy impact
Virtually unbreakable protective case， keep the antenna without deformation
Omnidirectional， no dead corner
Less flash， stronger signal， more stable
Light weight， easy for taking
Simple but beautiful appearance
Specification:
Item name: Pagoda 2 antenna
Center frequency: 5.8 GHz
Gain: 5dBi
Max. Power: 50w
Impedance: 50┯
VSWR: <1.5:1
Polarization: circular polarized
Radiation: omni
Polarization: RHCP
Connector: RP-SMA-J plug

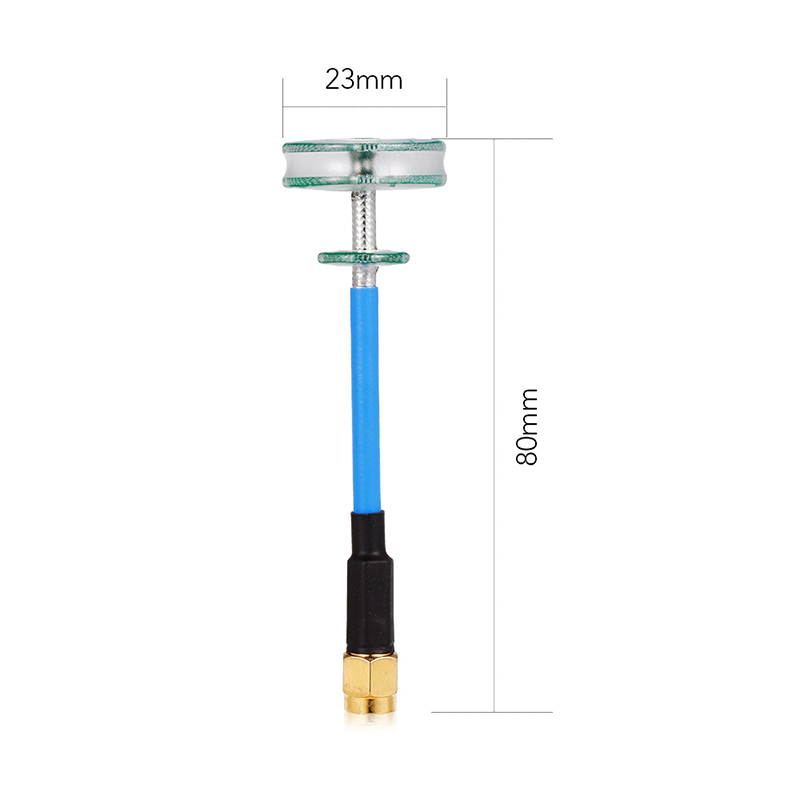

Length: 80mm
Maximum diameter: 23mm
Weight: 9g (Pcs)
Package Information:
Package size: 10.7 * 5.4 * 5.2cm / 4.2 * 2.1 * 2.0in
Package weight: 45g /1.6oz
General box package
Package List:
2 * Antenna
$$
$$
$$
$$
$$
$$
$$
$$
