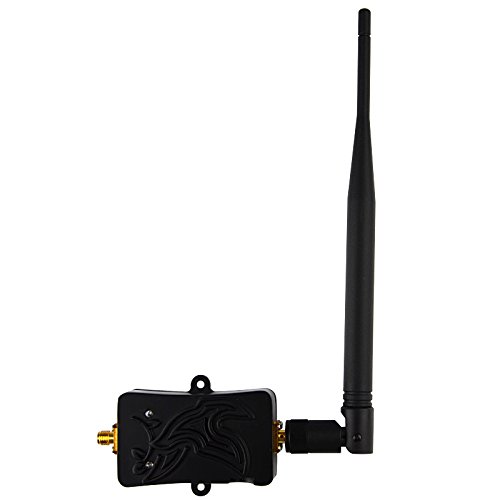

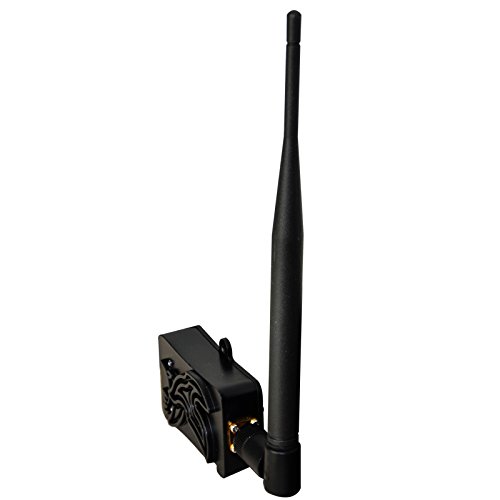

Wifi Signal Booster 2.4Ghz 4W 802.11 Signal Extender Wifi Repeater Broadband Amplifiers for Wireless Router, with 5dBi Antenna









2.4GHz


5.8GHz

Product Description

Key Features:
improving the link quality and coverage of certified WLAN devices
2.5dB ultra-low noise
Wide 6V to 16v operating input voltage range
working with certified IEEE 802,11 b/g/n wireless Lan devices
Simply plug and play, no software is required

Specification:
Frequency range : 2.4~2.5Ghz
Operating voltage : 6~16V
Receiving gain: 10dB +/- 1
Transmission gain : 13dB +/- 1
Input trigger power : Min 3dBm Max : 20dBm
Maximum output Power : 36dBm (4W)
EVM : 3%28dBm 802.11g 54Mbps OFDM 64QAM BW 20Mhz
DC supply current : 435mApout 28dBm 9V
Noise figure: <2.4dB
TX/RX switch time delay : 1us
LED indicator : Transmitter : Green, Receiver : Red
Operating ambient temperature : -40 deg +70 deg
operating humidity : up to 95% rel. humidity
Dimension : 82x50x21mm
Weight: 0.25kg net

Package include:
1x 4W WiFi Signal Booster,
1x 9V 1A Power adapter,
1x 20cm RG316 Cable,
1x 5dBi Antenna,
1x Manual

Application:
Wireless Lan 802.11b/g/n access point clients
Based on the 2.4ghz WLAN Wireless base stations
Based on the 2.4ghz WLAN wireless bridges
Indoor distribution systems (multi-play) in the combiner
Based on Zigbee, bluetooth protocol wireless device

Installation instructions:
Step1: disconnect poweer supply to AP/Router
Step2: Detach the antenna from your certified wireless AP/Router
Step3: Connect RG316 cable ( included n the package) to the booster and AP/Router
Step4: Connect the antenna to the other end of the booster
Step5: Connect the power supply to the booster first and subsequently the AP/Router


Feature

Improving the link quality and coverage of certified WLAN devices
5dBi ultra-low noise, simply plug and play, no software is required
Wide 6V to 16v operating input voltage range
Working with certified IEEE 802,11 b/g/n wireless Lan devices
NOTICE: The wifi booster only boost the wifi coverage range, BUT please know that it couldn't boost the speed of your original router or hold the same speed of the original router.
Brand : SINMAX
EAN : 4646723709781
Product Dimensions(LxWxH) : 9x6x3cm ; 399 g
Package Dimensions(LxWxH) : 22x13x6cm ; 399 g
