Item Descriptions:

size:

100 M

According to work

Choose

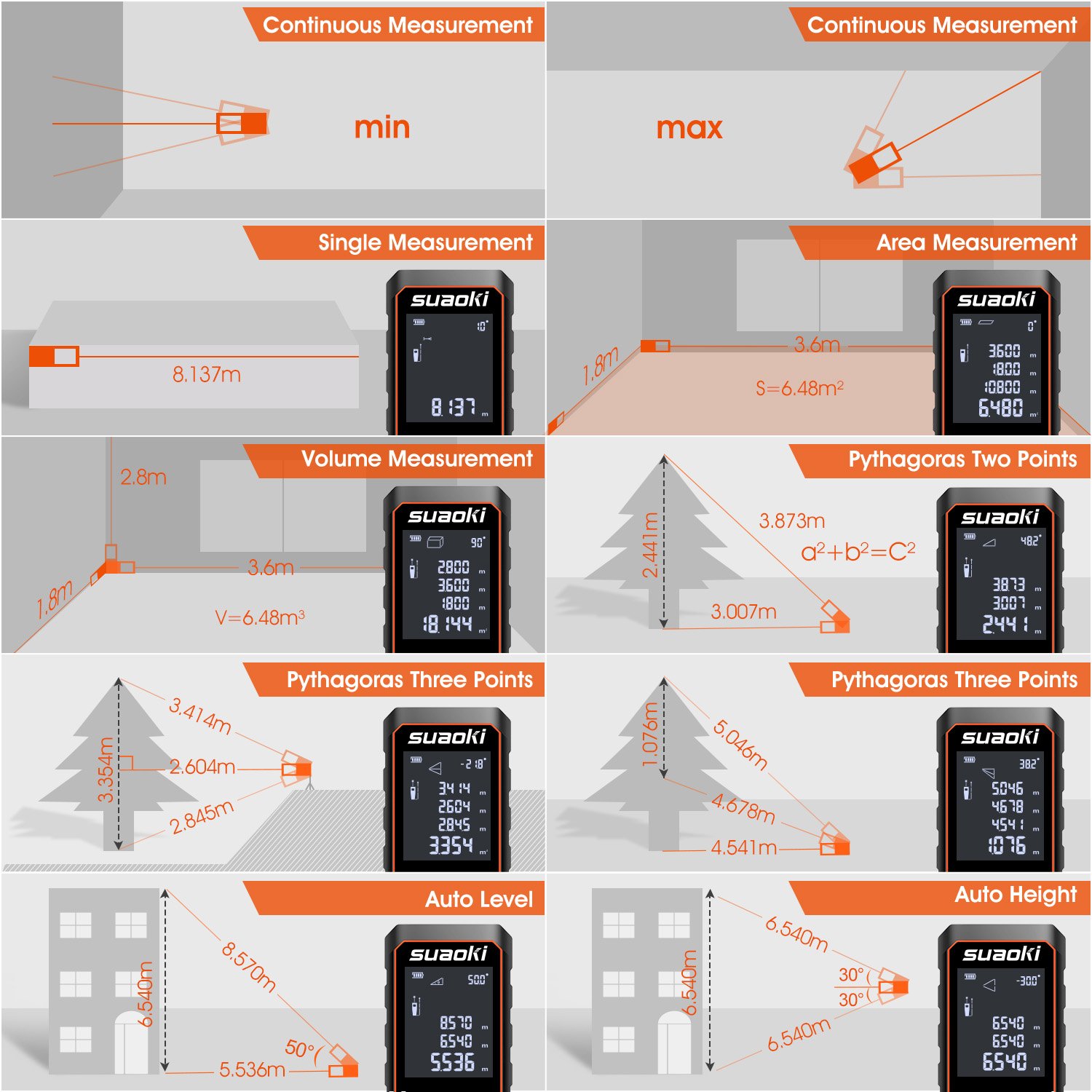

Type of measurement mode:

Single measurement, continuous measurement (maximum / minimum distance), area, volume, Pythagorean 3 mode, automatic horizontal, automatic vertical + calculation function (addition / subtraction of measurement values ​​is possible)

Auto horizontal

Distance calculation:

When measuring only the slanted line, the inclination angle, vertical distance, horizontal distance are automatically calculated and displayed.

Automatic vertical distance calculation:

When you measure the slope of two sides, the angle and the vertical distance are automatically calculated and displayed.

suaoki laser range finder

S7

Features:

Maximum measurement distance 100 meters

Built-in electronic sensor to sense the body angle.

The body angle is displayed on the upper right of the display.

Angle measurement accuracy:

0.3 °

Measurement reference point

Front of the main body, tripod installation screw part, rear end part

Automatic measurement value measurement

20 cases

):

The latest data of 2 are automatically stored.

There is nothing to say "I forgot to save!"

Mute function:

Press and hold the history data / mute button to silence.

Screw hole for fixing the tripod

In order to measure with high precision, we recommend that you measure the laser range finder with a tripod and using the adapter at the same time.

Automatic

OFF

If you do not operate for 30 seconds, the laser light turns off automatically.

If you do not operate for about 3 minutes, the main unit turns off.

It is possible to forget the electric cutting.

It saves energy and extends battery life.

IP 54 Drip-proof and dustproof standard

A wide range

But

By covering with a soft cover, it is less slippery and achieves higher impact resistance

Product Specifications:

Measurable range: 0.2 to 100 m

Distance measurement accuracy: ± 2 mm; Angle measurement accuracy: ± 0.3 °

Automatic power supply OFF: Laser light: about 30 seconds Body: about 3 minutes

Laser class: Class 2, <1 mW

Battery: 3 AAA alkaline batteries (included)

Size: 115.5 mm (L) x 49 mm (W) x 27 mm (H)

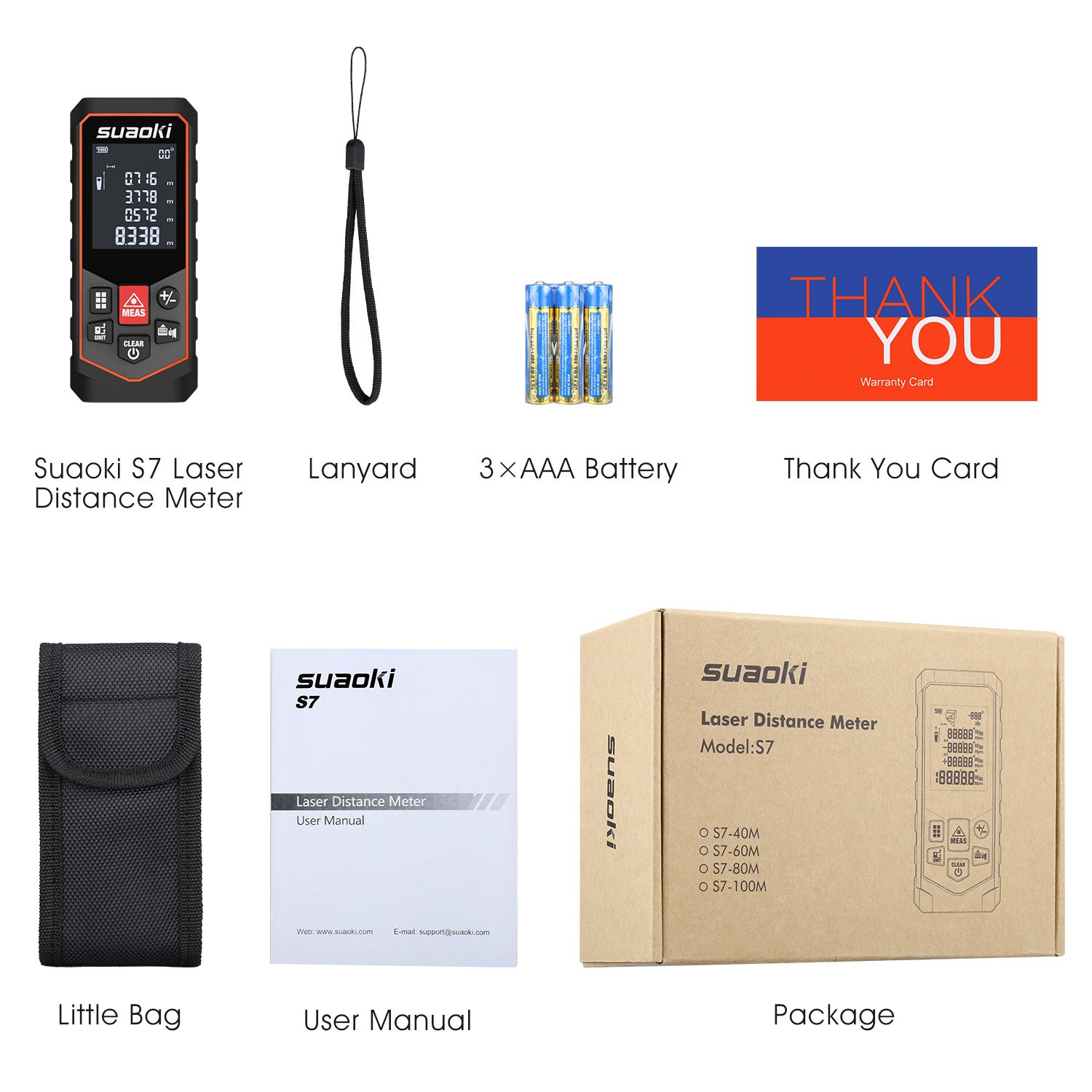

Package contents:

1 x suaoki laser rangefinder S 7

3 x AAA alkaline battery

1 x Owner's Manual (for Japanese)

1 x storage bag

1 x strap

1 x thanks card

Features:

• Measurable range: 0.2 to 100 m Distance measurement accuracy: ± 2 mm Angle measurement accuracy: ± 0.3 ° Laser class: Class 2
• Professional exclusive, abundant functions: single measurement, continuous measurement (maximum / minimum distance), area, volume, Pythagoras ①②③ (side measurement), automatic horizontal calculation, automatic height calculation.
• Addition / subtraction of measured values is also possible.
• Measurement reference point: The front end of the main body, the screw hole for the tripod, and the screw hole for fixing the rear end tripod are provided so that more accurate measurement is possible.
• Built-in electronic sensor for measuring body angle, history data saving (20), with quiet function, protection: IP54 laser automatic OFF (after 30 seconds), power supply automatic OFF (after 3 minutes)
• Accessories: Storage bag, strap, Japanese instruction manual, 3 AAA alkaline batteries, thanks card size: 115.5 X 49 X 27 mm

Product information:

Shipping Weight: 281 g

Package Dimensions: 9.80 x 20.80 x 29.59 cm
