Item Descriptions:

size:

1 million pixels

Notes:

- For sealing reasons, this camera is not equipped with a power switch.

Simply plug the power cord and the camera will operate.

- Because it is not a PTZ surveillance camera but a manual direction adjustment type dome type camera, please adjust the direction manually according to your request.

- When initializing the camera, connect the camera to the router with the LAN cable, since it is necessary to make the camera the same Ethernet as your smartphone (or PC).

Technical specification

Image sensor:

1/4 "OV 9732 color CMOS WXGA (1 egapixel)

HD sensor installed

Image element:

1280 * 720 Pixels

lens:

3.6 mm (F: 1.4)

Minimum shooting illuminance:

0.5 Lux

Video compression method:

H.264

Optical frequency:

50 Hz, 60 Hz

Supported resolution:

720p (1280 * 720), VGA (640 * 480), CIF (352 * 288)

frame rate:

25 fps (50 Hz), 30 fps (60 Hz), Down adjustable

Image quality adjustment:

Brightness, saturation, chromaticity, control degree adjustable

White balance:

Automatic gain control mode, indoor mode, outdoor mode selectable

Infrared mode:

Automatic mode, manual mode (on / off)

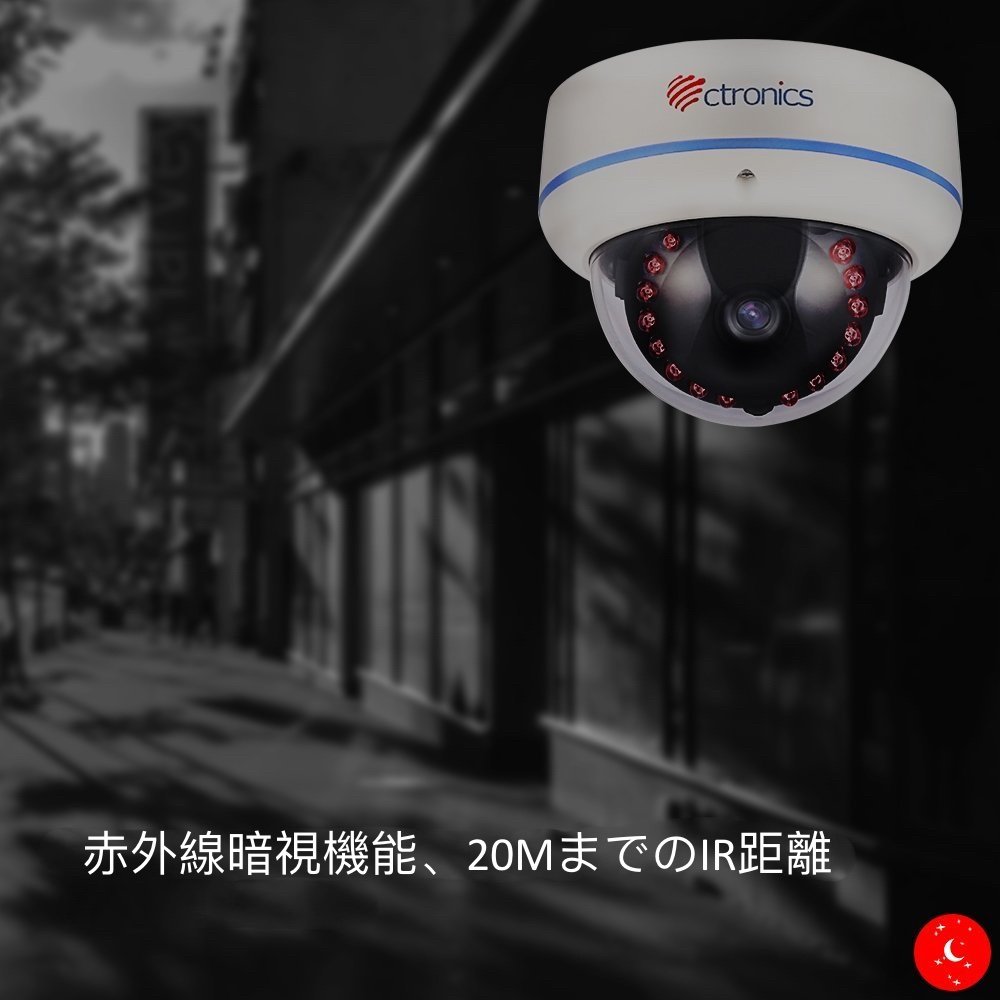

Night vision:

μ 5 mm infrared LED 15 pieces, infrared irradiation distance: approx 20 m

Ethernet:

10/100 Mbps RJ-45

Network protocol:

TCP / IP, UDP / IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP

Wireless standard:

WIFI (IEEE 802.11 b / g / n)

Data transfer rate:

11 Mbps (Max.) 802.11 g: 54 Mbps (Max.) / 802.11 n: 150 Mbps (Max.)

Corresponding IP address:

Static IP address, dynamic IP address

Motion detection:

Detect and record if there is movement in camera image

Alarm notification:

E-mail / FTP alarm

Power supply:

DC 12 V 1.0 A

power consumption:

12 W

WIFI interface:

WIFI Arena

Operational environment:

20 ° to 55 ° C (32 ° F to 131 ° F)

Operable humidity:

10% to 80% (no condensation)

Storeable environment:

-20 ° C to 60 ° C (14 ° F to 140 ° F)

Storage humidity:

0% to 90% (no condensation)

External dimensions:

19.5 * 10.5 * 10 cm

weight:

0.58

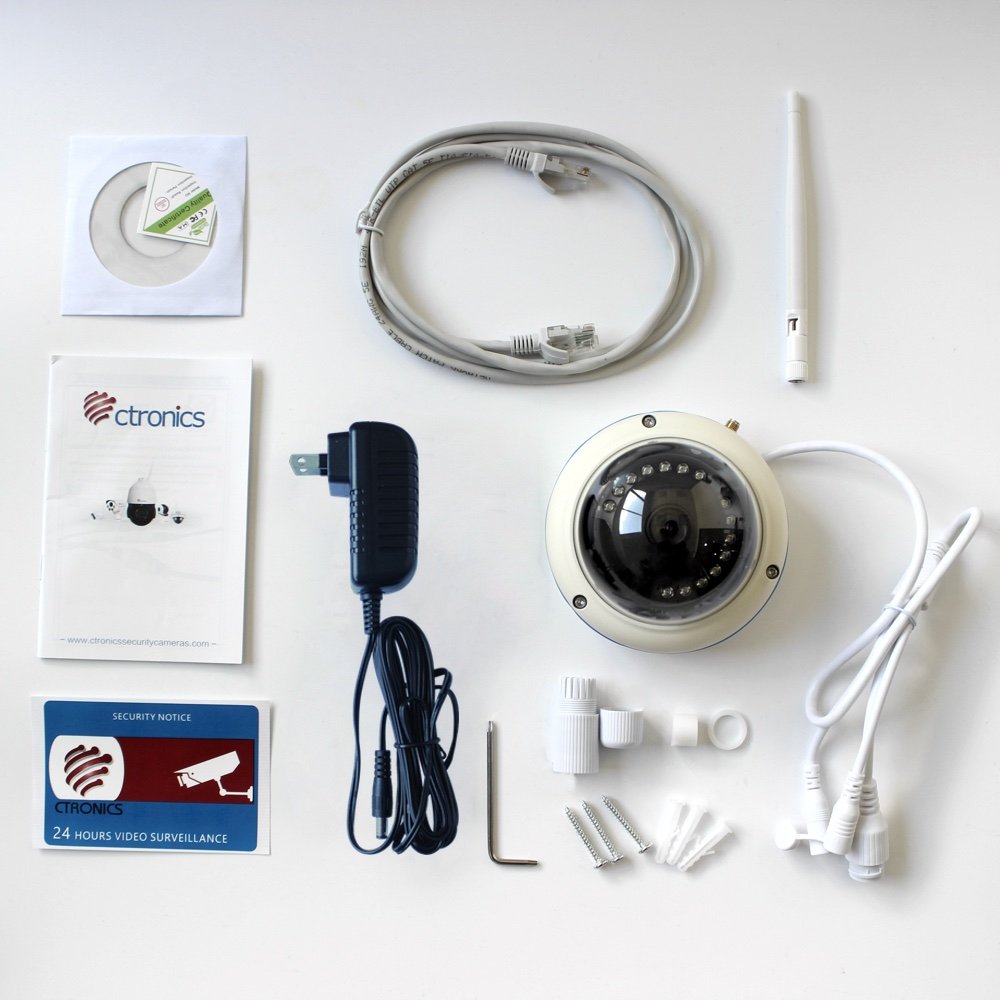

In the package

1 * 720P wireless dome camera

1 * CD (software attached)

1x power adapter

1x Japanese Quick Install Guide

WIFI camera best suited for home security · crime prevention

When working together, going home late, or when you go out, you can check the picture clearly with your smartphone even though you are away from home, such as the elderly or bed, or the child returns safely, and is very safe.

No need to worry about work, vacation, when, wherever you go.

Supporting P2P, remote monitoring, schedule recording, continuous recording, motion detection, privacy mask setting, this Ctronics WIFI camera can also support SD card automatic recording (up to 128 G can be supported), FTP, NVR recording

Ideal for home security / crime prevention.

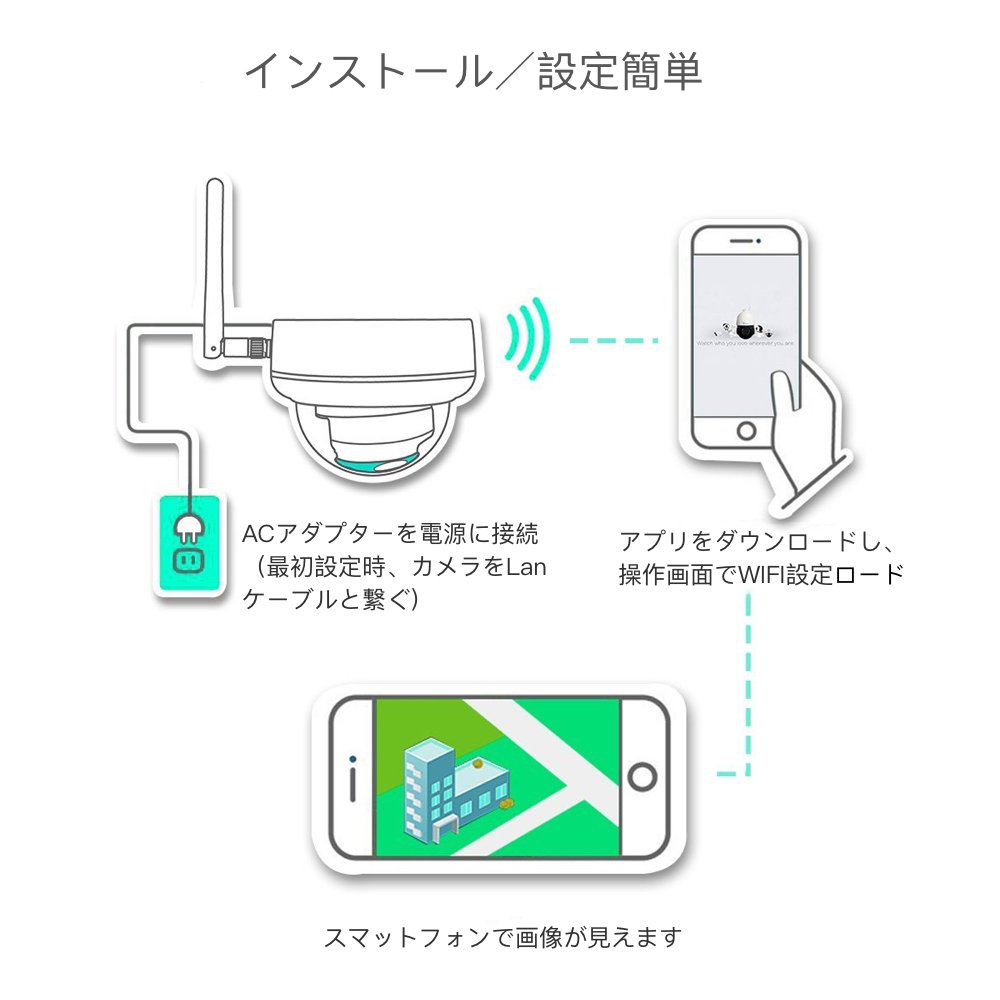

Easy to install, plug & play WIFI camera

Ctronics APP makes it easy to set up the camera.

You can conveniently access the camera in various ways

From smatt phones, from PAD or from PC (IE / Chrome / Firefox browser), you can access anytime anywhere with equipment at hand, safe.

Eagle Eyes of threatening wide angle & darkness

Features:

• Please enter model number Confirm this is compatible:
• 720P HD video and night vision: 1280 * 720 resolution, crystal clear image, all metal Bottie
• Free Software & Remote View: A free PC client and phone application for Android & IOS.
• You can access the camera anytime, anywhere using free software.
• , Online playback, snapshots, video records, and parameter changes.
• In addition, very quick and simple setup: WIFI setting possible with 2 steps * Note: WIFI bandwidth only supports 2.4 GHz (11 n / g / b), be sure to set WIFI of your terminal to 2.4 GHz band
• Please register from the beginning.
• Control protocol: ONVIF 2.0 protocol, high interoperability.
• It can interoperate with many brands (NVR, Ctronic, Hikvision).
• Or, with SD card
• Motion Detection Recording: A setting to automatically record when there is movement within the specified range of the screen.
• Because the recording record becomes few, it will save the SD card.
• (Since only fat32 is supported, if other SD cards are used, it will be formatted by this camera, so please be careful)
• Alarm with motion detection: Push notification will be sent to the smartphone if there is movement in the camera image so that something happens even on the go.
• Anytime, anywhere, real-time surveillance video, recorded video can be seen on smartphone or PC terminal!

Product information:

Shipping Weight: 680 g

Package Dimensions: 11.61 x 13.49 x 13.79 cm
