Item Descriptions:

size:

iPhone 6s White

step 1:

First turn off the power.

Remove the screws on both sides of the main unit's bottom Lightning connector.

A dedicated driver is required because of the special shaped screw called penta lobe (star).

Step 2:

Pull the suction cup to the front button side of the front panel and pull slowly to open the front panel.

If the panel is tightly fitted, at the stage where a slight gap is formed between the panel and the case, inserting a plastic spatger or the like makes it easy to open it.

Notes on opening the main unit:

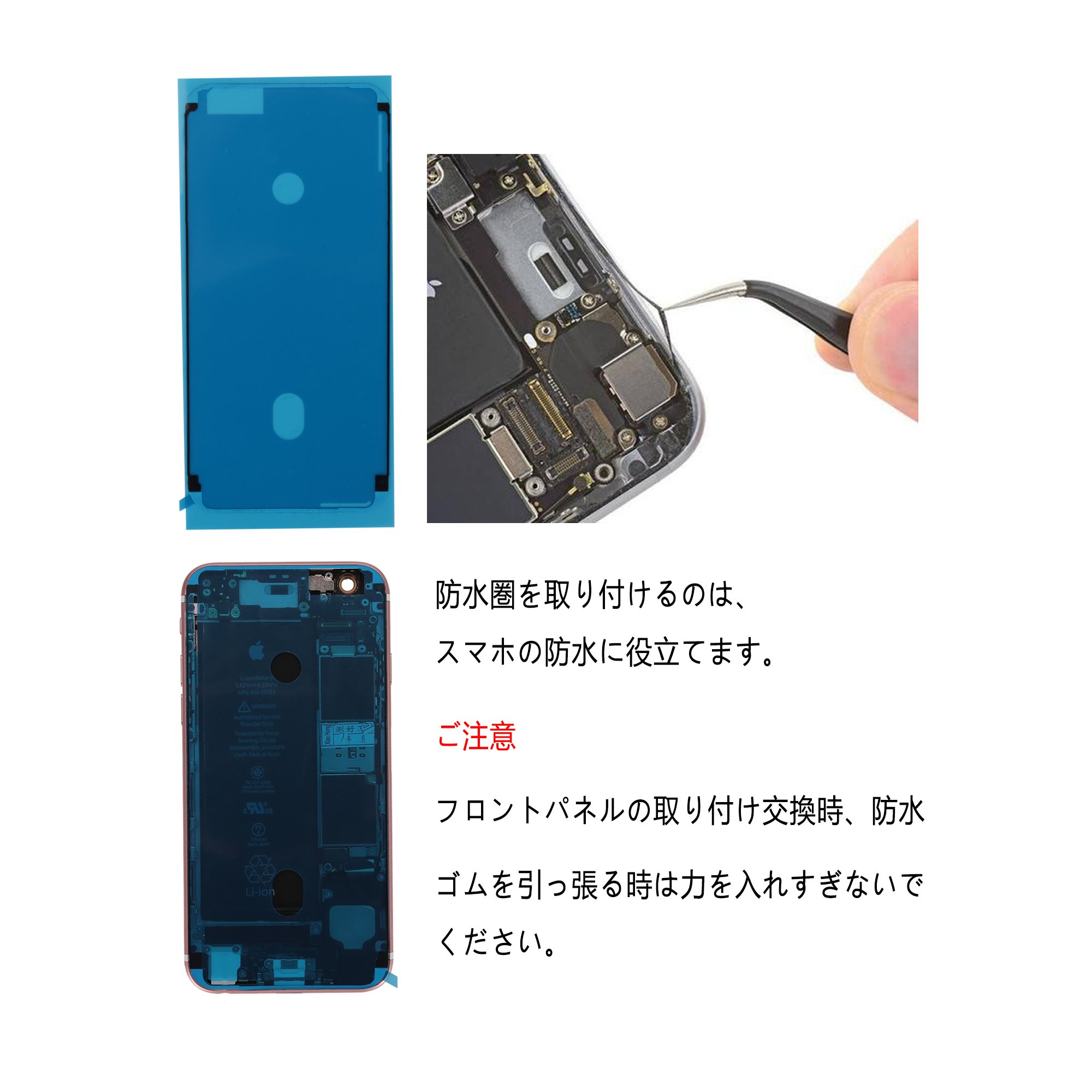

iPhone 6s A waterproof seal is affixed one round around the inside of the liquid crystal. It is a little hard, if it puts out force forcefully it will cause it to fail, so it is about 1 or 2 minutes towards the edge of the main body with a dryer

It is easy to peel off after applying heat a little.

Step 3:

Before releasing the battery connection so that no electricity flows to the iPhone main body, the fixing plate is fixed with two screws before using it, I will remove using the Phillips screwdriver.

Step 4:

Remove the screw that holds the liquid crystal screen or the fixing plate of the cable connecting the digitizer and the logic board, and remove the fixing plate when the screw is removed.

(Caution: Be sure to note the screw position as the screws here are different in size depending on the location.)

Step 5:

Remove the cables connecting the LCD screen, digitizer, front camera, etc. to the logic board in order.

Remove it by raising the connector part with a plastic spatger or the like as shown in the photo on the right.

When the cable is disconnected at the end, the front panel and the bottom case side are separated.

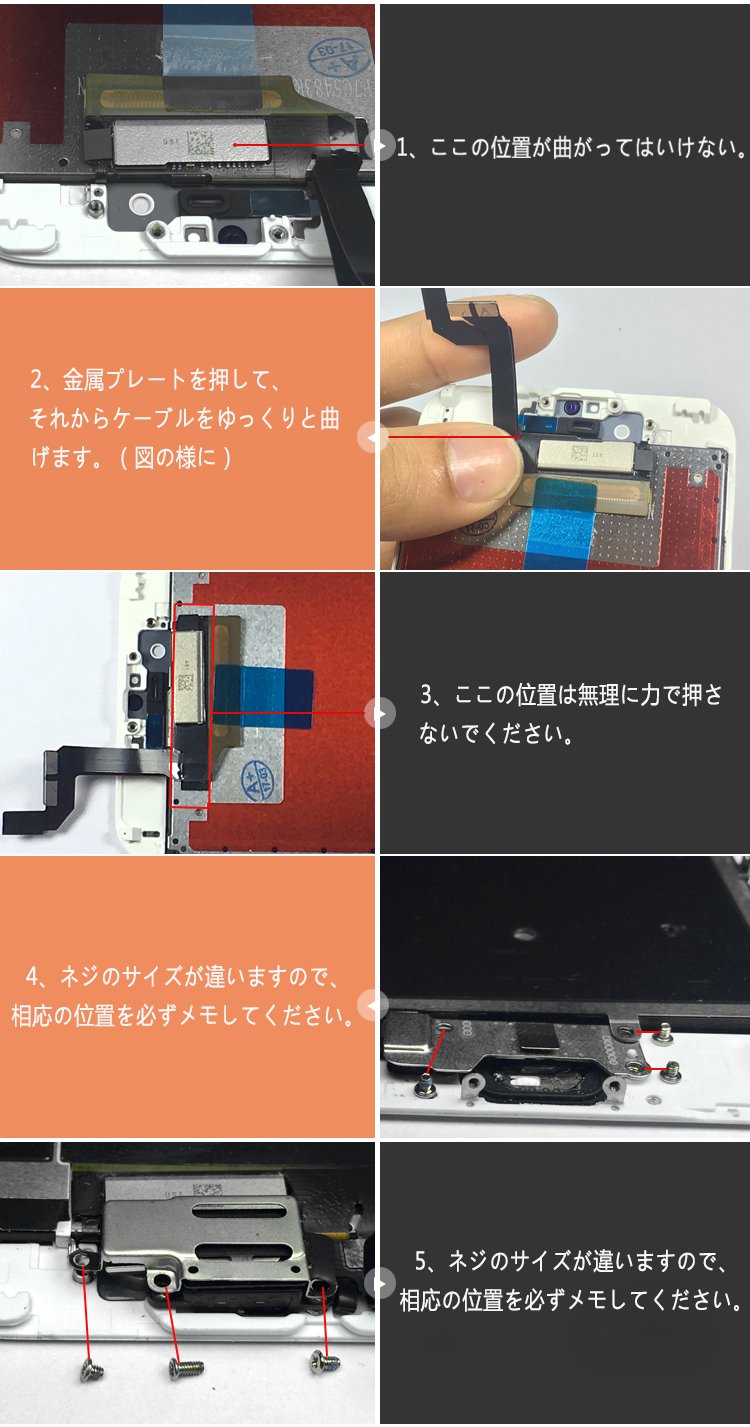

please note:

Do not fold when connecting to prevent damage to the cable;

Please be sure to note the original position of the screw because the size of the red circle part varies according to the place; (Note: If you use a long screw at the short screw part, the circuit may short-circuit

Let's be careful (since there is a circuit under the screw hole);

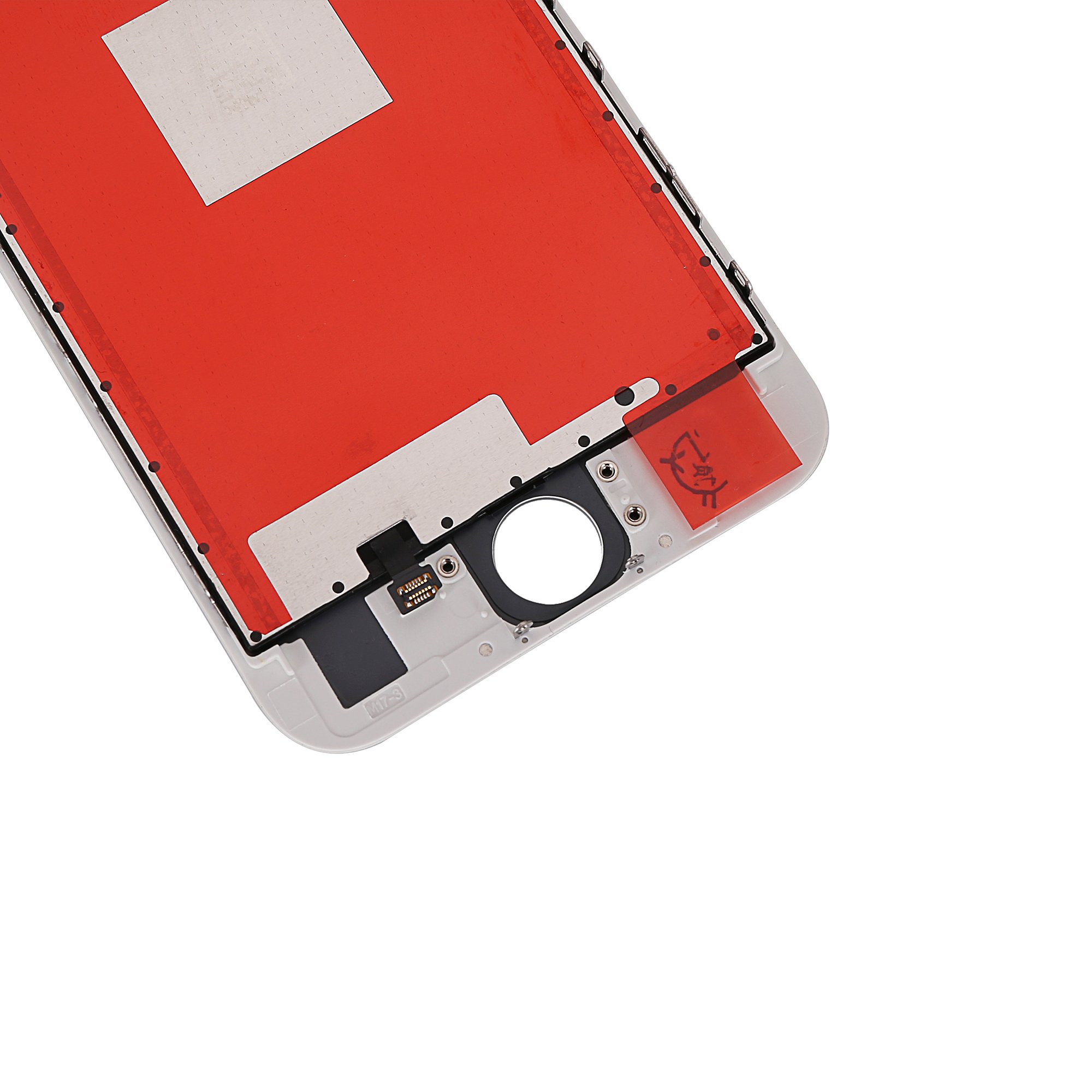

Do not press the inside of the red frame of the screen on the right, either when removing the LCD panel or mounting it, as it is easy to break, please proceed carefully.

Features:

• Please enter model number Confirm this is compatible:

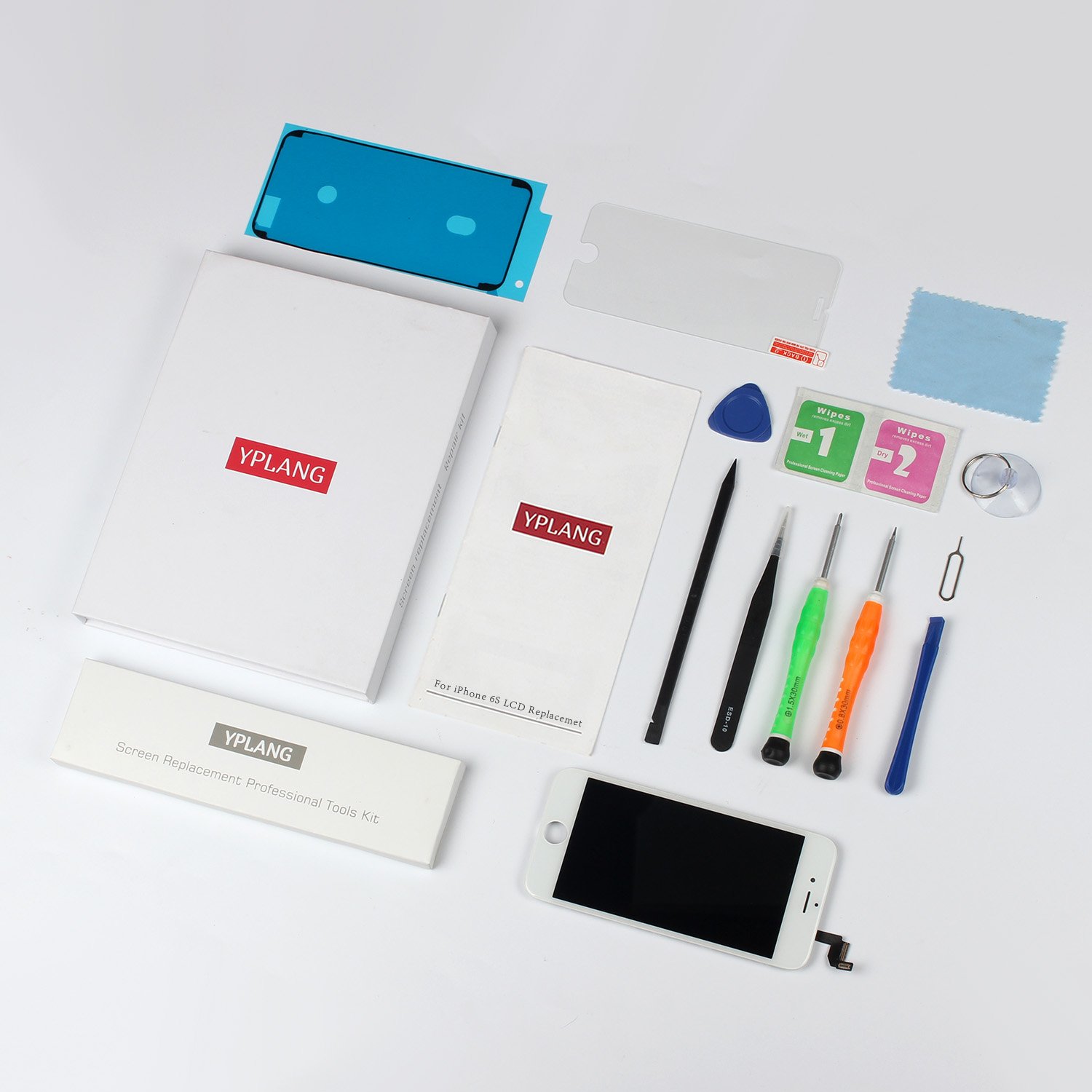

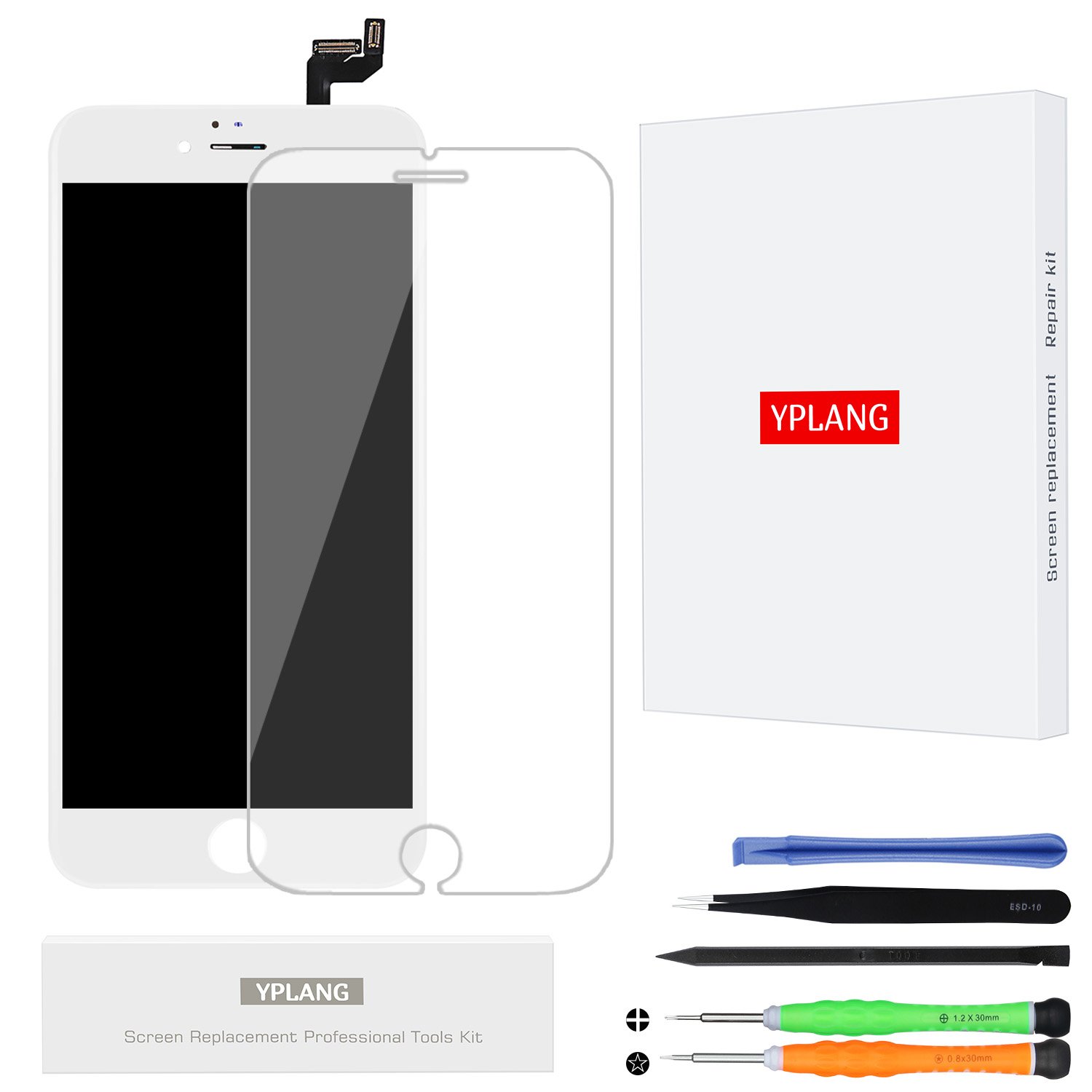

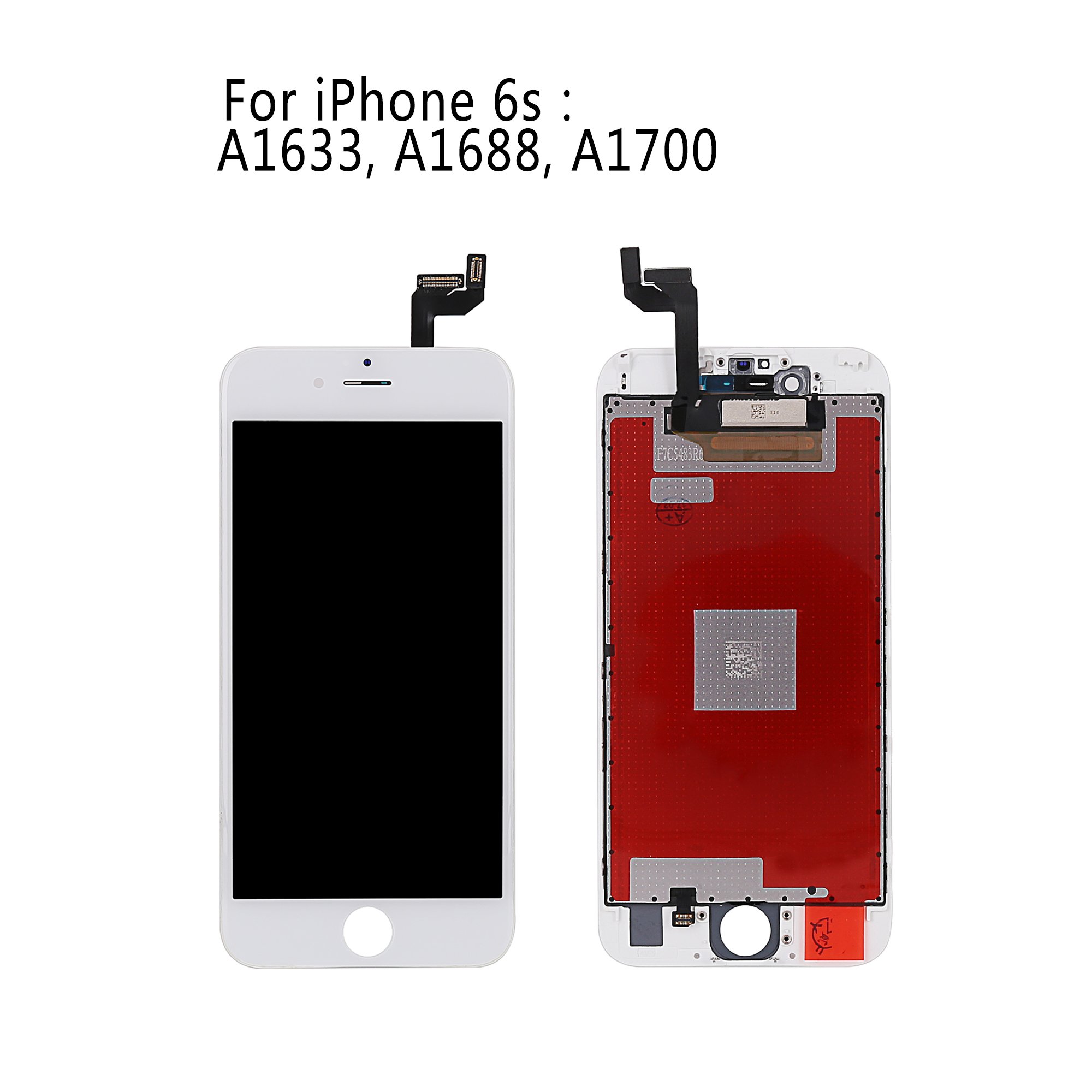

• [Compatible models] Comes with an integrated set of liquid crystal panel and LCD for iPhone 6S, and a tool kit for repair and replacement.
• Repair troubles such as display trouble, LCD screen cracking, broken pixels, troubles of coloring, damage of the screen, etc.
• Instructions for installation and replacement are included, installation requires some knowledge and skill, so if you can not install it, you better ask experts or youtube.
• When installing it, it becomes the cause of breakdown (the screen is dark, line entering, touch defective, crank-in key failure, etc.) due to deformation of the frame of the motherboard, malfunction of the motherboard, poor contact of various cables at installation, so be sure to be careful
• Please, if you have any questions or concerns, please contact us anytime.
• Since all the liquid crystal panels are used normally, all items are inspected before shipping, so you can purchase with confidence.

Product information:

Shipping Weight: 222 g

Package Dimensions: 1.80 x 15.01 x 19.99 cm
