Item Descriptions:

Monitor & Wireless HD Camera Set that can display images shot with the camera on the monitor by simply turning on the power

"Camera part"

● Image sensor: 1/4 inch CMOS sensor

● Number of pixels: Approximately 920,000 pixels (1280H × 720V) HD

● Shooting distance: about 1.5m ~ ∞

Infrared irradiation distance (m): Up to about 10

● Dustproof and waterproof performance: IP66

● Camera power cable length (m): about 3.2

● External dimensions (mm): H66 × W127.5 × D62

Mass (g): about 450

"Monitor section"

● Monitor size: 7 inch full color monitor (800H × 480V)

● Number of cameras connected: Up to 4 units (4 units can be recorded simultaneously)

● Save recording: microSDHC / microSDXC memory card (maximum 128GB) (Class 10 or more)

● Recording resolution: HD 1280H × 720V, VGA 640H × 480V

● Overwrite recording: possible (ON / OFF) 4 units simultaneous recording possible

● Playback method: main unit monitor playback, smartphone, tablet

Charging time (time): About 6

● Usage time (hours): About 3

● Dustproof and waterproof performance: None (non waterproof)

● Power consumption (W): 5.5 (10.5 W during charging)

● Weight (g): About 750 (including charging base)

"accessories"

● Camera AC Adapter × 1 (Code about 1.8 m, DC 9 V)

● AC adapter for monitoring × 1 (cord approx. 1.4 m, DC 5 V)

● Antenna for camera × 1

● Hexagonal wrench × 1 (for camera angle adjustment)

● Screws × 3

● Anchor × 3 (for camera fixing)

● Instruction Manual (warranty included) × 1

Features:

• Please enter model number Confirm this is compatible:
• It is a monitor & wireless HD camera set that can display images shot with the camera on the monitor just by turning on the power.
• ● Without wiring, you can display the images shot with the camera on the monitor simply by turning on the monitor's power switch.
• Since you can easily record and set up by touch panel operation, there is no need to operate by PC.
• Dustproof / waterproof performance Since it is a waterproof camera compatible with IP66, it can be installed indoors as well as outdoors.
• (The monitor is for indoor use.) ● Since the microSD card recorder is mounted on the monitor, manual recording, motion detection automatic recording, schedule recording are also possible.
• * Optional SD card is required separately.
• Built-in rechargeable battery of 3000 mAh on the monitor.
• It can be confirmed wirelessly anywhere in the house.
• Since you can operate with touch panel, operation is easy.
• (Monitor resolution 800 H × 480 V)
• When the motion sensor mounted on the camera detects movement, it informs the monitor, smart phone, tablet.
• ● Since the camera and monitor can communicate up to 300 m, you can check the image of the camera anywhere in the house.
• (In the case of environment with good line-of-sight and no obstruction of radio waves)

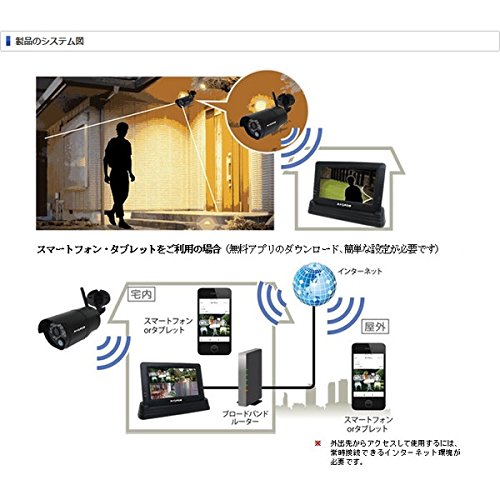

• If the monitor is connected to the network line, you can check the camera image from the outside with the smartphone or tablet.
• (Supported OS: iOS 6.0 or later, Android 4.0 or later) ● Up to 4 simultaneous shooting is possible by connecting optional expansion camera (WHC7M - C) to the monitor.

Product information:

Shipping Weight: 1918 g

Package Dimensions: 12.80 x 27.41 x 29.39 cm
