Product Description

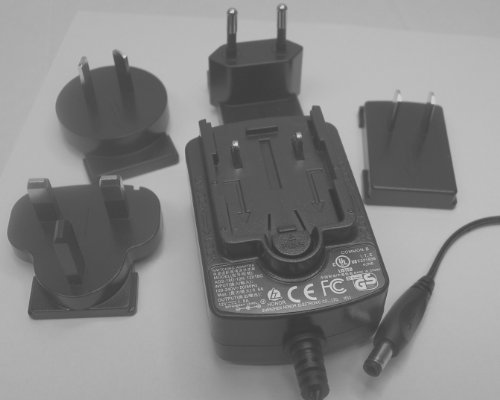

GENUINE ADS-18D-12N 12018G SWITCHING ADAPTER， 12V， 1.5A， WITH STANDARD ROUND PLUG (2.5mm X 5.5mm) OUTPUT PLUG CONNECTOR
FEATURES:
12V @ 1.5A MAXIMUM PERFORMANCE
ENERGY SAVER - STAND-BY LESS THAN 0.5-WATT
HIGH-EFFICIENCY POWER CONVERSION RATIO @ 88%+
LOW RIPPLE - OPERATING NOISE
DURABLE-DUTY MOLD-INJECTED CASING
PATENTED INPUT FUSE PROTECTION TECHNOLOGY

GENERAL SPECIFICATIONS:
APPLICATIONS: GENERAL， VARIES
COOLING FAN (S): N/A
MAXIMUM OUTPUT POWER: 12V @ 1.5A
MAXIMUM CAPACITY: 1.5A
VOLTAGE: 12V
OUTPUT CONNECTORS: FIXED
ROUND TIP (Standard 2.5X5.5mm)
CONNECTOR SIZE: N/A
OPERATING EFFICIENCY: 88% +
OPERATING TEMPERATURE: 0 ~ 40 °C +
OPERATING HUMILITY: 5 ~ 95%
NON-CONDENSING STORAGE TEMPERATURE: -20 ~ 80 °C +
RIPPLE / NOISE: 350 mV
SAFETY APPROVAL: CB， UL， cUL， CE， NEMKO， PSE， DFT， EMC， BSMI， C-TICK
MBTF: 100，000 HOURS @ TYPICAL
OTHER TESTS: 100% HI-POT， 100% BURN-IN @ FULL LOAD
INPUT SPECIFICATIONS:
Input Voltage: 90V AC to 264V AC， 47 ~ 63Hz
Power Factor Correction (PFC): AUTO FULL RANGE
Input Current: 2.4A rms MAX. @ 100V
2.4A rms MAX. @ 240V
Input Protection: Patented Input Fuse Protection

OUTPUT SPECIFICATIONS:
NUMBER OF OUTPUTS: 1
Output Voltage: +12V DC
Output Current: 1.5A @ +12V DC MAXIMUM
Output Protection: Complete OVP， OCP， SCP Protection
OVP: OVER VOLTAGE OUTPUT PROTECTION
OCP: OVER CURRENT OUTPUT PROTECTION
SCP: SHORT CIRCUIT OUTPUT PROTECTION


Brand : Shenzhen Honor Electronic
Item model num : ADS-18D-12N 12018G
MPN(PartNumber) : ADS-18D-12N 12018G
EAN : 0749656166295
