Item Descriptions:

size:

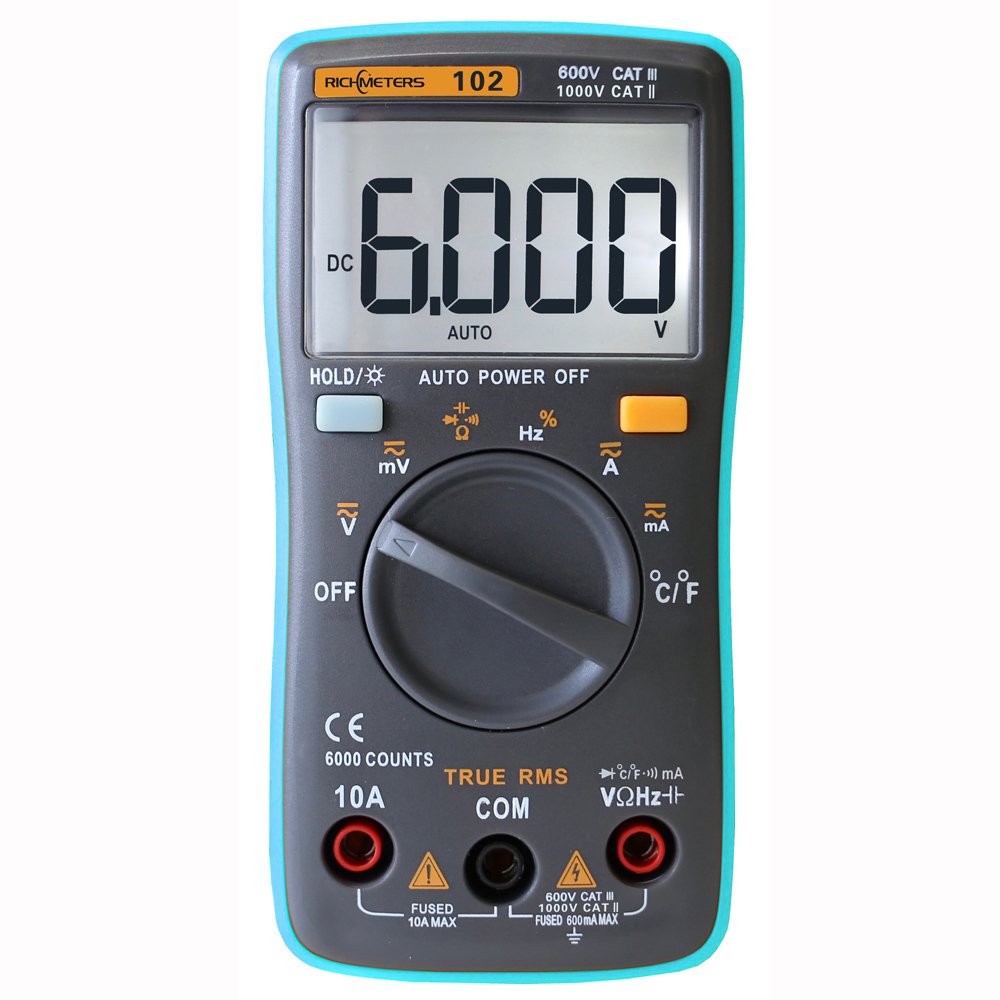

RM 102 temperature measurement

Overview:

It can be used to measure AC / DC voltage, AC / DC current, resistance, capacitance, diode, continuity test, frequency etc

This battery-powered product uses double integrating A / D conversion as the core.

Stable function and high reliability.

Due to overload protection and backlighted LCD display functions, this product is a perfect tool for lab, factory, radio fan, and home use.

Characteristic:

LCD display with backlight.

Max display: 6000 count.

Automatic polarity identification.

Measurement mode: Double integral style A / D conversion.

AC / DC voltage, AC / DC current, resistance, capacitance, diode, continuity test, frequency etc

The RM 102 is specifically designed with temperature measurement function.

Overrange indication: OL.

Low voltage display.

Auto power off.

Sample rate: 3 times per second.

specification:

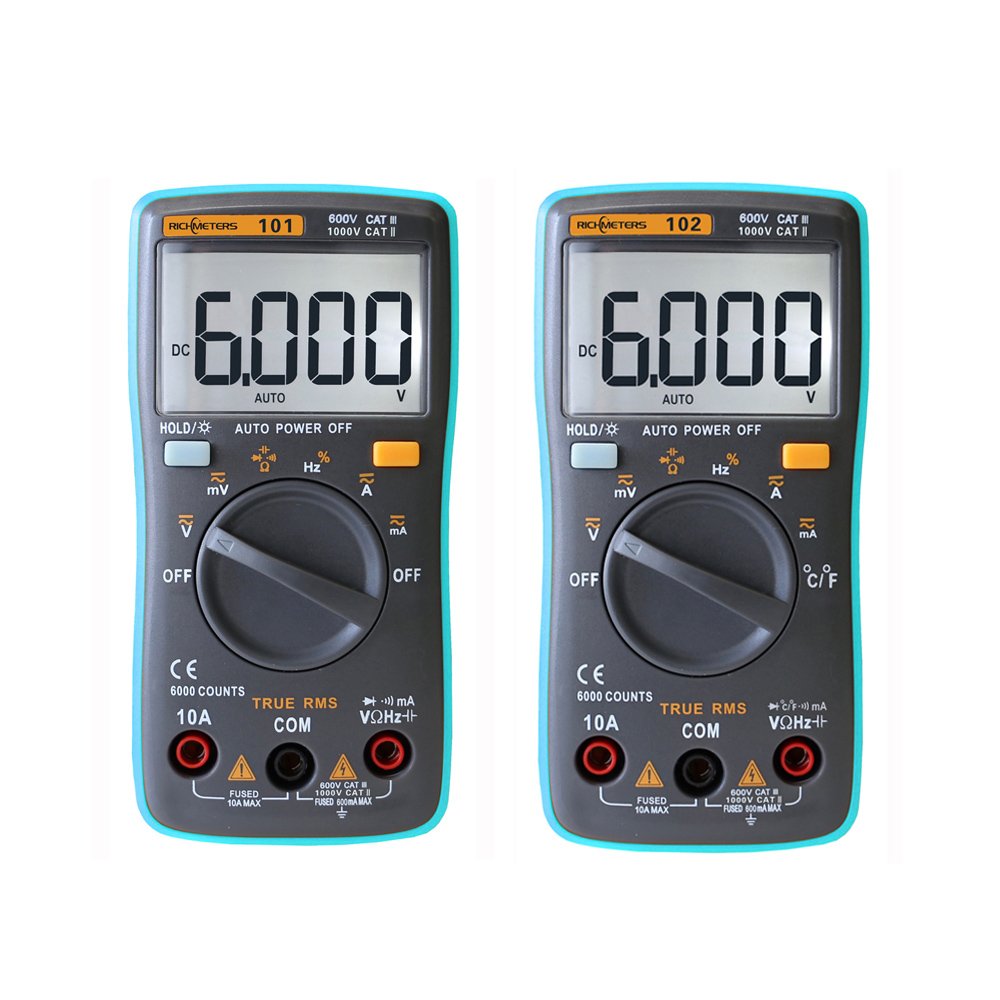

Model: RM 101, RM 102 (option)

Maximum number of display: 6000

Working environment: 0 - 40 ℃

Relative humidity: <80%

Power supply: 3 V (1.5 V battery * 2) (sold separately)

DC voltage: 600 mV / 6 V / 60 V / 600 V / 1000 V

DC voltage resolution: 0.1 mV / 1 mV / 10 mV / 100 mV / 1 V

AC voltage: 6 V / 60 V / 600 V / 700 V

AC voltage resolution: 1 mV / 10 mV / 100 mV / 1 V

DC current: 600 μA / 6000 μA / 60 mA / 600 mA / 10 A

DC current resolution: 0.1 μA / 1 μA / 10 μA / 100 μA / 10 mA

AC current: 600 μA / 6000 μA / 60 mA / 600 mA / 10 A

AC current resolution: 0.1 μA / 1 μA / 10 μA / 100 μA / 10 mA

Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ

Resistance resolution: 0.1 Ω / 1 Ω / 10 Ω / 100 Ω / 1 kΩ / 10 k Ω

Capacitance: 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1000 μF / 10000 μF

Electrostatic capacity resolution: 10 pF / 100 pF / 1 nF / 10 nF / 100 nF / 1 μF / 10 μF

Temperature: -20 to 1000 ° C / -4 to 1832 ° F (RM 102 only)

Temperature resolution: 1 ° C / 1 ℉

Item size: about 13 * 6.5 * 3.2 cm / 5.1 * 2.56 * 1.26 in

Item weight: 113 g / 3.98 oz

Package size: 14 * 7 * 5 cm / 5.5 * 2.75 * 1.97 in

Package weight: 182 g / 6.42 oz (RM 101), 202 g / 7.13 oz (RM 102)

Package list:

1 * Multimeter

1 * pair test lead

1 * Thermocouple (RM 102 only)

1 * English User Manual

Note: Switching to mV does not affect the test results at all, even if there is a slight change in value even if it does not work.

Features:

• Please enter model number Confirm this is compatible:
• It can be used to measure AC / DC voltage, AC / DC current, resistance, capacitance, diode, continuity test, frequency etc
• This battery-powered product uses double integrating A / D conversion as the core.
• Stable function and high reliability.
• Due to overload protection and backlighted LCD display functions, this product is a perfect tool for lab, factory, radio fan, and home use.
• LCD display with backlight.
• Max display: 6000 count.
• Automatic polarity identification.
• Measurement mode: Double integral style A / D conversion.
• Overrange indication: OL.
• The RM 102, which measures AC / DC voltage, AC / DC current, resistance, capacitance, diode, continuity test, frequency, etc., is specially designed with temperature measurement function.
• Note: Switching to mV does not affect the test results at all, even if there is a slight change in value even if it does not work.

Product information:

Shipping Weight: 235 g

Package Dimensions: 5.00 x 7.01 x 13.99 cm
