Item Descriptions:

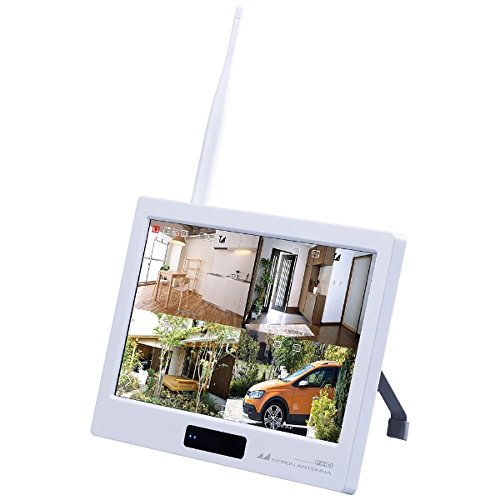

■ Large screen 10.1 inch touch panel monitor

■ 2 Megapixel FHD full high vision camera High resolution of 1920 × 1080.

(Monitor part resolution is 1024 × 600)

■ HDMI output terminal.

■ Recording function Connectable with an external hard disk (sold separately, up to 2 TB compatible).

With SD card slot, movie recording is also possible on SD card (optional).

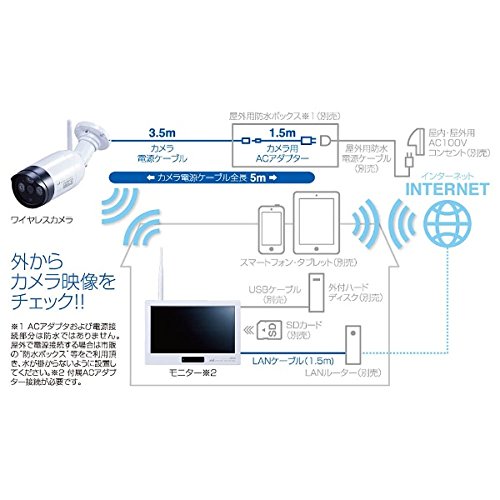

■ If you connect the monitor to the network line, you can check the video from the outside with a smartphone / tablet.

You can download and use free special application with GooglePlay, AppStore.

Application name FHD eye Cam Android 4.0 or later iOS 6.0 or later ※ Direct communication between the monitor / camera, smartphone and tablet is not possible.

■ 20m Night Vision When the surroundings become dark, the sensor will automatically detect and switch to infrared shooting.

■ Motion Detection When you detect changes in the monitor screen, we notify you to the monitor, smartphone, tablet.

■ Wireless communication distance is maximum 300 m.

■ IP66 Dustproof / waterproof camera ※ It is not completely waterproof.

Please use it under the eaves which rain is hard to directly reach.

■ Maximum 4 cameras connected, 4 simultaneous recording possible.

※ This product will be a set of 1 monitor and 1 camera.

When connecting with multiple cameras, please purchase optional expansion camera SCWP 06 FHD.

■ Approximate Recording Time This product can connect microSD or USB-HDD, and can record and play.

External hard disk 2 TB Resolution VGA camera 1 unit Recording time Approximately 2,890 h (about 120 days) Resolution VGA camera 4 units Recording time About 1,760 h (about 73 days) Resolution HD camera 1 unit Recording time About 2,500 h (about 104 days

) Resolution HD camera 4 units Recording time Approximately 1,470 h (about 61 days) Resolution FDH camera 1 unit Recording time Approximately 2, 340 h (about 97 days) Resolution FDH camera 4 units Recording time Approximately 1,380 h (about 57 days)

Approximate recording time based.

Overwrite movie storage support so always recording is possible.

When microSD or USB - HDD capacity becomes full, overwrite automatically from the oldest movie in order.

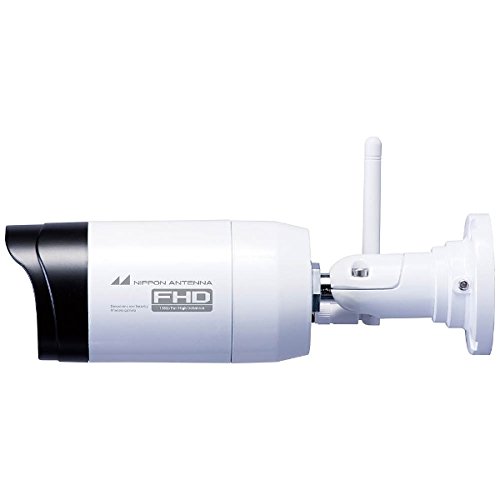

■ Camera part Minimum subject illuminance 0 lux (for infrared shooting) Viewing angle Vertical approximately 63 degrees / Horizontal approximately 90 degrees Built-in microphone Yes Image sensor 1 / 2.7 ", CMOS power supply DC + 12 V / 1A (dedicated AC adapter cable length Approx. 1.5 m

) Maximum current consumption 600 mA Power supply cable length About 3.5 m (when connecting the dedicated AC adapter, total length approx. 5 m when connected to a dedicated AC adapter) Weight Approx. 500 g Dimensions Approx. Φ 66 × Length 222 mm Operating temperature range -10 to +50 ° C LCD monitor section Monitor size 10.1 inches

Monitor resolution Resolution about 610,000 pixels (1024 x 600 WSVGA) Touch panel Pressure type (resistive film pressure type) Split display 2 division display (when 2 cameras are connected) 4 division display (when 3 to 4 cameras are connected) Frame rate (maximum) Camera

1 unit 20 fps / 4 cameras 15 fps Brightness adjustment 4 levels HDMI output terminal type A LAN terminal RJ45 USB terminal USB-A (up to 2 TB for external hard disk) SD card slot up to 128 GB (SDXC / SDHC compatible) Format format FAT 32

Work temperature range 0 ~ 40 ° C. power supply DC + 12V / 2A (AC adapter cable length of about 1.5m) Current consumption up to 920mA Weight about 840g Dimensions

Features:

• Please enter model number Confirm this is compatible:
• ■ Accessories · AC Adapter for LCD Monitor × 1 (Cord Length Approx. 1.5 m, DC 12 V / 2 A) · Camera AC Adapter × 1 (Cord Length Approximately 1.5 m, DC 12 V / 1A) · Camera Antenna × 1 · For LCD Monitor
• Antenna × 1 · LAN cable × 1 (Cord length approx. 1.5 m) · Camera fixing cushion × 1 · Remote control × 1 · Camera installation positioning seal × 1 · LCD monitor screw · Anchor × 2 each · camera screw · anchor ×
• Each 3 · Allen wrench × 1 · Instruction manual (warranty included) × 1
• ■ Large Screen 10.1 Inch Touch Panel Monitor ■ 2 Megapixel FHD Full High-Definition Camera High resolution of 1920 × 1080.
• (Monitor part resolution is 1024 × 600) ■ HDMI output terminal.
• ■ Recording function Connectable to external hard disk (sold separately) (Maximum 2 TB compatible).
• With SD card slot, movie recording is also possible on SD card (optional).
• ■ If you connect the monitor to the network line, you can check the video from the outside with a smartphone / tablet.
• You can download and use FHD eye Cam, a free special application, on GooglePlay, AppStore.
• Android 4.0 or later iOS 6.0 or later * Direct communication between the monitor camera, smartphone, and tablet is not possible.
• ■ Can shoot darkness 20 m night vision When the surroundings become dark, the sensor will automatically sense and switch to infrared shooting.
• ■ Motion Detection When you detect changes in the monitor screen, we notify you to the monitor, smartphone, tablet.
• ■ Wireless communication distance between camera and monitor is maximum 300 m.
• ■ IP66 Dustproof / waterproof camera ※ It is not completely waterproof.
• Please use it under the eaves which rain is hard to directly reach.
• ■ Maximum 4 cameras connected, 4 simultaneous recording possible.
• ※ This product will be a set of 1 monitor and 1 camera.
• When connecting with multiple cameras, please purchase optional expansion camera SCWP 06 FHD.
• ■ Approximate Recording Time This product can insert microSD in the monitor or connect USB-HDD, and can record and play.
• External hard disk 2 TB Resolution VGA camera 1 unit Recording time Approximately 2,890 h (about 120 days) Resolution VGA camera 4 units Recording time About 1,760 h (about 73 days) Resolution HD camera 1 unit Recording time About 2,500 h (about 104 days
• ) Resolution HD camera 4 units Recording time Approximately 1,470 h (about 61 days) Resolution FDH camera 1 unit Recording time Approximately 2, 340 h (about 97 days) Resolution FDH camera 4 units Recording time Approximately 1,380 h (about 57 days)
• Approximate recording time based.
• Overwrite movie storage support so always recording is possible.
• When microSD or USB - HDD capacity becomes full, overwrite automatically from the oldest movie in order

Product information:

Shipping Weight: 2140 g

Package Dimensions: 9.80 x 30.20 x 39.19 cm
