CTL80（Basic） CTL81 (Android 4.4) CTL81UP (Android 6.0)

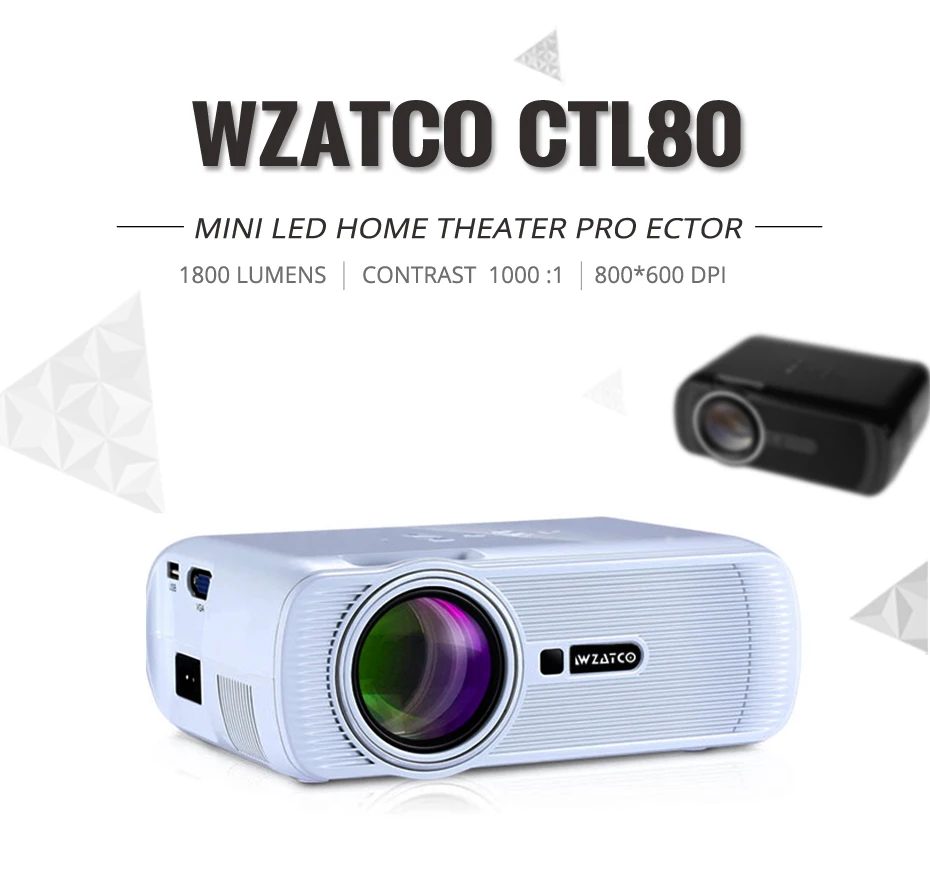

WZATCO CTL80 1800lu Portable Mini support full HD 1080P video TV LED 3D Projector Android 6.0 Wifi Smart Home Theater Beamer Proyector ,Portable Mini LED Projector, Miracast DLNA Airplay Wireless WIFI Handled Movie Game Home Proyector
SELLING POINTS：
1).Outstanding Performance--- mini projector with high fidelity images, enhanced image focusing function

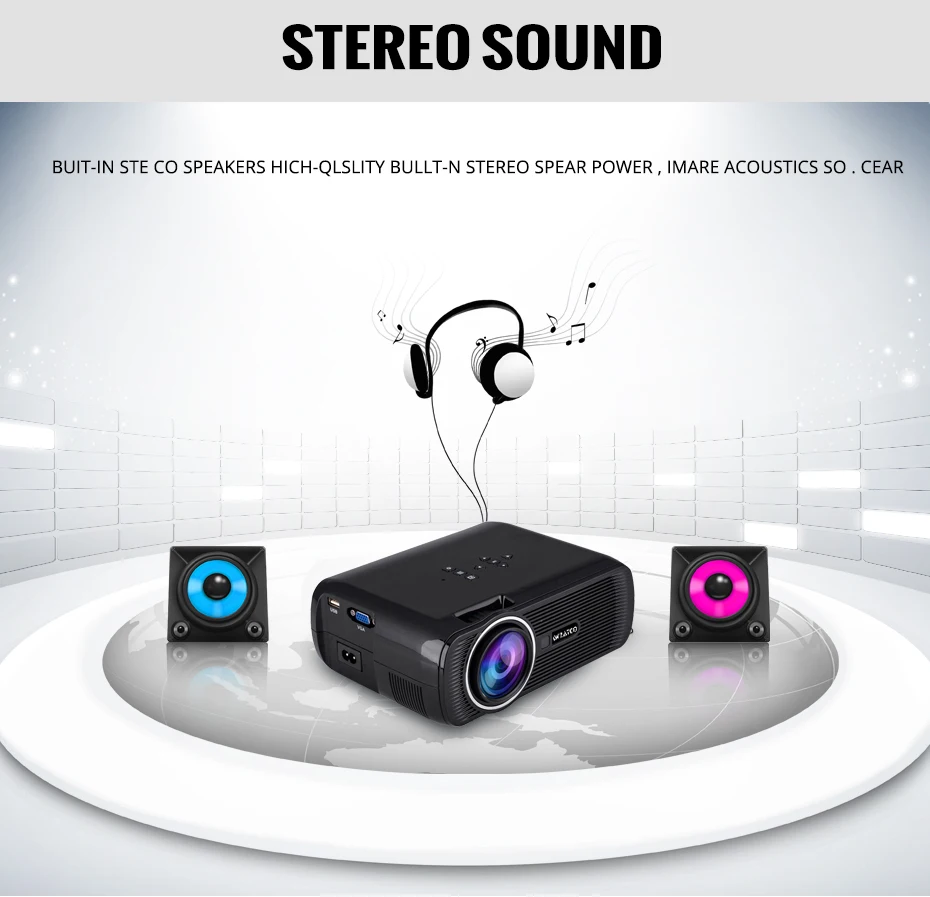

2).3.5mm auto interface, support headset, enjoying yourselves without disturbing others3).Home Entertainment & Multi-Functions --- A Perfect Visual Experience for Parties, Home Cinema, TV Shows, Football Nights, Video Games, Backyard Night Movies, Karaok, Outdoor Activities, Small-Room Meetings etc.Portable and fashion design, easy to carry,Small plastic cover, protect the lens.
4).Runs at 4 : 3 / 16 : 9 aspect ratio,Remote control, easy to operate.Fan Sound System - A new generation projector equipped with an innovative cooling system with heat dispersion, as well as the fan sound cut in half with noise suppression
5). Built-in Android 4.4(CTL81),Android 6.0(CTL81UP),Bluetooth 4.0,Support Dual WIFI 2.4G/5G,Support Miracast,DLNA,Airplay Wirelessly
Difference between CTL81 Basic/CTL81(android 4.4)/CTL81UP(android 6.0):
| Model | CTL80 Basic | CTL81(Android 4.4) | CTL81UP Pro(Android 6.0) |
| Brightness | 1800lumens | ||
| Contrast ratio | 1000:1 | ||
| Resolution | 800*600,support 1920*1080 | ||
| Screen Ratio | 4:3/16:9 | ||
| Audio Formats | MP3, WMA, AAC | MP3,WMA,AAC,AC3 | MP3,WMA,AAC,AC3 |
| Video Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG,VC1,DIVX,FLV,AVI,MKV,WMV,VOB | ||
| System | None | Android 4.4 | Android 6.0 |
| Storage | None | 1GB RAM+8GB ROM | |
| TV | ATV | ||
| Miracast/ DLNA | None | Support | |
| Other Functions | None | Smartphone wifi remote | |
| Bluetooth | None | Support | |
| Google play & Youtube | None | Support | |
| Languages | 23 languages | USB mode 23; Android mode 48 | USB mode 23; Android mode 48 |
| Android Features | |||
| / | Android 4.4 | Android 6.0 | |

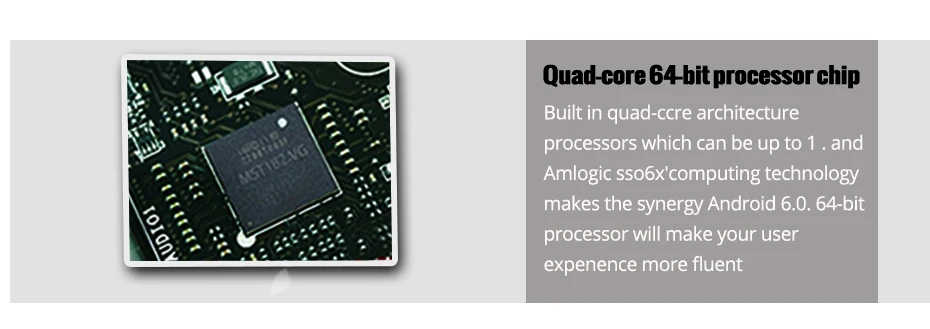

| CPU | / | Amlogic S805 Quad-Core Cortex-A5 1.5GHz | Amlogic S905 Quad-Core Cortex-A53 1.51GHz |
| GPU | / | Quad-core ARM® Mali™-450 | Penta-core ARM® Mali™-450 |
| FLASH | / | 8GB NAND FLASH | 8GB NAND FLASH |
| SDRAM | / | 1GB DDR3 | 1GB DDR3 |
| Wireless | / | Wifi, Bluetooth | Wifi, Bluetooth |
Note: CTL81(android 4.4) and CTL81up (android 6.0) default player don't support AC3, need firstly switch to Android source, then download AC3 player, such as "Kodi","BS player" and "VLC android", Android 6.0 version compatible with more applications, such as netflix, CPU update to A53, faster than Android 4.4.

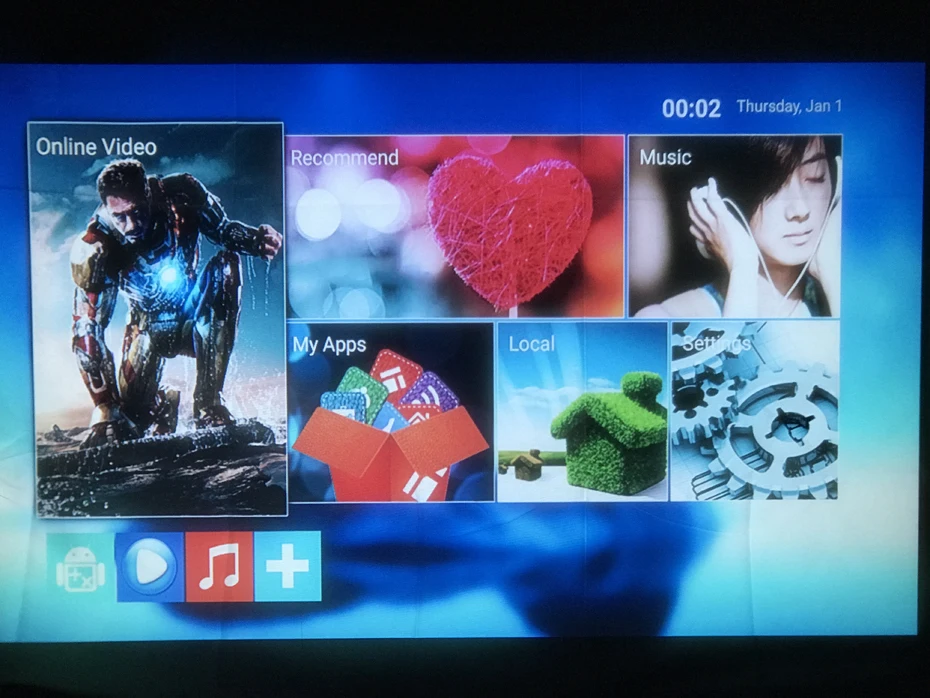

Android 6.0.1 UI

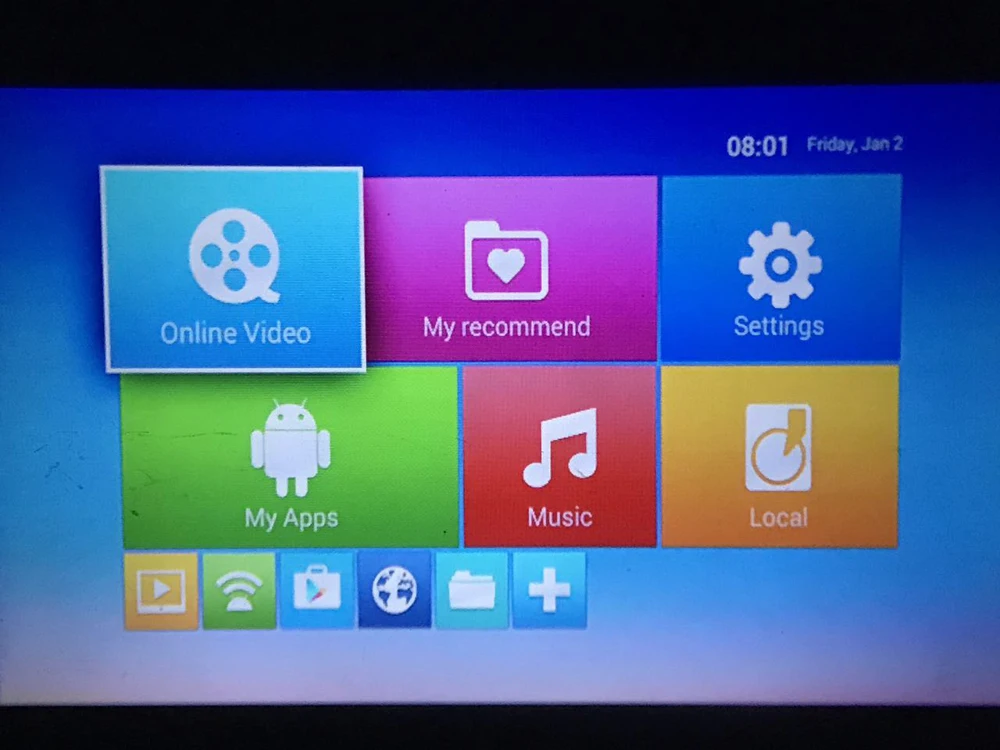

Android 4.4 UI
| Brand & Model | CTL80/CTL81/CTL81UP |
| Plug | EU/UK/US/AU Plug optional |
| Technology Type | TFT- Single LCD Panel + LED Technology |
| Resolution | Native : 800x600 support max 1080p |
| Brightness | 1800 Lumens |
| Contrast ratio | 1000:1 |
| Lens | F=126mm(Manual focusing) |

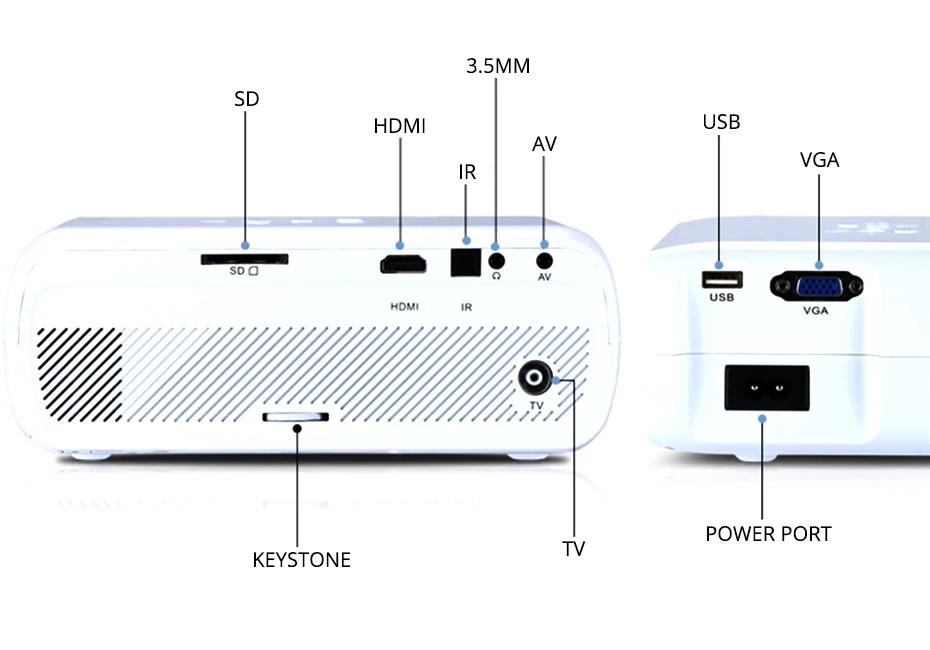

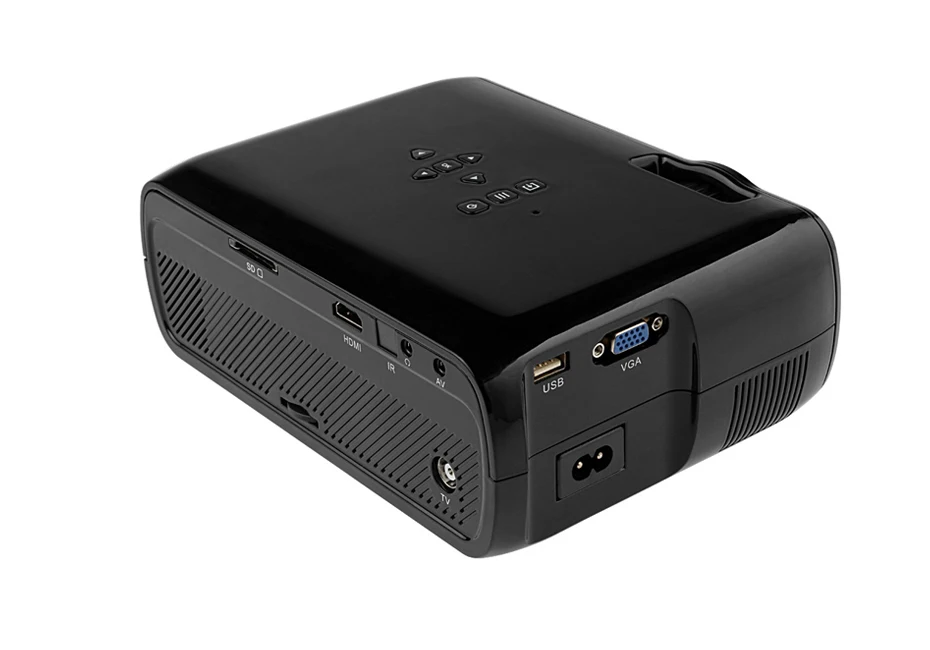

| Multimedia Interface | 1*TV ( analog TV)1*VGA,1*USB,1*SD,1*HDMI,1*3.5mm Audio port,1*AV, |
| Speaker | 4Ω2W |

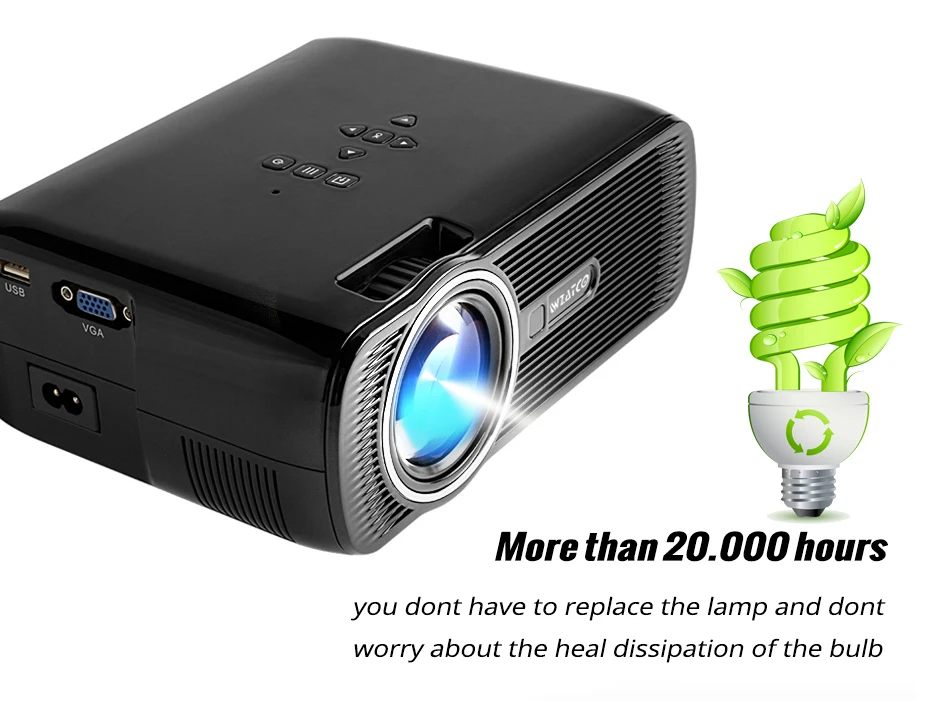

| Lamp | LED lamp;20000 hours |
| Displayable colors | 16.7K |

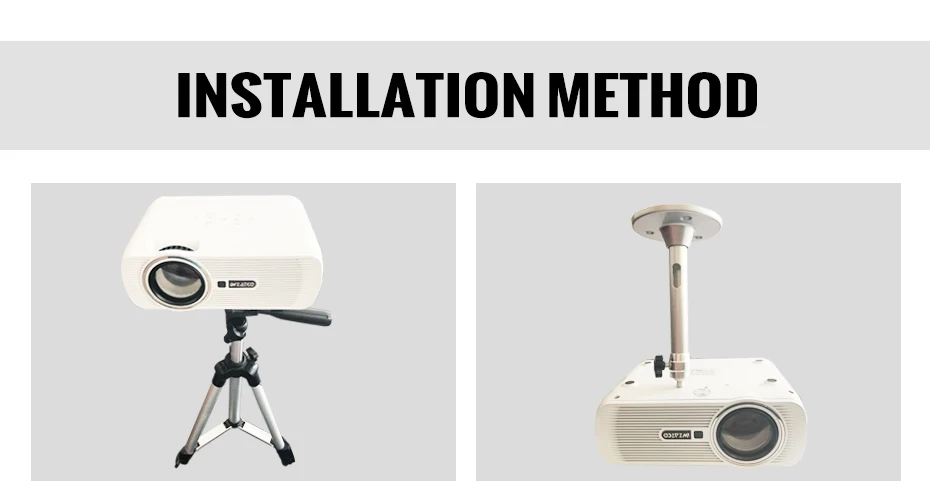

| Projection Method | Front, Table top |
| Image Zoom | Support flip; image zoom |

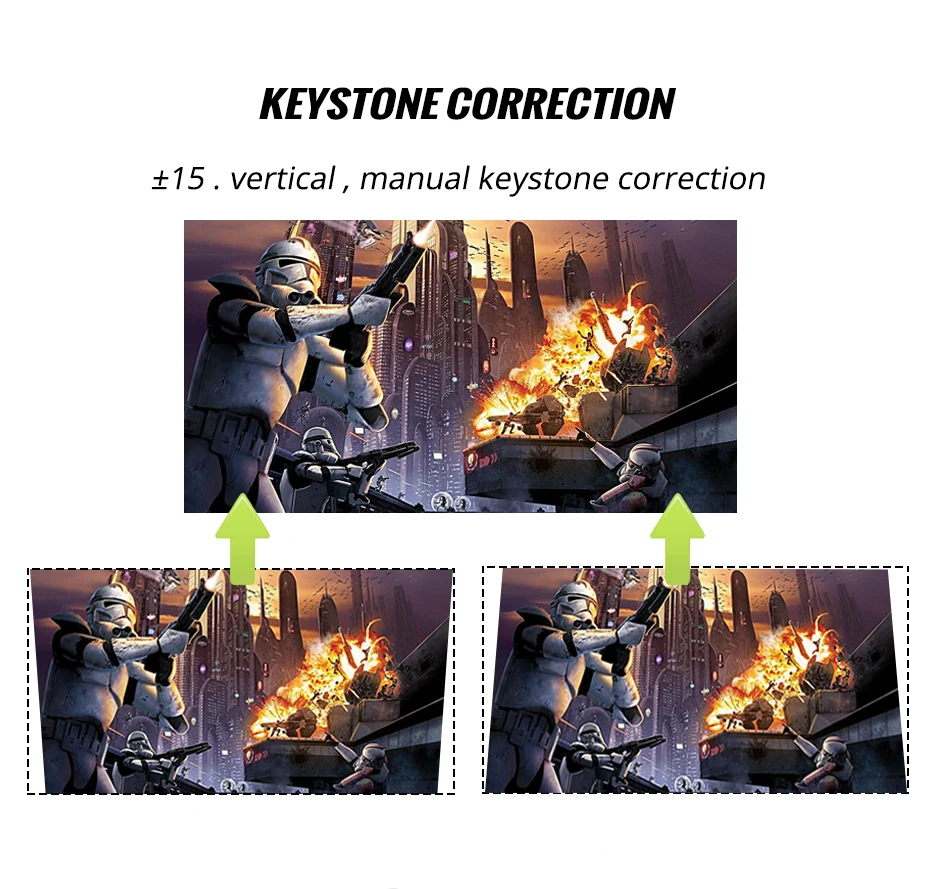

| Keystone Correction | ±15° vertical, manual keystone correction |

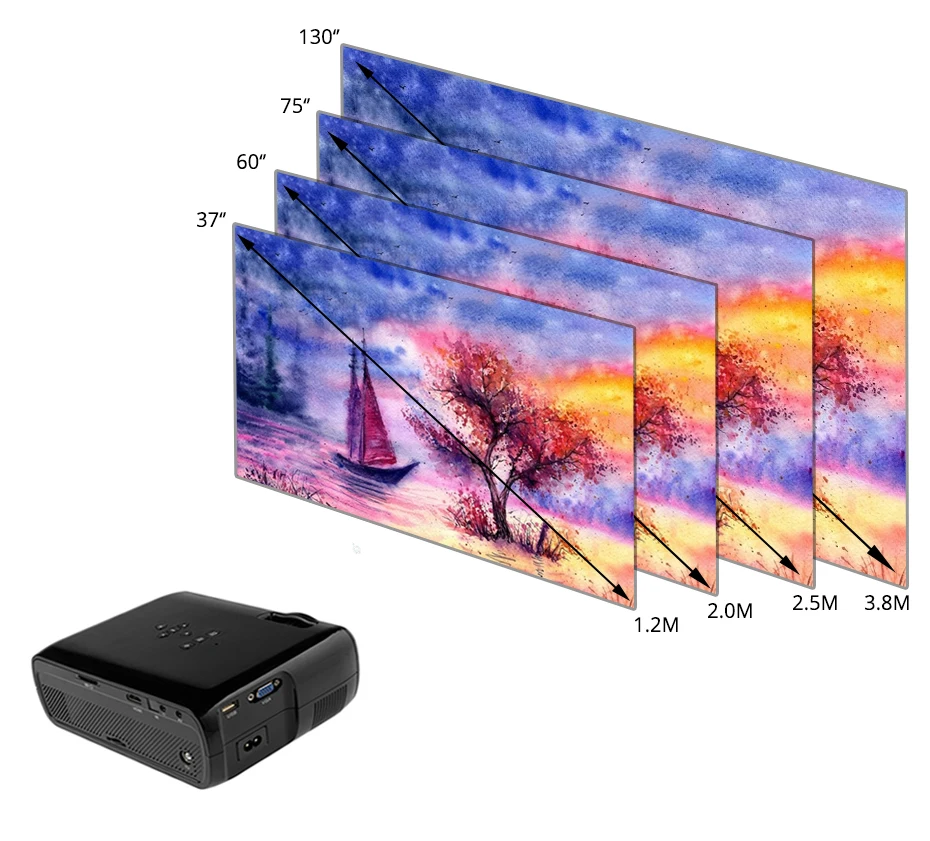

| Projection Screen Size (inch) | 37-130inchs (project 60-100inch best) |
| Projection Distance (m) | 1.2 ~ 3.8meter |
| Aspect Ratio | 16:9 Native, 4:3 compatible; switch freely |
| Audio Formats | MP3, WMA, AAC |
| Video Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG,VC1,DIVX,FLV |
| Picture Formats | JPEG, BMP, PNG |
| OSD language | Czech,English,Slovak,Danish,German,Spanish,French,Croatian,Italian, |
| Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovene, | |
| Serbian, Finnish, Swedish, Bulgarian, Greek, Russian, Chinese, Korean | |
| Power Supply | AC110V~ 240V 50Hz60Hz |
| Carton Size | 300*107*190mm |

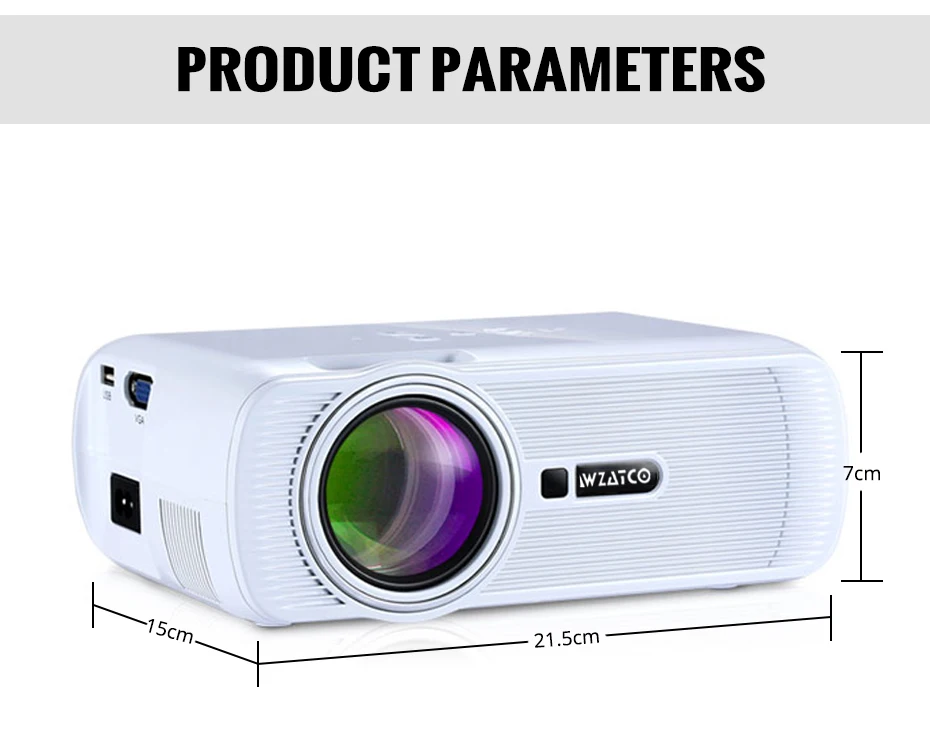

| Dimension | 212mm*150mm*78mm |
| Gross Weight | 1.4Kg |
| Net Weight | about 1Kg |
