Item Descriptions:

Color:

black

It is a ceiling hanger bracket for the projector.

Adjustment is possible within a height of 40 cm to 55 cm.

In case

Ceiling mount bracket best suited for small height

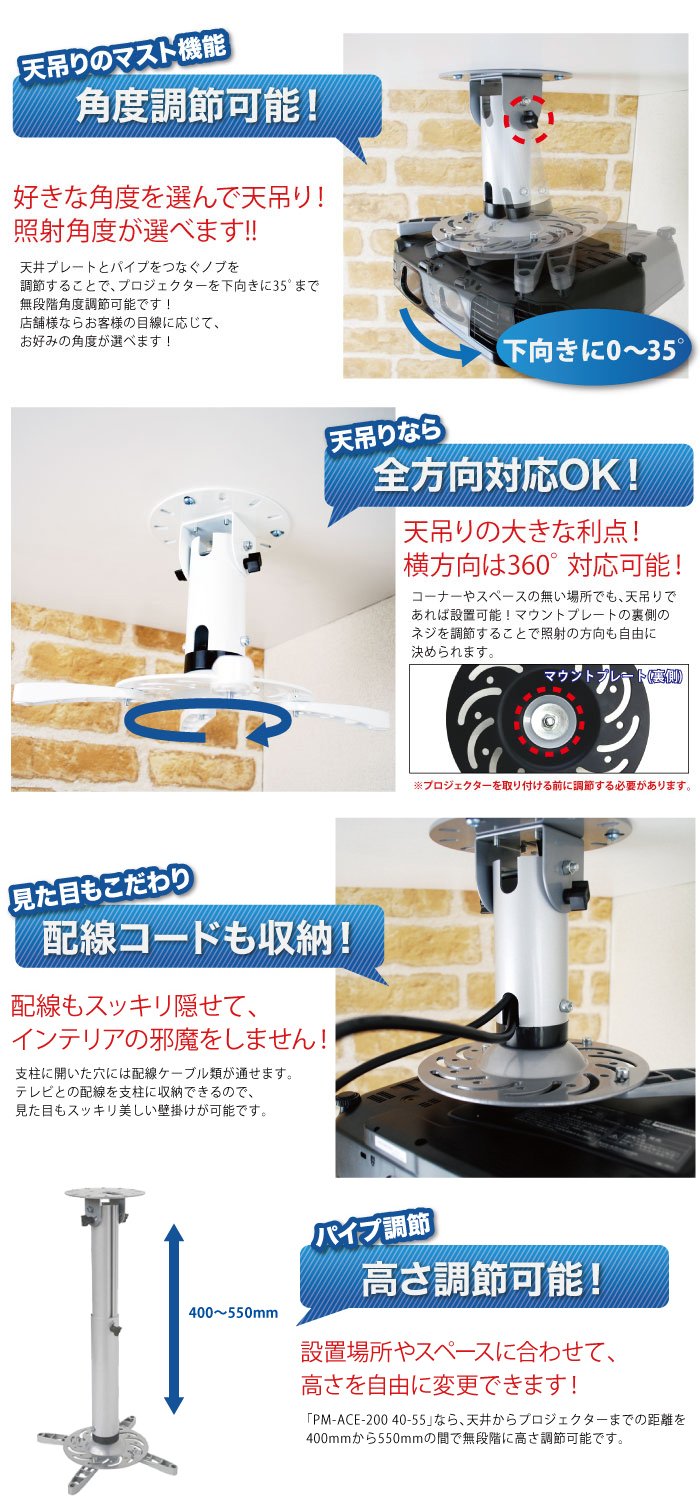

Cast-mounted mast function

Angle adjustment function indispensable for ceiling hanger brackets.

By adjusting the knob connecting the ceiling plate and the pipe,

You can adjust the stepless angle up to 35 ° with the projector facing down!

Depending on the customer's eyes in the shop, you can choose the angle of your choice!

Compatible with all directions

Can handle horizontal direction 360 ° unique to ceiling hanger

Even where there is no corner or space, it can be installed if it is suspended from the ceiling!

The direction of irradiation can also be freely determined by adjusting the screw on the back side of the mounting plate.

* Please prepare a separate tool when adjusting.

* Please pay attention to the state of wiring such as cables.

* To adjust it, it is necessary to remove the projector body.

Attention to appearance as well

There is no need to send cables outright without wiring cables inside pipes.

Wiring is a concern when ceiling suspended.

In the PM - 200 series, the wiring cable can be hidden in the pipe and it can be put on the ceiling back side.

Realizing a beautiful and smart ceiling hanging from anywhere.

※ The image is PM-200.

Adjustable pipe length

The height can be freely changed according to installation location and space.

For PM-200 40-55, the distance from the ceiling mounting part to the projector can be freely adjusted between 40 cm and 55 cm.

Tailored to the projector and ceiling,

Black Silver White 3 colors available.

Installable condition

Point 1 corresponding weight

Allowable load 15 kg

point 2 Screw hole on mounting surface

· Three or more screw holes for metal mounting are open

· The metal mounting surface is flat (flat)

Installation method of projector ceiling mount bracket Installation method

(1) Turn over the projector and check that there are more than three screw holes for ceiling hanging.

In case

It is possible to correspond if 3 points fit within a circle of diameter 33.8 cm.

* The edge of the metal fitting may protrude depending on the size of the projector.

* M3, M4, M5 screws are included.

(2) Secure the mounting bracket to three or more screw holes and attach it to the plate.

【point】

By adjusting the screw on the back side of the mounting bracket, it is possible to rotate 360 ​​°.

It is possible to correspond to the arrangement of various screw holes.

Fix the bracket and the plate.

* Please prepare a separate tool for adjustment.

※ When installing the projector main unit, you need to remove the projector and work.

* Since the hardness of the screw at factory shipment varies according to the product, please be careful when adjusting the angle.

(3) Attach the ceiling plate to the ceiling.

In case

I will fix it with 3 ceiling bolts.

There are two types of ceilings to be installed.

· Part with base

· Parts reinforced with plywood etc. against the base

(4) Connect the projector mount and the ceiling plate with pipes to complete.

The projector can rotate 360 ​​°.

Product Details

Outside dimensions Ceiling side plate 150 mm Projector side plate 181 mm

Product weight 2.3 kg

Angle function Free adjustment · Horizontal rotation

Load capacity 15 kg

Adjustable within pipe length 40 cm ~ 55 cm

Material · Material Steel

Accessory bracket body (assembly type) · installation screws · Japanese manual

Features:

• Please enter model number Confirm this is compatible:
• [Dimensions] See the drawing
• [Product weight] 2.3 kg
• 【Angle adjustment】 Projector side: Downward angle adjustment 35 degrees Horizontal 360 degrees
• 【Product Details】 ■ Metal fittings body ■ ■ Various screws set | ■ Japanese installation instructions
• [Mounting load capacity] 15 kg

Product information:

Shipping Weight: 2054 g

Package Dimensions: 7.90 x 19.99 x 35.71 cm
