Item Descriptions:

Product description

■ Product specifications:

· Overall length: 167 mm

· Full width: 60 mm

· Height: 170 mm

· Air pressure used: 0.62 MPa

· Air consumption: 930 L / min (when no load is applied)

· Air consumption: 128 L / min (* When under load)

· No-load rotation speed: 10000 rpm

· Maximum torque for normal use: 470 N · m

· Insertion angle: 1 / 2DR (12.7 sq)

Inlet: 1/4 PT

· Main body weight: 1.2 kg

■ Product Description:

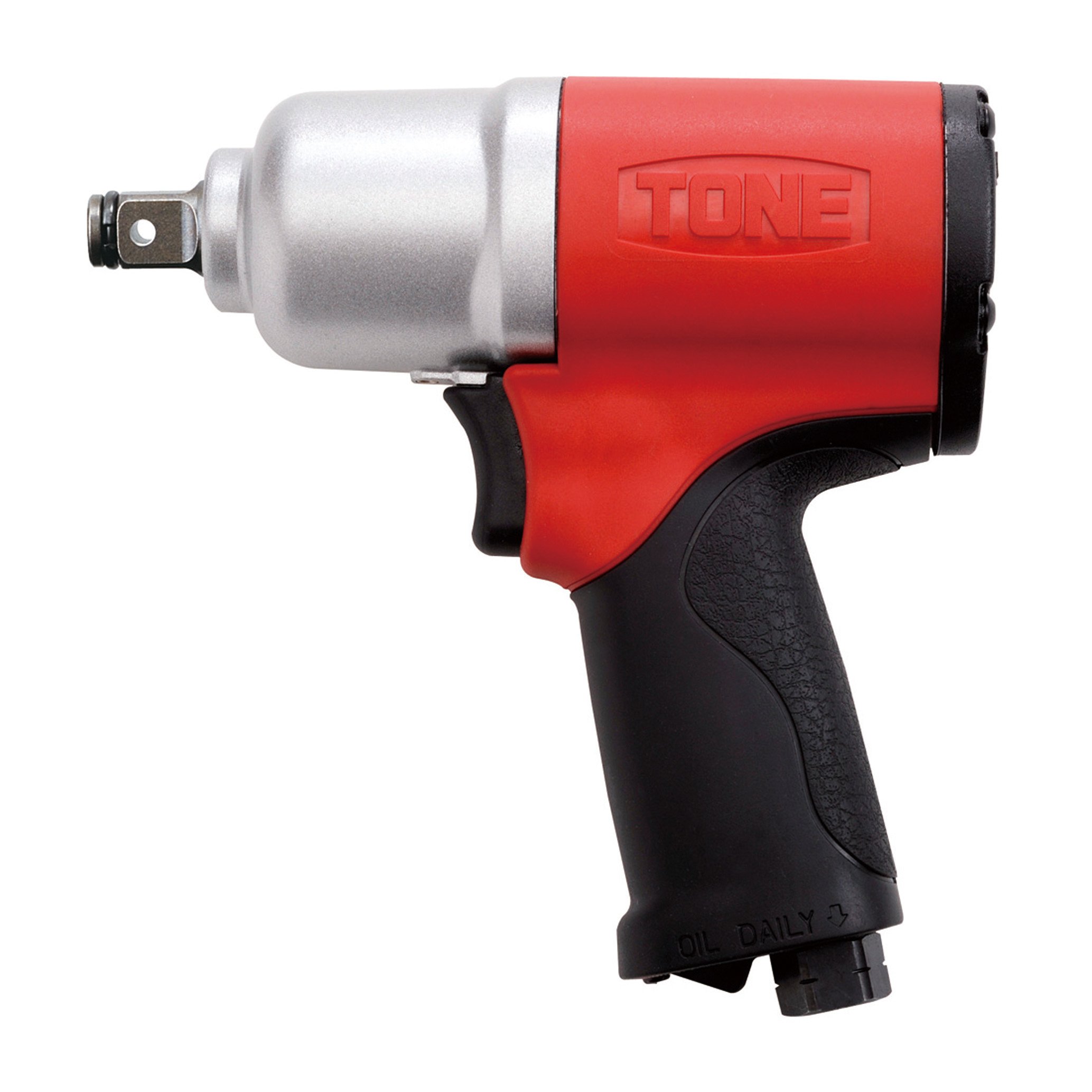

It is TONE's air impact which adopted magnesium hammer case and special reinforced resin body.

It uses a twin hammer with less impact and stable durability and power.

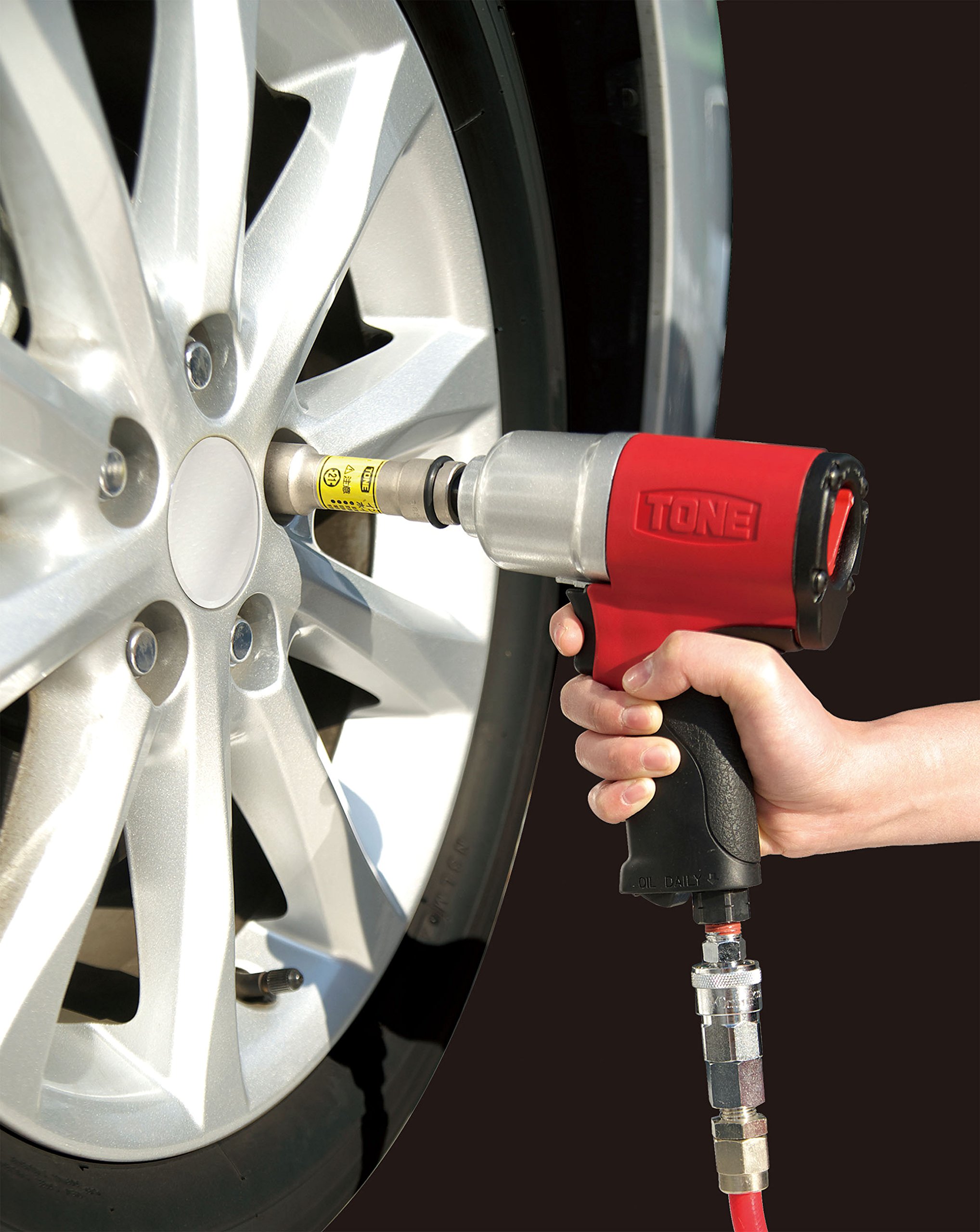

It is a compact type that can be used widely from tire change to underbody, driving system work.

■ Notes:

※ Please do not use it except for its original use purpose.

【Air Impact Air Tool】 【TONE Mone Tire Tire Change】

From Amazon

● Small and lightweight high power air impact wrench with maximum torque of 470 N · m, mass of 1.2 kg.

Adopting twin hammer, realize high power with small size.

With forward rotation 3 steps, reverse rotation 2 step output adjustment lever included.

The stepless output adjustment is also possible by the degree of drawing of the switch.

A rugged magnesium hammer case, a special reinforced resin is adopted for the body, realizing weight saving.

It adopts a soft grip that softens grip and softens vibration.

With rotary joint to prevent twist of hose

Features:

• Maximum torque: 470 N · m
• Horizontal drive: 12.7 mm (with pin hole)
• Adaptive bolt size: M16
• Air pressure used: 0.62 MPa
• Maximum air consumption: 127.5 L / min
• No-load rotation speed: 10,000 min-1
• Air inlet: PT 1/4
• Air hose inner diameter: 10 mm
• Body size: W 166.5 × D 60 × H 170 mm

Product information:

Shipping Weight: 1465 g

Package Dimensions: 6.50 x 19.20 x 19.89 cm
