Usmile® 32bit Brushed F3 EVO Flight Control Board support PPM SBUS DSM receiver 1s 2s battery for Mini Micro Nano quad fpv racing








F3 EVO For 1s & 2s


Micro Scisky for 1s with receiver


Shine F3 for 1s

Product Description

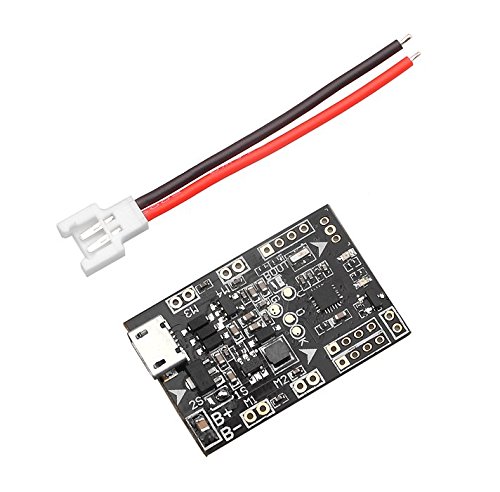

This 32 bit brushed flight control is based on SP RACING F3 EVO firmware
Support 1S (4.2V) and 2S (8.4V) lipo battery，with 2s， you could get even more fierce racing experience than 1s， Specailly designed circuit ensure 5V output for UART1/2/3 despite 1S or 2S input，DSM output at 3.3V
Features STM32F303CCT6 + MPU6500， advanced hardware guarantee more stable flight
Support for PPM， SBUS， DSM receiver.
Support battery voltage monitor and buzzer function
Support basically all coreless motors available， including 1020 motor.
Large current NMOS transistors enable the board to sustain up to 10A operating current per channel. Each channel is equipped with a freewheeling diode.
DSM receiver soldered directly to the "DSM" as picture shows， Go to UART3 in cleanflight to configurate
PPM and SBUS receiver soldered to the UART2， Go to UART2 for SBUS configuration
Dimensions:22MM * 32.5MM， thickness: 1.2MM.
Note:
The propeller must be removed during configuration F3 EVO 1.13.0 firmware by default， if you need to reflash， please input "set motor_pwm_rate = 1000" in the Cleanflight configuration software and save!
Set maximum throttle value to 2000 can effectively increase the flight time
Default input is 1S (4.2V); For 2S， first you need to remove the tin on the pads and bridge the right two pads as picture shows， Under no circumstance should the three pads be shorted together.


For manul， please go to https://www.dropbox.com/s/nzudeqvmmwueuwr/F3_EVO_Brush%20manual.pdf?dl=0



3.3-5V regulator http://www.amazon.com/dp/B01GHSQBVA
90mm-120mm carbon fiber frame http://www.amazon.com/dp/B01FAM7AZA
20mw TX5813 VTX https://www.amazon.com/gp/product/B01JWG1W9A
25mw FX MM213TL VTX http://www.amazon.com/dp/B01JRGXK6S

Feature

Based on F3 flight controller ， Specially designed and built for quads around the 100mm and sub 100mm class.
Features STM32F303CCT6 + MPU6500， advanced hardware guarantee more stable flight
Support for PPM， SBUS， DSM receiver， Support battery voltage monitor and buzzer function
Support 1S (4.2V) and 2S (8.4V) lipo battery，with 2s， you could get even more fierce racing experience than 1s
Dimensions:22MM * 32.5MM， thickness: 1.2MM
Brand : Usmile
EAN : 0735980950068
Product Dimensions(LxWxH) :
International orders may be subject to customs clearance procedures that can cause delays in delivery.
