Item Descriptions:

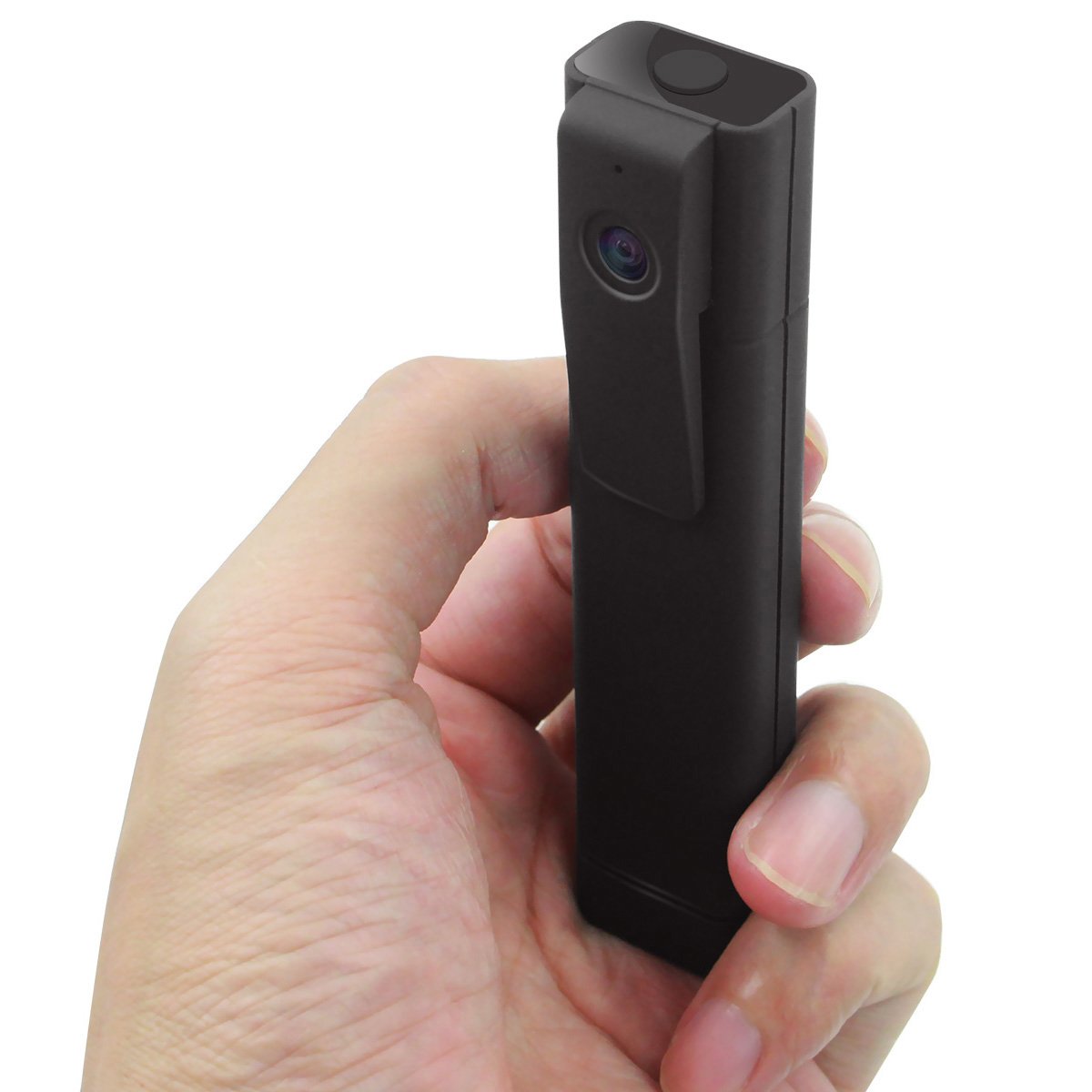

Because of its pen clip type size, it is convenient to carry and has a luxurious design, so you can use it in various business scenes such as suit breast pocket,

In addition, you can use it as soon as it arrives that customization function that you can fine-tune your favorite shooting method and arrived.

● Movie size realizes high quality recording of full high definition 1080P,

● Neither beginners worry!

Easy operation just by pressing the start button.

● Operating time can be extended by connecting with an optional AC adapter or portable battery.

● With external output function, shooting while checking the angle on the TV screen is possible.

● You can shoot without discomfort while still being inserted in breast pocket, file, bag, etc.

● It can be quickly and easily installed in various places because it is only clipped and clamped.

● This product is a proof gathering item to protect yourself in daily life such as spy items, stalkers and suspicious people, DV damage and security practical practical professional detectors.

In case

Shooting a little in everyday life

· Videos for Web diary · Photography shooting · Security cameras · Recordings of sudden meetings, negotiations · Records of accidents, crimes · Sports overall · Lessons and lectures

Introduction

This device has a built-in lithium battery, please use it before charging for the first time (please be charged even if you do not use the product).

Product specification

Video Format

: AVI / H.264

Video code:

M-JPEG

Video Resolution:

1920 * 1080 P

Still image resolution

: 4032 x 3024 P

Video frame rate

: 30 fps

Built-in microphone

: New high performance microphone

Charging voltage:

DC-5V

Recording time

: About 100 minutes

Battery capacity:

950 mAh

Interface type

: Mini 8 Pin USB

Image proportion

: 4: 3

Save support

: up to 64GB microSD card

Battery type:

High capacity polymer lithium battery

Media Player

: Operating system included, or mainstream audio / video media player

Supported OS

: Windows me / xp / 2003 / vista; Mac OS; Linux

Connecting to a PC (playback)

Whether switch ON standby or switch off state, when connected to a PC without being removed, it can be used as a U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

When this device is inserted into the USB interface of the PC, the PC pops up the mobile disk icon after a few seconds.

Presentation:

a. If you can not recognize the PC after connecting this device to the PC, or if you do not pop up the mobile icon even after 30 seconds, insert it again.

Please use with USB 2.0 hub, you can play smoothly.

b.

Memory card reader writer

We recommend that you read and play video files directly.

When directly reproducing the video file stored in the internal memory of this recording device by USB connection, there is a possibility that the data quantity is excessive, the transmission speed is slow, and the reproduction can not be performed smoothly.

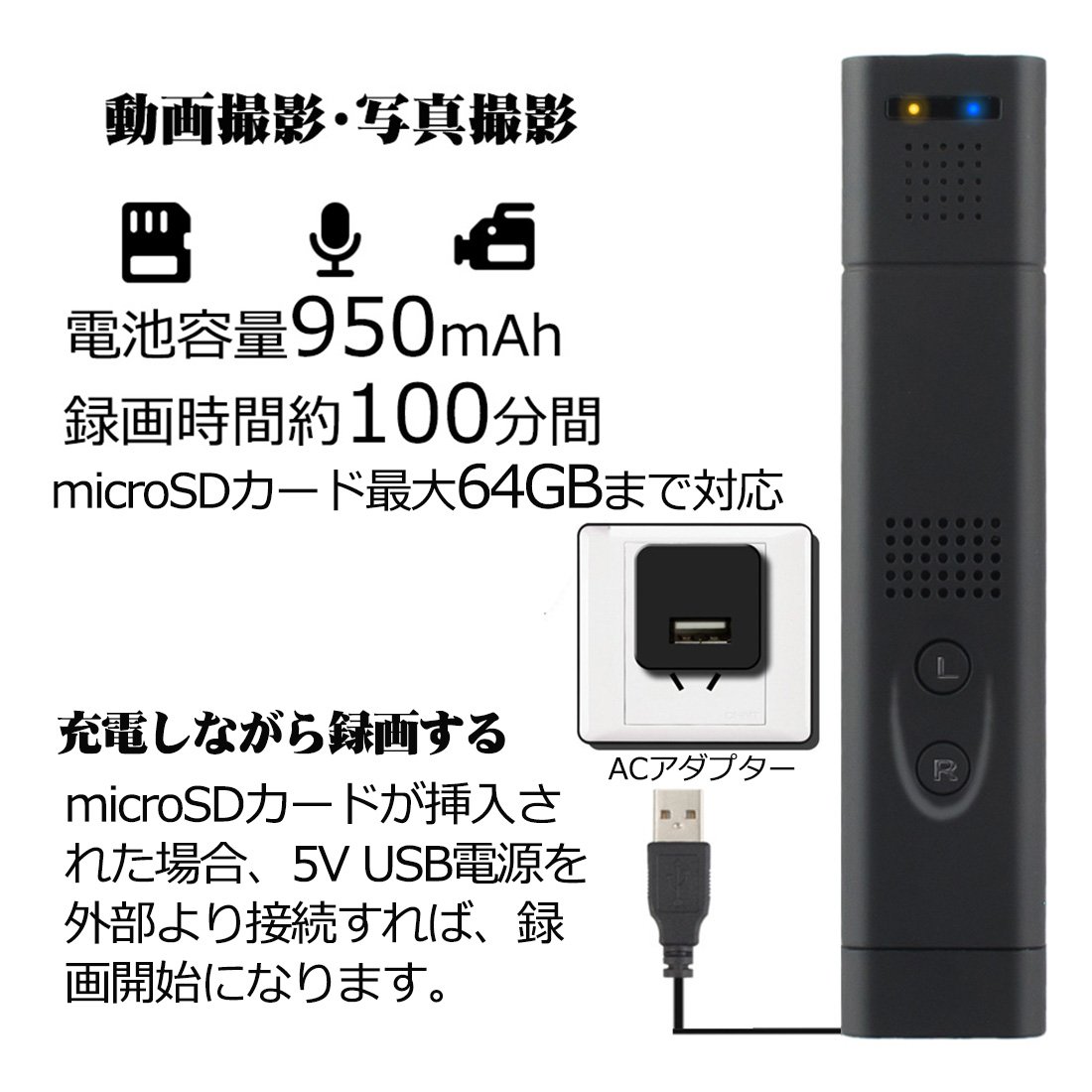

Record while charging:

When a microSD card is inserted, when 5 V USB power is connected from the outside, it starts recording on its own soil, when there is no recording stop, when the card becomes full, it records until it runs out.

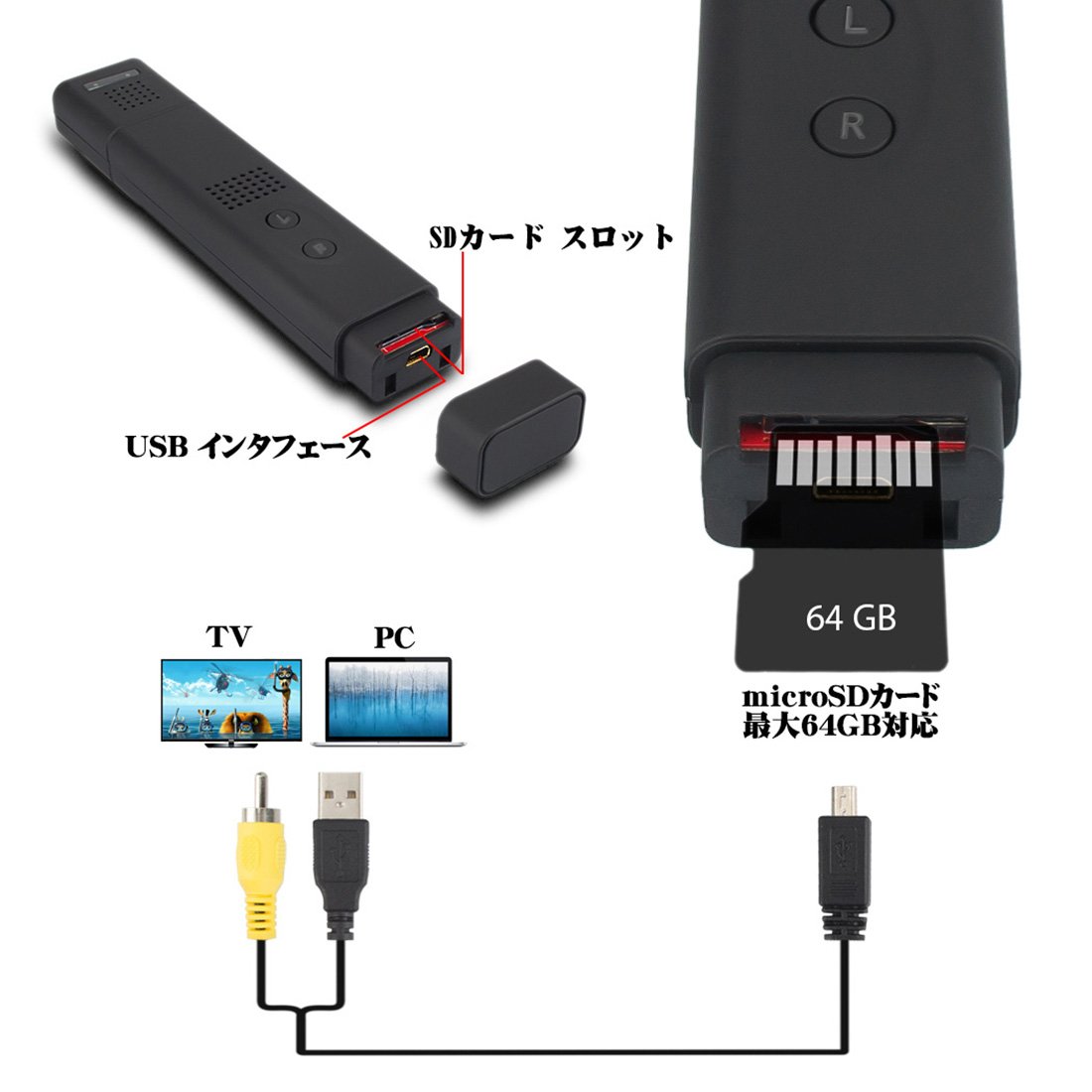

About inserting microSD card

When using the lid, fall

Prevention

In order to design, design is tighter, please pull out.

Insert the metal terminal of the microSD card into the microSD card slot on the product side.

Format with this machine:

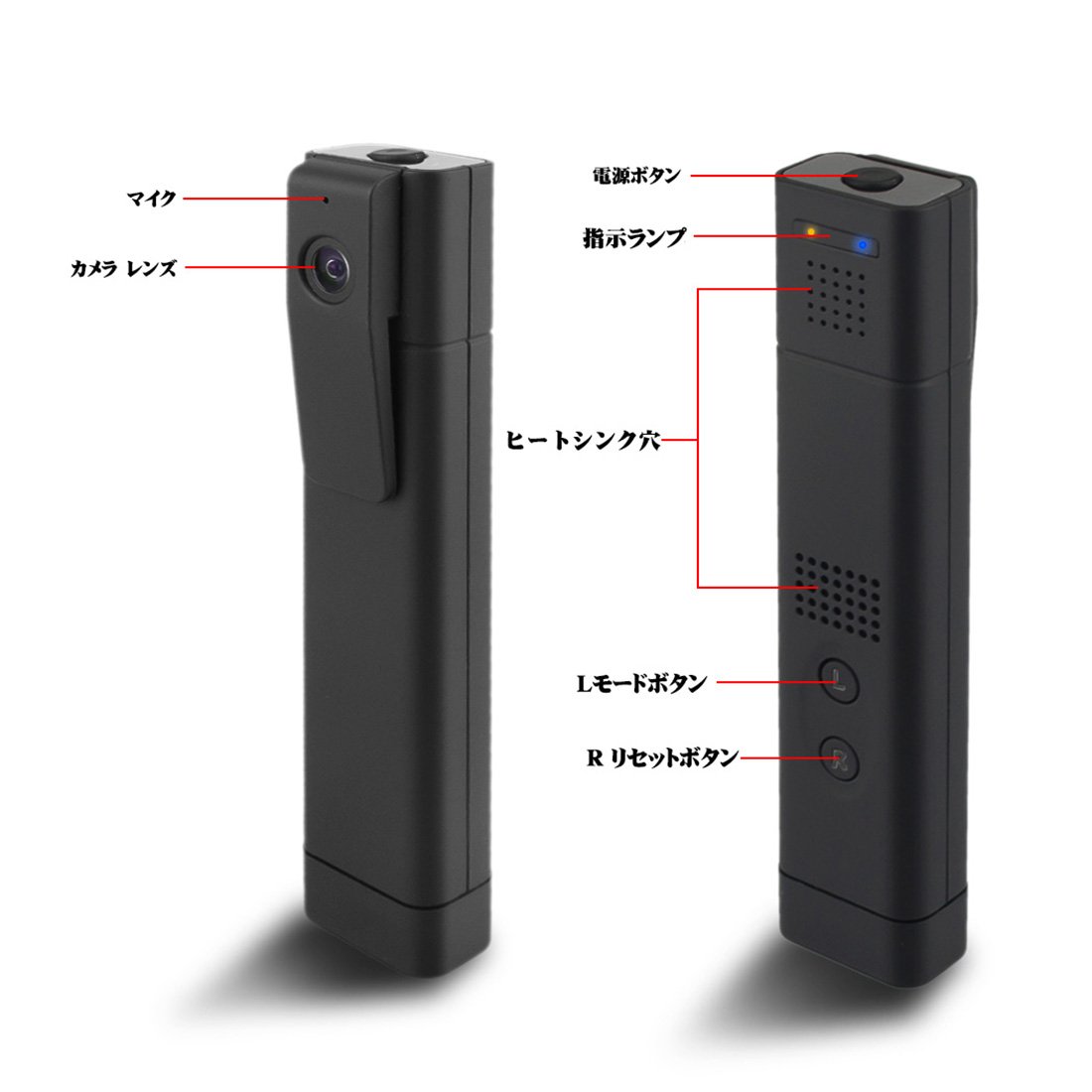

When the blue lamp lights up, it is in the standby state. When the L mode button is pressed for 3 seconds long and the blue / yellow lamp blinks at 5 times, formatting is completed.

reset:

This device can be reset to this device if it becomes freeze, button invalid, it can not be used normally, and so on.

Press the R button to reset the indication lamp when it completely flashes.

After resetting, it can be used normally.

【set content】

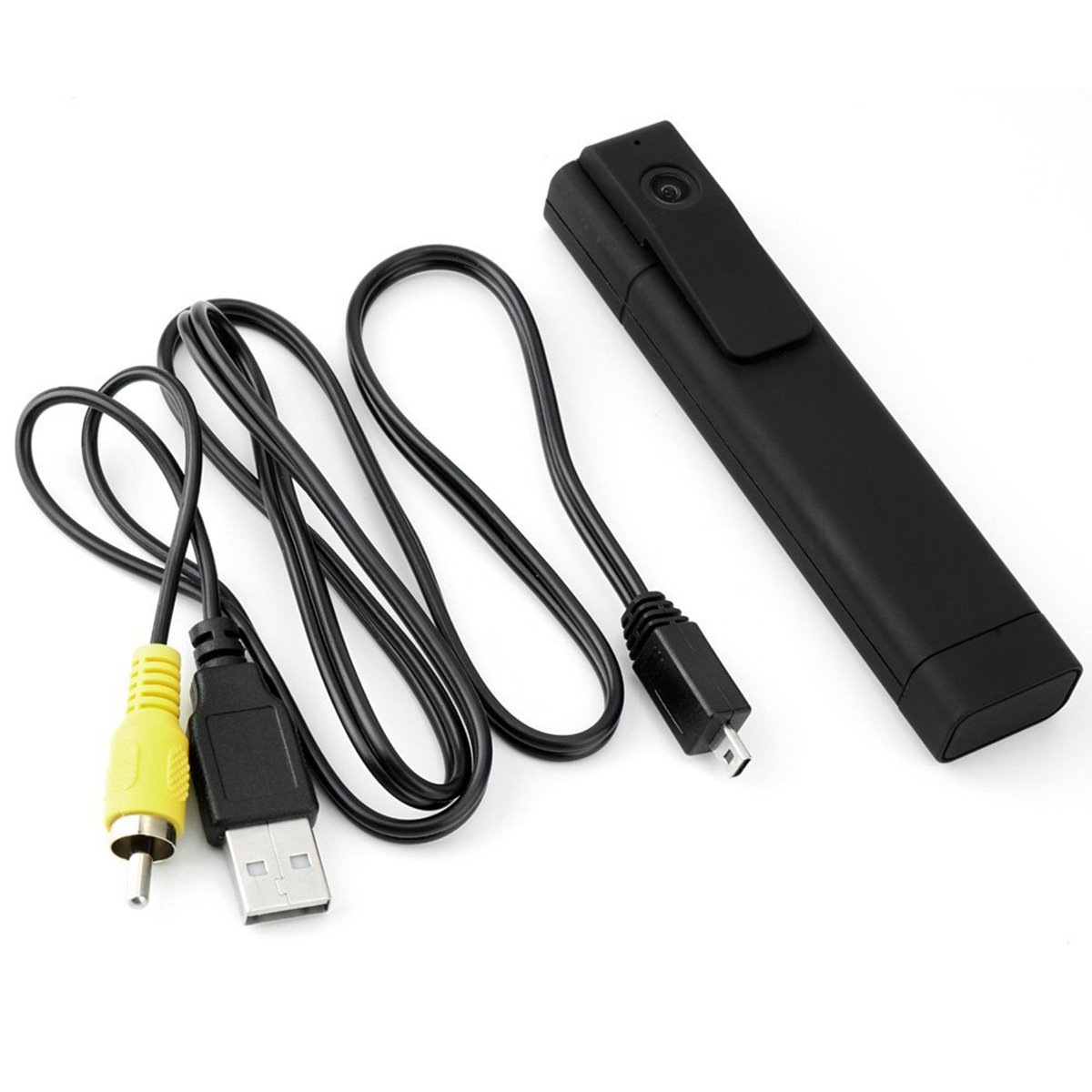

Body · USB connection cable · Japanese instruction manual

please note

Working temperature: Please use it for natural temperature condition.

Please do not use it for temperature condition not adaptable to human body.

Cleaning Requirement: Do not use the lens and other parts in excessive environmental conditions of dust density, as it may adhere to dust and affect shooting.

Features:

• Please enter model number Confirm this is compatible:
• 【Product function】 Movie shooting · Still image shooting · 135 ° wide angle lens · Compatible with external power supply · High sound quality microphone · File High speed transmission Konami 's long seller.

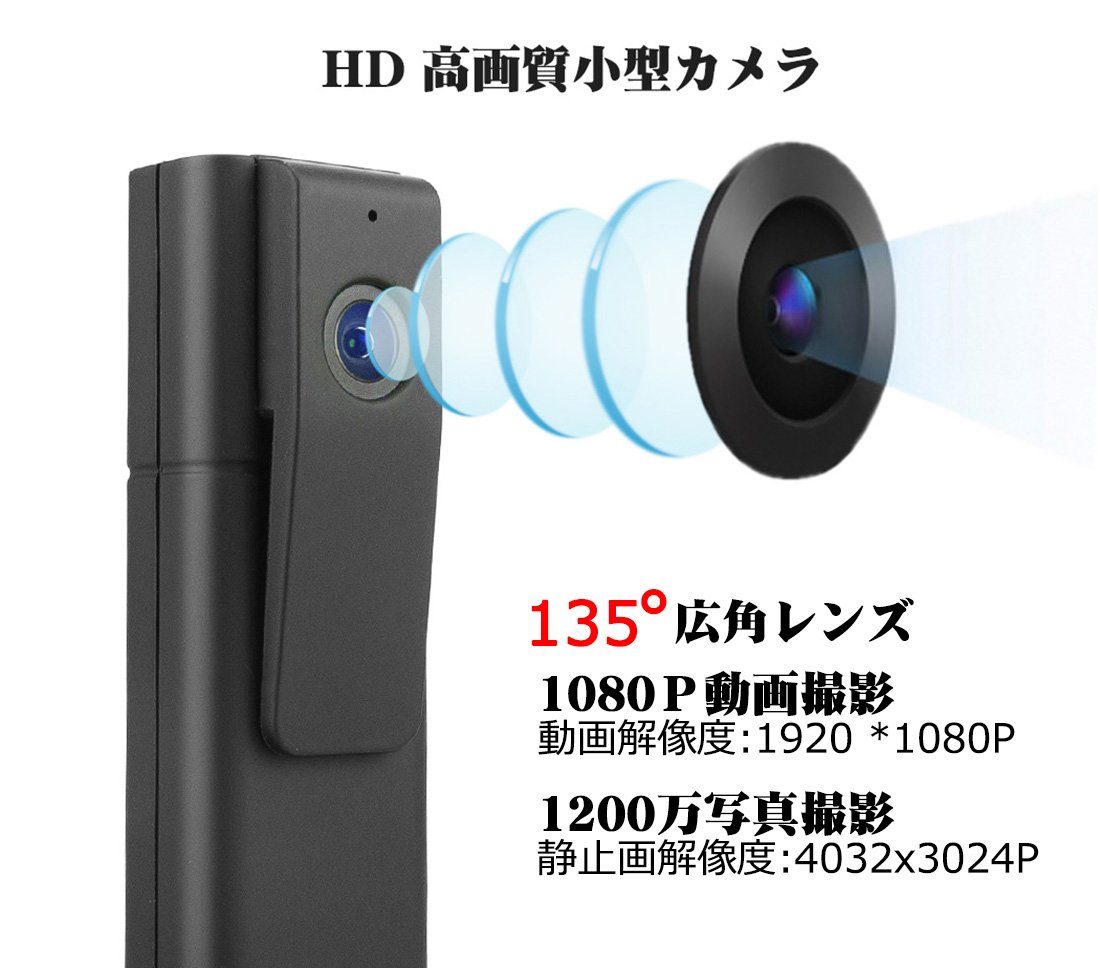

• [High resolution] High image quality 135 ° wide angle lens adopted, H.264 HD FULL 1080 P Enables shooting clear images up to the details of image quality, recording smooth images with 30 FPS high image quality.
• Still image size is 4032 × 3024 px high-quality shooting with 12 million pixels stored.
• 【Easy operation】 Beginners, opportunities Recommended for persons with noisy operation, super easy operation, you can shoot without discomfort while being inserted in chest pocket, files, bags, etc. Naturally collect information on clothes.
• [High sound quality microphone] A super-high performance microphone adopts clear voice recording, and it corresponds to evidence which does not move with sharp sound reproduction.
• 【Long time recording】 Built-in 950 mAh battery, continuous recording for about 100 minutes, recording while charging with the external power supply function of the AC adapter, external power supply + microSD 64 GB compatible, time continuous recording compatible.

Product information:

Shipping Weight: 95 g

Package Dimensions: 3.81 x 5.69 x 14.81 cm
