For daylight mounting

Used for daylight mounting. Incorporate 0.5 sq of anti-wiring, waterproof measures. It looks good.

Waterproof Kiboshi easy to buy with subdivision that was not likely

I think that this waterproof Kiboshi is from Yazaki, but it is painful to say that you can easily buy, so it is very appreciated that you gave me a piece from Aemon. It is wonderful to say that you can buy a small amount at once when you want to buy, as it is not said that individuals always use large quantities. It seems to be the engine room of a car, but when wiring to a motorcycle it is necessary to pay attention to waterproofing in particular. Even if I used the Kiboshi terminal up to now, since I was coiling around with insulation tape / vinyl tape for waterproofing eventually, I would use something that would caulk together the connection cords where I would not remove much It was. Although it becomes much high compared with ordinary Kiboshi, since the metal fittings themselves are the same as non waterproofing, it is economical as only waterproof sleeves can be reused even if they fail. Because of the nature of waterproofing, the part that passes the code is quite thin, so it is up to the code of the thickness of 0.85 sq, but I think whether there is no problem in the normal place. Although it is the waterproof performance of the essence, I tried putting water on the car washing when connecting, but it does not leak. It is excellent. I was worried about deformation due to heat because the motorcycle was often wired to the side of the engine or radiator so much, but I tried riding around the radiator in a state of "touching" and then watching it while watching it, No deformation occurred. It is very solid, that point is also wonderful. Of course it is necessary to avoid the actual maneuvering from the heat source as much as possible and it is necessary to periodically check that the waterproof will definitely deteriorate, but it goes without saying that durability is high even if it is exposed to heat by any chance, It is very good waterproof Kiboshi. It is a star-1 because it is a little expensive because it is this price in four sets, but it is very good to buy immediately when you want to buy it easily.

Waterproof type which made it possible to use outside the car

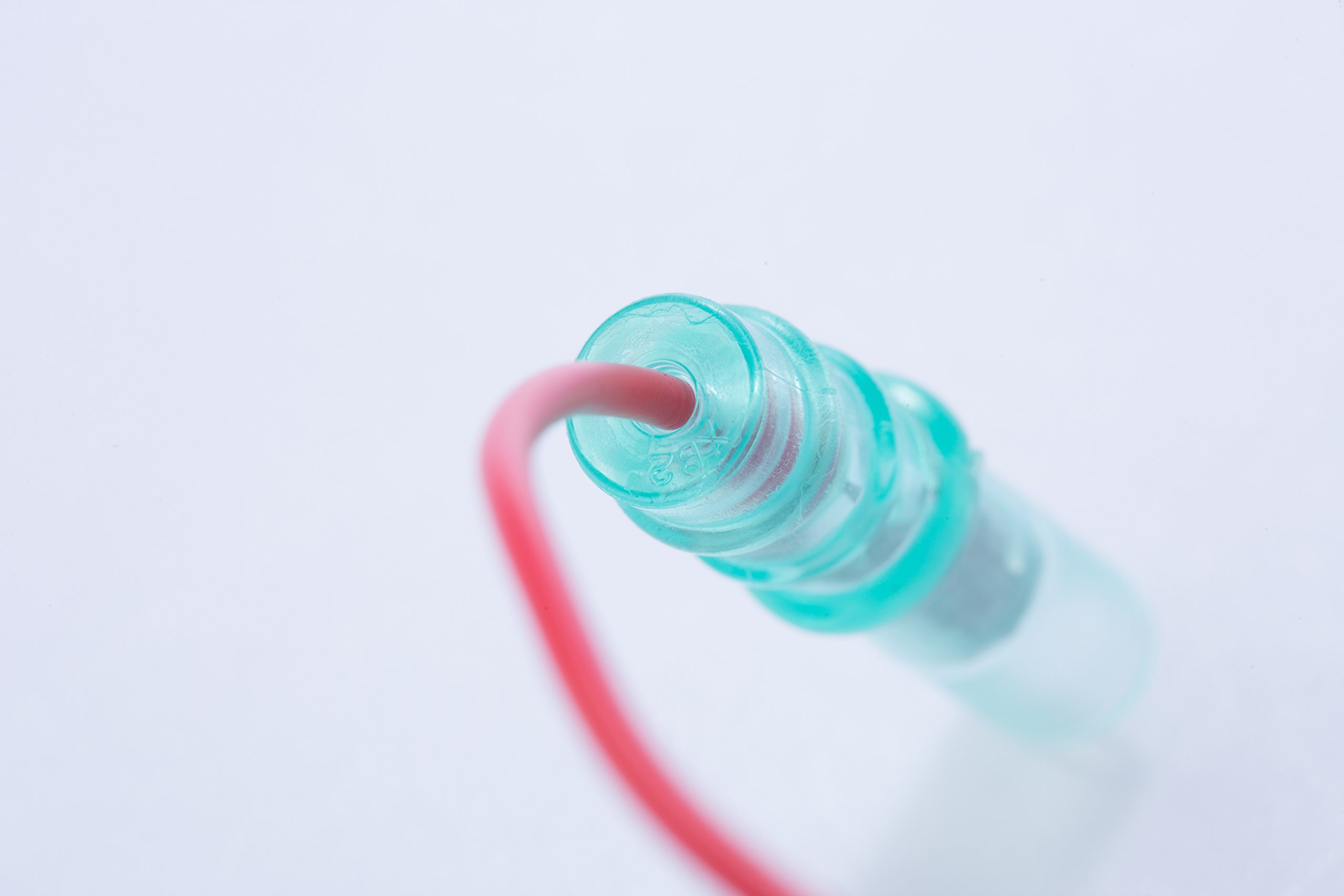

The past Giboshi terminal could not be used outside the car. However, because there was a waterproof one-touch connector, I think that many people used this. But since the waterproof one touch connector can not be detached, the degree of freedom will be increased if the waterproof Giboshi has the same function! This sleeve will do a nice work ♪ Because it adheres to the metal part with a soft material, it realizes IPX 3 which has no harmful effect by water droplets falling in the range of 60 degrees from the vertical. You have to be careful, pass the sleeve before peeling the wiring cover! This. It is not impossible even after that, but it is safe to let the sleeve pass first because it will get caught. I thought hard in the winter hardening. It was pretty hard with a PVC type as before, but since we are using soft materials, handling became easier! It was the impression that.

Can be connected reliably

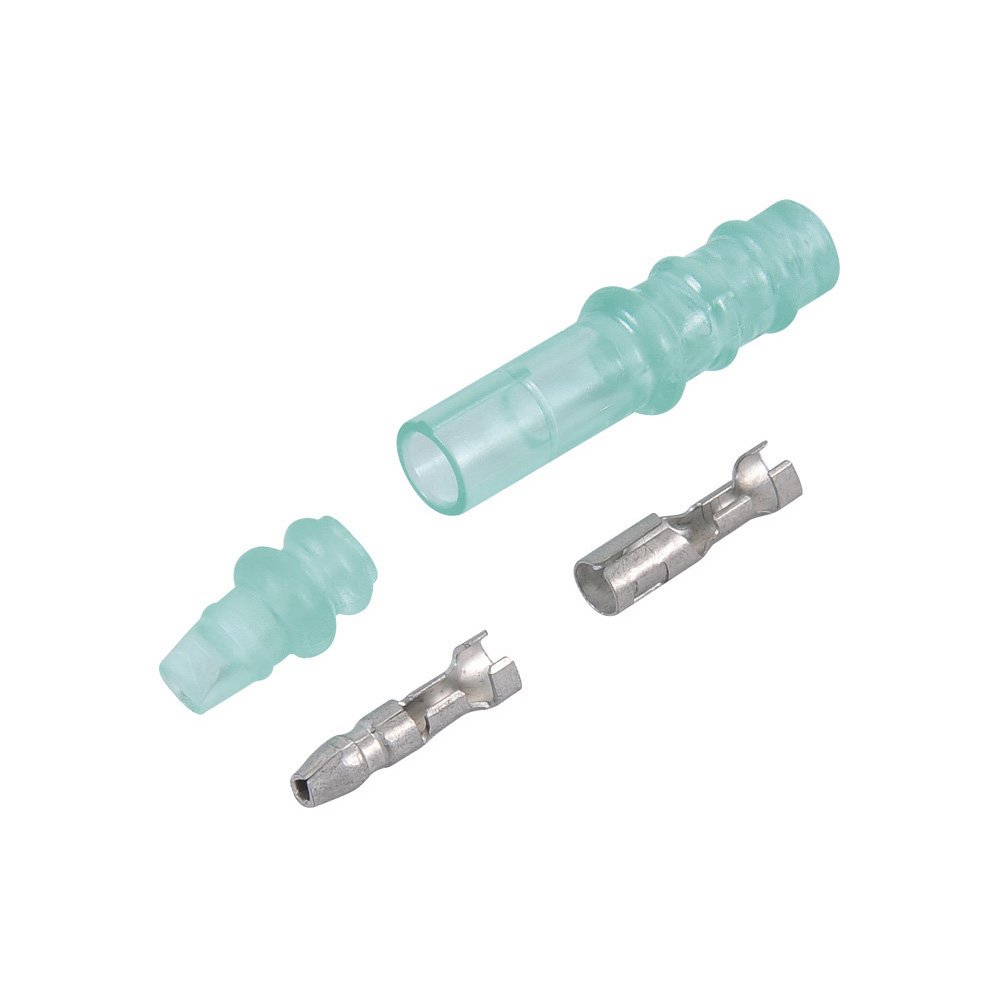

Four sets of waterproof Kiboshi equivalent to IPX3 are included. It conforms to the code of AV (S) 0.5 - 0.85 sq. Workability at the time of attaching the cord is also no particular problem, and connection of the terminals can also be performed reliably. It is made in Japan. I think that it is a waterproof Kiboshi terminal which can be used with confidence.

Although it is solid, the waterproof function is slightly higher than the insulating cover ☆

Automotive DIY maker in Hyogo prefecture sells 【Aemon】 is also called "crimp terminal" in many cases [Giboshi terminal] × 1 pair of only subdivided items, also has light waterproof function . The method of use is the same as the general 【Giboshi terminal】, just pass the cover through the cord, peel the wire and crimp it with a tool. Although the application is assumed to be used for in-vehicle parts, there are no special reasons for it. Corresponding code size is 0.5 sq ~ 0.85 sq, so if you have only one generic pliers for crimping electric pliers, children can easily work with it. As the impression actually used, the degree of chewing of the terminal can be freely adjusted by crimping with a nipper, so it can be used properly according to the environment as usual. With regard to waterproofing & insulation cover, there is a feeling that it is slightly annoying when inserting / removing a terminal, as it says that the degree of adhesion is increasing more than general purpose items, but there is nothing to say extremely difficult. Conversely, without roasting with a dryer, it is just a way to just push it into the cord, so the waterproof function is only 【IPX 3 (light water extent))】, so personally it is expensive enough to select this product I did not feel like having sex. Therefore on us we feel that we will not peel off a bit for use in outdoor equipment, we tried using it for indoor facilities, but in that environment we can use it without any problems. I think that it can not be used as a way of inserting and removing everyday in a flushing stone because it is just biting copper wire with a crimp terminal, but convenience at the time of facility renovation improved several times a year has improved. In general, from the general purpose [Giboshi terminal], with a feeling of use of a degree that the cover thickness and adhesion degree are slightly high, I feel that it is impossible to find the value worth enough for that expensive setting. Just about making, it is high quality without any problems, we can not say that we can place high trust according to the standard as to waterproof function, but we can say that we have reached the point of reach.

I actually tried waterproofness

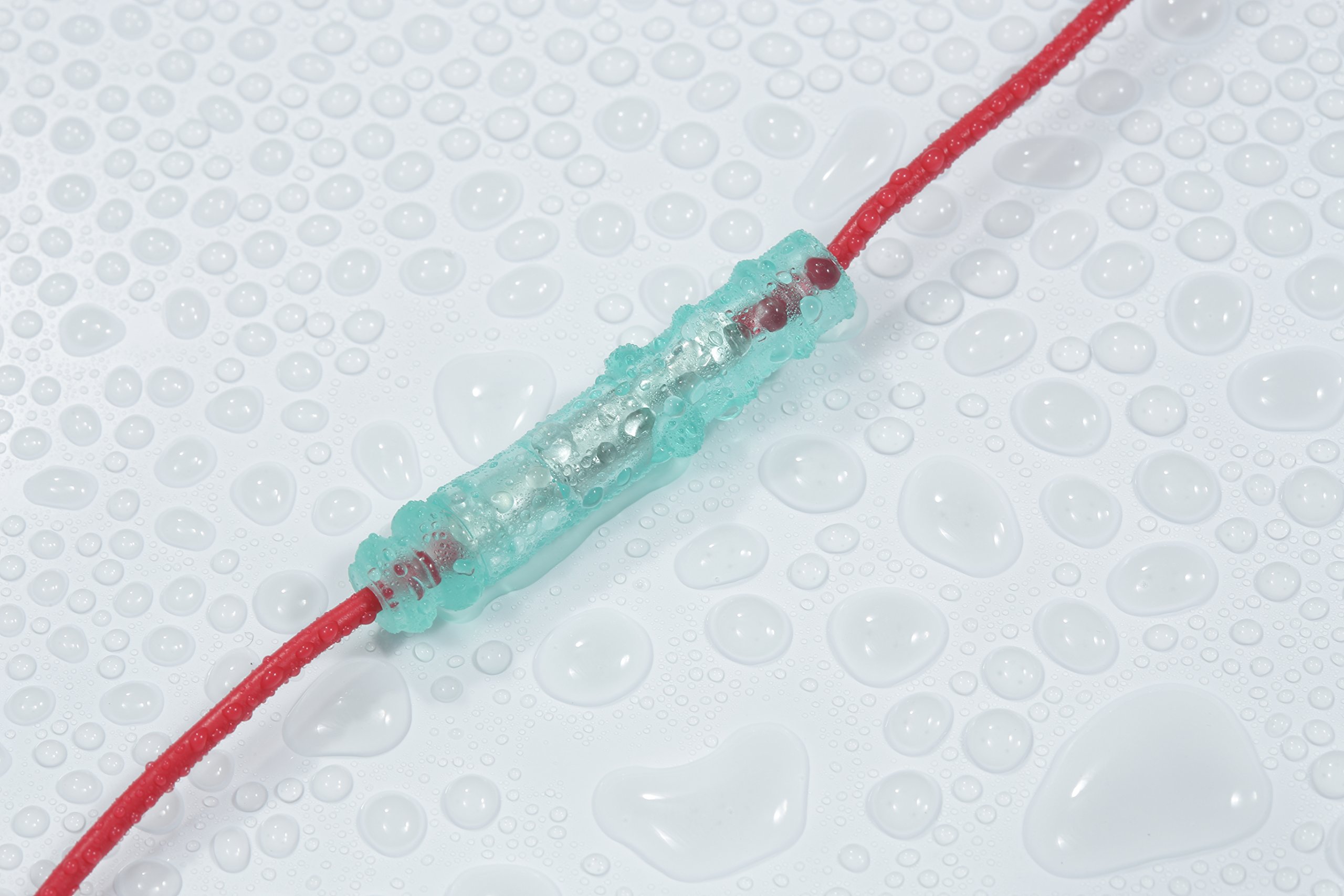

There are many reviews that "Waterproofing can be expected", so it is very simple, but I actually tried it. The result of verification is "Waterproof can be expected". It is detailed below. ● Preconditions · Uses two 0.5 sq (Aamon wiring code AV 0.5 sq 5 m Red E 535) · Measures the resistance value at both ends with digital multimeter before, during and after the test · Also checks visually after the test ● Condition is , The following two. I think that both tests are stricter than the IPX 3 standard. · Hit the sprinkling water shower for home for 10 minutes from the distance of 1 m in the state of MAX · Submerge in a bath of 60 cm in depth for 10 minutes ● Change in the resultant resistance value: None Change from 0.7 ohm before the test, no change was. By the way, it is about 0, 10 ohms if the Giboshi part is immersed in water directly. Change in visual observation: None The submergence test assumed the invasion of some water on the cable side, but no invasion of water was found at all. ● Impressions Impression that the real thing is considerably firmer than the photograph. Simple exam was the result as it seemed. It seems to be safe to use for cars.

Sleeve is different IPX 3

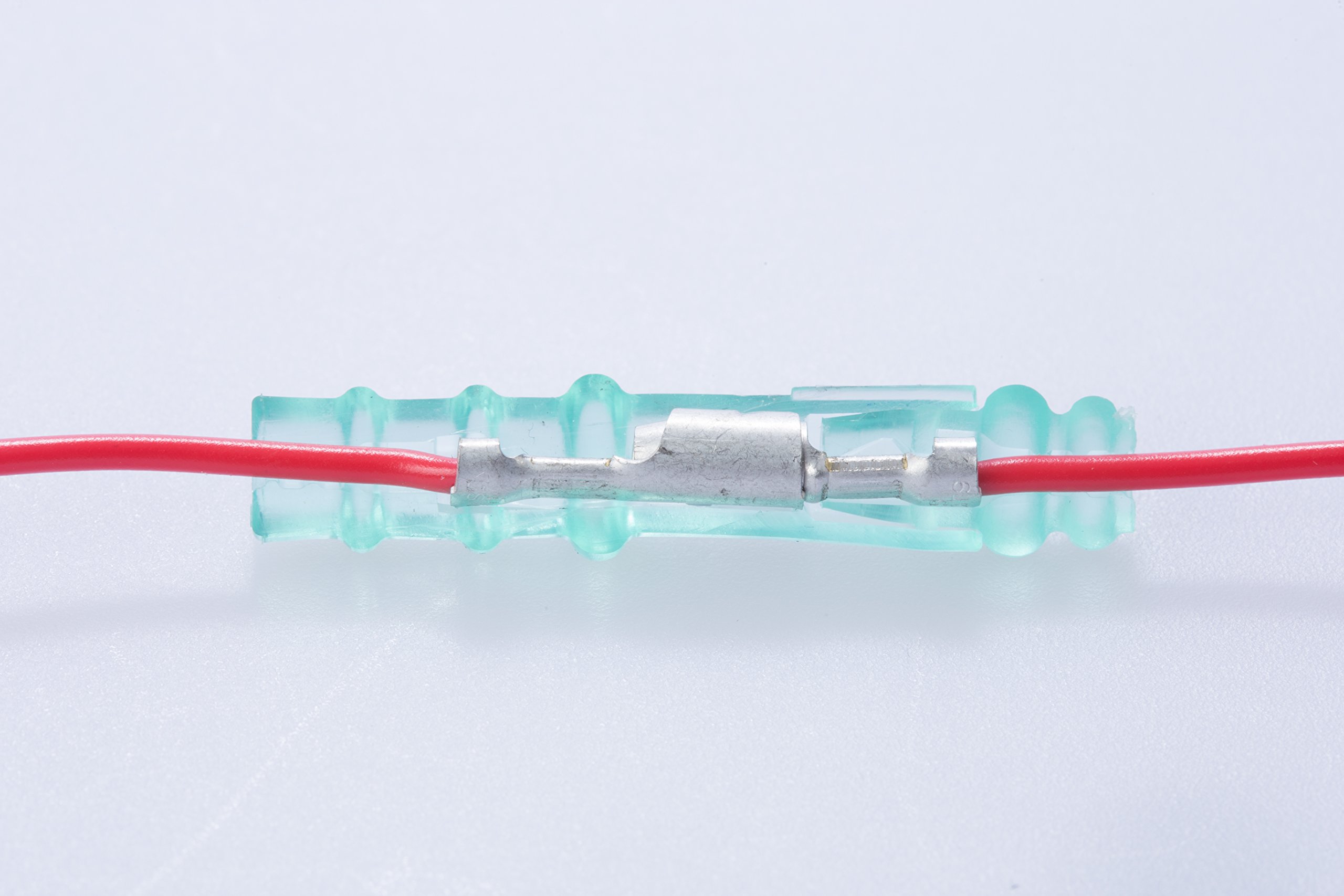

Giboshi is the same as ordinary, sleeve made of PVC and the coating is thick, it seems that waterproof equivalent to IPX3 is obtained. Moreover, the material is flexible and rich in elasticity. The fit of the male and female is also sealed thanks to the elasticity, so it is likely to prevent water entry from the code side from the normal sleeve. About IPX 3 is waterproof performance that is protected against water spray in the range of rainproof type inclination 60 °. I think that it was enough inside the engine room. When installing with auxiliary lamps, daylight, horn, etc. after installation it is safe to have this kind of waterproofness in Giboshi part.

Good products with good quality and ease of handling

This product is featured with good quality that can be used with peace of mind and handiness that can be used easily. What I first felt when using it was that it was a product with excellent quality. Especially, I like the fact that the making of each part is good, and even if it is used for long use, it can be obtained with confidence. Also, it was a good impression that the installation itself can start smoothly and without difficulty. In addition, it became the merit that it feels happy that the balance between the ease of handling and the width of the use place is also good, such as size and size. In that sense, it can be said that the product of good quality and ease of handling are pleasant products.
