UCTRONICS 3.5 Inch SPI TFT LCD Display Kit for Raspberry Pi 3 Mode B, Pi 2 Model B, Pi B+ with Touch Screen, Touch Pen, 3 Heat Sinks, Clear Case, Screwdriver







Product Description

UCTRONICS 3.5 inch TFT LCD display module is designed for Raspberry Pi 2/Pi 3 Model B /B+ and also can be used on other hardware platforms with SPI interface. It is well mate with the standard Raspberry Pi model. With its touch screen, it is suitable for portable devices and projects, and it supports games and videos as well. It can also be used as a fail safe screen to diagnose Raspbian OS instead of using big monitor. The highlight of this display module, it supports plug and play without rebooting the Pi.
Important Note
Raspberry Pi main board shown in the picture is not included.
The plastic case provided in this kit can't fit Pi zero.
You need to manually install our LCD driver, or burn our Raspbian OS image with LCD driver into your own SD Card. Otherwise, if the driver is not properly installed, you will be starting at a white screen.
Before installing our driver, please back up your system for safety.
Contact us for hands on technical support if you have any problem.
Features
Support plug and play

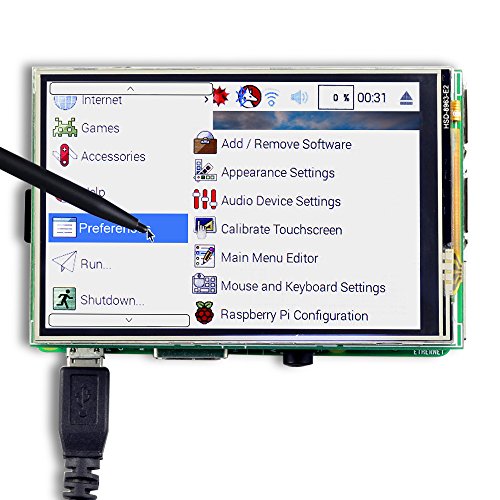

Support touch screen
Support game and video
Support Kernel from 4.1 to 4.9
Automatic driver installation scrip
Well mate with Pi B+, Pi2 and Pi3
Specification
Resolution: 480 x 320 pixels
Interface: SPI
SPI speed: 32MHz
Dimension: 55.98 x 85.60 mm
Package Including
1pcs 3.5 inch touch screen
1pcs touch pen
3pcs heat sinks
1pcs transparent case
1pcs screwdriver
1pcs user manual

Feature

Support Raspberry Pi 3 Mode B, Pi 2 Model B, Pi B+. (NOTE: The plastic case provided in this kit can't fit Pi zero and Raspberry Pi main board shown in the picture is not included)
480*320 pixels resolution TFT LCD Display module with SPI interface, idea alternate to bulky HDMI Monitor. It is suitable for portable devices and projects
Plug and play without rebooting the Pi, no external power supply needed

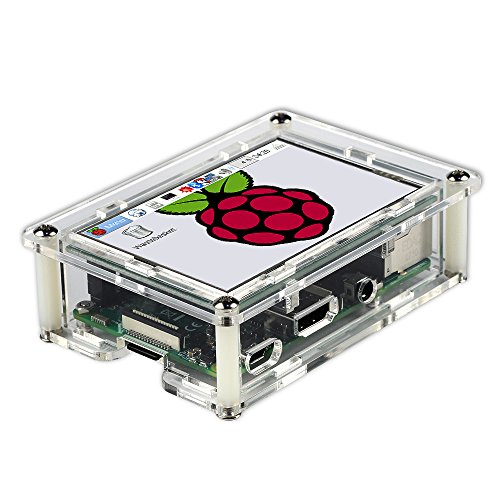

Acrylic clear case and heat sinks are for Raspberry Pi main board
Provide detail user manual, video tutorials, calibration and virtual keyboard software. (Note: this kit is for advanced user, need manually install the LCD screen driver. Highly recommend newbie to order another kit Amazon ASIN: B073QG5YV6 with SD card that has already installed the driver.) Free technical support and customer services, send us message if you need any help
Brand : UCTRONICS
Item model num : U470303
MPN(PartNumber) : U470303
Product Dimensions(LxWxH) : 12x9x4cm ; 200 g
Package Dimensions(LxWxH) : 12x9x4cm ; 200 g
