Item Descriptions:

size:

13-32 inch correspondence

| Color:

black

For LCD TV only!

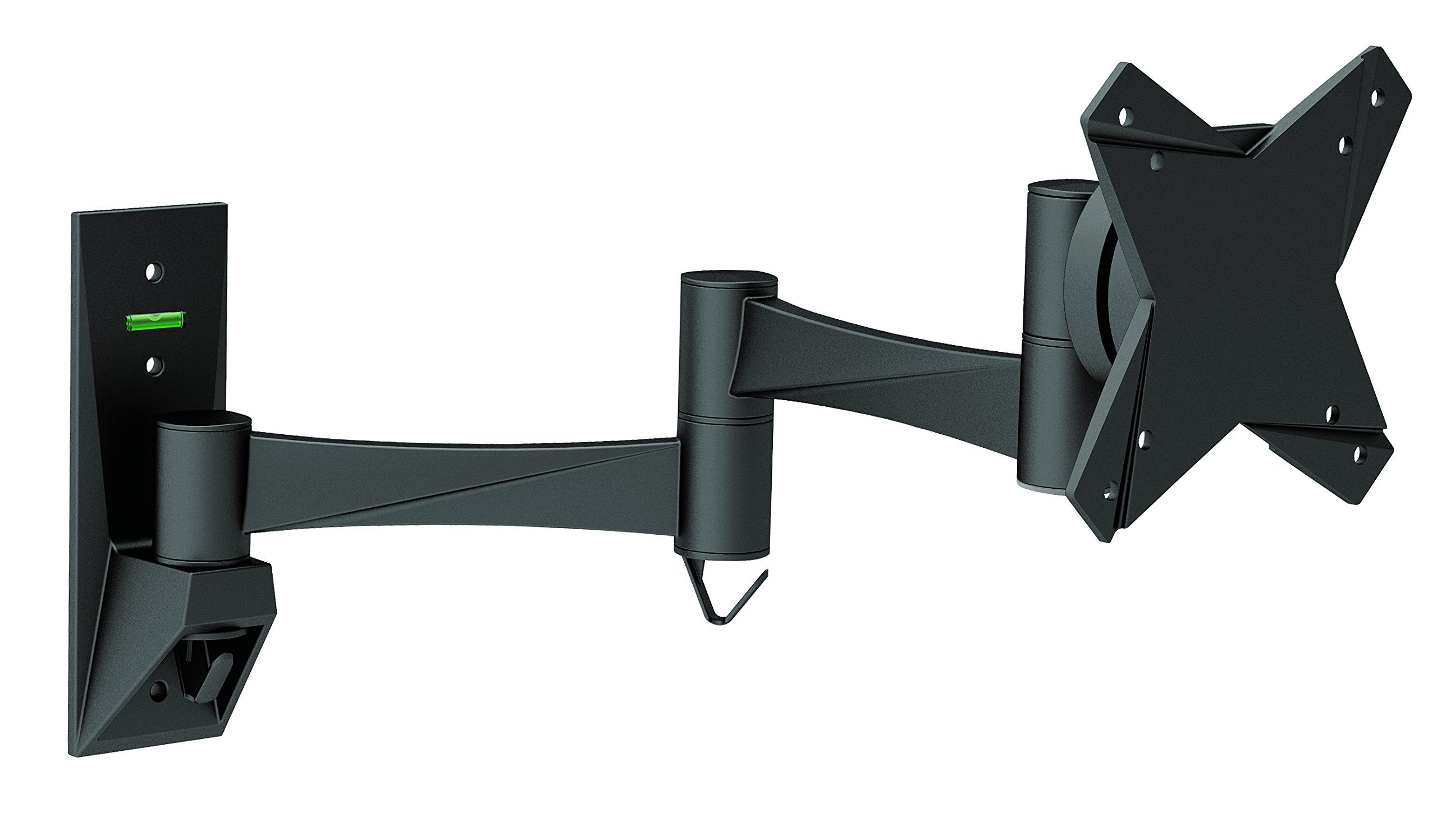

Television Wall Mount Bracket

Since it is a movable type with an arm, you can freely set the screen angle!

[Item point]

- Adjustable angle of ± 15 degrees up and down, ± 90 degrees left and right (until hitting the wall)

· Since the screen can be rotated 360 degrees, level adjustment is easy

· VESA standard compliant with finished metal fittings

· Achieve affordable cost performance

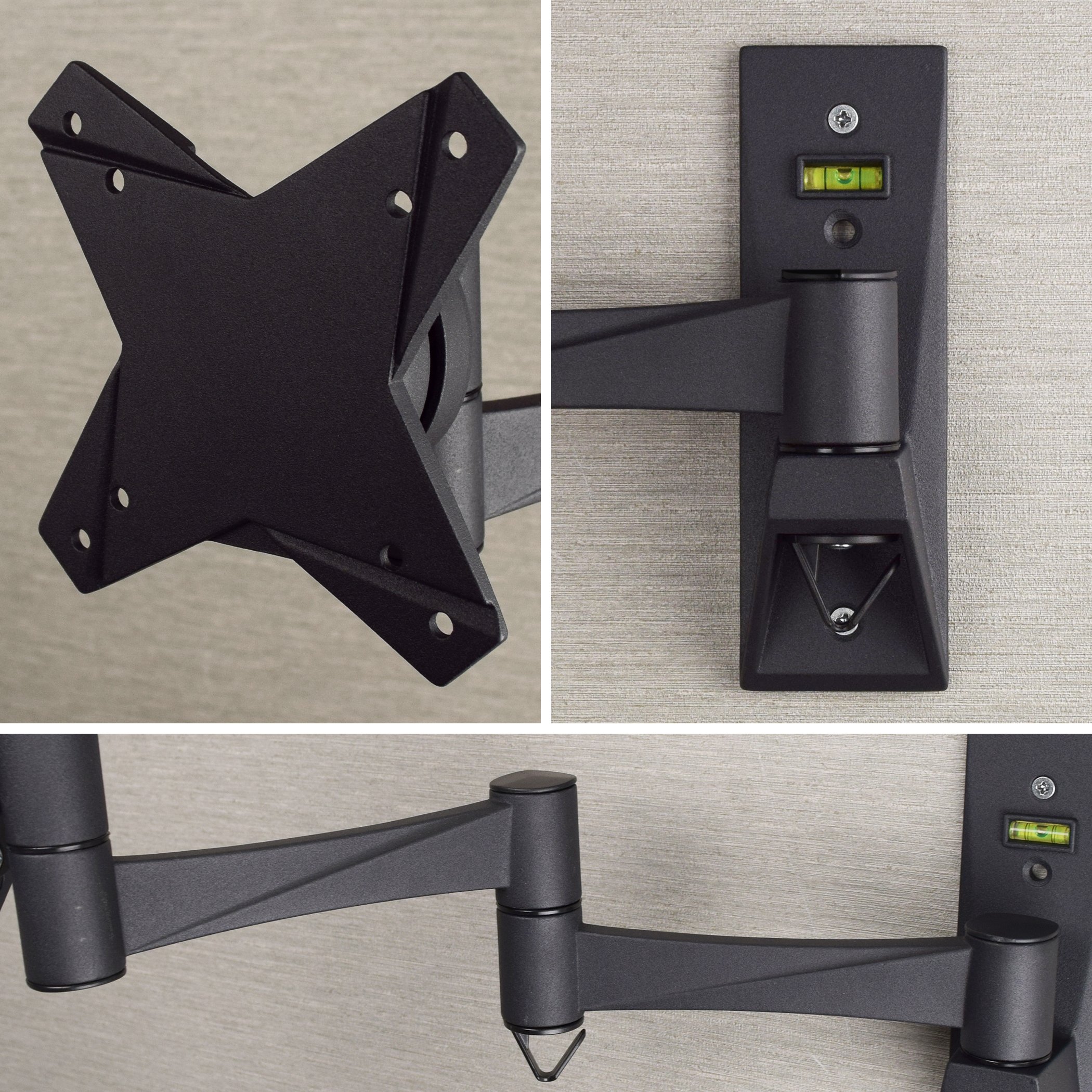

· Correspond to every operation pattern by three joints (Corner installation is also possible)

You can use comfortably by making adjustments!

If the horizontal shift, adjust

Because there is play in the arm joint part, the arm may be bent forward slightly depending on the weight of the TV.

Since the horizontal position of the TV may be shifted depending on the angle of the arm, in that case please adjust the level every time by the rotation function of 360 degrees.

Free lock needs adjustment beforehand

Adjustment is necessary beforehand in order to realize free lock tilt.

There are three adjustment parts, please tighten evenly with the included hexagonal wrench.

Japanese manual and necessary screws are all included

【TV installation method】

① Attach the monitor bracket to the back of the TV

② Install the base plate

③ Hook the monitor bracket to the base plate and fix it

Points you want to check before installation!

Screw into one stud.

It is a slim type metal fitting that does not take width.

Be sure to check before purchasing!

[Full-fledged vibration test implementation]

One of the things that customers are worried about when hanging on TV is "earthquake resistance".

In this product, vibration waveform inspection which reproduces the seismic waveform of seismic intensity 7 observed at the time of the Great East Japan great earthquake as much as possible is carried out,

In order to communicate as much security as possible to everyone, we really do genuine safety inspections from the customer's point of view.

[Relief goods that you can rest assured]

If you can not install it even though it meets the following conditions, we will respond to returned items.

· Threaded holes on the back of the monitor

· Removable stand (television with built-in stand is rare)

· The back of the monitor must be flat

· Monitor size is 13 to 32 inches

· The weight of the monitor is 15 kg or less

· The distance between the screw holes on the back of the monitor is within the range of "75 mm × 75 mm, 100 mm × 100 mm (compliant with the VESA standard)".

Features:

• Please enter model number Confirm this is compatible:
• 【Product features】 Wall mount bracket exclusive for LCD TV.
• Complex motion is realized by three joints.
• TV setter Freestyle NA 112 SS size.
• 【Contents of contents】 TV setter body | Mounting screw set | Clear installation instructions
• [Product specifications] VESA 75 mm × 75 mm · 100 mm × 100 mm compatible | Applicable inch: 13 to 32 inch | adaptation weight: up to 15 kg | body weight: 1.4 kg.
• For details on dimensions, please see the image at the top.
• 【Reliable Returns】 It is a safe returnable product with a 3 year warranty.
• For details, please refer to our "Returns and refunds" column.
• 【Corresponding number of inches】 13 inches 14 inches 15 inches 16 inches 17 inches 18 inches 19 inches 20 inches 21 inches 22 inches 23 inches 24 inches 25 inches 26 inches 27 inches 28 inches 29 inches 30 inches 31 inches 32 inches
• 【About STARPLATINUM】 It is a specialized shop of TV wall hanging metal fittings, ceiling hanger metal stand, DIY.
• Such as SHARP "AQUOS", Toshiba "REGZA", HITACHI "Wooo World", Mitsubishi "REAL", PANASONIC "VIERA", Sony "BRAVIA (BRAVIA)", LG Electronics "OLED"
• We deal abundantly with TV fittings that correspond to any TV maker.

Product information:

Shipping Weight: 1642 g

Package Dimensions: 10.01 x 25.81 x 27.41 cm
