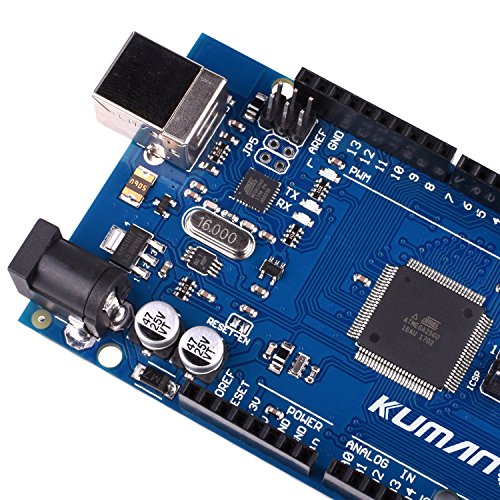

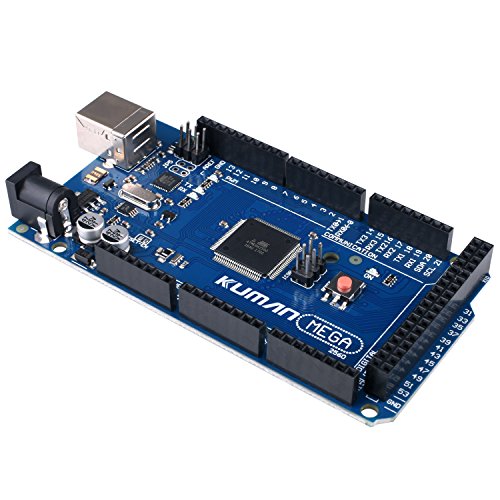

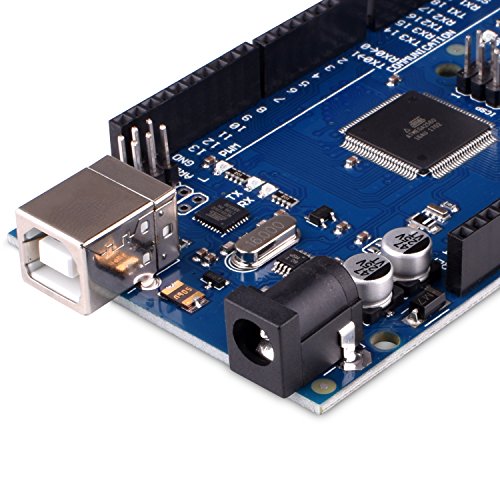

Product Description

Overview:
We produce this board based on the open-source official schematics.
The printing or color on the board may be different from each production date, but the function is exactly the same.
--Digital I/O Pins:54 (of which 14 provide PWM output).
--Flash Memory:256 KB (ATmega2560) of which 4KB used by bootloader.
--Analog Input Pins:16, Input Voltage (recommended):7-12V and Input Voltage (limits):6-20V
This board is compatible with current boards and shields, but adds possibilities for new shields.
The Mega 2560 is an update to the Mega
The Mega2560 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. It features the ATmega16U2 programmed as a USB-to-serial converter.

Reversion 3 of the board has the following new features:
-1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes..
-Stronger RESET circuit.
-Atmega 16U2 replace the 8U2.

Specification:
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
Microcontroller: ATmega2560.
Operating Voltage: 5V.
Input:Voltage(recommended): 7-12V.
Input Voltage (limits) : 6-20V.
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA

Feature

Robot development board
Microcontroller: ATmega2560
Flash Memory:256 KB (ATmega2560) of which 4KB used by bootloader.

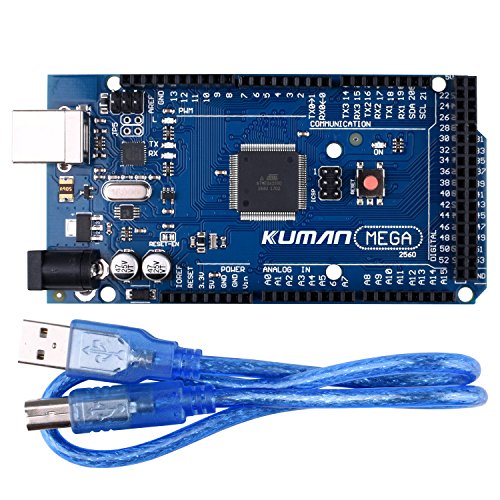

Package include:1x Mega 2560 R3,1X USB Cable
Brand : kuman
Item model num : K16-US
MPN(PartNumber) : K16-US
EAN : 6932083803053
Product Dimensions(LxWxH) : 13x4x9cm ; 91 g
Package Dimensions(LxWxH) : 14x9x4cm ; 91 g
