Product Description

750VA online, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches.

Extended runtime available with optional BP24V15RT2U(limit 1), BP24V28-2U(limit 1), BP24V70-3U(multi-pack compatible) and BP24V36-2US(multi-pack compatible) external battery packs.

Full-time sine wave 100, 110 or 120V output with /-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply(UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation.

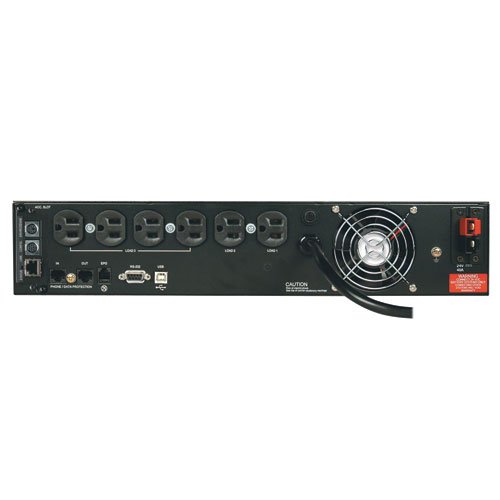

Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off(EPO) interface.

Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for viewing in rackmount or tower configurations.

2-year limited warranty and $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
