Item Descriptions:

<Specification>

■ Product Color: Gray

■ Image sensor: 5 million pixels

■ Lens specifications: f = 3.09, F = 2.0, angle of view 108 degrees

Still picture shooting resolution: 4000 × 3000, 3264 × 2448, 2592 × 1944, 2048 × 1536, 1280 × 960

■ Movie resolution: 1920 × 1080, 1280 × 720, 848 × 480, 720 × 480, 640 × 480, 320 × 240

■ Shooting format: Still image / JPEG, Movie / AVI

■ Liquid crystal size: 2.31 inch TFT monitor

■ Recording media: microSD (SDHC standard compatible) / 2 ~ 32GB 【※ microSD card sold separately】 【※ SDXC card can not be handled】

■ Infrared LED: 46 lights

■ Infrared flash: Up to 20 m

■ Personality sensor distance: Up to 20 m (※ It varies greatly depending on the environment such as temperature and surrounding temperature condition)

■ Human Sensor Range: Main Sensor 60 ° Side Sensor Each 30 ° Total 120 ° (※ It varies greatly depending on the environment such as temperature and surrounding temperature conditions)

■ Trigger Speed ​​(Shooting Speed): Approximately 0.6 seconds when Using Front Sensor Only / About 0.2 seconds When Using Side Sensor

■ Shooting interval: 3 seconds to 60 minutes

■ Continuous shooting number: Up to 10 sheets

■ Movie recording time: 5 seconds to 10 minutes

■ Shooting distance: day / 1m ~ ∞, night (when infrared LED is on) / 3m - 20m

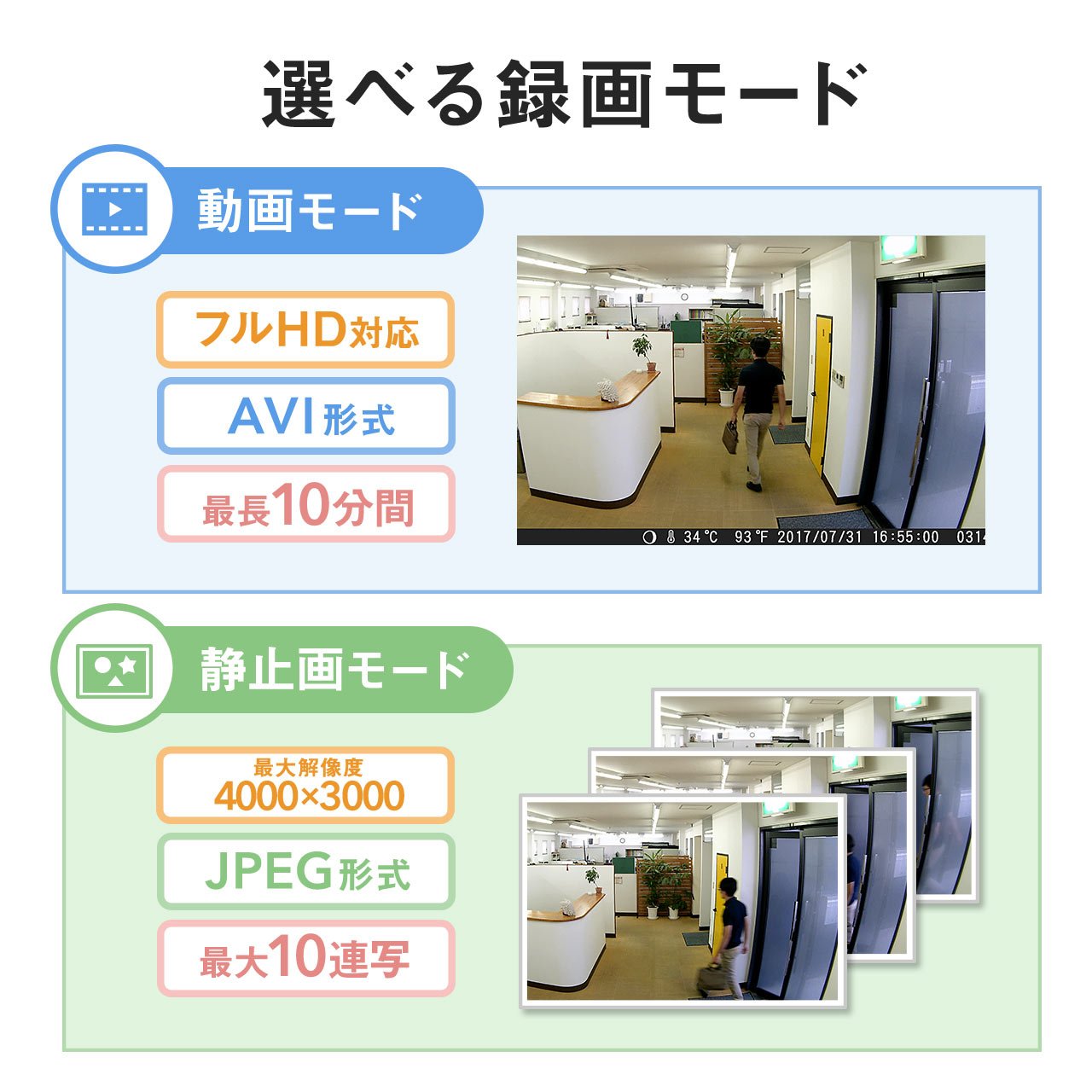

■ Shooting mode: Photo / Movie / Photo + Video

■ Maximum standby time: Up to 12 months / When using 8 AA batteries (* It differs greatly depending on the usage environment ※)

■ Waterproof and dustproof standard: IP54

■ TV output: Composite output

■ Power supply: 8 AA batteries or 4 (Batteries must be prepared separately)

■ Accessories: Fixing belt / Cable length Approximately 180cm, mini USB cable / cable length Approximately 95cm, exclusive video cable / cable length Approximately 95cm, wall mounting parts set (fixing bracket × 1, tapping screw × 3, concrete anchor ×

3, hex wrench x 1)

Producing countries ■: China

■ Instruction Manual: Japanese instruction manual available

■ Warranty period: 6 months from date of purchase

※ 1 Infrared detection may be impossible if installed near the outdoor unit of the air conditioner or where there is no temperature difference between the surface temperature of the object such as summer and the surroundings.

* 2 Upon infrared shooting, 46 LED infrared LEDs will light slightly.

Also, Irradiating infrared is invisible.

* 3 Black-and-white photography will be taken at night shooting.

* 4 The shooting start function with motion sensor can not be used during interval shooting.

* 5 The monitor of the camera body is hidden during external output.

※ When installing on the wall, sufficient strength to withstand the load of this product for a long period is necessary.

Please consult experts depending on the situation.

* Waiting state: Only the front motion sensor is operating.

In the meantime, when shooting is done, the battery capacity will decrease and the standby time will be greatly reduced.

※ Estimated battery operation and storage capacity: Please confirm with Sanwa Direct HP → https: //direct.sanwa.co.jp/ItemPage/400-CAM061

Features:

• Please enter model number Confirm this is compatible:
• It is a security camera unnecessary wiring work such as power supply.
• Because wiring work is unnecessary dry battery type, it is possible to install it outdoors where it is difficult to secure power supply.

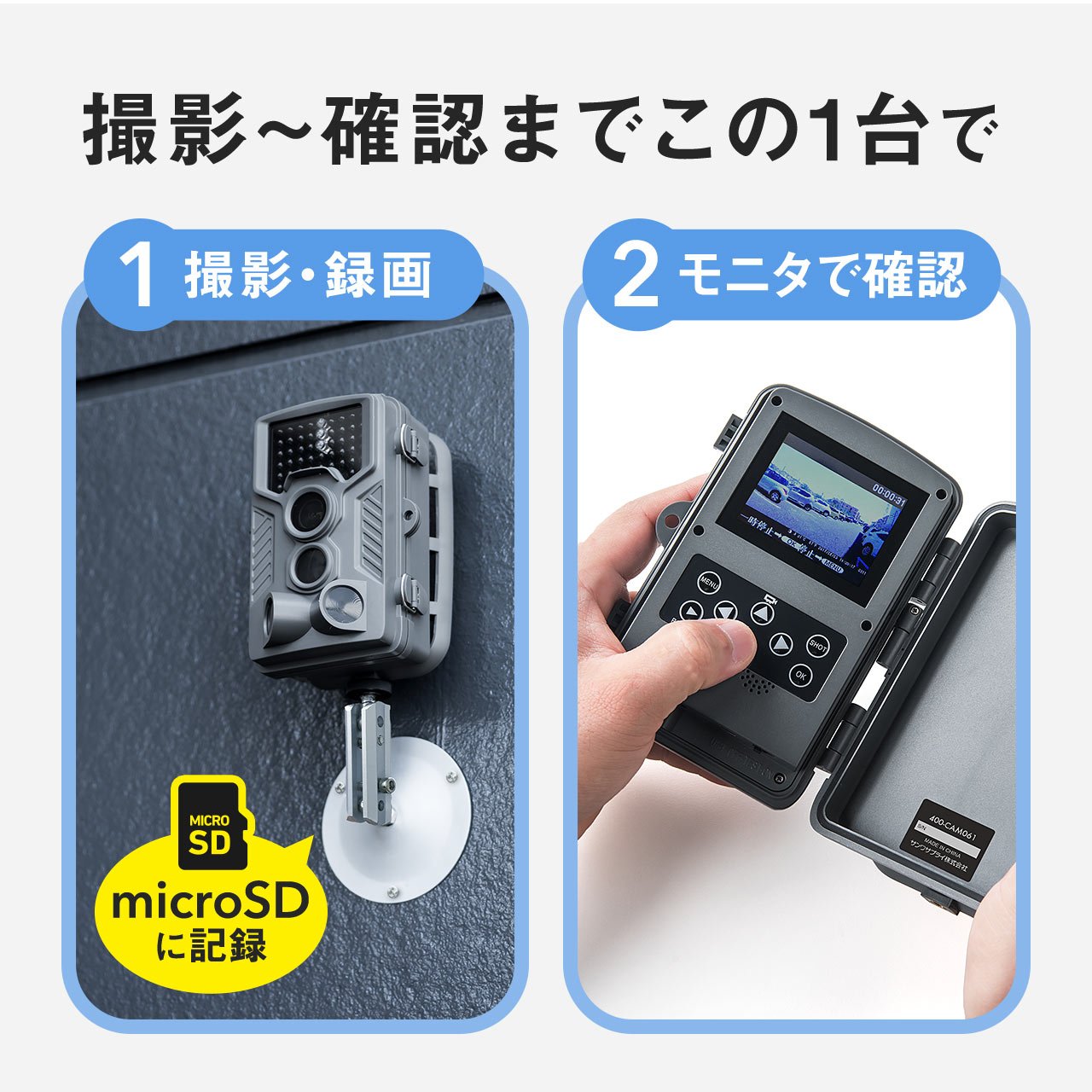

• Since it is built in the liquid crystal monitor, it is possible only with this machine until shooting, recording and confirmation of shooting contents.
• Recorded movies and still images can be recorded on microSD.

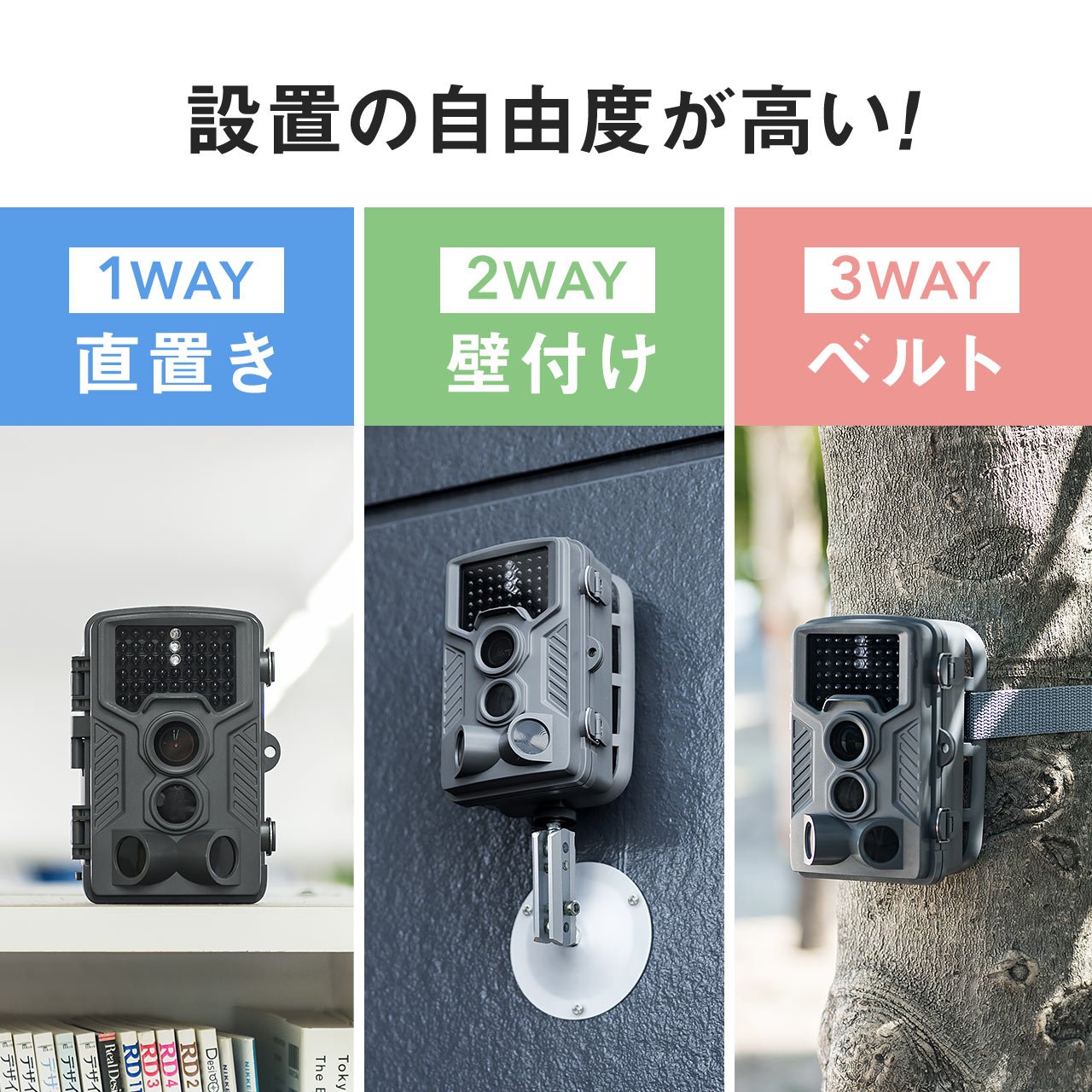

• Installation method can be selected according to the situation from the 3 streets of placing directly, installing on a wall, and attaching to a pillar etc. with a belt.

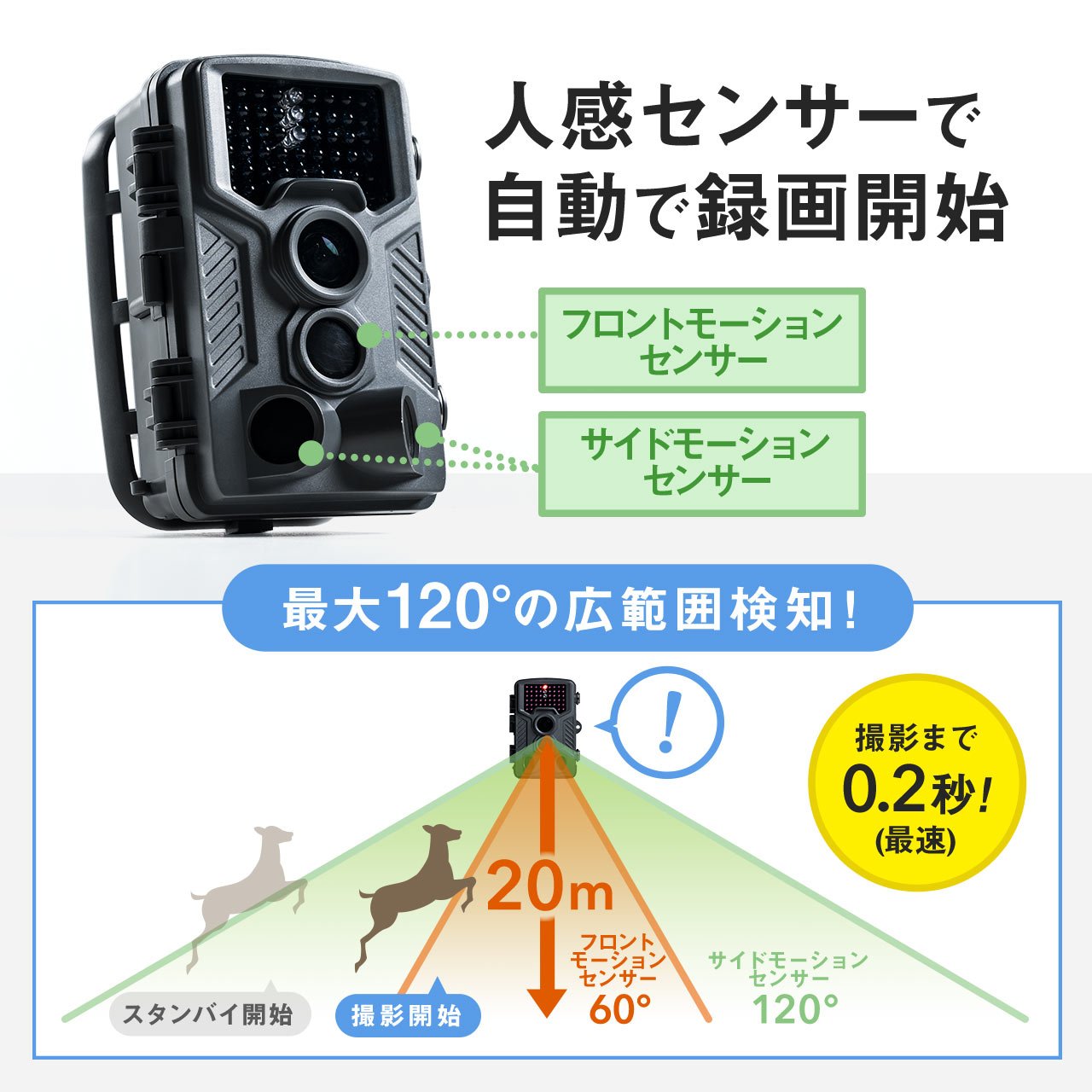

• Built-in human sensor on the front and both sides, it can detect a wide range of movement up to 120 ° and shoot automatically.
• (* 1)
• The time from when the sensor senses to photographing can be shot with a minimum of 0.6 seconds when using the front sensor only, and a minimum of 0.2 seconds when using the side sensor.

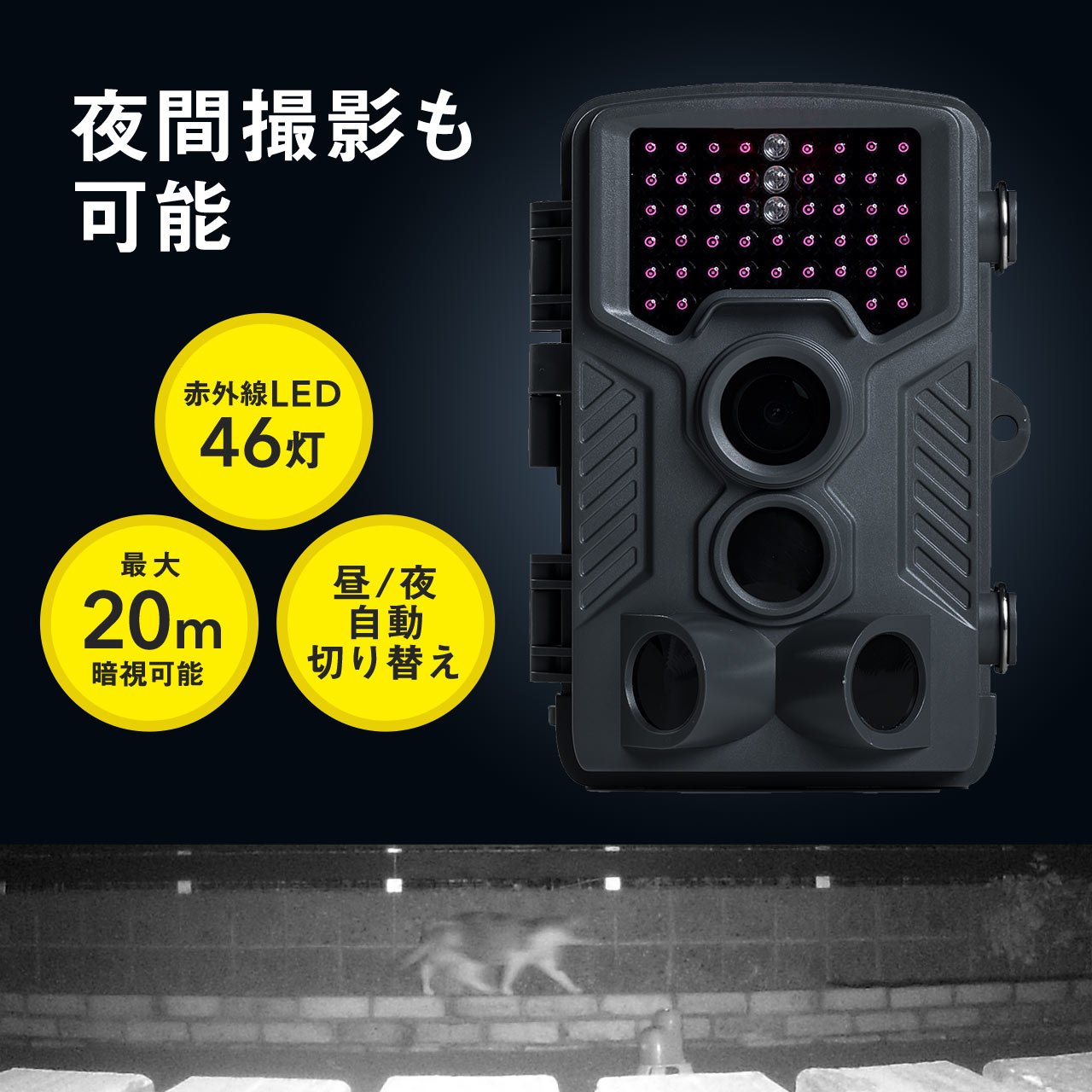

• With 46 invisible infrared LEDs built in, it is possible to darken up to about 20 m ahead.
• (* 2)
• It has two modes, daytime mode and nighttime mode, which automatically switches with built-in sensor.
• (* 3) Can be used even in the rain Waterproof and dustproof standard IP54 can be used, can be used safely outdoors.
• As necessary, you can select the type of data to record from movies and still images.
• It supports interval shooting to shoot still images or movies at fixed intervals.

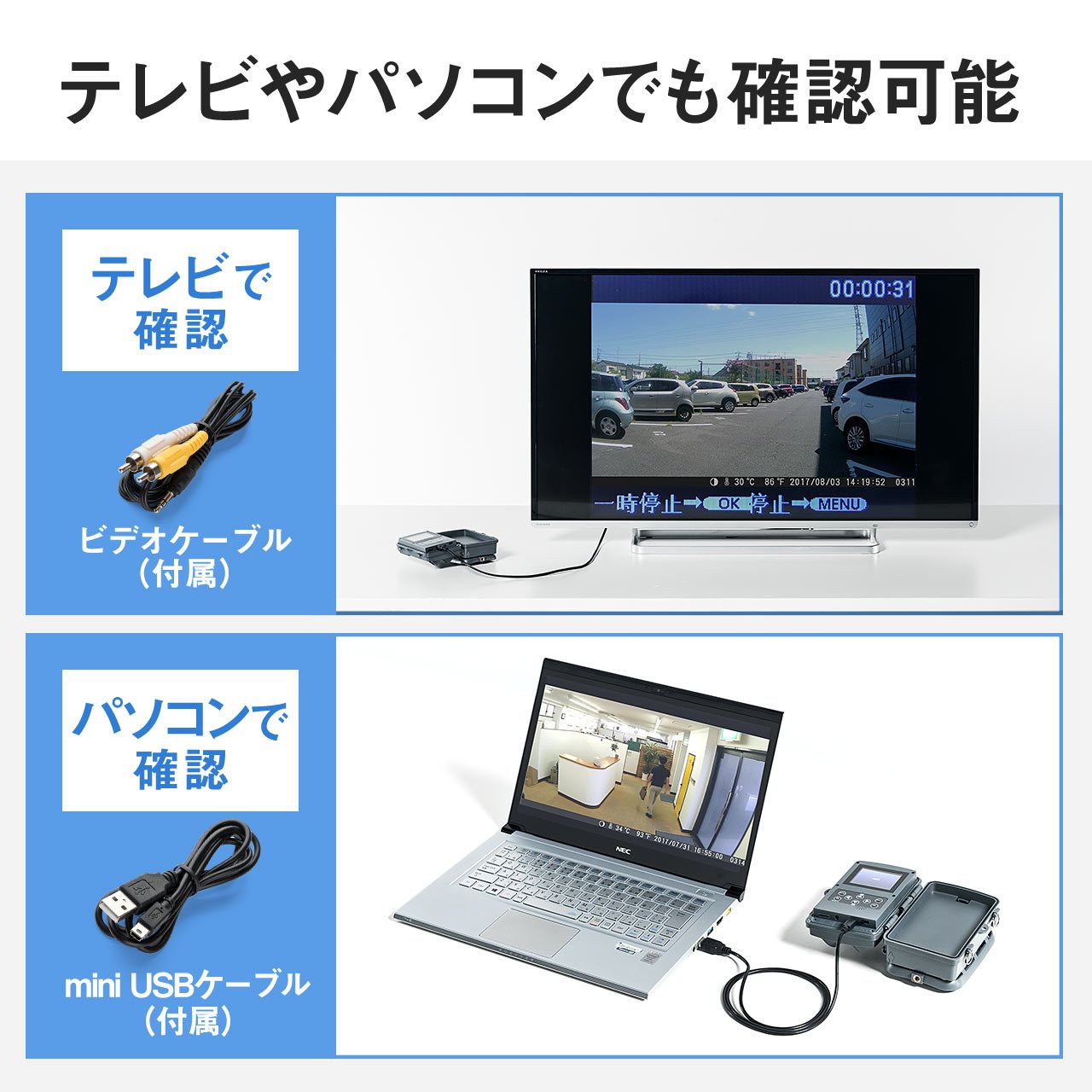

• (* 4) A cable that can be connected to a TV or PC is included.
• (* 5) Ideal for observing wildlife as a trail camera.

Product information:

Shipping Weight: 648 g

Package Dimensions: 9.91 x 12.39 x 19.81 cm
