Which sensor lights, induction interval time is zero, into a continuous automatic delay, people in the activities of the light has been bright, people go light is extinguished, humane and easy to use greatly improved.
Packaging and accessories
1. a single cardboard quality box;
2. a sensor lamp;
3. specification;
4. One-sided adhesive;
The main principle of this sensor lamp is: the body has a constant body temperature, about 37 degrees, so it will issue a specific far infrared (wavelength 10UM). Far infrared light through a dedicated lens to focus on the lamp built-in passive far infrared sensor (the sensor using pyroelectric principle), when the sensor receives the human body infrared radiation signal, after comparison with the ambient temperature, and then through the follow-up circuit detection Can produce a trigger signal, driving the LED on and off, to achieve the automatic control function.

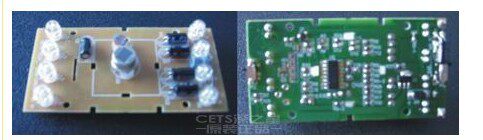

Circuit technology display

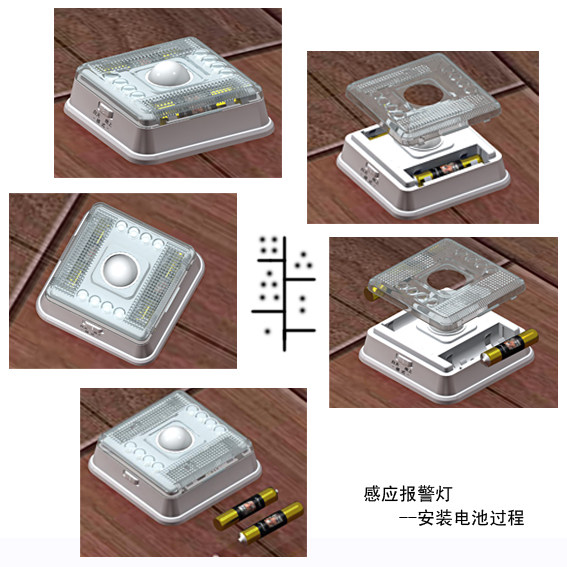

电池安装方式：
Features
1. Use the new high-efficiency white LED technology. Efficient, energy saving, long life, no radiation, energy saving, environmental protection, explosion-proof, cold light, suitable for a variety of places to use, is about to replace the traditional light bulbs and energy-saving lamps of a new light-emitting devices.
2. The use of advanced human body thermal infrared detection sensor technology. Different from the traditional voice, touch, buttons and other traditional common technology, with high sensitivity, anti-interference, silent, fast response, sensing distance far characteristics. At the same time itself does not send any type of radiation, the device power consumption is very small, and is non-contact, to maximize the protection of people's health, away from accidental infection.
3. people in the light, people go light off, automatic intelligence. Optimized after the induction control design, can achieve people in the light, the automatic light, people go after the automatic extinguished, no need to go off the switch, energy-saving worry, no longer forget to turn off the lights and worry about the liberation of their own.
4. Built-in light-sensing device. Automatic identification of day and night status, daytime automatic standby, night induction light, energy saving.
5. Humanized design. Exquisite appearance, stylish ultra-thin.
Forward-looking design concept, ultra-thin and delicate, with the home of furniture or decoration such as hydrophilic-like integration, not too sudden, will only make you surprised at her clever.
6. Reasonable structural design, both anti-theft, but also easy to replace the battery, and the appearance of no screws
Based on the unique anti-theft design, can put an end to the pleasant pilfering, to eliminate the theft of the worries.

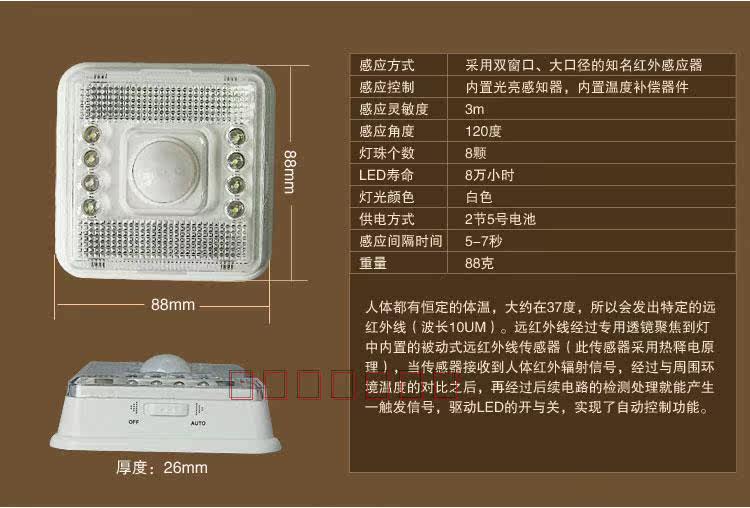

specification
1. Induction mode: the use of dual-window, large diameter well-known infrared sensor
2. Inductive control: built-in light sensor, built-in temperature compensation device
3. Sensitive sensitive distance: 3 meters or less
4. Sensitive sensitivity angle: 120 degrees

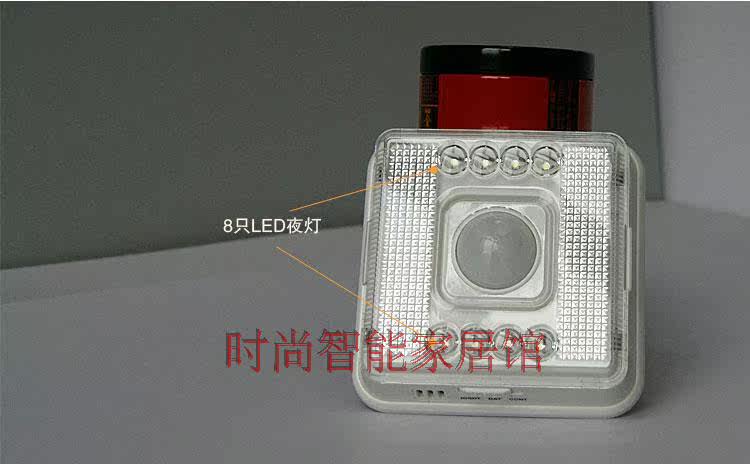

5.LED lamp beads number: 8 stars
6.LED life: 80,000 hours or more
7.LED brightness: 1400-1600MCD / stars, light angle: 120 degrees
8.LED light color: white
9. Machine standby current: 70 microamps
10. Machine operating current: 70 mA
11. Power: L0803A - using two AA batteries or charging power
12. Luminous delay off time: 5-7 seconds
13. Sensing interval: 5-7 seconds
14. boot self-test time: 20 seconds
15. Alarm sound: 90 dB (Note: with the alarm model have this sound)
16. Product applicable ambient temperature Humidity: -5 degrees -38 degrees 5% -93%
17. Product Size: 88X88X26, Unit: mm
18. Storage temperature: -10 degrees -40 degrees
19. Weight: 88 grams (without battery)
Product installation
Double-sided adhesive;

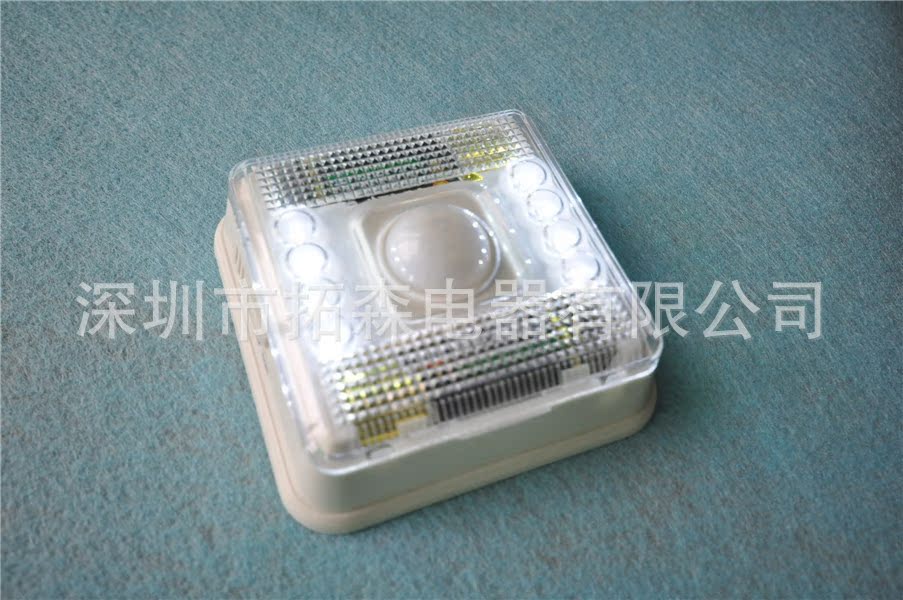

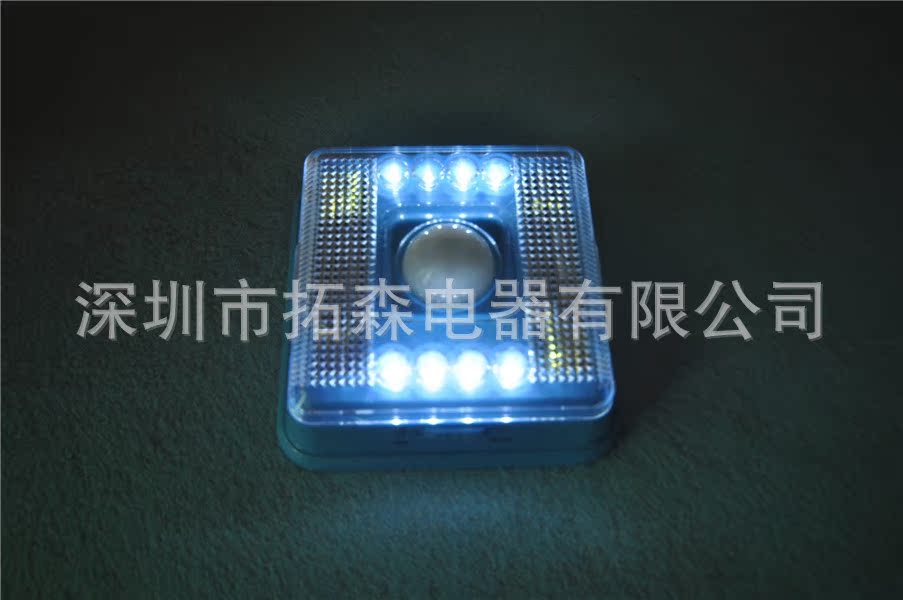

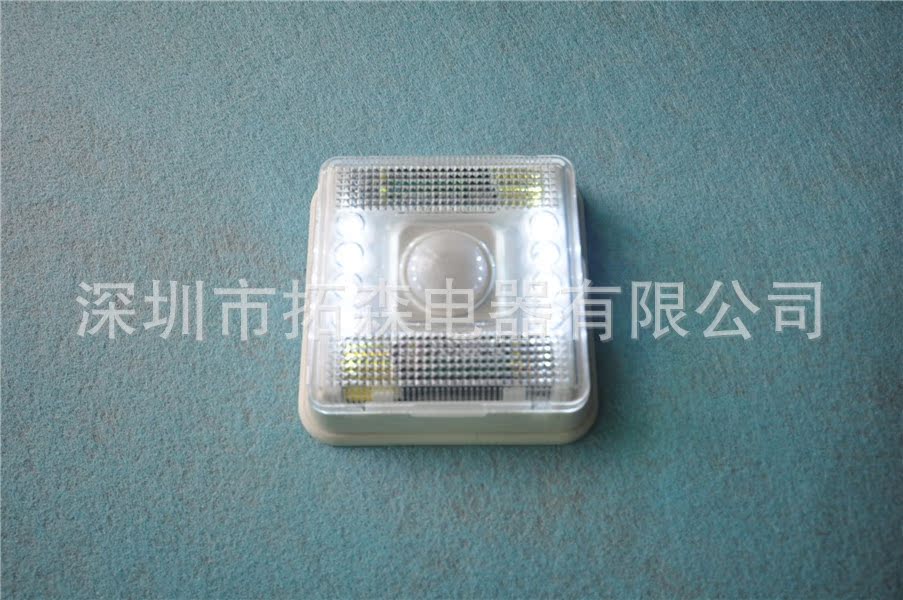

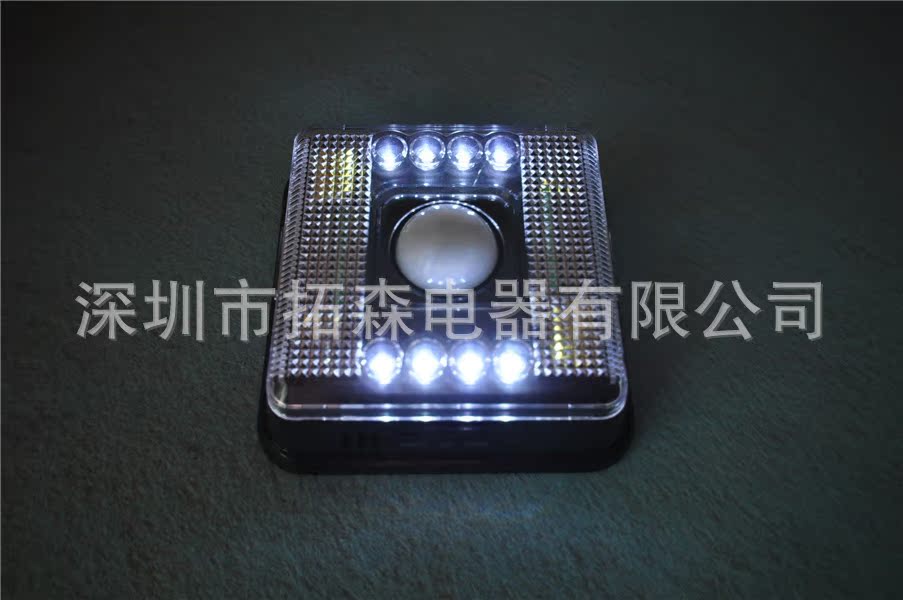

Product physical map:
Precautions
1, this light built-in photosensitive components, so the day may not work in the environment; users in the dark environment test.
It is recommended to use 555, Nanfu, super, GP and other alkaline high-energy batteries, ordinary alkaline battery capacity is small and large internal resistance, may affect the use of time. Do not throw waste batteries, so as not to pollute the environment.
Use high-quality high-performance alkaline batteries. Ordinary batteries may appear to reduce the standby time, sensing distance is not enough, the angle is insufficient, the lights sometimes bright and so on.
The operating ambient temperature must be between -5 ° C and 40 ° C, which may cause false triggering beyond this temperature range or may increase battery power.
This light is not waterproof, do not put in the rain, severe moisture, lightning, ultra-low temperature, light changes and other obvious environment.
Do not place the sensor lights in the window, where the temperature or light changes obviously, otherwise it may cause malfunction.
Application place
Doorway, corridor, stairs, stairs, loft, dark, basement, garage, cellar, cave,
Wardrobe, cupboard, bookcase, hotel wardrobe, safe, tents
Car luggage compartment, after the end of the car
Precautions
1, this light built-in photosensitive components, so the day may not work in the environment; users in the dark environment test.
3, it is recommended to use 555, Nanfu, super, GP, EXC and other alkaline high-energy batteries, ordinary alkaline battery capacity is too small and large resistance, may affect the use of time. Do not throw waste batteries, so as not to pollute the environment.
4, the use of high-quality high-performance alkaline batteries. Ordinary batteries may appear to reduce the standby time, sensing distance is not enough, the angle is insufficient, the lights sometimes bright and so on.
5, the working environment temperature must be between -5 ° C ~ 40 ° C, beyond this temperature range may be a false trigger phenomenon, or may increase the battery power is now.
6, this light is not waterproof, do not put in the rain, severe moisture, more lightning, ultra-low temperature, light changes and other obvious environment.
7, the sensor should not be placed in the window, the temperature or light changes in the obvious place, otherwise it may cause malfunction.
