Item Descriptions:
Color:
black
Procedure 1, Remove the lower screw
Be sure to turn off the main unit before starting operation.
Working without turning off the power may cause unexpected accidents or damage to the main body base.
Remove two star screws on each side of the dock connector.
Ran Jiang 813 The item of exhibition from the seller comes with a repair tool.
Thank you for understanding.

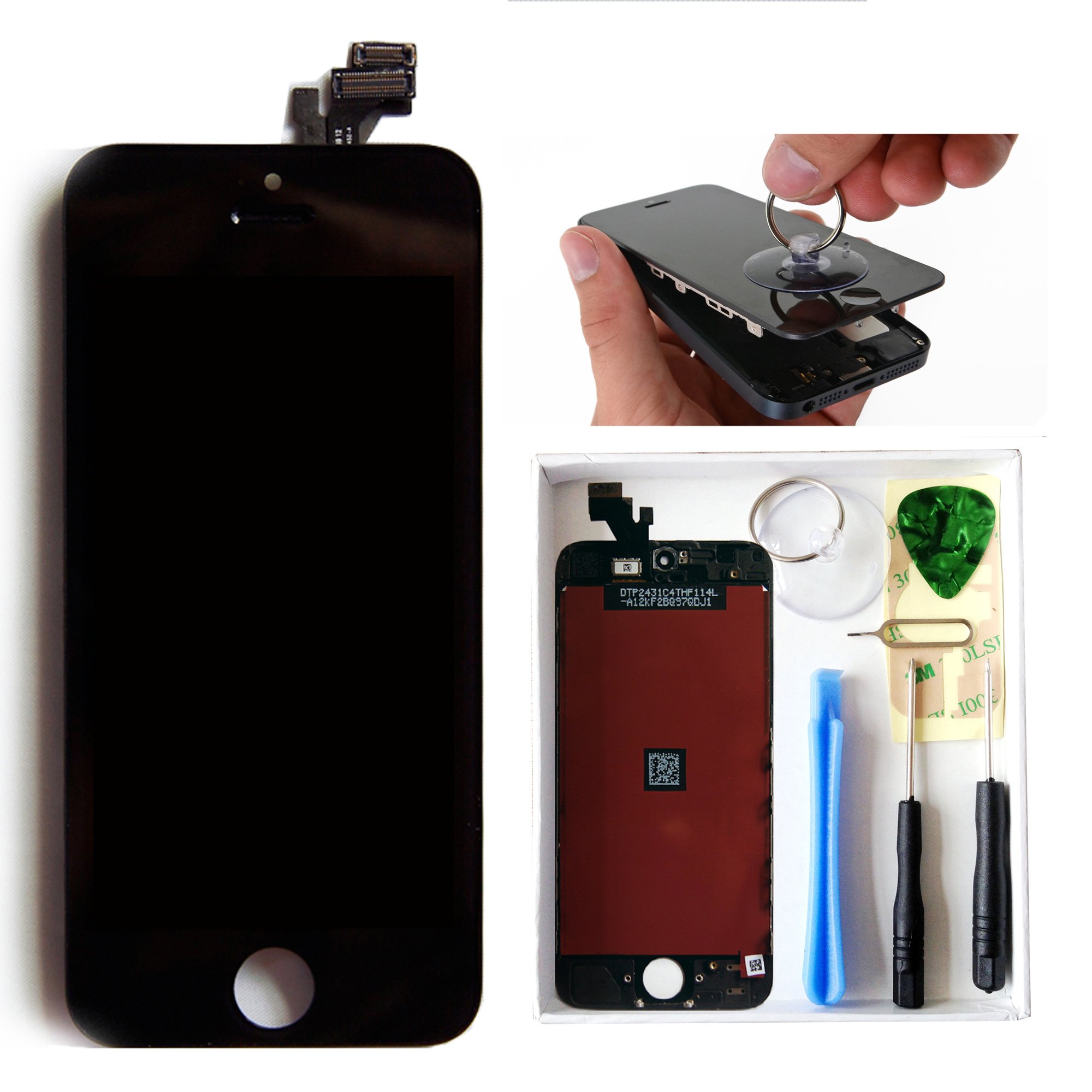

Please check the repair tool as shown.
Step 2 Removing the front panel
Attach the suction cup inside the tool kit to the part slightly above the home button.
(Please refer to the figure.) Since the panel can not be removed if the adsorption is weak, please confirm that it is adsorbing firmly.
After confirming that the sucker is securely attached, apply constant force with one hand and remove the front panel from the rear panel.
When floating at a certain height, as shown in the figure, slide the tool between the two panels and use the two forces of the tool and the suction cup to further float it.
Please be careful not to forcefully remove the panel.
With the suction cup attached and continuing the height, the side also floats as shown in the figure.
In this case, please be careful not to open with too much force.
After the lower, left, and right three points float, we will pull the sucker further to remove it.
(At this time, since the upper cable is still caught, please do not remove all at a stretch)
Procedure 3, removal of protective plate
Remove the following screws.
● 1.2 mm screw
● 1.6 mm screw
Removing the screw removes the plate as shown, as it can be removed.
Step 4, Remove the cable
Remove the cable below.
● Camera & sensor cable
● Digitizer cable
● LCD cable
Features:

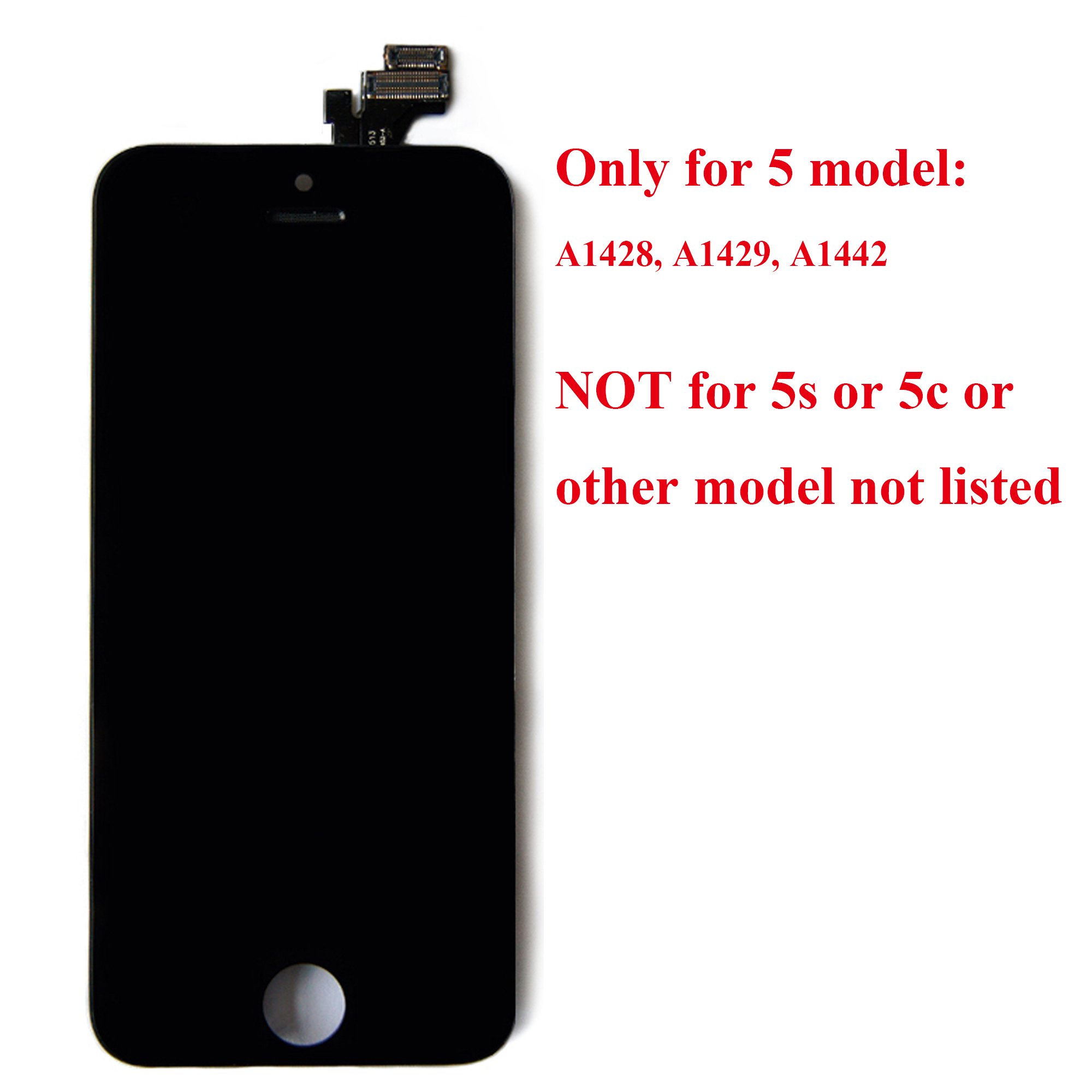

- Please enter model number Confirm this is compatible:

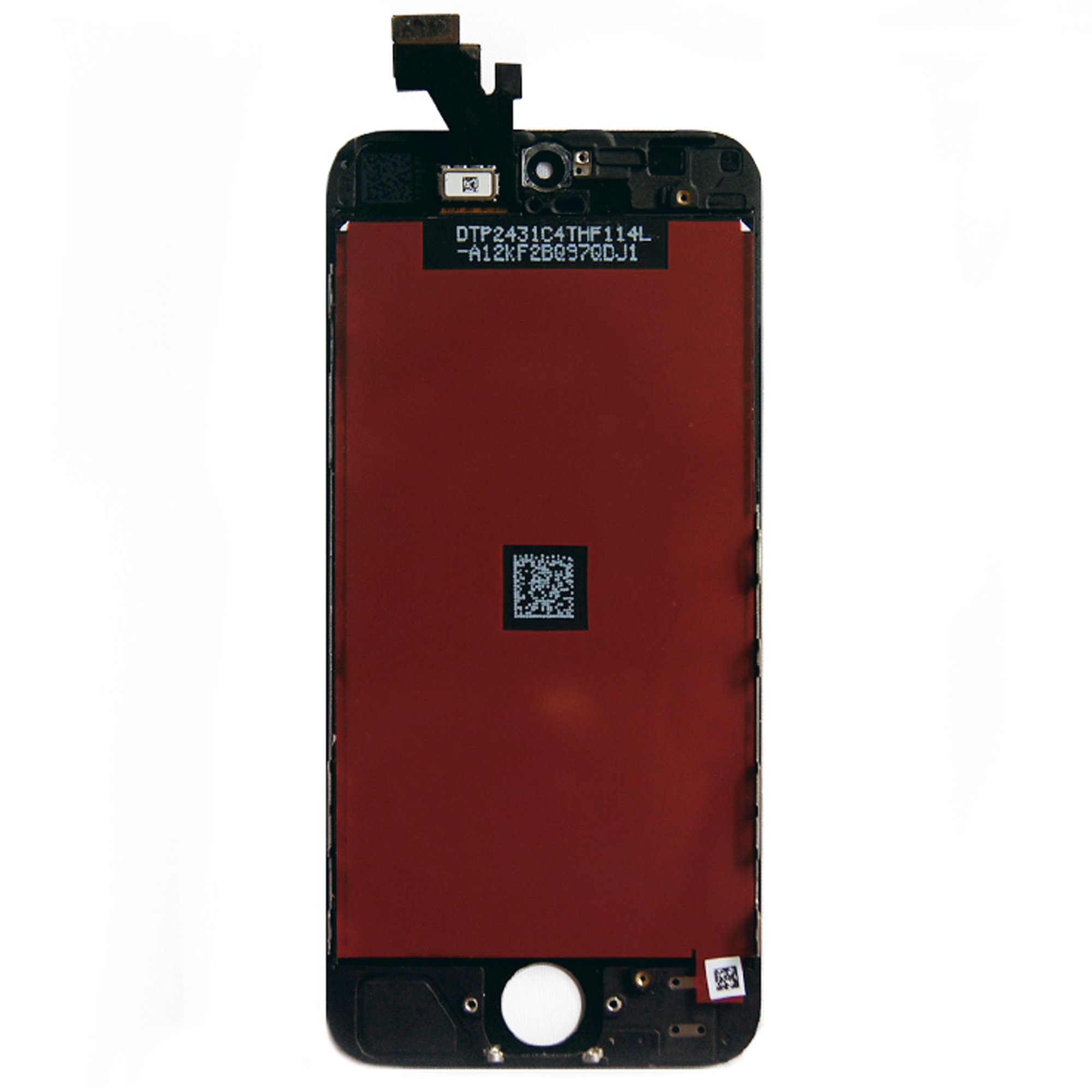

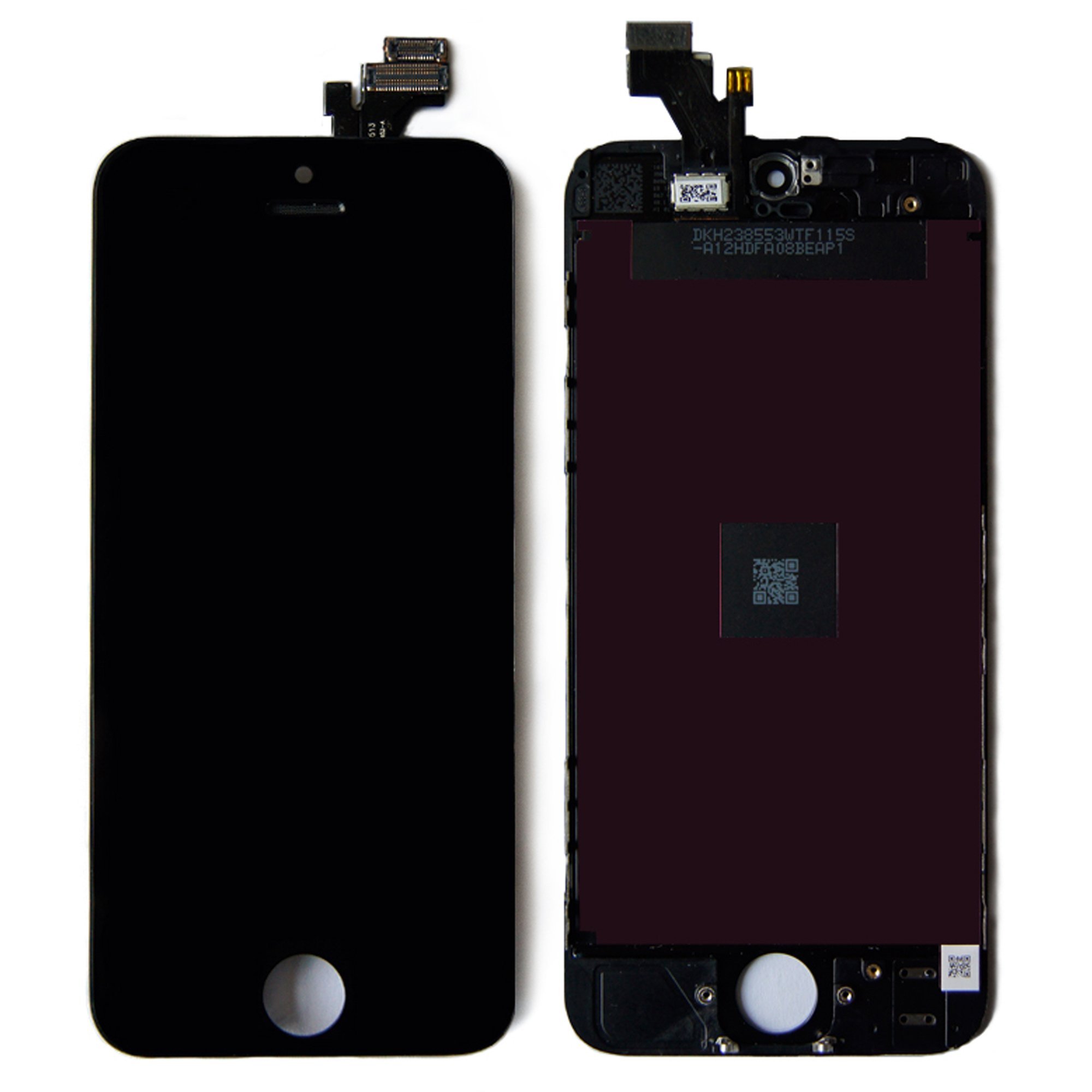

- iPhone 5 Replacement repair front panel liquid crystal LCD glass, integrated set of digitizer (touch panel) and liquid crystal LCD.To repair replacement tool kit is attached.
- To install it requires some knowledge and skill, so if you can not install it, you better ask experts or youtube.
- If there is something unclear during the exchange, please contact here.
- A tool kit for repair replacement is included, please understand we do not have a phone button.
Product information:
Shipping Weight: 81 g
Package Dimensions: 2.79 x 14.10 x 17.91 cm
