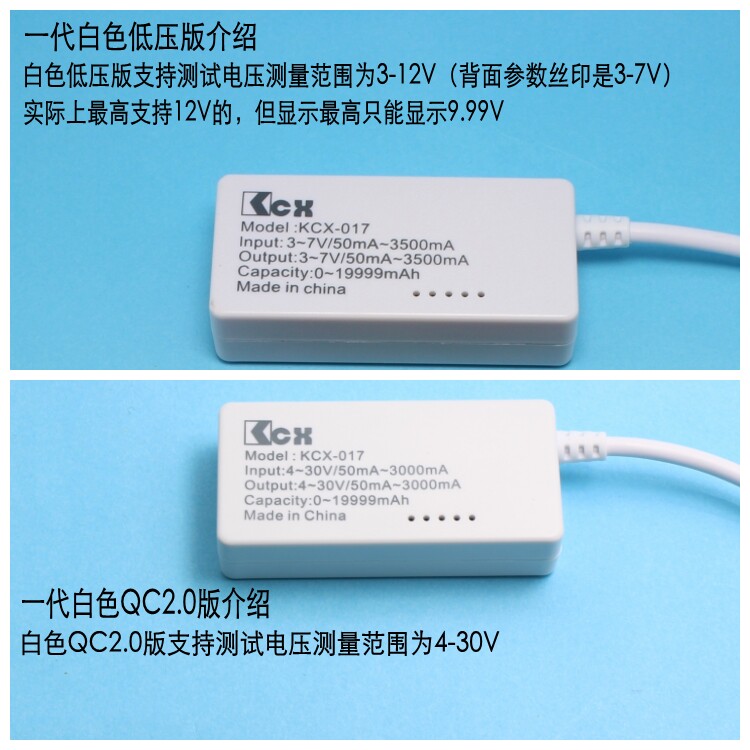

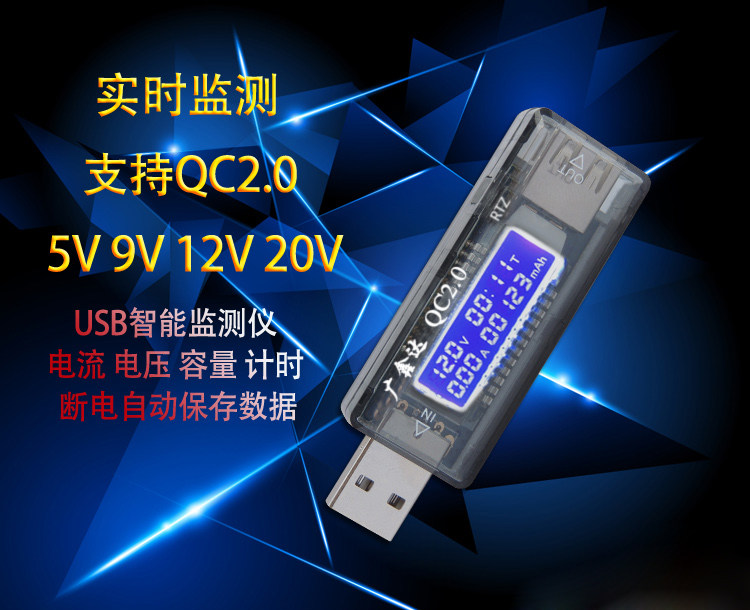

Generation white QC2.0 high voltage version, support voltage measurement range 4~30V, normal display within 30V, suitable for use within 30V
Second-generation Guangxin QC2.0 high-voltage version, support voltage measurement range 4 ~ 20V, 20V can be normal display, suitable for use within 20V

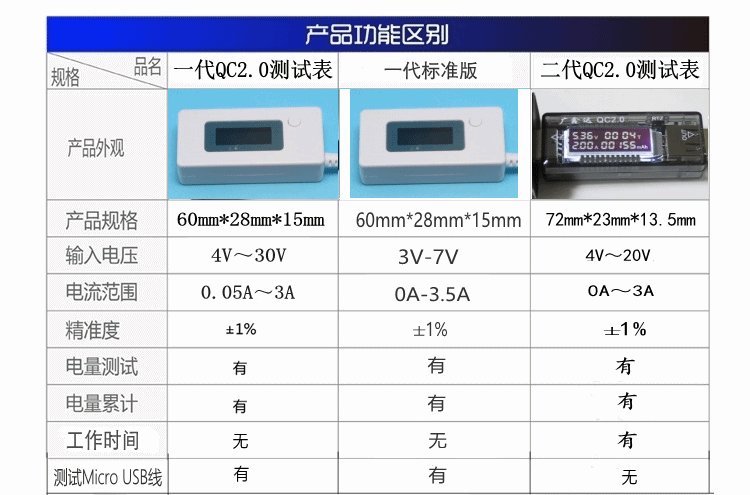

The two generations only have different support voltages, and other functions are basically the same.

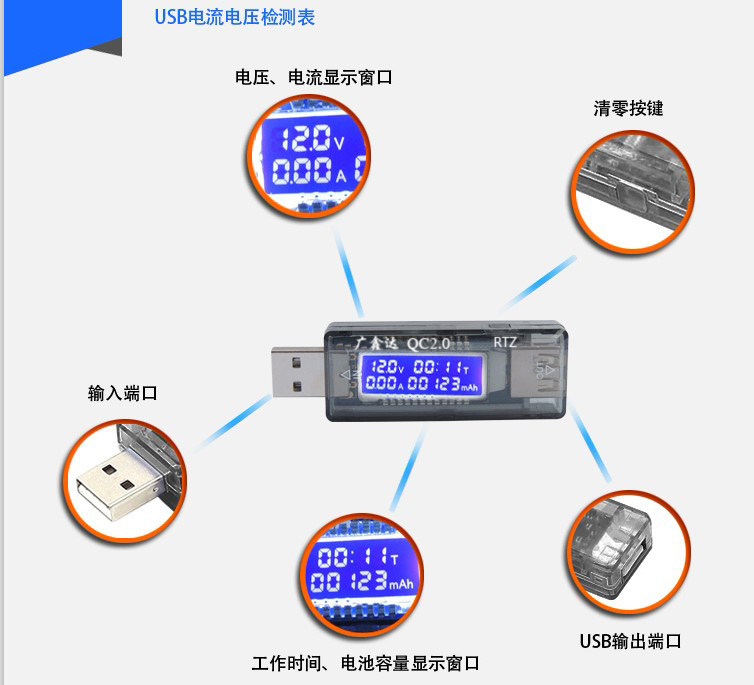

1, product features:

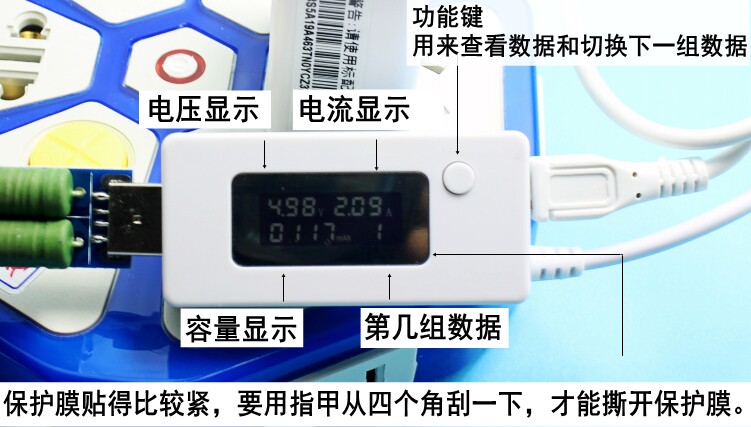

Simultaneous display of voltage, current, and mAH data for easy viewing
Can detect mobile power output mAH
Multiple test data storage, power-down save function
Does not affect data transmission
High precision, current parameters will not jump

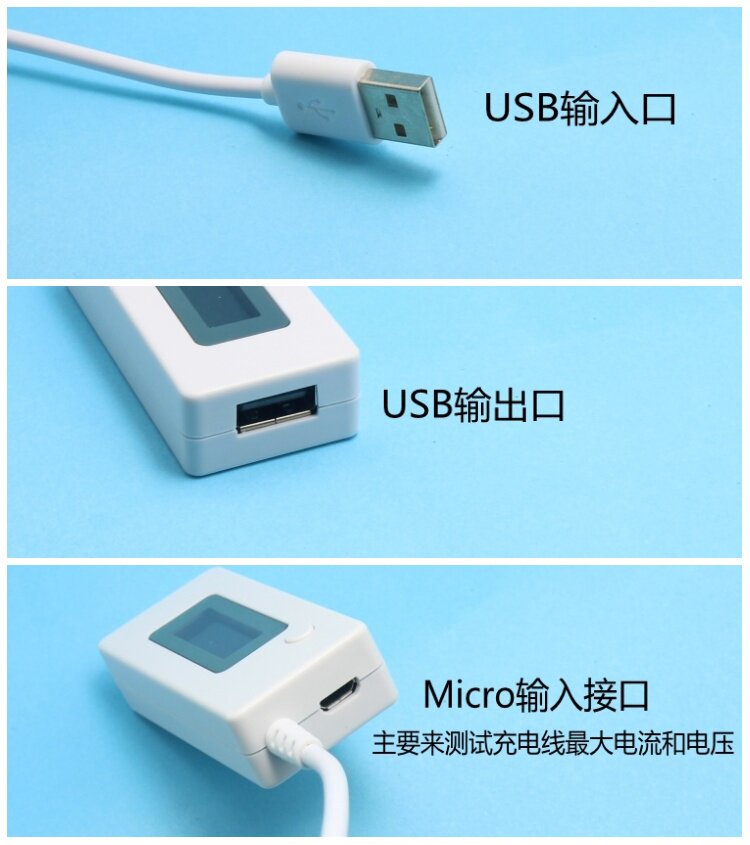

USB male and Micro USB ports take power twice to detect the quality of MicroUSB cable
Current sampling 25 milliohms, less loss
With current calibration function, higher current accuracy (already calibrated when shipped)
2, performance parameters:
Support voltage: Normal Edition 3-12V, QC2.0 High Pressure Edition 4-30V
Voltage resolution: 0.01V
Test current: 0.05A-3A, 0.05A-3.5A
Current resolution: 0.01A
Capacity range: 0-19999mAH
Accuracy: plus or minus 1%
Line loss: about 0.1 ohms
Test content: battery voltage, current, and discharge capacity (a total of 10 sets of data)
3, function introduction:
3.1, measuring voltage and current:

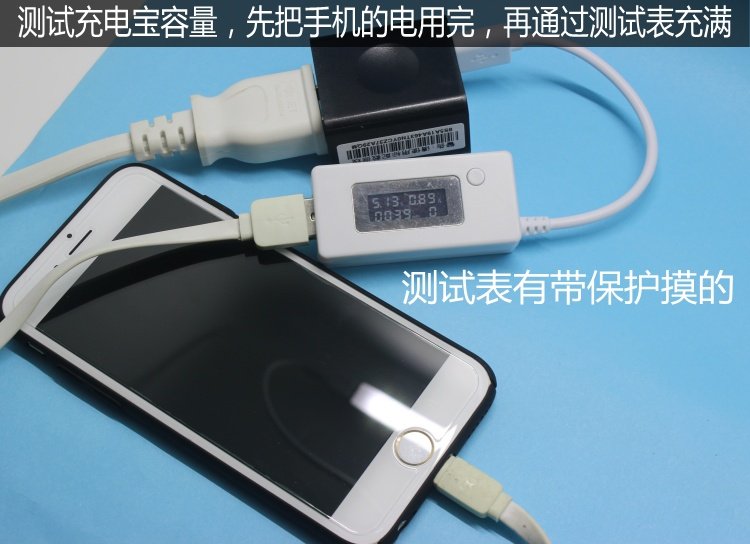

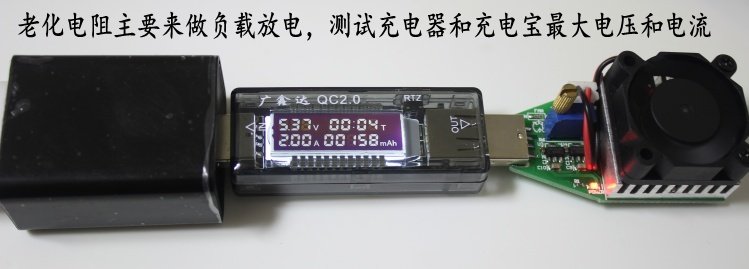

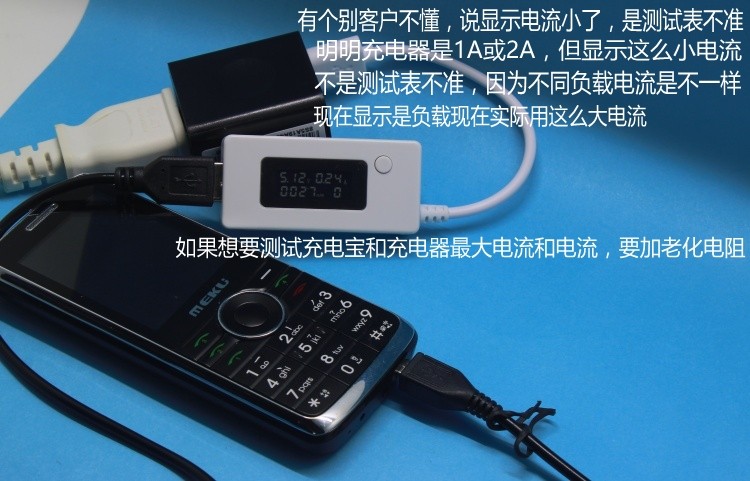

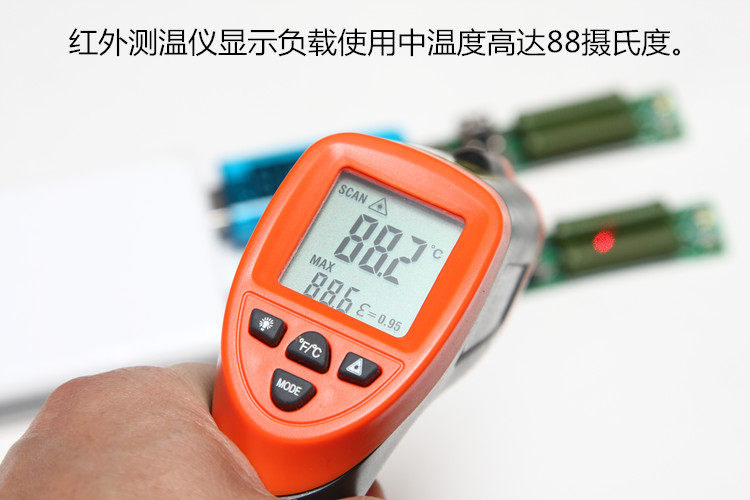

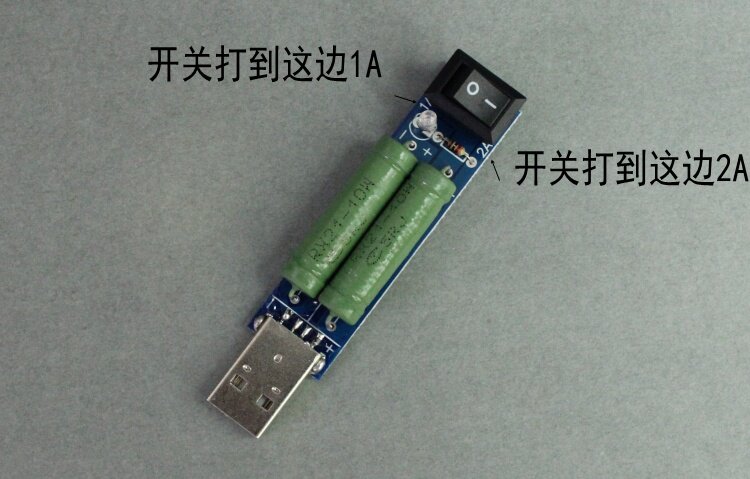

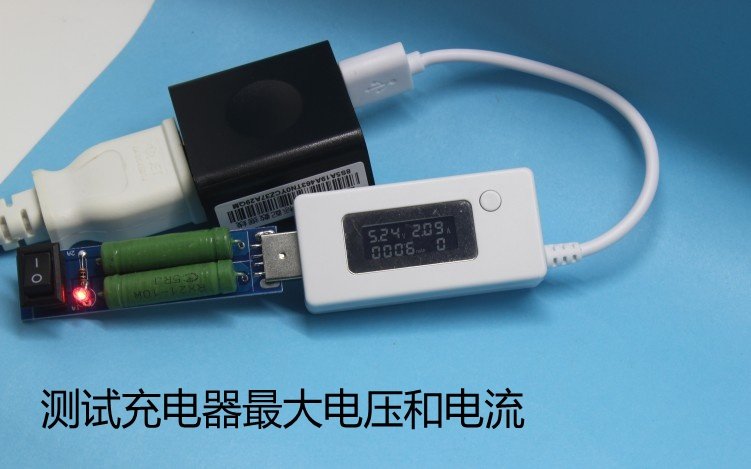

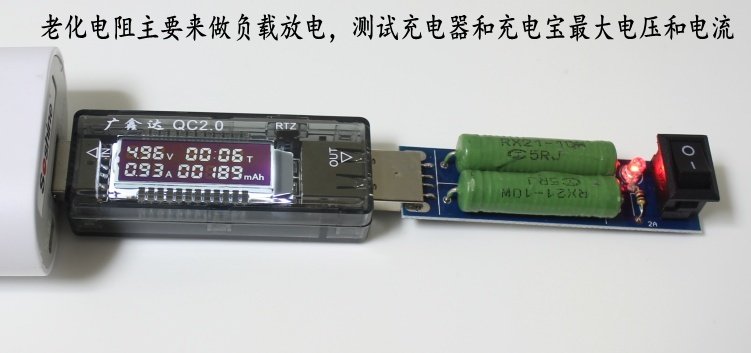

USB male inserts the USB charger, the female seat inserts the handset and so on the equipment, reads out the voltage electric current parameter directly.
3.2, measuring MicroUSB line quality:

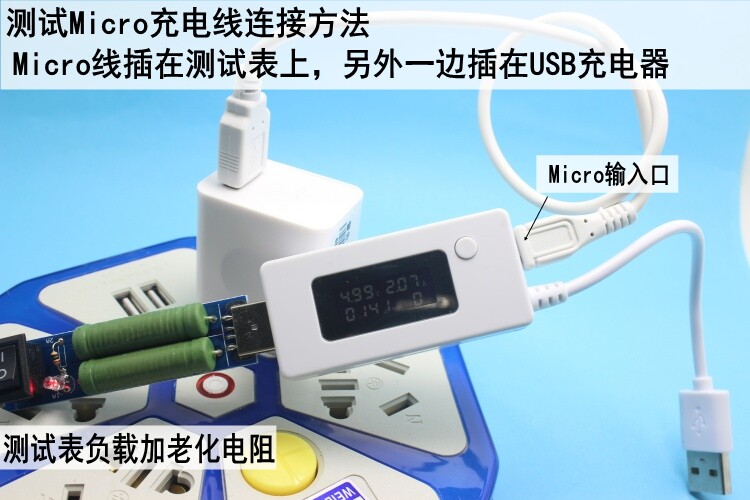

Insert female mobile phone and other devices, first use the male plug into the USB charger, remember the voltage, and then use the MicroUSB cable to insert the USB charger into the MicroUSB port to remember the voltage, the smaller the voltage gap, the better the quality of the MicroUSB cable. .

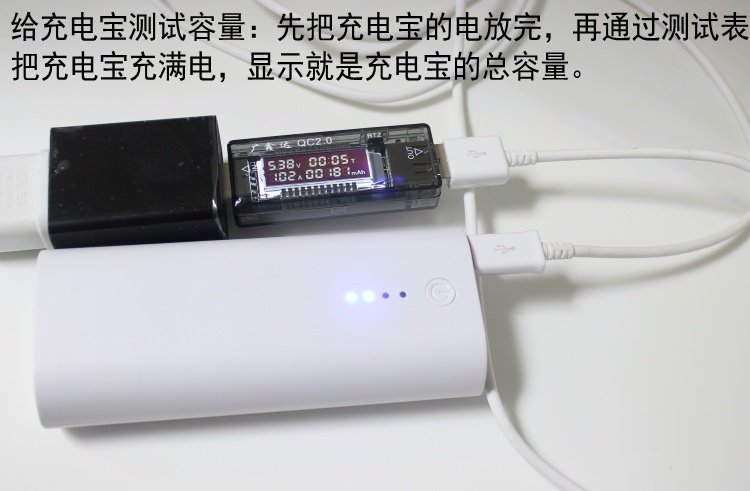

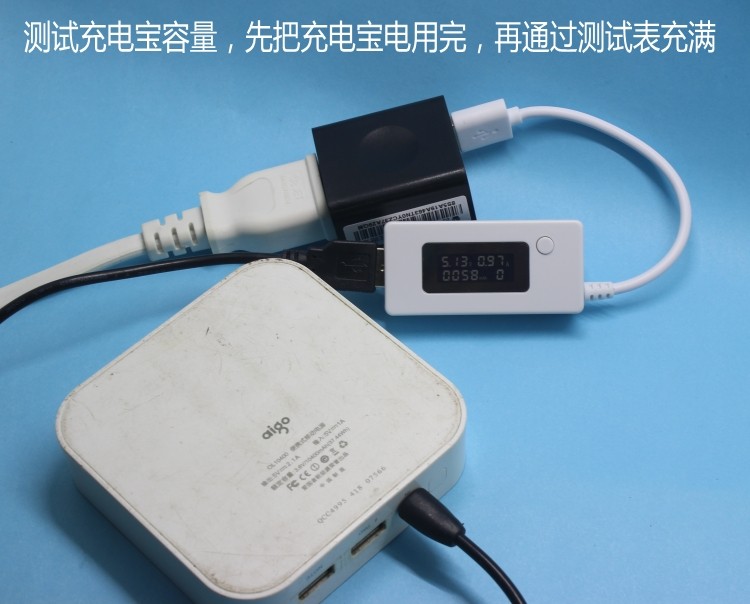

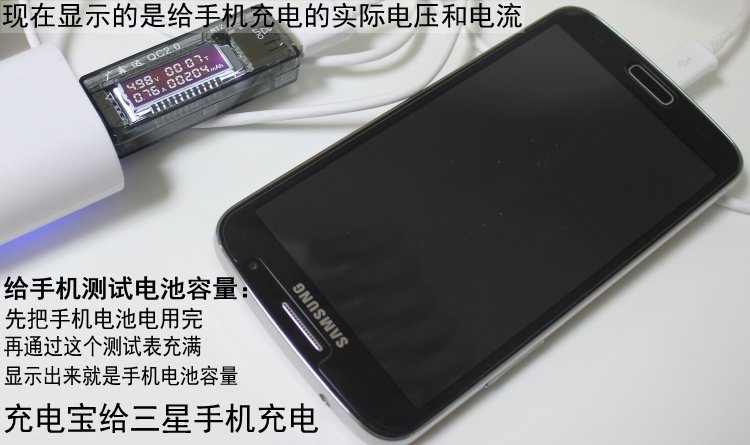

3.3, measuring mobile power output capacity and efficiency:
First connect the unit to a mobile power source, turn on the mobile power, press and hold the button until the capacity data is zero, insert the phone and charge it repeatedly until the mobile power is turned off automatically. The next time you turn on this unit, the display capacity is the mAH of the mobile power output. Note that this mAH is much smaller than the nominal mAH, the output mAH* output voltage is 5V/battery mAH* battery voltage is 3.7V = mobile power efficiency.
3.4, data switching:
Click the button to switch to the next set of data, double-click the button to switch to the previous set of data.
3.5, data clearing:
Press and hold the button for more than 3 seconds to clear the group data.
