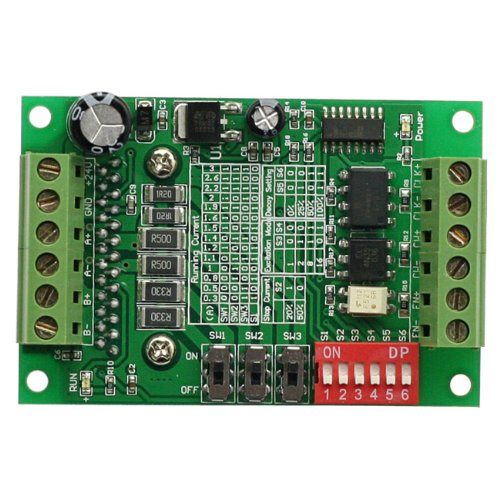

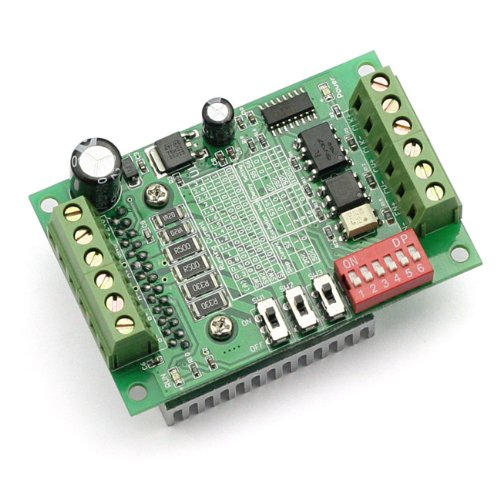

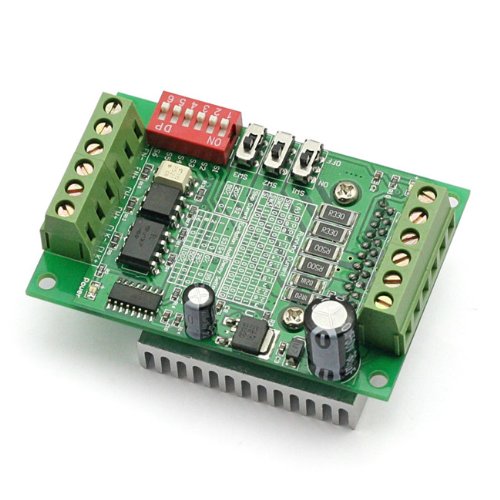

Product Description

Ultra-small, the overall size: 62mm * 75mm, installation of four mechanical positioning hole size: 65mm * 55, hole size Φ3mm

Product Parameters

* Rated voltage: DC 12V-24V
* Maximum current: 3.5A
* Current adjustable (Current Settings): 0.5A, 1A, 1.5A, 1.8A, 2A.2.5A, 3.5A
* Subdivision adjustable (Excitation Mode): 1,2,8,16

Attenuation adjustable (Decay Mode)

0 %---- no decay mode
--- 25% of the slow decay mode
--- 50% of the normal mode
100% - Fast Decay mode
----- Decay mode of regulation by different motors to match impedance, thereby eliminating the noise when locked stepper motor and motor movement in the shake.

Automatic half current setting (Torque Settings)

%---- No pulse when the current 20 to normal operating current of 20%
50 %---- no pulse current 50% to normal operating current
75 %---- no pulse current 75% to normal operating current
100% --- no pulse when the current 100% to normal operating current

Feature

Very easy to use, no instructions, all of use are marked on the board

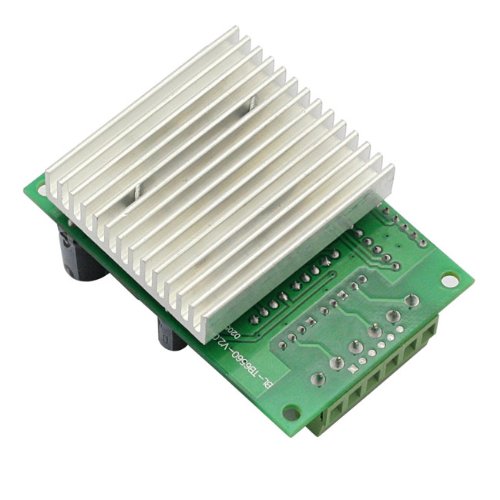

With large heat sink to ensure good heat dissipation
Input signal high-speed optocoupler isolation, guarantee not losing steps
Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
Attenuation model adjusted for all the motors can be locked when no noise
Brand : SainSmart
EAN : 6955170805808
