品牌:

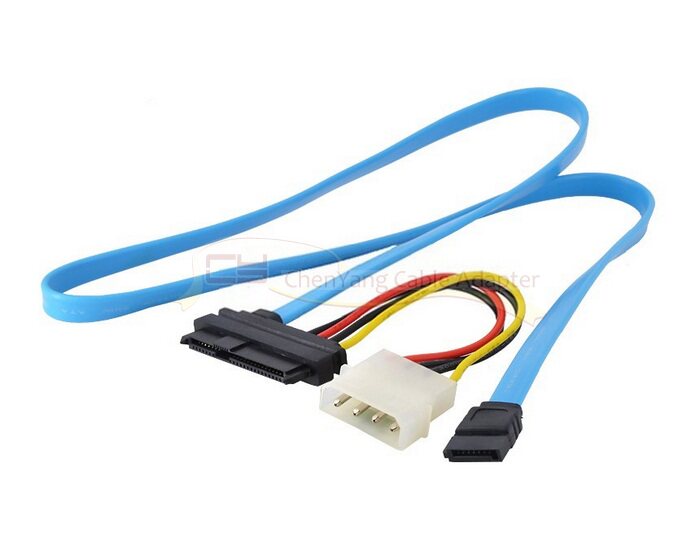

名称：SF-8482对SATA连接线,SAS 29P TO SATA    SF-011-0.7M

线材: 70Cm

本产品一般有2种用法：

1.将SATA硬盘接口的数据和电源分离，连接主板SATA接口和电源线，可直接连接。SATA主板使用前部分主板须设置BIOS为AHCI模式（要做RAID的可选RAID模式）

2.将SAS硬盘接口的数据和电源分离，连接主板SAS接口SFF-8482和电源线，可直接连接.

友情提醒：本品不能用于SAS硬盘连接普通主板SATA口，也没有这种线，SAS接口是有芯片支持的，不是线可以实现的，请亲们确认清楚 (除非您的SAS硬盘支持SATA模式， 或SATA主板带SAS芯片）

此款转接线可以将SAS硬盘接在SATA的主板上(主板一定要支持SAS模式方可使用)

传输速度为SATA接口的速度，一般为3Gbps和6Gbps.

注意：

SATA主板接SAS硬盘需满足下面的条件之一，否则不能用：

 1. 首先的主板支持SAS

 2. 或者你外接SAS卡

 3. 或者您的SAS硬盘支持SATA模式
Brand:

Name: SF-8482 to SATA cable, SAS 29P TO SATA SF-011-0.7M

Wire: 70Cm




This product generally has 2 kinds of usage:



1. The SATA hard disk interface data and power separation, connect the motherboard SATA interface and power cable, can be directly connected. SATA motherboard before using some of the motherboard BIOS must be set to AHCI mode (to be RAID optional RAID mode)



2. The SAS hard disk interface data and power separation, connecting the motherboard SAS interface SFF-8482 and the power cord can be connected directly.

Friendship Reminder: This product can not be used for SAS hard drive to connect the common motherboard SATA port, there is no such line, SAS interface is chip support, not the line can be achieved, please confirm the pro (unless your SAS hard drive supports SATA mode , Or SATA motherboard with SAS chip)

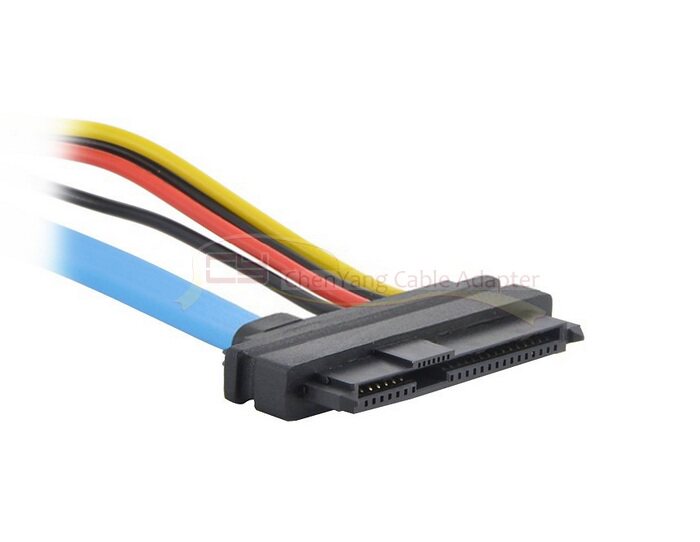

SFF-8482 end is connected to the SAS hard drive side (PIN hole is 29-pin, the actual terminal is 22-pin, because SATA can only use 22-pin), SATA side for ordinary SATA motherboard


This section of the cable can be connected to the SAS hard drive SATA motherboard (motherboard must support SAS mode before use)

Transmission speed for SATA interface speed, usually 3Gbps and 6Gbps.



note:

SATA motherboard connected to the SAS hard drive to meet one of the following conditions, or can not be used:

 1. The first motherboard supports SAS

 2. Or you external SAS card

 3. Or your SAS drive supports SATA mode
