Item Descriptions:
size:
Light bulb light
In case
◆ ◇ ◆ ◇ Check items before purchase ◆ ◇ ◆ ◇
◆ Check the state of the ceiling to be installed.
The "
Ceiling which can not be installed
Please confirm that it is not a ceiling like.
In case
◆ Check the wiring equipment concerning the ceiling to be attached,
Measure and confirm the trailing edge
On the ceiling of the figure below "Installable wiring equipment"
If such wiring equipment is installed, install it
I can.
If wiring equipment is not installed, please contact the electrical construction store
Please consult.
How to install the main unit varies depending on the length of the tray.
So please check.
◆ To the installed power supply (wall switch etc.)
There is no dimming function
Make sure.
◆ Horizontal, centering on wiring equipment
Diameter of 220 mm or more
Plane
You can install it on a ceiling.

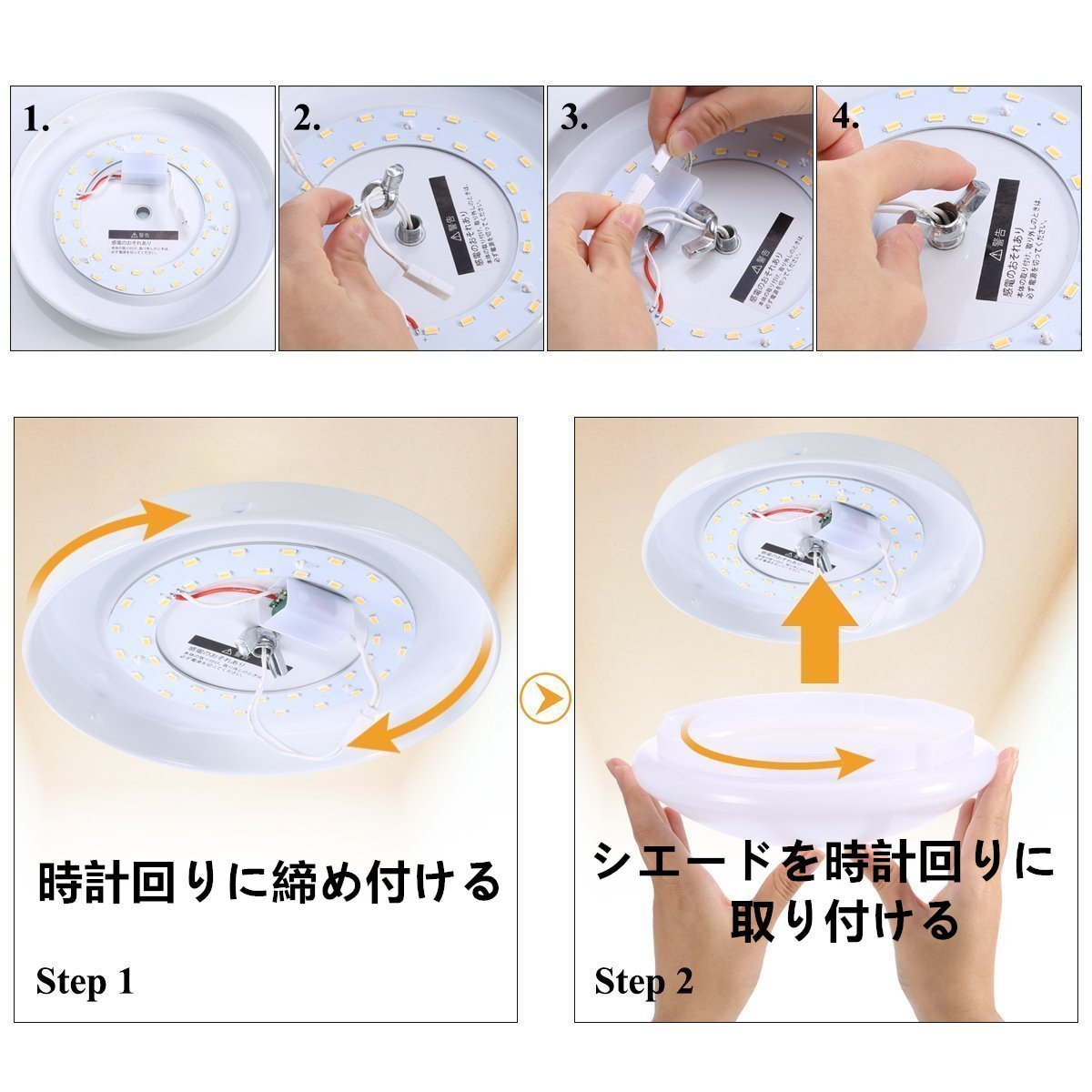

installation method
1, Insert the hooking metal fitting of the square type hook-and-loop ceiling adapter with connector into the sliding hole of the wiring device, and turn the adapter clockwise until it clicks to install.
Warning: Install the adapter securely.
Falling may cause injury.
2, Push the main body upward through the connector of square type hook-and-loop ceiling adapter in the hole in the center of the ceiling light body.
3, Thread the connector through the hole in the center of the thumbscrew, rotate the thumbscrew on the bolt with the through hole in the center, fix the main body to the ceiling.
* At this time please install while holding the hand by hand so that the body does not rotate together.
4, Connect the connector to the main unit socket.
5 Align the cover with the cover and align the cover with the cover and, while lifted up, turn the cover to the right until the cover stops.
* Make sure the cover is attached horizontally.
Accessory: wing nut and special installation adapter x 1
Switch: Lights up with the wall switch on!
Design life: Approximately 40000 hours
Power supply: AC 85-265V 50 / 60HZ
Remarks: This item does not come with "remote control", it is not a dimming type light.

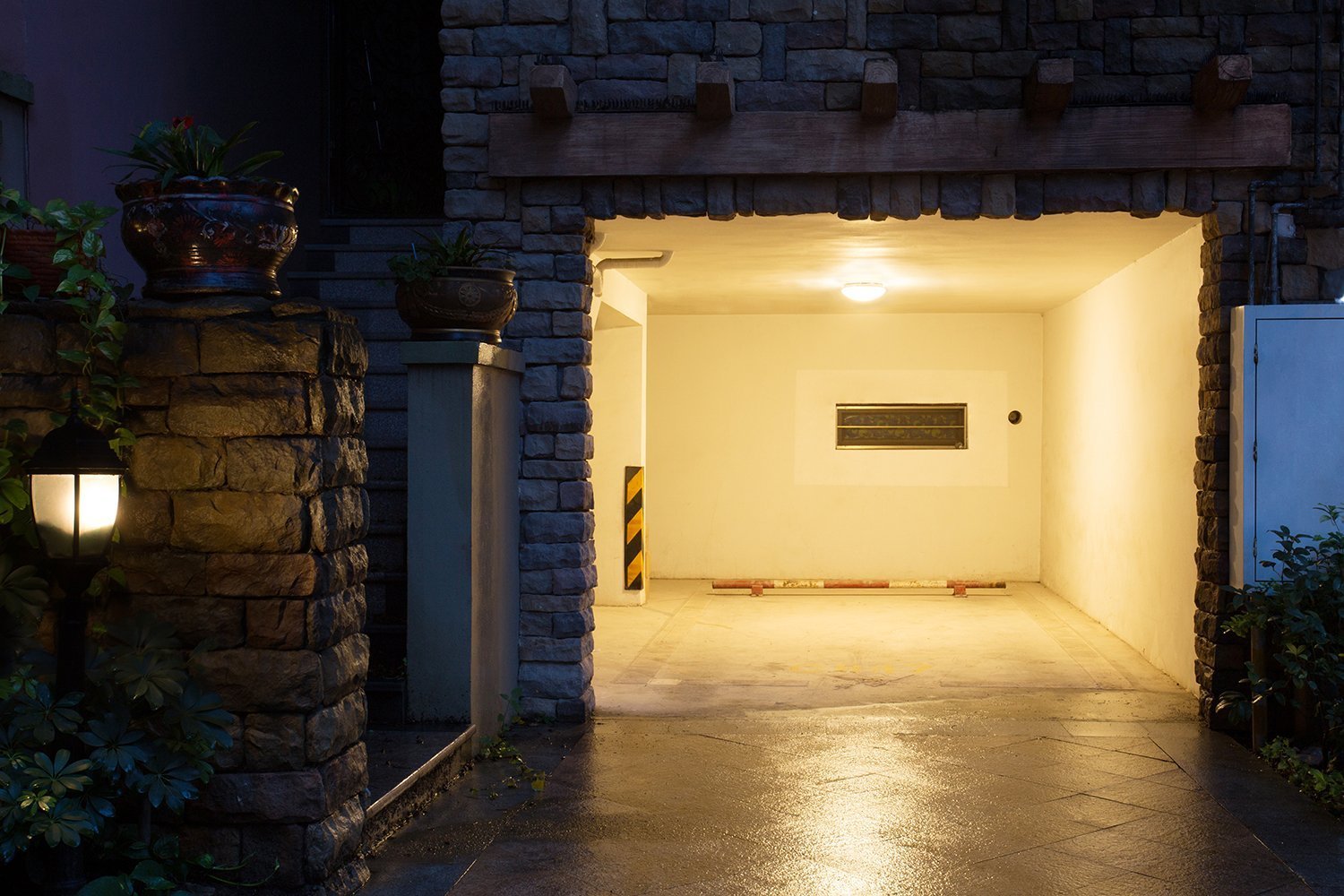

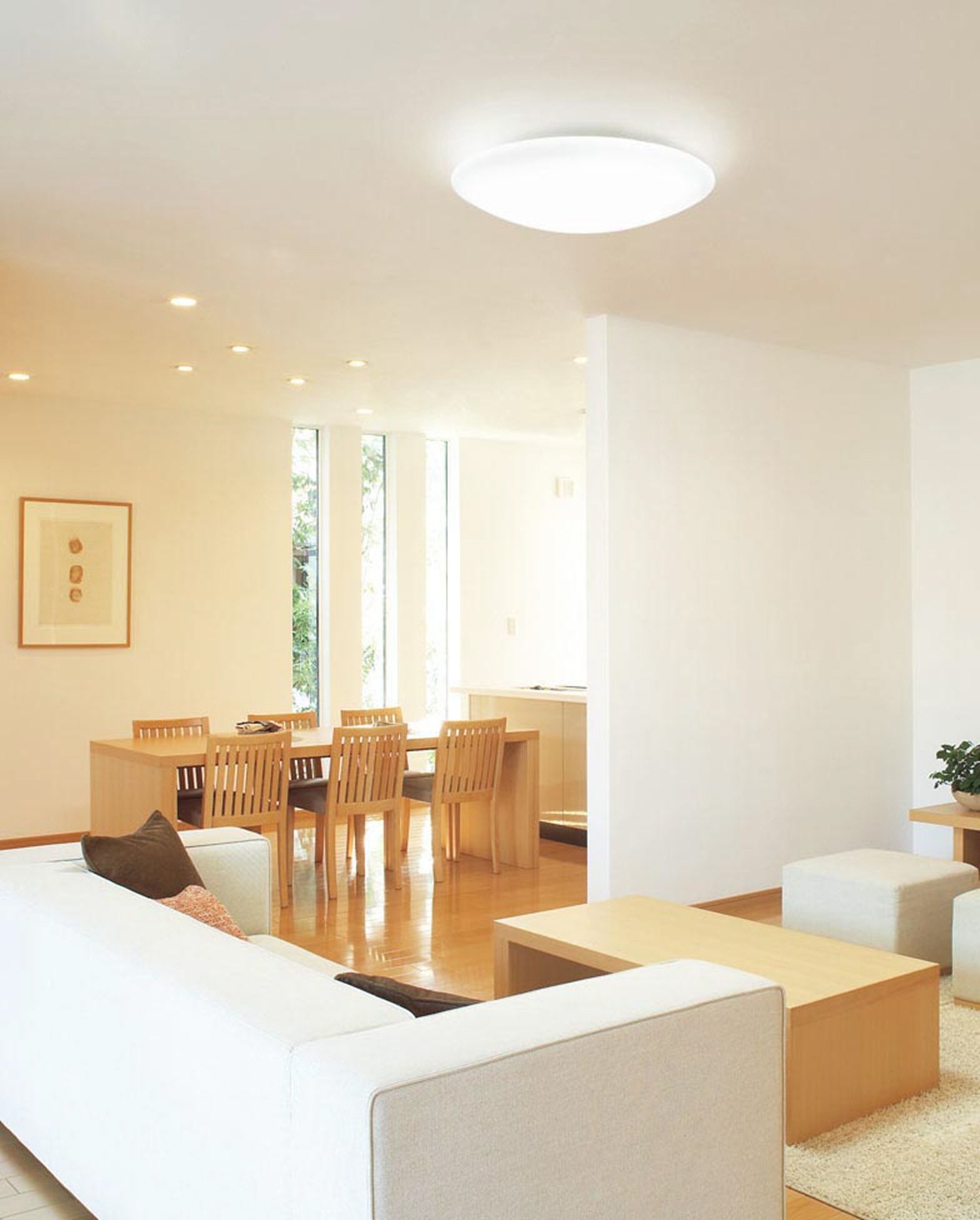

Application location
Entrance, hallway, walk-in closet, kitchen, paid-in, warehouse, placing place etc.
Features:

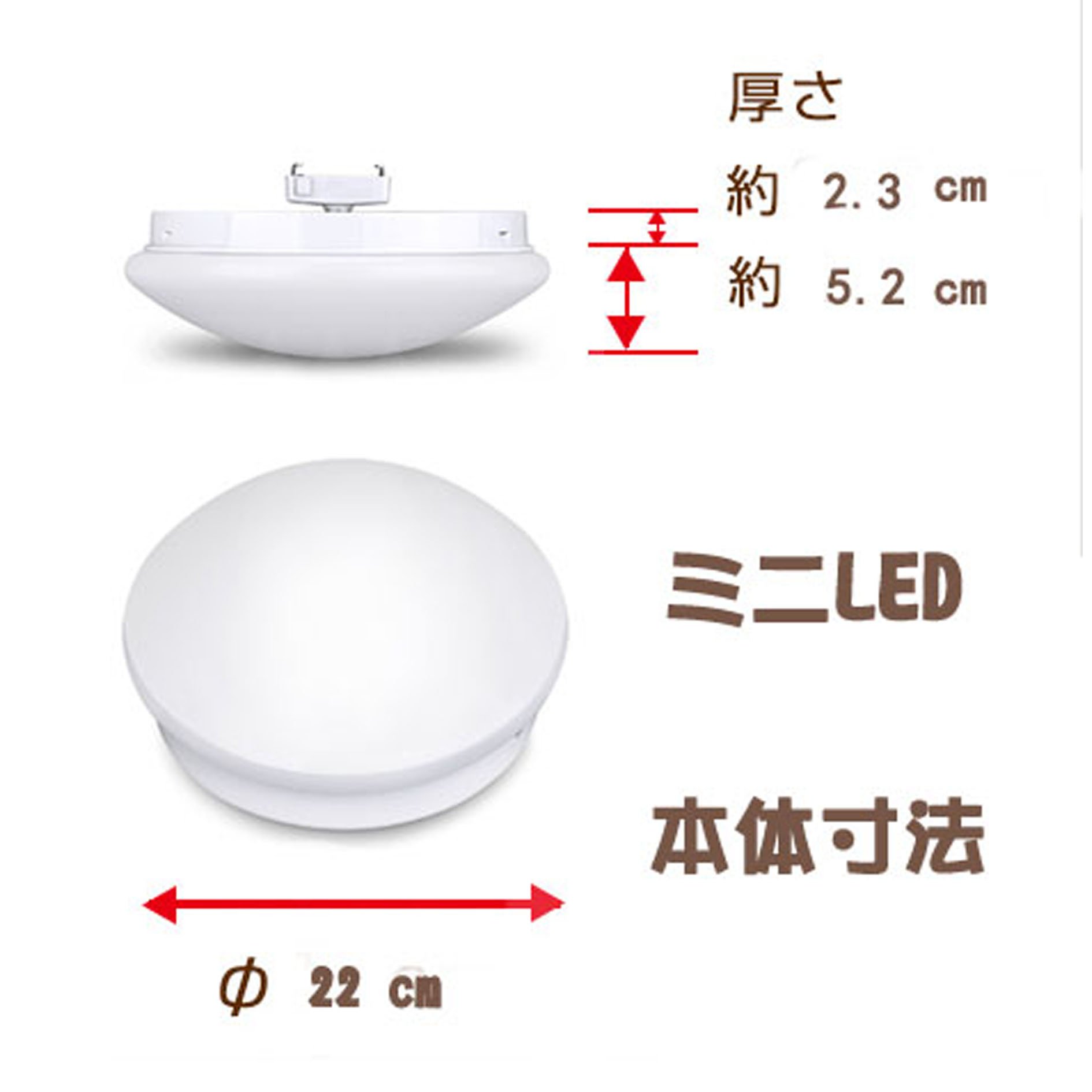

- Product size: About φ 220 x height about 75 mm
- Product weight: Approximately 310 g
- Applicable tatami numbers: Suitable for entrances, hallways, walk-in closets, kitchens, bunkets, warehouses, places to place.
- (~ 6 tatami mat)

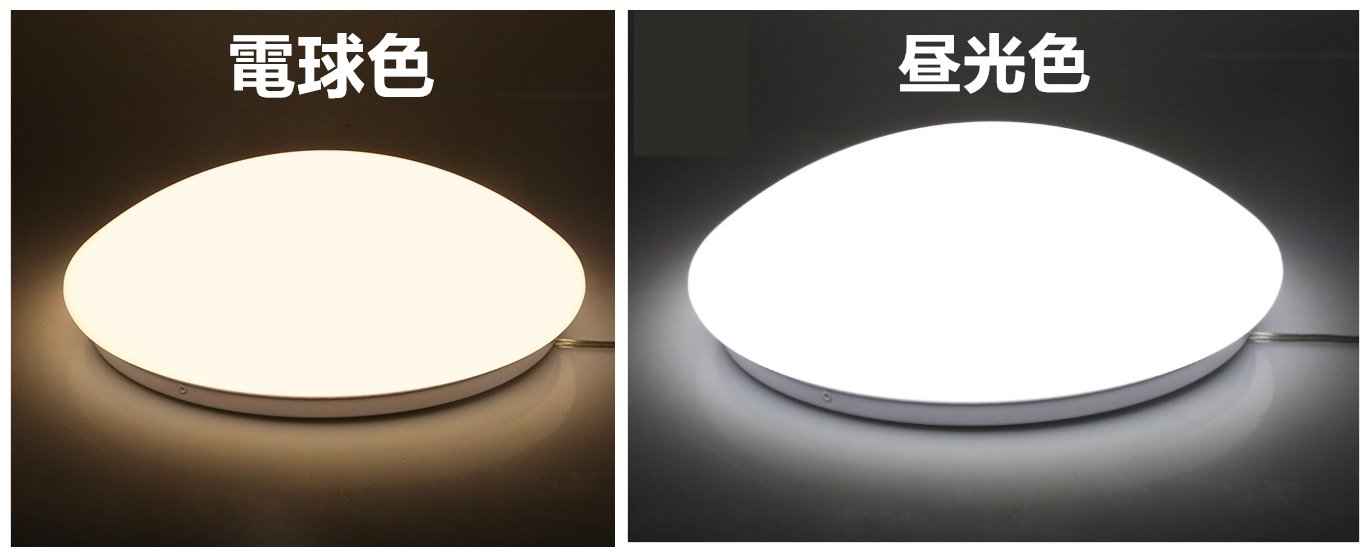

- Total luminous flux: day white 1500 lm bulb color 1500 lm
- Material: Aluminum & PC;
Product information:
Shipping Weight: 399 g
Package Dimensions: 11.61 x 25.60 x 26.01 cm
