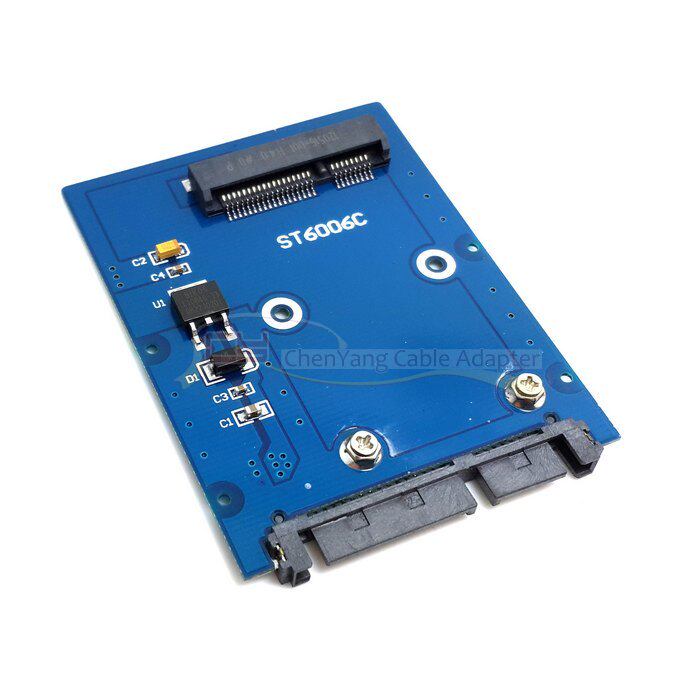

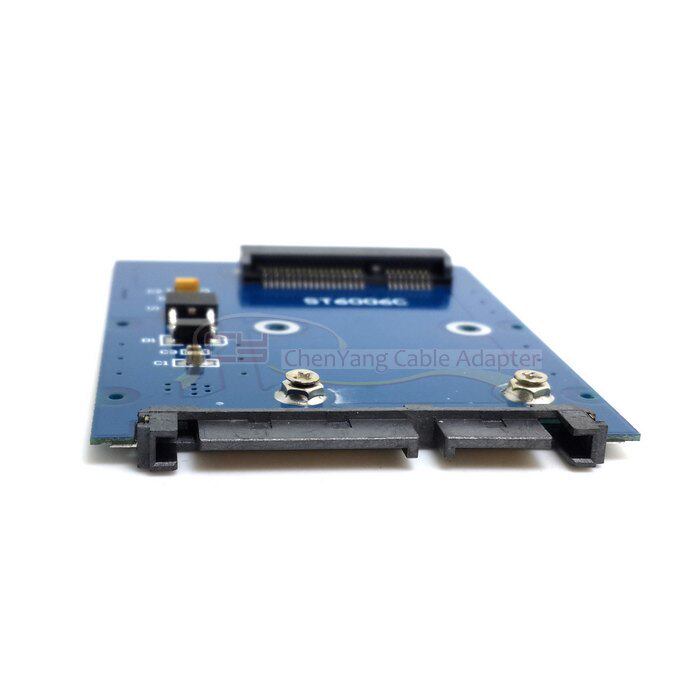

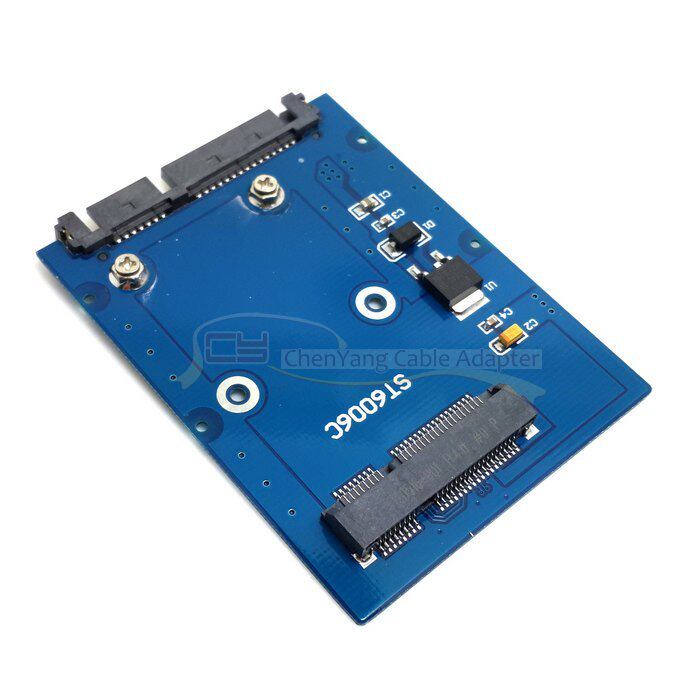

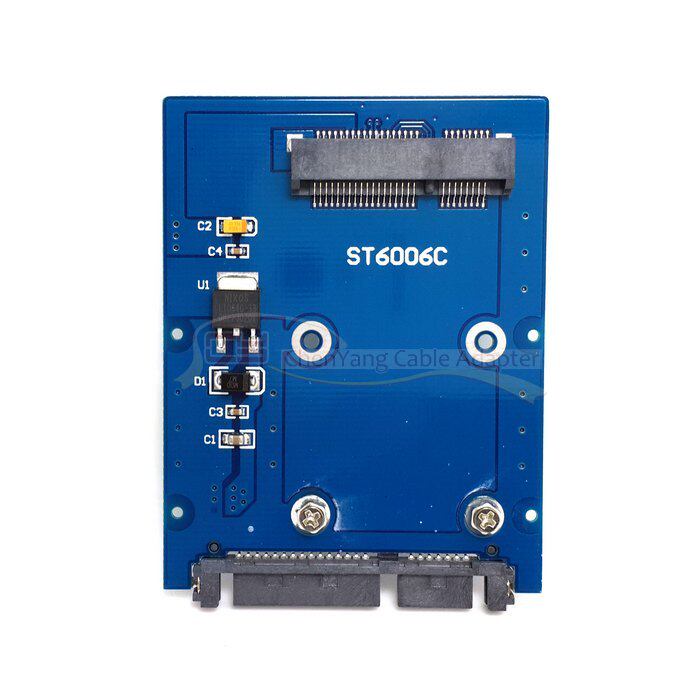

薄MINI PCI-E mSATA转SATA 3.0 mSATA转2.5寸SATA3转接卡           SA-166

可用于笔记本 硬盘盒 台式机

mSATA转接卡尺寸(长x宽)：71×53mm(厚度：5mm，超薄~)

接口：SATA3接口，向下兼容SATA2

适用范围：可用于笔记本 硬盘盒 还有台式机

 请注意，PCI-E的SSD有几种，本款商品仅支持mini pci-e里面mSATA接口定义的固态硬盘（也称为INTEL定义接口）（本转接卡仅支持的msata硬盘大小为3cm*5.1cm）。需要2.7cm长度的可拍以下链接（点我进入 3cm*2.7cm）

mini pci-e接口的固态硬盘有三种引脚定义，一种是叫mSATA，多见于联想和THINPAD机器上，也可以称之为INTEL定义接口；另一种叫SATA MINI PCI-E，多见于华硕的EPC以及一些平板电脑上，也叫华硕定义接口；还有一种是PATA定义的，其本质是IDE接口，多见于戴尔MINI 9等机器上。三种接口定义外观完全一样，肉眼无法分辨，所以请务必区分好您的固态硬盘的接口定义。本款转接卡仅支持mSATA的引脚定义（也可以称之为INTEL定义接口）。
Thin MINI PCI-E mSATA to SATA 3.0 mSATA to 2.5-inch SATA3 Adapter SA-166

Can be used for laptop hard drive box desktop

mSATA adapter card size (length x width): 71 × 53mm (thickness: 5mm, slim ~)

Interface: SATA3 interface, backward compatible with SATA2

Scope: Can be used for laptop hard disk box and desktop


 Please note that there are several PCI-E SSDs. This product supports only solid state drives (also called INTEL-defined interfaces) defined by the mSATA interface in mini pci-e. (This card only supports 3cm * 5.1 cm). Need 2.7cm length can shoot the following link (click me into 3cm * 2.7cm)

mini pci-e interface SSD has three pin definitions, one is called mSATA, more common in Lenovo and THINPAD machines, also can be called INTEL definition interface; the other is called SATA MINI PCI-E, more common in Asus EPC and some tablet computers, also known as Asus definition interface; there is a definition of PATA, its essence is the IDE interface, more common in Dell MINI 9 and other machines. The definition of the three interfaces exactly the same, the naked eye can not tell, so be sure to distinguish your SSD definition of the interface. This adapter only supports mSATA pin definition (also known as INTEL definition interface).
