Makerfire 7-Inch. Raspberry Pi LCD Display Screen TFT Monitor with HDMI VGA Input Driver Board Controller DIY











Display

Product Description

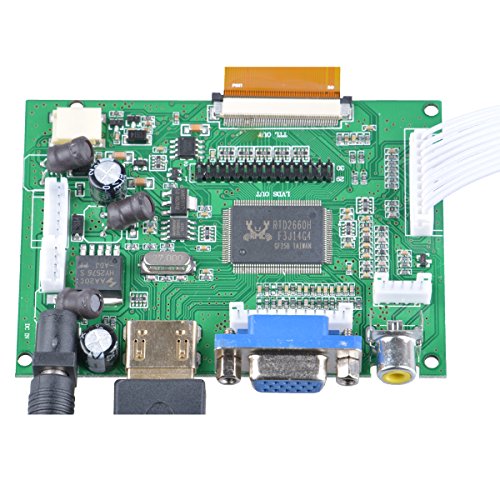

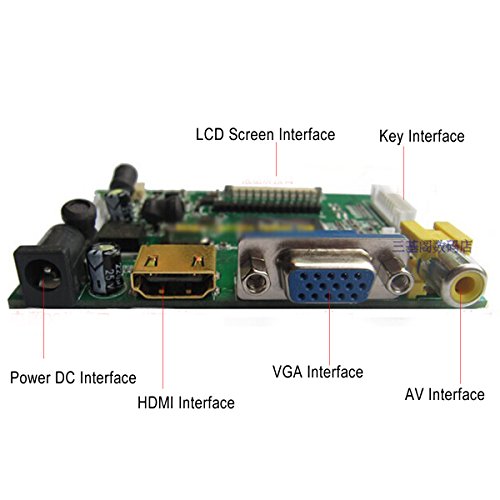

Driver board interfaces:
1.Power Supply(512V 2A)
2.HDMI
3.VGA Connector
4.AVI
5.AV1+AV2
6.Keyboard

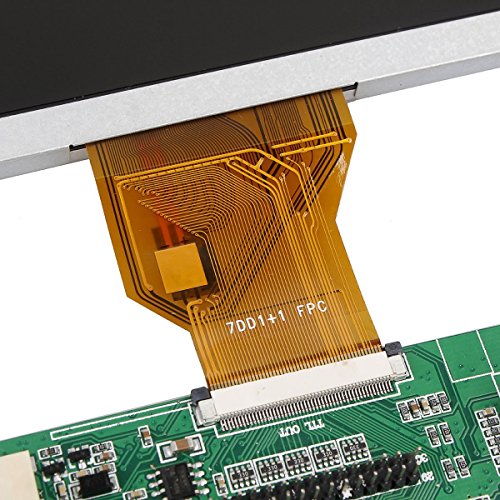

7.TTL Signal 50Pin
8.LVDS Signal 12 ch 6bit 8bit
9.12V Backlight
10.Inverter Connector

Note:
This controller board support Automatically Switch to AV2(Reversing View camera). Please connected ACC to 12V.

NOTE1:
If you dont know how to connect the Screen,please feel free to contact us

NOTE2:
Power Supply is NOT included

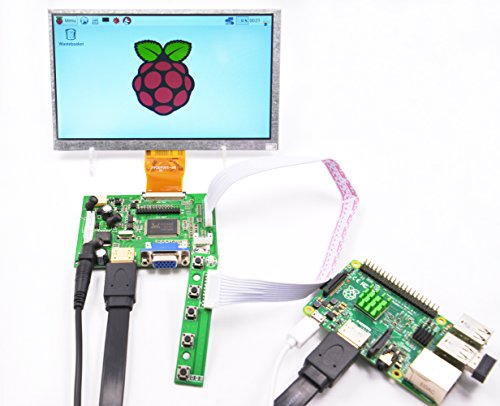

If you want to conect this screen to your Raspberry Pi,you need a AV Cable or a HDMI Cable,or if you have a HDMI TO VGA CABLE For Raspberry pi,you can use a VGA Cable to connect your Raspberry pi to this Screen.

NOTE3:
There is a sticker on the LCD screen. Please peel off before use.

--------------------------------------------------------

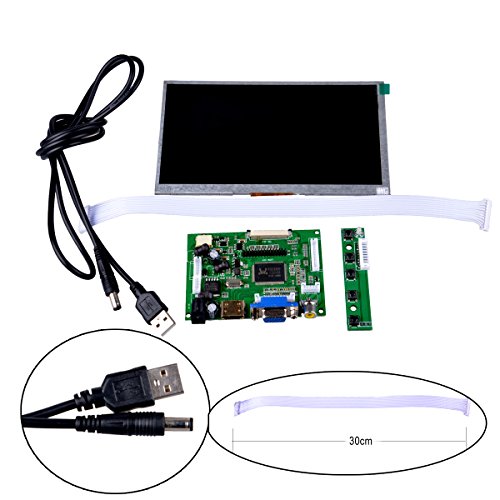

Package Including

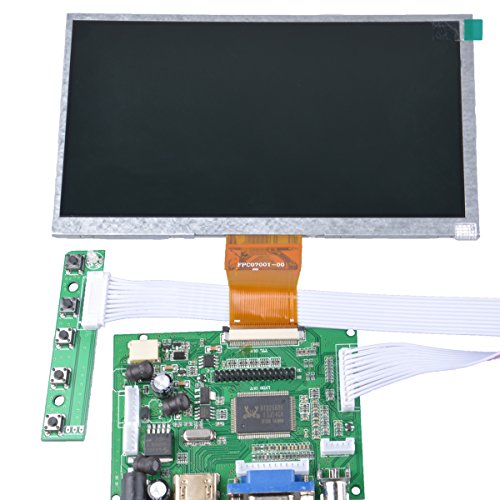

1* HDMI+VGA+2AV Controller Board VS-TY2662-V1 (Support Automatically switch to AV2)
1* 7inch 800*480 Lcd Panel AT070TN90

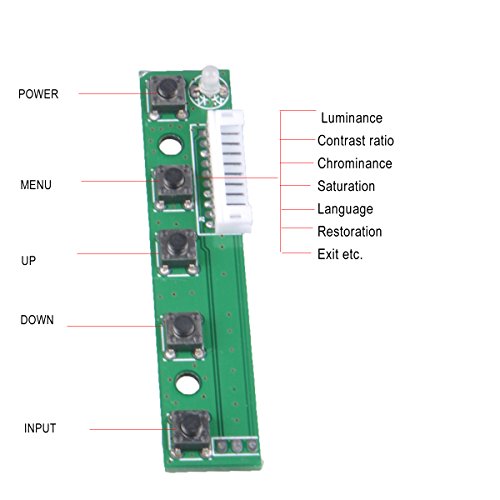

1* 5-button switch and adjustment panel

Feature

RGB:800*480; Aspect Ratio: 16:9 (width: height)
Brightness: 250cdm2 (Typ.)
Signal Interface: Parallel RGB (1 ch, 6-bit)
Display Mode: TN, often white display, transmissive
12V 2A DC power adapter required and sold separately
Brand : Makerfire
Item model num : RP10006-154-1731011
MPN(PartNumber) : RP10006-154-1731011
EAN : 0702646030877
Product Dimensions(LxWxH) : 11x11x11cm ; 249 g
Package Dimensions(LxWxH) : 19x13x10cm ; 249 g
