Product Description

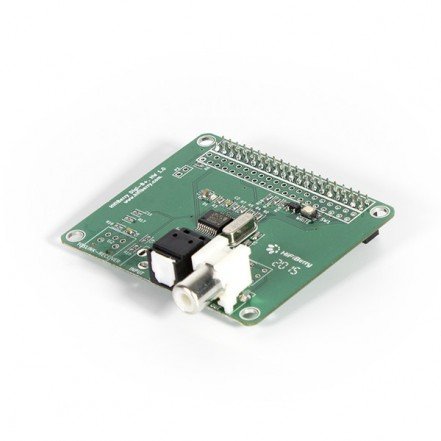

The HiFiBerry Digi+ is a high-quality S/PDIF output board for the Raspberry Pi model A+/B+ and the new Raspberry Pi 2. It is designed as an add-on board that connects to the P1 and P5 header of the Raspberry Pi.
Dedicated S/PDIF interface chip supports up to 192kHz/24bit resolution

Optical (Toslink) and electrical outputs

Bit-perfect output, audio data stream will not be modified in any way

Connects directly to the Raspberry Pi, no additional cables needed

No soldering. The Digi+ comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi B+. The board conform to the Raspberry Pi hardware-attached-on-top (HAT) specification. That means it perfectly fits your Raspberry Pi B+.

Directly powered from the Raspberry Pi, no additional power supply

Optional: high-bandwidth output transformer provides full galvanic isolation of the electrical output (not in the standard version)

Integrated EEPROM for automatic configuration (with write-protection). Note that this feature is still in development by the Raspberry Pi foundation. You will be able to upgrade your HiFiBerry DAC+ when it is officially available. The sound card already works without this feature.

Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi.

Note about the compatibility with Raspberry Pi Model A and B: This board is only compatible with the Raspberry Pi model A+,B+ and 2B. Important note: While the hardware is able to output DTS/Dolby Digital, software has to be adapted to support this. We will support the developers to implement this. Unfortunately we can't guarantee that this feature will work with a specific software. Please ask the developers of the software if this is supported.
Note that this model is not compatible with older Raspberry Pi model A and B units!

Feature

HiFiBerry Digi is a high-quality S/PDIF output for the Raspberry Pi.
It uses the I2S sound port that connects directly to the CPU without the need for an additional USB conversion.
The standard version features an optical output and an electrical output.
Note that this model is not compatible with older Raspberry Pi model A and B units!
Skill Level : Assembled and Tested
Brand : HiFiBerry
Item model num : Digi+ Standard
MPN(PartNumber) : DIGIPLUS-Standard
EAN : 0731236507284
Product Dimensions(LxWxH) : 6x7x2cm ; 23 g
Package Dimensions(LxWxH) : 11x10x3cm ; 23 g
