Item Descriptions:

■ Color: Black

■ Size: Approximately W54 × D88 × H18.5 mm (body only, cable, protrusion not included)

■ USB standard: USB 2.0 (Can not be used with USB 1.1)

■ Interface: Mini USB B connector female / HDMI A connector female

■ Power supply · Current consumption: DC5 V (USB bus power) / 350 mA

Maximum display resolution: 1920 × 1080 (1080 P)

■ Image display mode: Extended, clone

Maximum number of connectable units: 6

■ Driver: Included CD-ROM

■ Operating temperature · Storage temperature: 10 ~ 40 ℃ / -10 ~ 60 ℃ (humidity less than 85%, no condensation)

■ Accessory: USB cable (USB A connector male - mini USB B connector male, approx 90 cm), CD-ROM

Producing countries ■: China

■ Instruction Manual: Yes

■ Warranty period: Initial failure only

■ Supported models: Windows (DOS / V) laptop computer, desktop personal computer

* Model with USB 2.0 / 3.0 (USB A connector female) port A CD-ROM drive is required for installation of driver software.

■ Supported OS: Windows 10, 8.1, 8 (64bit / 32bit), 7 (64bit / 32bit) · Vista (32bit / 64bit) · XP (SP2 / SP3) ※ Please download driver for Windows10 from Sanwa Direct HP

* Windows 10 (version 1607 [Aniversary update]) is not compatible with screen duplication mode only

■ Supported display: TV with HDMI input terminal · Display monitor · Amplifier etc.

Features:

• Please enter model number Confirm this is compatible:

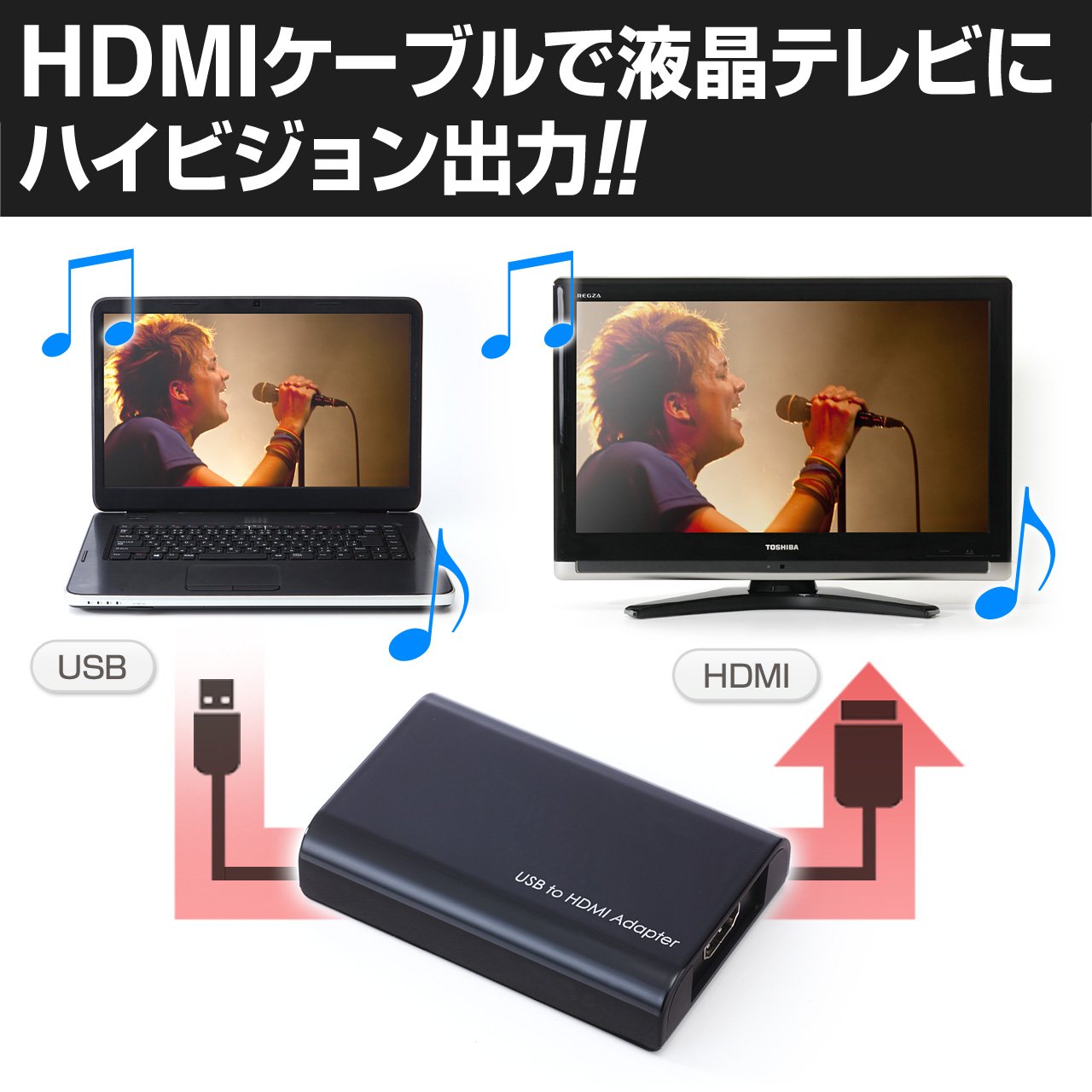

• It is an external display adapter that can add television and display with HDMI terminal from the USB port of PC.
• Even with a personal computer without D - Sub 15 - pin or HDMI interface, you can add display using the USB port.

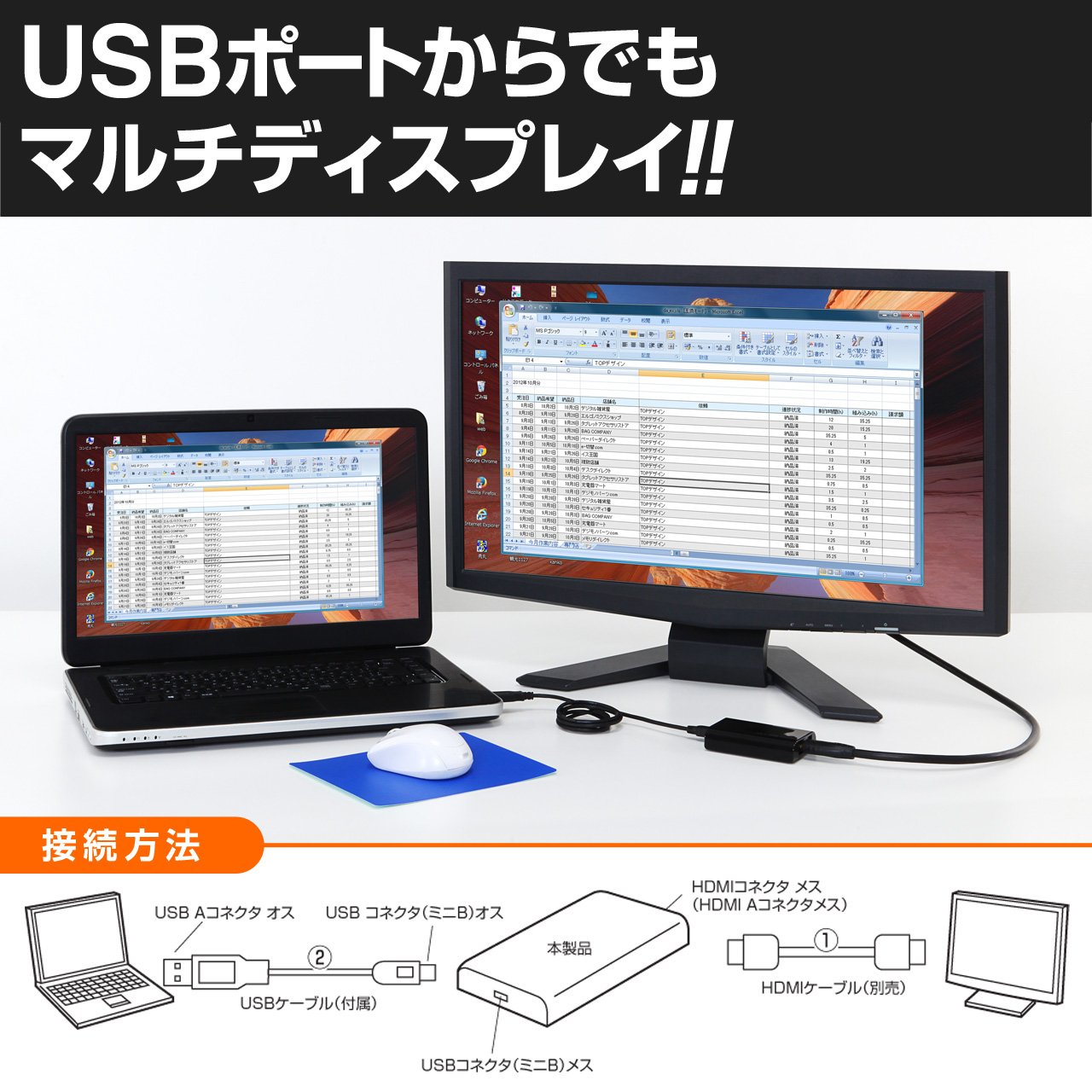

• It is most suitable for adding second and third displays.
• Since you can add a large screen TV and display from a small notebook computer with a small screen, operability is improved.

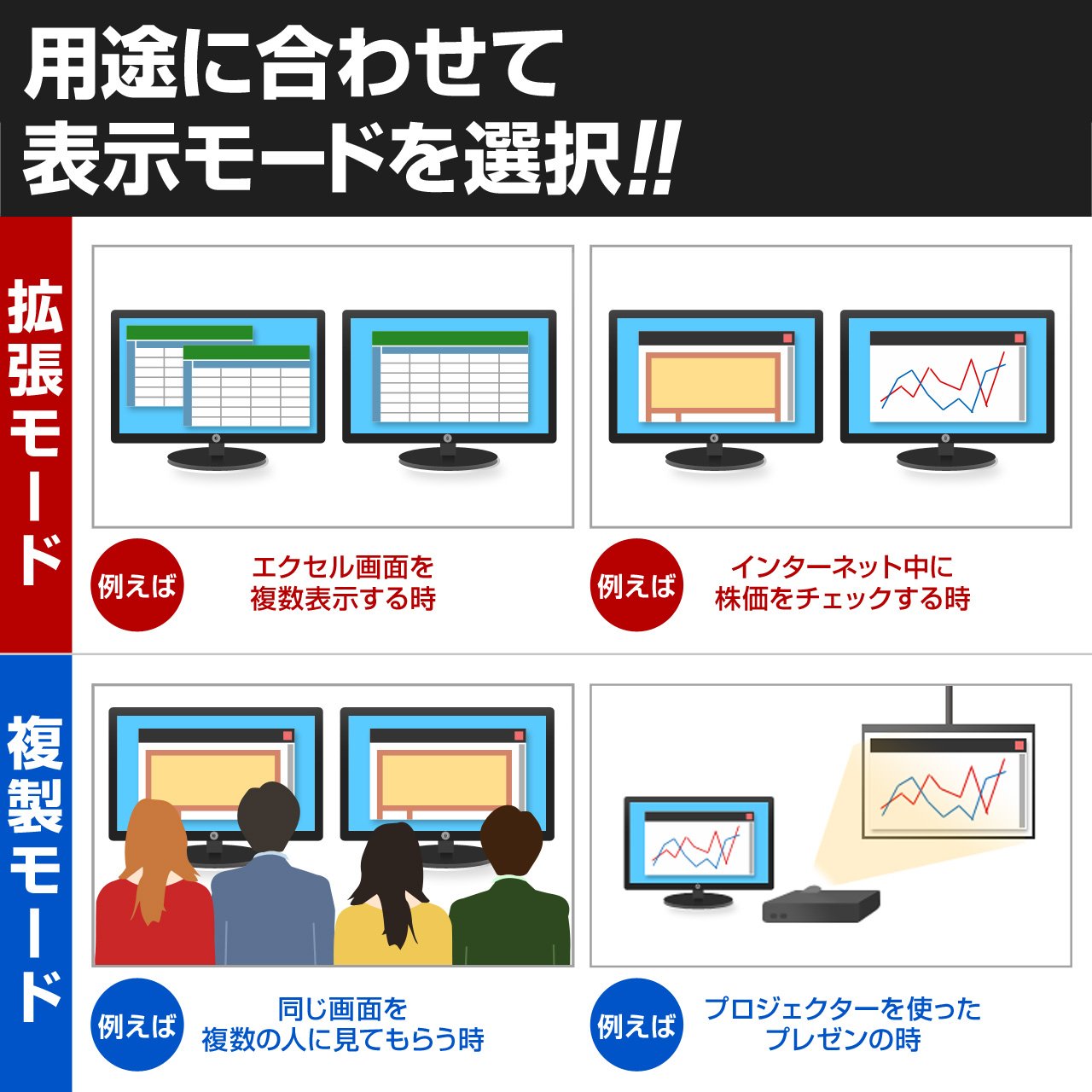

• It corresponds to the duplication mode which displays the same screen as the extended mode which splits and displays the screen.
• If you have a projector equipped with an HDMI terminal, you can output video to a large screen screen.
• With 1080P full high vision support, you can output beautiful images.
• Both images and audio are output compatible, so you can enjoy high-quality video and digital audio with one HDMI cable connected.

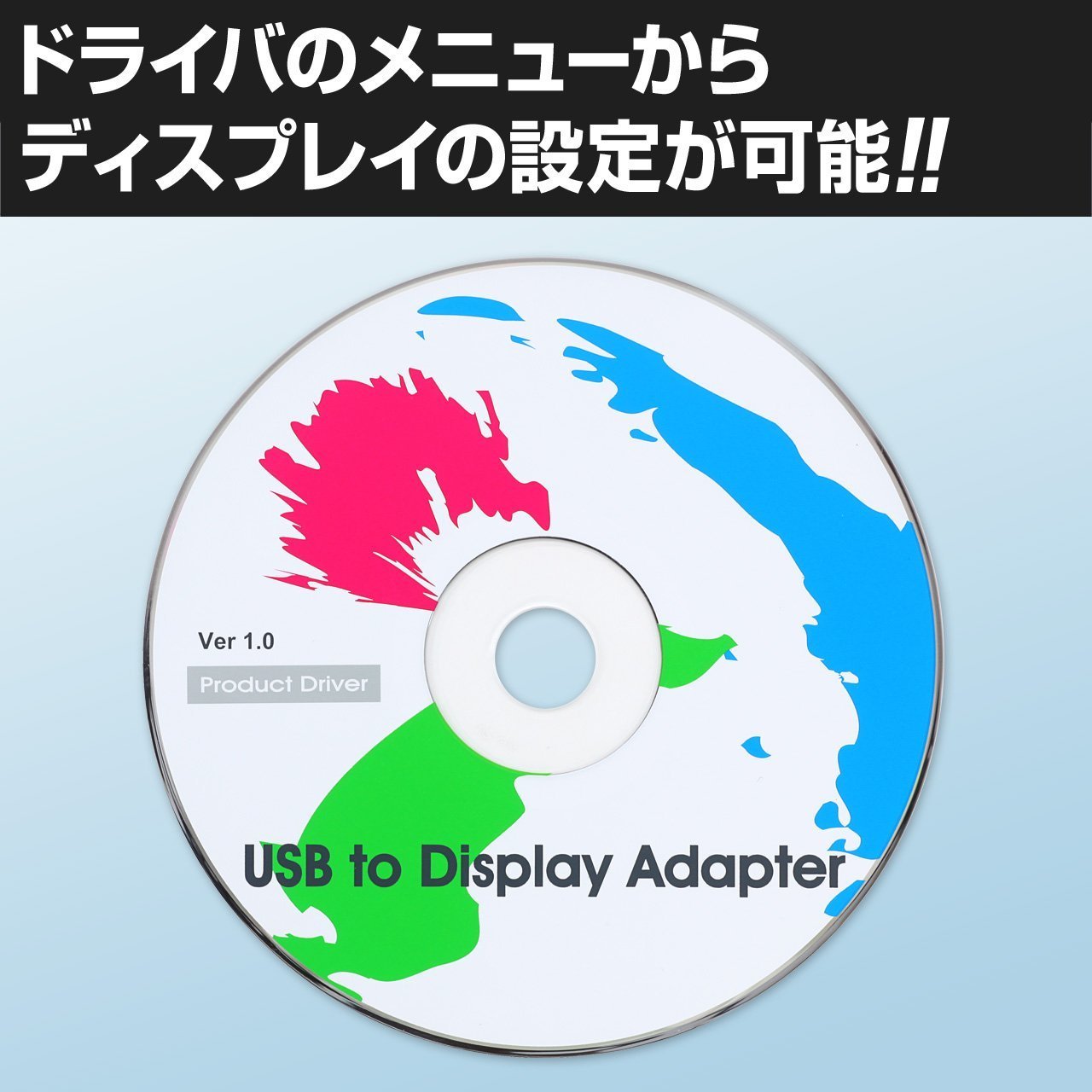

• The driver software of the PC can be installed easily from the CD-ROM attached to the product.

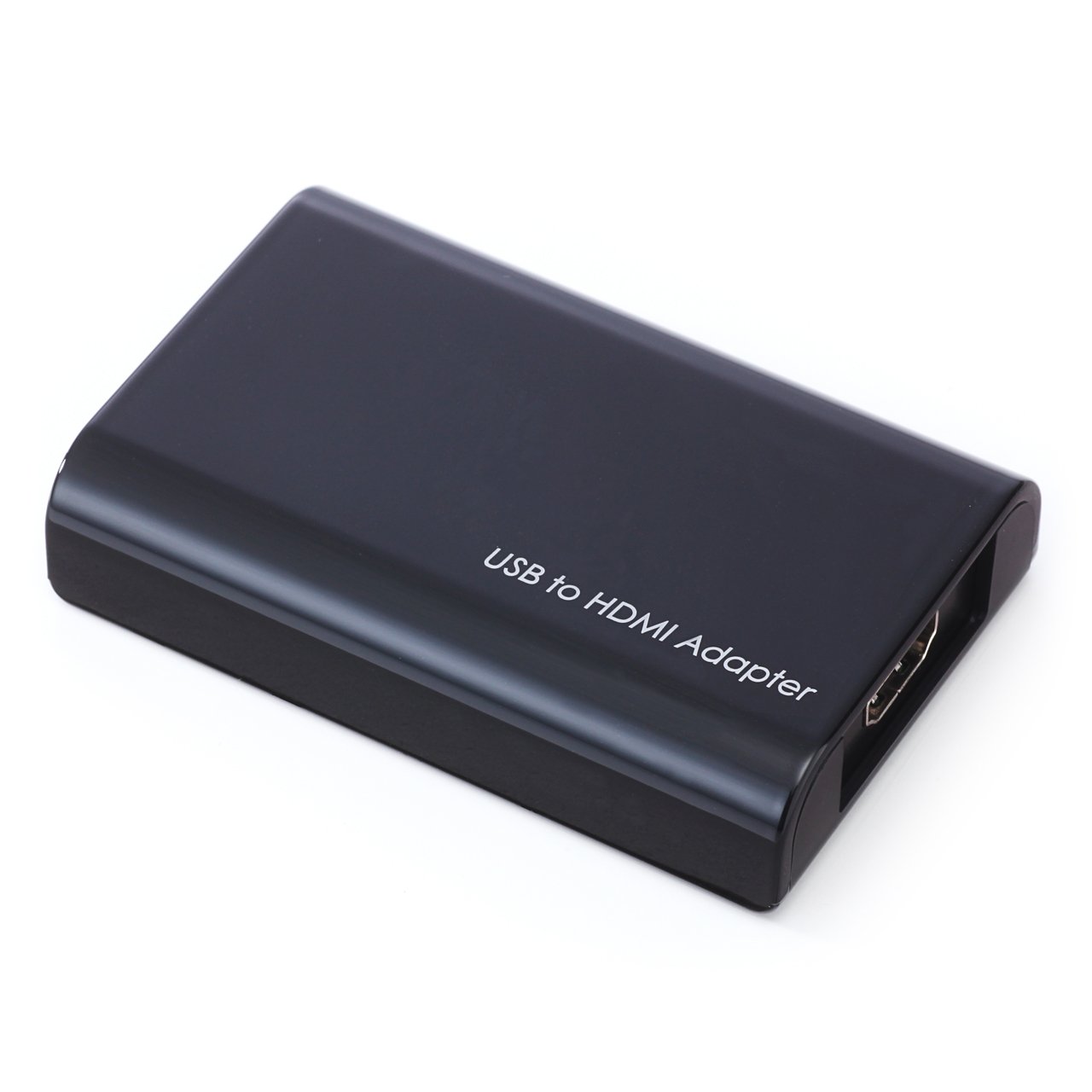

• The body weight is about 60 g and it is light and compact so it is easy to carry around.

Product information:

Shipping Weight: 204 g

Package Dimensions: 4.19 x 14.10 x 16.79 cm
