WS-GPOE-12-48v60w gigabit passive 12 Port Power over Ethernet Injector POE with 48 volt 60 watt for 802.3af devices








Product Description

Remove clutter in your installations, replace up to 12 individual power over ethernet injectors with this single gigabit POE module.

Rack Mounted PoE injector

Extend power to 328 ft or 100 meters

This device offers
* 12 shielded RJ45 jacks with Data + Power out
* power per port limited to 650 ma
* 12 shielded RJ45 jacks Data in - connect to your switch
* 2x 2.1mm x 5.5mm DC power jacks - primary and secondary DC power

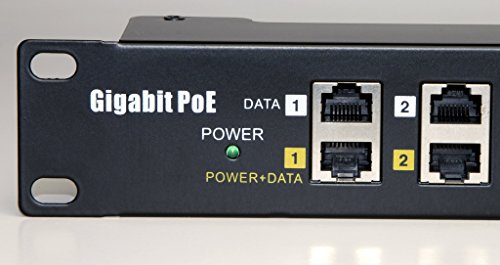

* LED power status
* LED power usage status per 4 ports
* 10/100/1000 operation
* 48v 60watt power supply, 100-240v, 50/60 hz * add a 2nd power supply for redundancy * we offer 7 different power supply options

Used to provide PoE power to:
* IP phones like Polycom, Cisco, Yealink
* WiFi Access points
* IP Cameras
* 802.3af devices

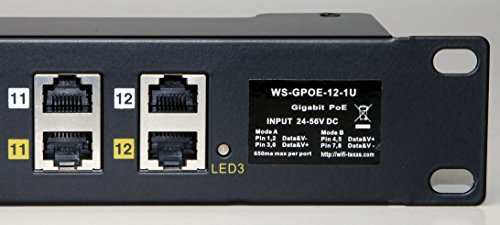

These devices provide power on the data lines 1 and 2, and 3 and 6. This is 802.3af mode A. All devices receive the same voltage - choose a power supply with more available power than the total all devices. Check device specs for power needs, it is under 4 watts for most Phones, other devices need more

We offer 18v, 24v and 48v supplies, with 60 and 120 watt versions, also 6 port versions.

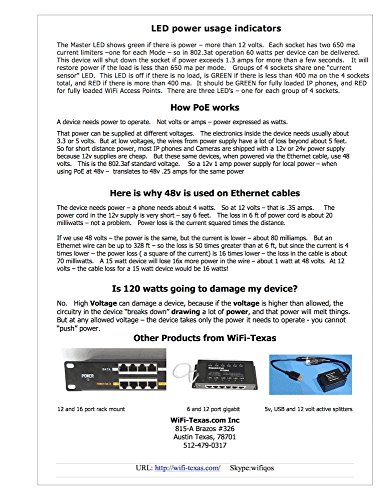

LED status show power for all 12 port, and for each group of 4. For each group of 4 port an LED indicates:
Port current 0 to 20ma = LED off
Port current 20 to 400ma = LED is green
Port current >400ma = LED is red

Full details and data sheet at http://wifiqos.com/

Uses a 2.1mm x 5.5mm DC connector times 2, connect 2 power supplies for redundant operation. We also stock 12v to 48v power supplies, and lower cost 100mb versions.


Feature

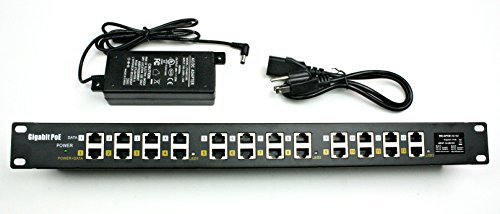

Gigabit Power over Ethernet injector, 1U rack mount with 60 watt 48 volt power supply
IP Phones, Access Points and IP Cameras - with 802.3af
Compatible with Dahua, Polycom, Cisco, all PoE devices
lick on "PoE Texas" to see versions with 24v power supplies or 120 watts
Call +1 512-479-0317 for expert tech support and service from Austin, Texas
Brand : WiFi-Texas
Item model num : WS-GPOE-12-48v60w
MPN(PartNumber) : WS-GPOE-12-48v60w
EAN : 0752423137848
Product Dimensions(LxWxH) : 49x5x6cm ; 1474 g
Package Dimensions(LxWxH) : 51x14x6cm ; 1474 g
