Product Description

Specific:
Module Model:LM2596 Buck Converter + Voltmeter

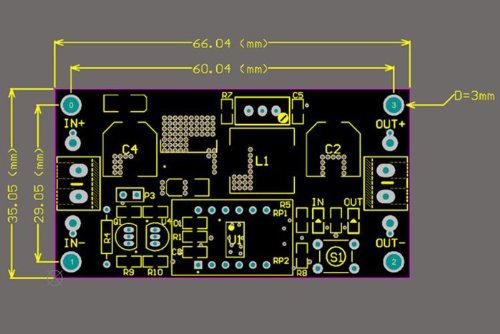

Cutting Size: 66.04mm x 35.05mm
Input Voltage: DC 4.0~40V
Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)
Output Current: 2A(normal and stable), 3A Max.
Ripple Frequency: About 150Khz
Ripple Peak: About 100mV
Display Color: Red
Voltage Meter Error: ?0.1V
Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
IN+: Input Postive
IN-: Input Negative
Out+: Output Postive
Out-: Ouput Negative

Features:

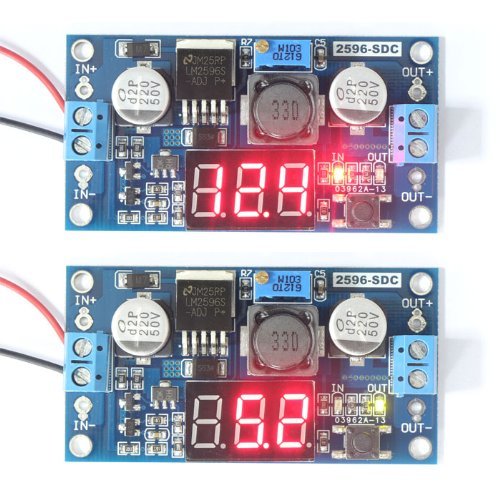

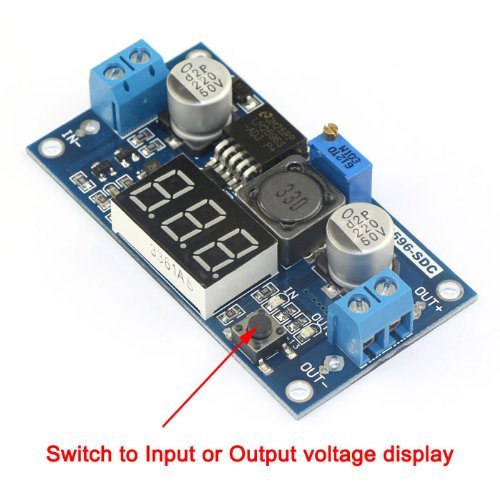

A key switch input and output voltage
green light: measuring the output voltage
red light: measuring the input voltage
with terminal and retain the wire bonding wiring point
If remove the P3 jumper cap, the voltmeter shutdown
Lower Power Consumption
(Please refer to the picture for more details.)

Close voltage display:
Press the switch for one second, then release, you can turn off the voltage display.

Package List:
1x IEIK DC Buck Converter + Voltmeter(LM2596)

Feature

Module Model:LM2596 Buck Converter+Voltmeter
Input Voltage: DC 4.0~40V
Output Voltage: 1.25V~37V
Output Current: 2A(normal and stable), 3A Max.
Display Color: Red
Brand : IEIK
MPN(PartNumber) : IEIK-DCLM2596LED
EAN : 0701056002818
