Item specifics

Remote Control: Included
Package: Yes
Model Number: KI Plus S2
CPU: Amlogic S905 Quad core 64-bit Cortex A53 Up to 2.0GHz
3D Graphics: OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video Decoder: 4Kp60 10-bit HEVC, 4Kp30 MPEG / VC-1 / AVS+ / H.264
Video Encoder: H.264,1080P@60fps
Mould: Private Tooling
Flash: Nand Flash 8GB ( 4~32GB Optional )
Memory: DDRIII 1GB

Product Description

Warn Tip:

Add our Wechat: 414025299, you can ask for the real test video and get the after-sales service in good time.
Important APP will be installed by us for your convenience.
We will sent the exact plug to you which suit your country.
Kindly warm to friends from American, Australian,Canadian and UK
- If you choose post ,we can't get the logistic tracking information after the item leaves China because your country post do not provide it to update. If you do mind, please do not choose China post
- If you choose International express. It may cause impot tax for Canada and UK, we are not responsible for any custom duty or impot tax.

Features:

5DB signal antenna interpided
With new UI sustem wchich is stable,fluency and useful
Compatible with the latest smart TV and smart phone.
Built-in wifi
CPU: Four Cores
Memory: 1G DDR3
Storage: 8GB
Ethernet: 10/100M BPS netwaed
Languages: English / French / German / Spanish / Italian / etc.(About 70 Languages to choose)

KI Plus DVB-T2/DVB-S2 integrates the Android 5.1 TV Box and DVB-T2 Terrestrial Receiver and DVB-S2 Digital Satellite Receiver, which can enhance the function of you TV or LCD monitor and change your traditional TV or LCD monitor into a intelligent platform which just like a smart phone or a Tablet PC by connecting the Internet (via WiFi or RJ45).

KI PLUS front KI PLUS ldft+back KI PLUS right+back

KI PLUS T2+S2 box7

kii pro

KII Pro Android 5.1 TV Box Amlogic S905 Bluetooth 4.0 2GB/16GB wifi Support DVB-S2/ DVB-T2 Smart Media Player

Description:

CPU:Amlogic S905 Quad-core 64-bit ARM® ™-A53 up to 2GHz
GPU:Penta-core ARM® Mali™-450
3D Graphics:OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video:UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
RAM:DDRIII 2GB
ROM:Flash 16GB ( 8~32GB Optional)
WiFi:Built in 2.4G &5G WiFi Support IEEE 802.11 b/g/n/ac
Blutooth:Bluetooth 4.0

Your KII Pro will come from factor pre-installed with the latest version of the award-winning free and open source (GPL) software media center for playing videos, music, pictures, games. Expect a clean environment with no video add-ons installed.

64Bit CPU

The newest and the most advanced Amlogic s905 processor brings more advanced silicon processes, more transistors working in faster speeds resulting in major system boost in performance and stability.

android_img

4K Visual Power + HDMI 2.0

Dramatic viewing experience that delivers four times as much detail as 1080p Full HD, that's eight million pixels compared to two million pixels. Upto 2160P.

Google Play Store

Discover the fast growing army of apps specifically designed for the big TV screen, browse for movies, TV, music, radio and more in Google Play built-in or via your PC.

DVB-T2

On KII Pro model:
DVB-T2 system standard: ETSIEN 302 755
Support MPLP
Demodulation: QPSK,16QAM,64QAM or 256QAM
Forward error correction rate 1/2,2/3,3/4,3/5,5/6
Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128
Bandwith: 6/7/8MHz
Input Frequency Range:54--860MHz Input Impedance:75
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE,female

DVB-S2

On KII Pro model:

DVB-S2 system standard:ETS 302 307

Symbol Rates:QPSK,8PSK

Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Symbol Rates: 1--55 Msps

Code Rates: 1/2, 2/3, 3/4, 5/6,7/8

Input Signal level: -84 dBm to 0 dBm (average power)

ANT. Connector:IEC TYPE F.

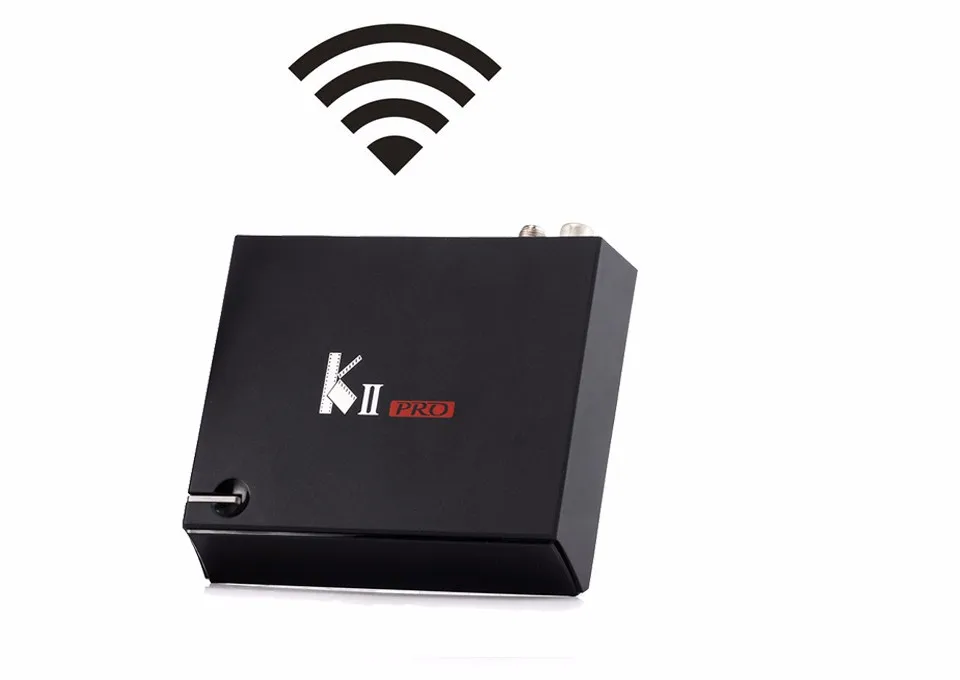

Networking WIFI

Your KII Pro is equipped with Realtek RTL8189 WLAN module/10/100 LAN that offers customers the excellent performance, high reliability, cost-effective and low power consumption wireless LAN module choice.

HTB1fjA3KXXXXXaWXVXXq6xXFXXX7

Youtube

The latest and greatest music videos, trends and channels from YouTube.

Web Browser

A Wicked Fast! Puffin web browser supports the latest Flash Engine and considered one of the best web browsers for the Android Eco-system.

Mobile Mirroring

Your KII Pro comes built in with groundbreaking solution for seamlessly displaying video between devices, without cables or a network connection. You will more conveniently be able to mirror your screen or use the cast feature from supported applications.

Beamer

Easily stream any movie file from your M-A-C computer to Xtreamer mxV.

Allcast

Send photos, music and videos from your mobile phone to your TV. All your moments accessible on the big screen.

AirPlay

Your KII Pro can receive media sent from your A-p-p-l-e devices, PC, and Android devices via AirPlay protocol.

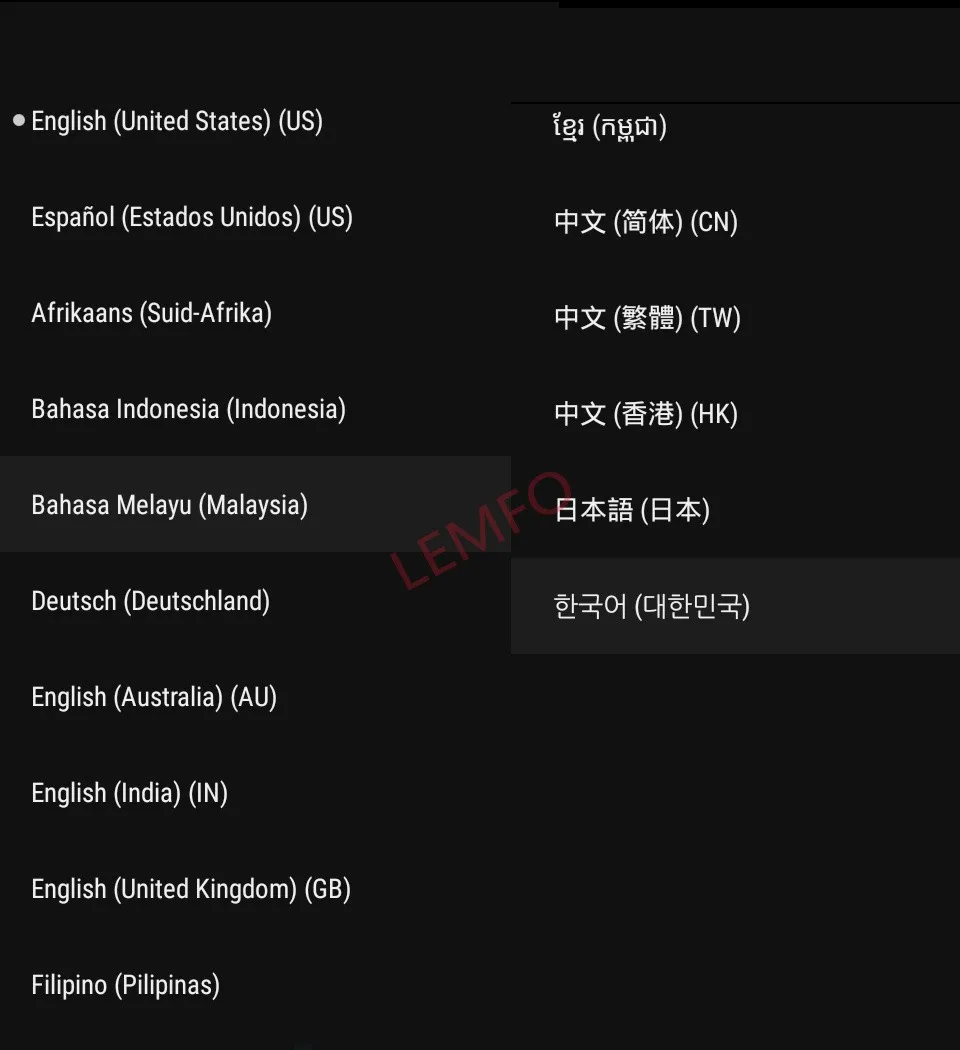

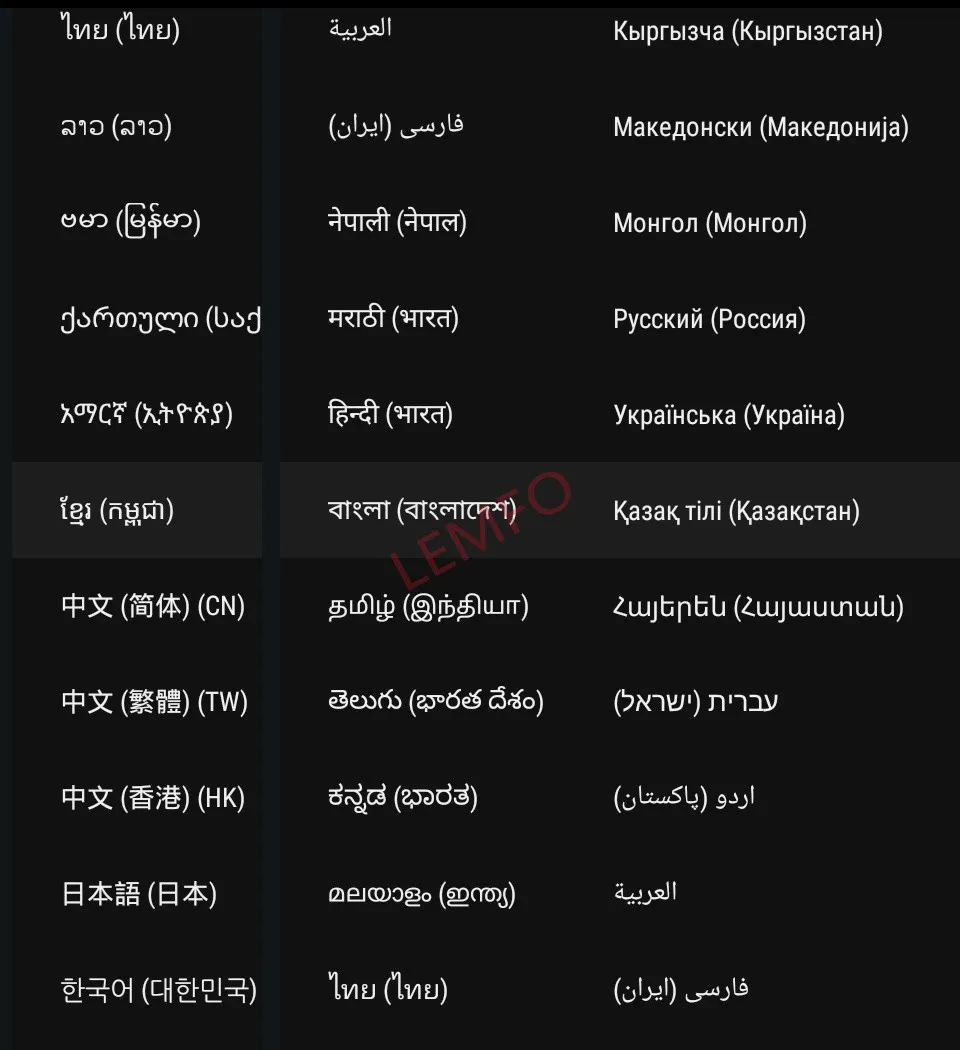

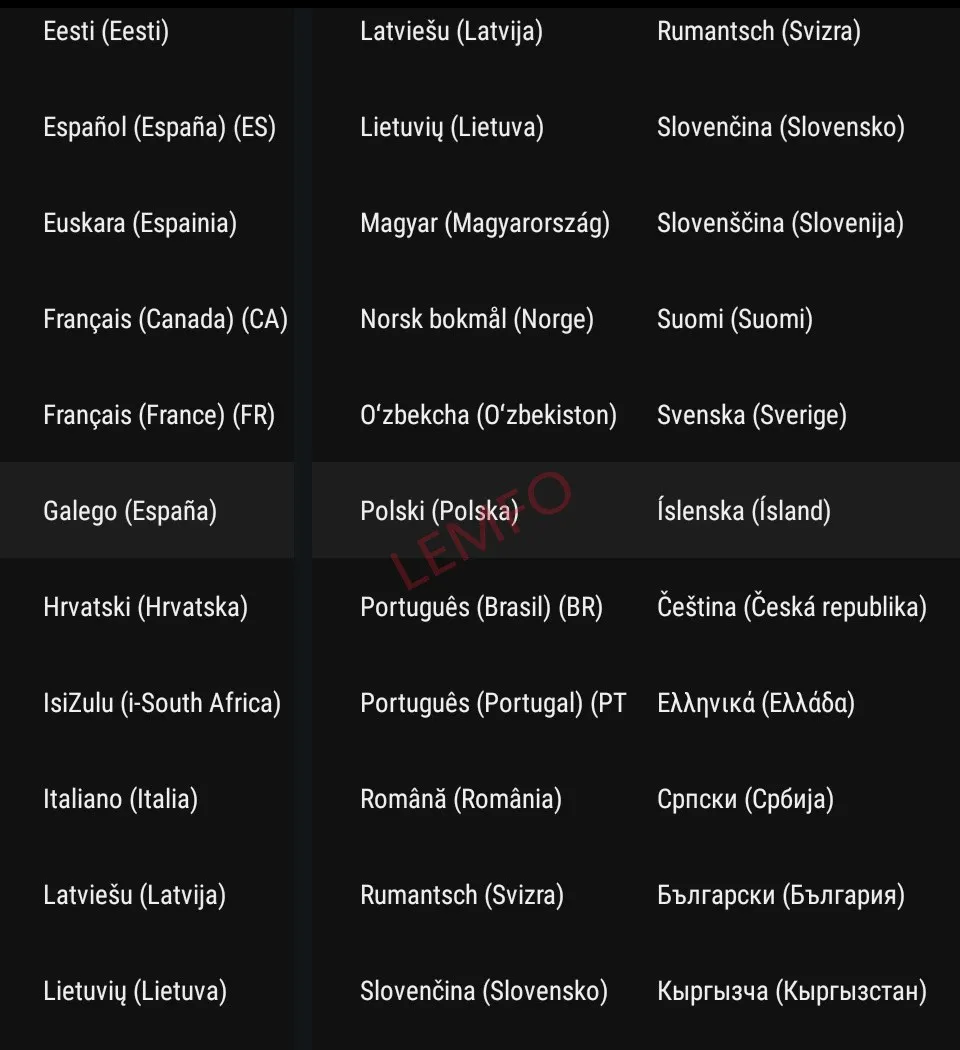

Multilingual

Your KII pro comes built in with an enhanced support for multilingual users, allowing them to select multiple locales in the settings as well as multilingual keyboard layout setup.

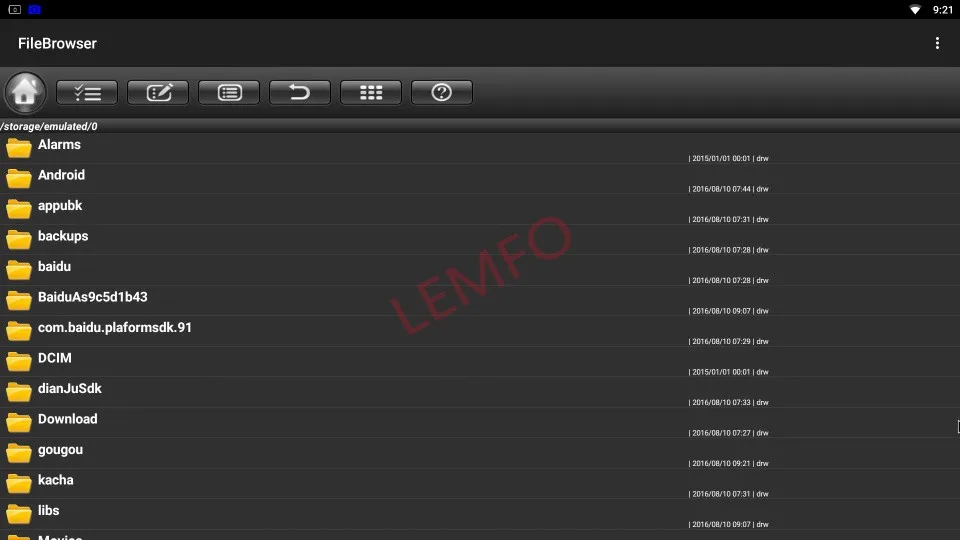

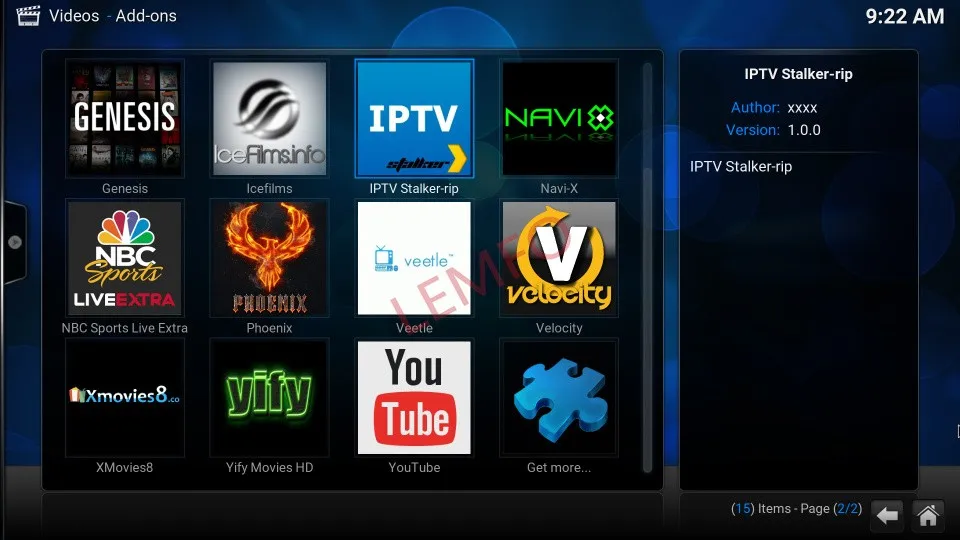

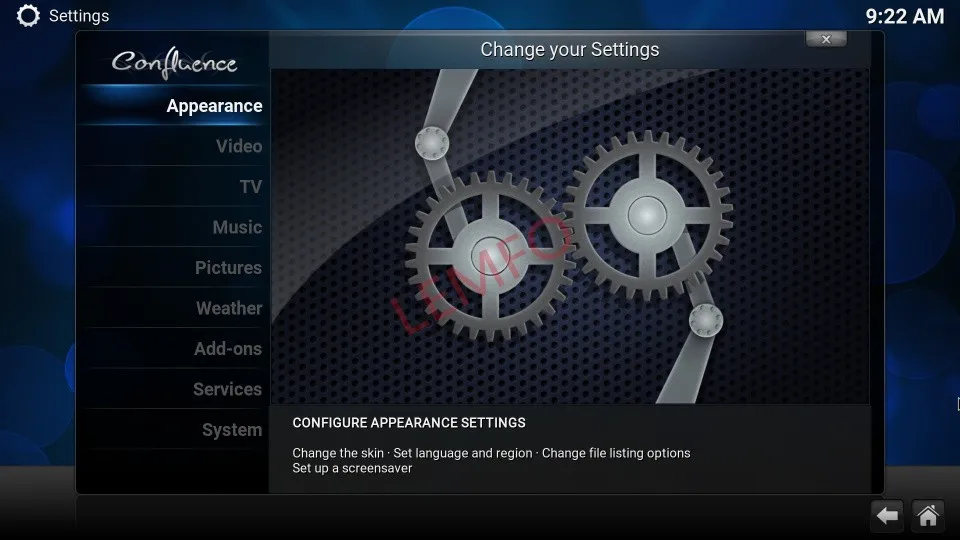

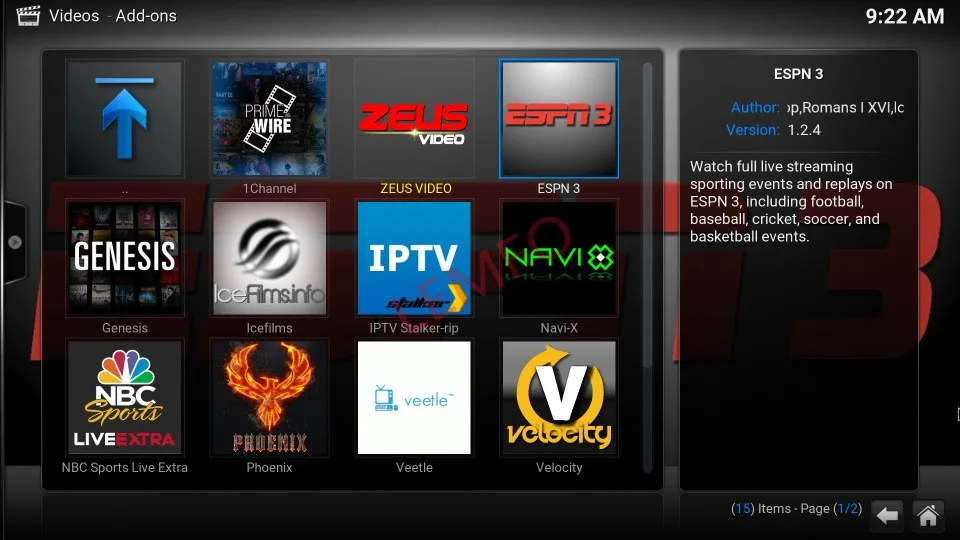

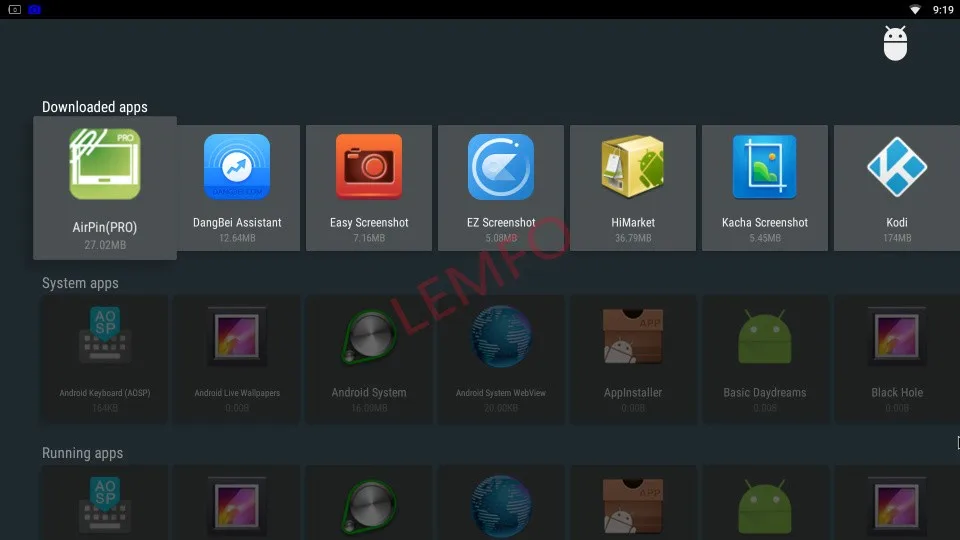

gougou20160810091954 gougou20160810092158 gougou20160810092215 gougou20160810092232 gougou20160810092245 gougou20160810092300

gougou20160810093236

Simple to setup

kii pro

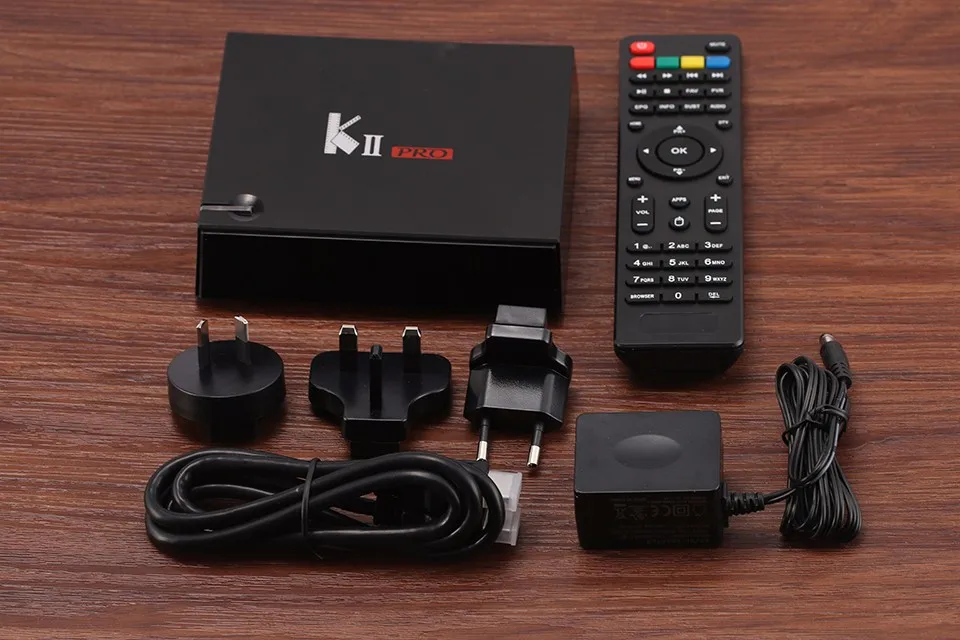

What’s in the box

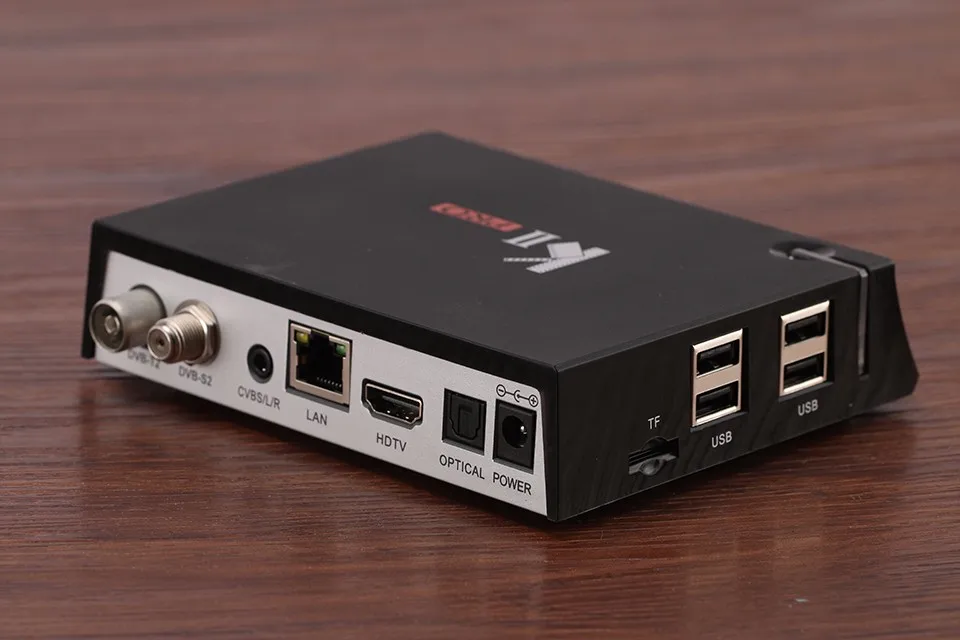

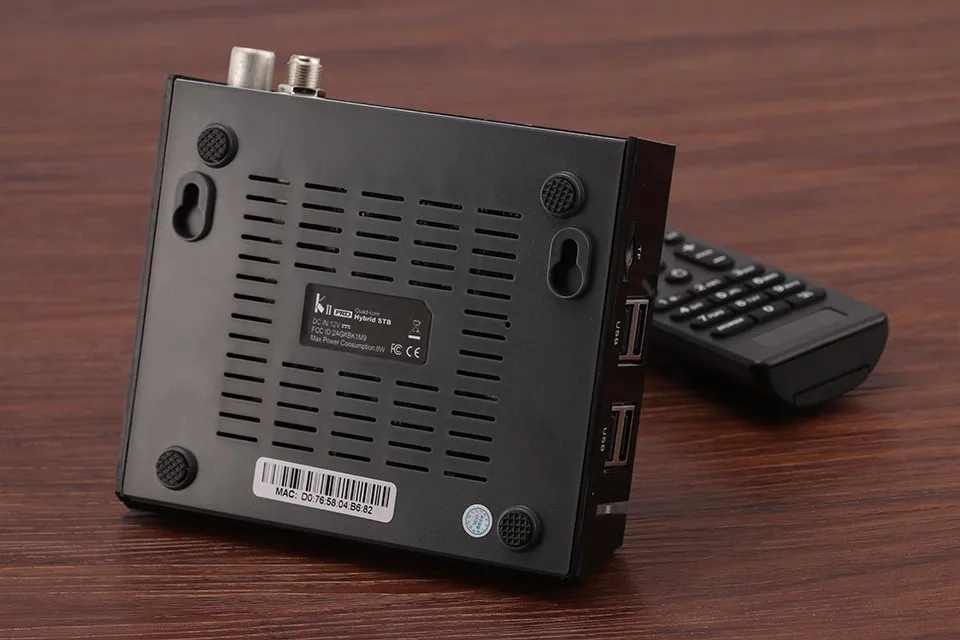

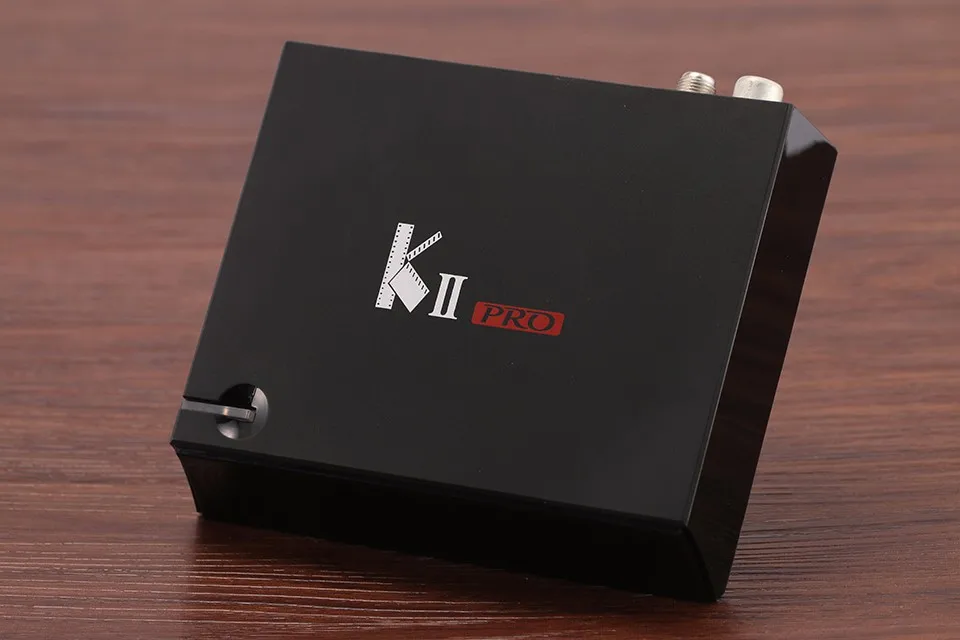

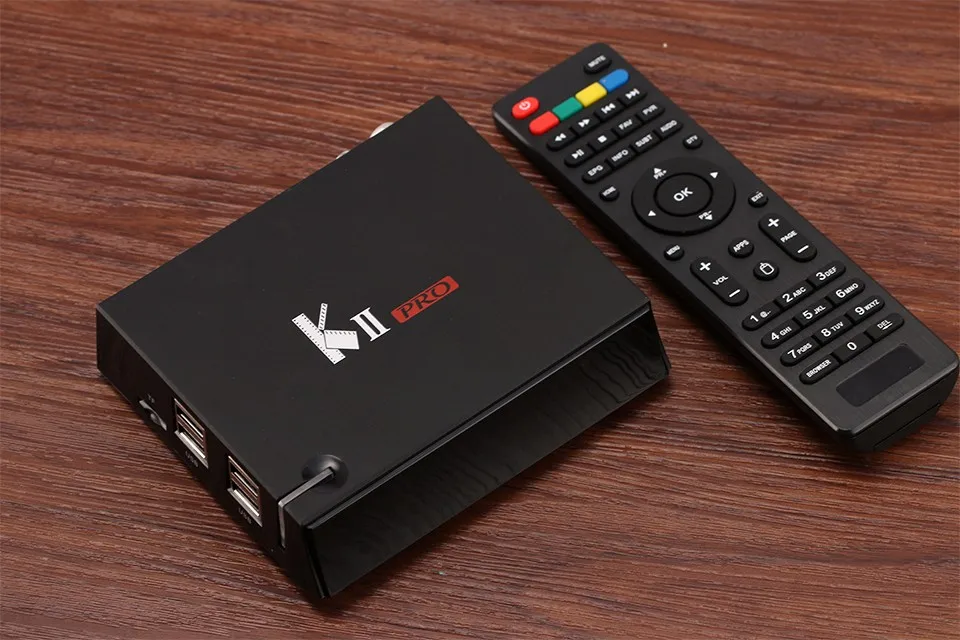

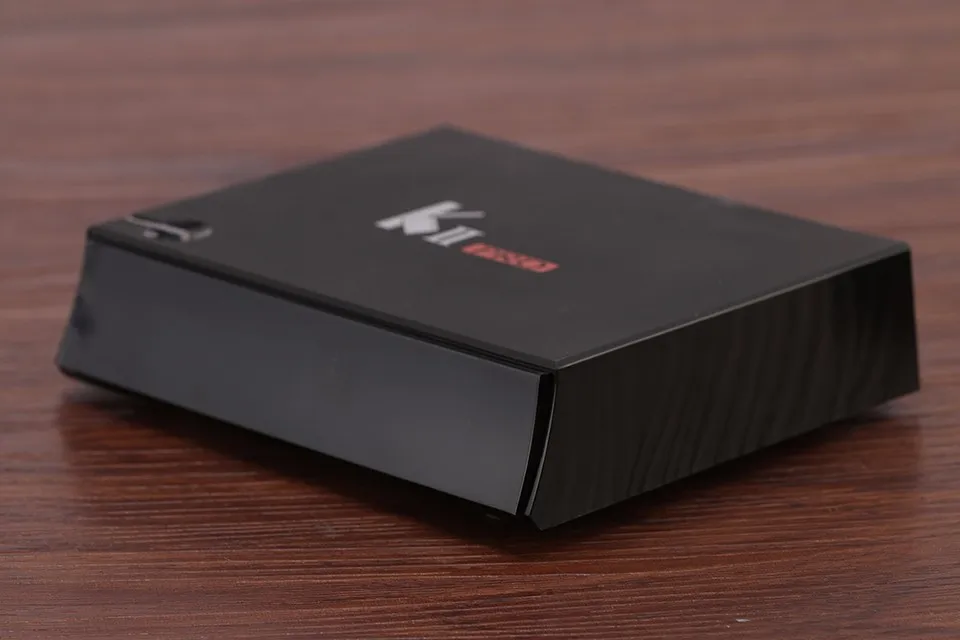

Real Pictures:

Hardware
CPU	Amlogic S905 Quad-core 64-bit ARM® ™-A53 up to 2GHz
GPU	Penta-core ARM® Mali™-450
3D Graphics	OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video	UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
RAM	DDRIII 2GB
ROM	Flash 16GB(8~32GB Optional)
WiFi	Built in 2.4G &5G WiFi Support IEEE 802.11 b/g/n/ac
Blutooth	Bluetooth 4.0
LED Indicator	Power ON :blue; Standby :Red
Mould	Private Tooling

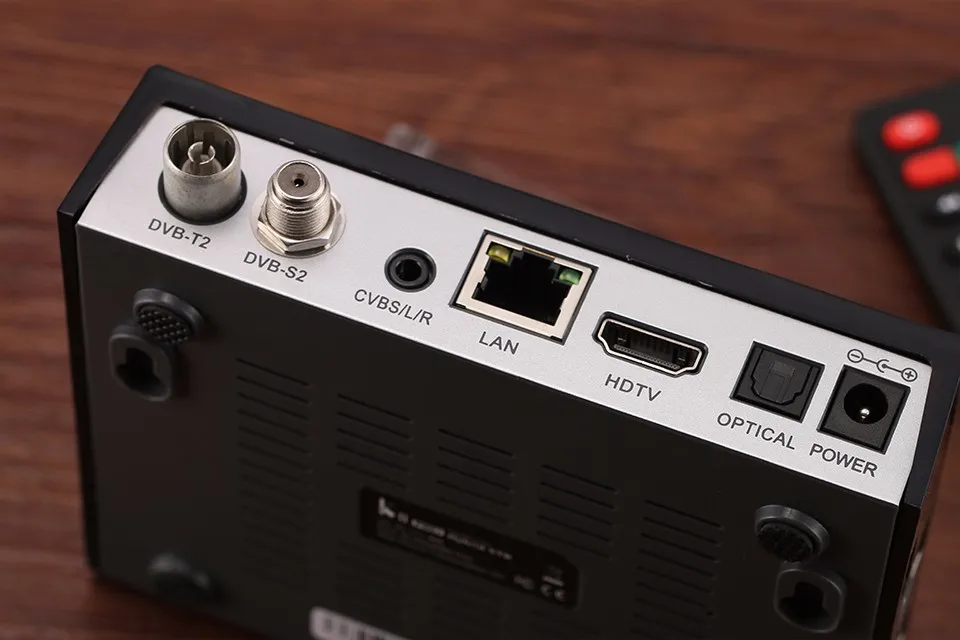

Port	HDMI 2.0	4K 2K HDMI2.0 , HDCP2.2

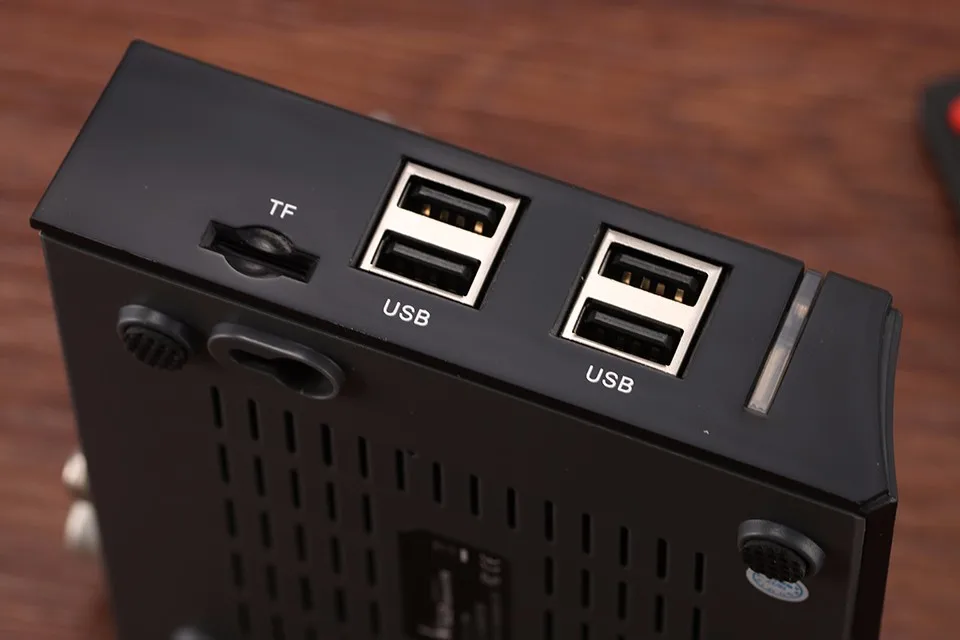

	4*USB HOST	4 High speed USB 2.0,support U DISK and USB HDD
	1*TF CARD	Support 1~32GB
	1*AV	CVBS&L/R output
	1*SPDIF	Digtal audio output
	1*RJ45	10/100 BaseT,
	Power	DC Adapter (12V/1A)
DVB	DVB-T2&S2/DVB-T2 / DVBS2 / ISDB-T/DTMB /ATSC (OPTION)
DVB-S2(OPTION)	DVB-S2 system standard:ETS 302 307
	Symbol Rates:QPSK,8PSK
	Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
	Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
	Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
	Symbol Rates: 1- 55 Msps
	Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
	Input Signal level: -84 dBm to 0 dBm(average power)
	ANT. Connector:IEC TYPE F
DVB-T2(OPTION)	DVB-T2 system standard:ETSIEN 302 755
	Support MPLP
	Demodulation: QPSK,16QAM,64QAM or 256QAM
	Forward error correction rate 1/2,2/3,3/4,3/5,5/6
	Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128
	Bandwith: 6/7/8MHz
	Input Frange range:54--860MHz Input Impedance:75 Ω
	Input Signal level: -84 dBm to 0 dBm (average power)
	ANT. Connector:IEC TYPE, female
Accessories	Adapter
	Gift Box
	IR remote control
	HDMI Cable
	User Manual
Software
OS	Android 5.1.1
Decoder	HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6,RealVideo8/9/10
Video	AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
Music	MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE(AC3&DTS OPTION)
Photo	HD JPEG/BMP/GIF/PNG/TIFF
Support Language	Chinese,English ,Germany,Japanese, Korea etc. 24 languages
WiFi Hotpoint	Support
Mouse/Keyboard	Support mouse and keyboard via USB Support 2.4G wireless mouse and keyboard via 2.4G USB dongle
KODI	Support local high-definition play, support plug-in installation and play
DRM	Optional :Microsoft Playready,Verimatrix,Google Widevine
Others	support DLNA /AirPlay /Google TV Remote /LAN Miracast/3D moive
Appliactions
Online	Browse all video websites ,support Netflix,Hulu ,Flicker, Picasa,Youtube,Twitter,Facebook,etc
Apps	Apps download freely form android market ,amazon appstore etc
Medium	Local Media playback,support HDD, U disck ,SD card
Talk online	Support SKYPE video call,facebook,twitter ,Netflix,Youtube, etc
Others	Support Email ,office suit etc
Loading
Loading	machine size	13012032MM	Packaged size
	machine weight	187.5g	Packaged weight
	PCS/CTN	20	Carton Size
