Item Descriptions:

type:

Single item (power adapter included)

Product introduction

■ Product Description

Electro-Harmonix founder founder Mike Matthews continued to be told by tone maniacs about overdrive name machine Klon Centaurus whose price has become too difficult to obtain.

He imposed a mission to create a "pedal that can be obtained by anyone at an affordable price", and Soul Food was completed in this way.

The Klon centaurus motif is a quick overdrive sound response, and the boost circuit makes headroom wider and clears the sound.

■ Specification

· True Bypass / Buffered Bypass (switchable)

Dimension: 72 mm (W) x 110 mm (D) x 50 mm (H)

· Weight: 200 g

· Power supply: 9 V battery or 9 V DC center minus adapter JP 9.6 DC-200 (included)

* When using with an adapter, be sure to use the original adapter JP 9.6 DC-200 (included).

Please note that damage, breakdown, etc. caused by the use of a third-party adapter may occur, even if it is within the warranty period, it may not be covered by the warranty.

This item is a Japanese domestic agent product.

As for parallel import goods, please be careful as we can not receive agent warranty.

From Amazon

Electro · Harmonics

ABOUT electro-harmonix

Electro · Harmonics was founded by Mike Matthews in October 1968.

The first product is a fuzz pedal called "Axis Fasthorn".

After that, the model which can be said as the original booster of the linear power booster "LPB-1" made with a technician, Bob Mayer in the laboratory "Bell Laboratory" which has won numerous Nobel laureate physics prize, is only mail order

Despite being a big hit, the brand called Electro · Harmonics became widely known.

In the latter part of 1969, he released the big machine "Big Muff", and in the 1970s he released a series of popular models such as Small Stone and Memory Man, one after another, which recorded a strong sales record

.

Although it was in the 70's, it faced the problem of labor union and parts supply in the 1980s and goes bankrupt once in 1984.

Mike Matthews then went to the former Soviet Union, and in 1988 founded a new company, "New Sensor Co-op".

Under the "Sovetec" brand, we successively created products such as vacuum tubes, effectors and amplifiers, and revived as a comprehensive music equipment maker.

And in 1991, I regained the trademark of Electro · Harmonics lost once, returned to New York which was base point in 2002, and still delivers unique effect effect to many players all over the world.

More affordable sound of name machine

Electro harmonics founder Mike Matthews continued being told about pedals in Torn Mania.

It is about the famous overdrive machine "Klon centaurus" which the price is too high and can not be obtained.

He imposed on the production team a mission to produce "a pedal that can be obtained by anyone at an affordable price", and Soul Food was completed in this way.

This machine, which was made with the Klon centaurus as a motif, is an overdrive for tons sensitive players who value the sound of the instrument itself, and it can also be used as a clean booster.

It supports a wide range of sounds ranging from light distortion that can express sweet clean boost and player's touch to intense overdrive that makes the sound vibrant.

If you increase the gain to saturate the amplifier, you can also extract better distortion sound from the amplifier.

This Soul Food pushes the sound to a higher dimension without any compromise regardless of play style or equipment used.

Good honest OD sound with good response

DRIVE control knob

Knob to adjust input gain.

As turning to the right, overdrive changes from clean boost to heavy overdrive.

If you turn the knob, you will be able to experience various drive sounds depending on the position.

Try various settings and try discovering your favorite sound.

As DRIVE changes distortion, turning it to the right will emphasize the middle range.

Bypass mode selector switch

Bypass mode selector switch

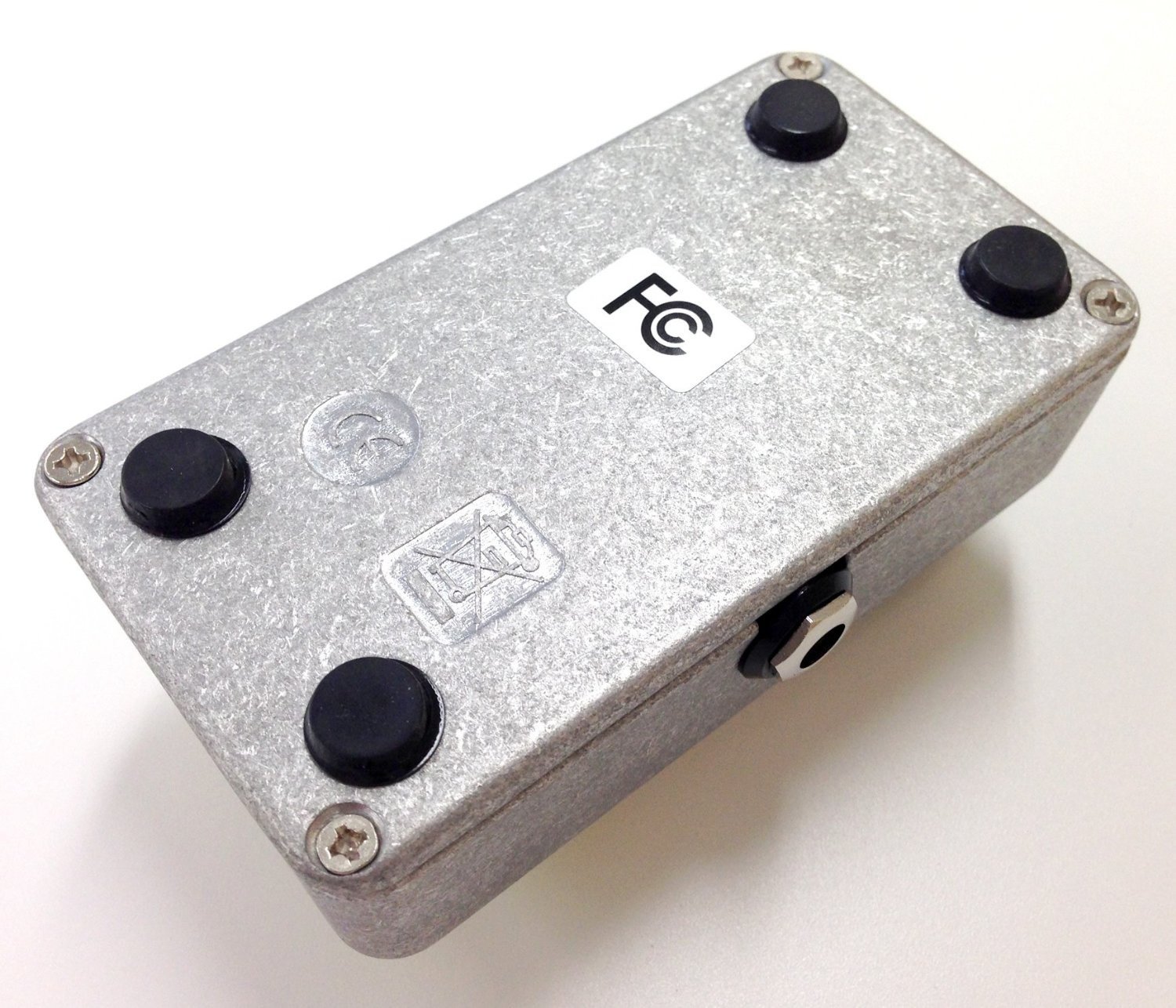

When the back cover is removed, there is a bypass mode changeover switch at the lower right of the board (see picture).

When the switch is True (up), it becomes true bypass when bypassing.

Buffer (bottom) passes through the buffer circuit when bypassing.

True when shipped from factory.

In True mode, the INPUT terminal and the AMP terminal are connected directly when bypassing.

In the Buffer mode, it is output from the AMP terminal through a high-quality buffer circuit when bypassing.

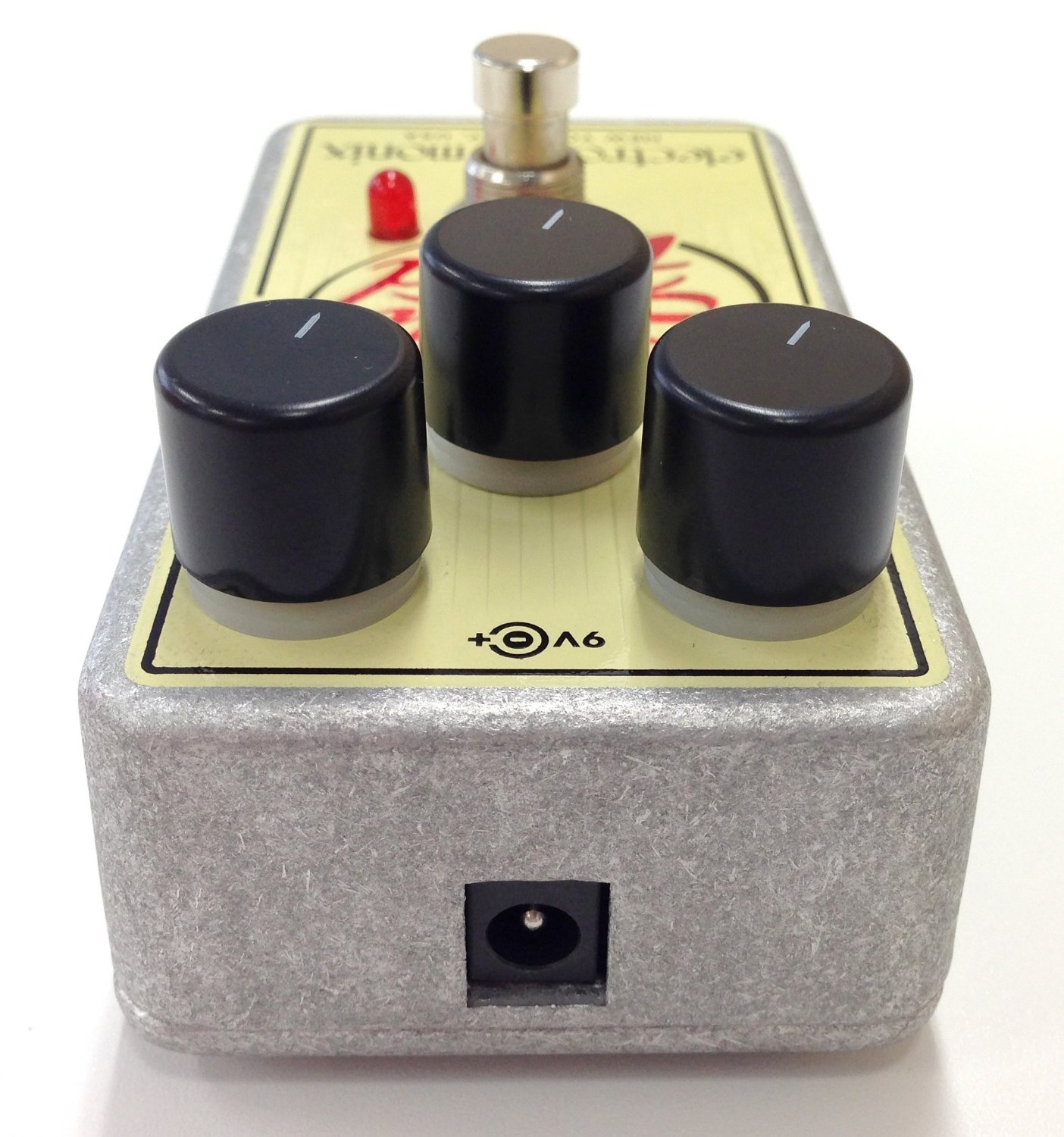

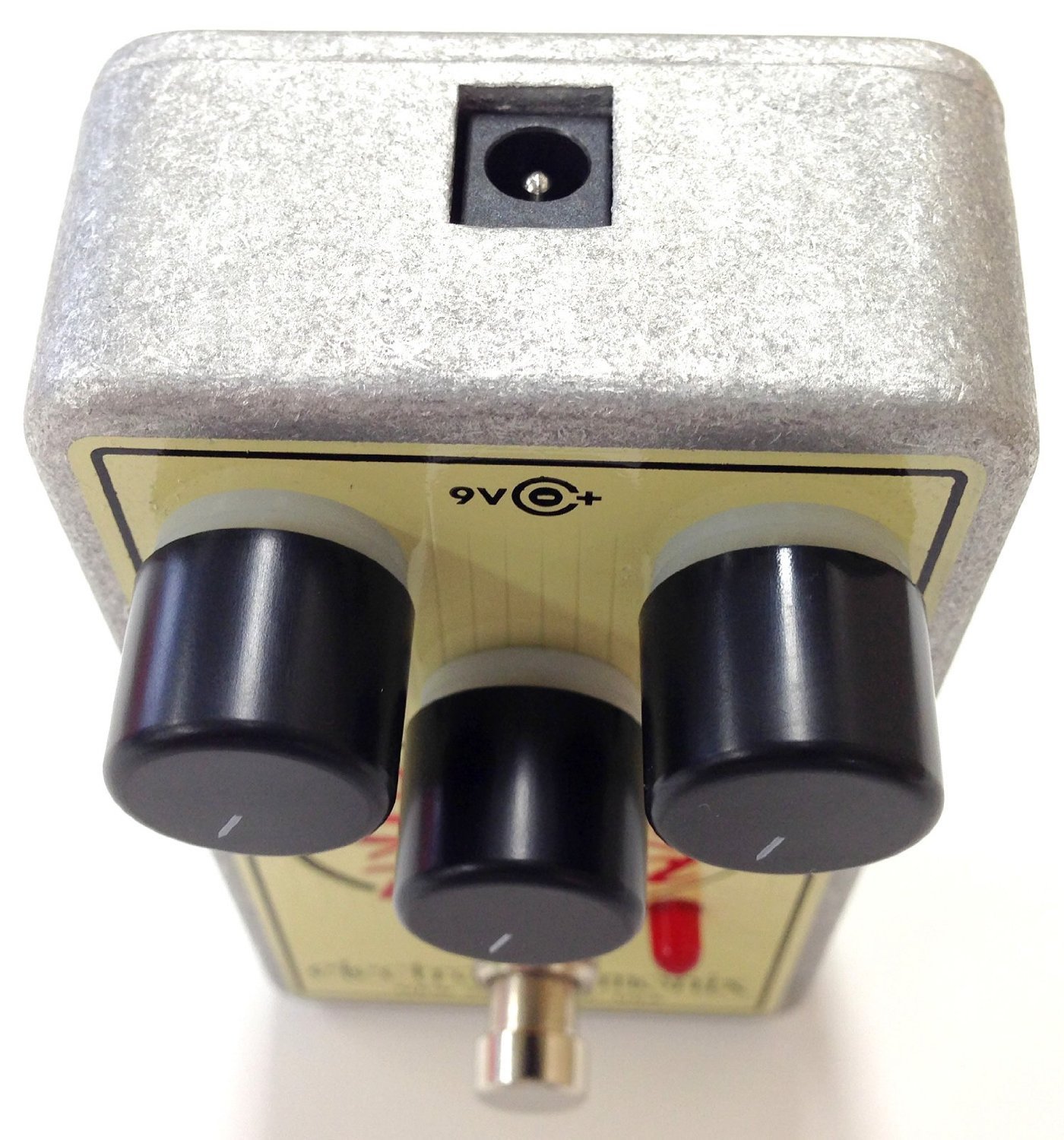

Power supply: 9 V battery or 9 V DC center minus adapter JP 9.6 DC-200 (included).

Be sure to use the original adapter JP 9.6 DC-200 (included) when using the adapter.

Please note that damage, breakdown, etc. caused by the use of a third-party adapter may occur, even if it is within the warranty period, it may not be covered by the warranty.

Show all product descriptions

Features:

• Please enter model number Confirm this is compatible:
• Produce Klon centaurus as a motif
• Fast, straightforward overdrive sound of response
• Boost circuit which widens the head room and clears the sound
• True bypass and buffered bypass can be switched

Product information:

Shipping Weight: 589 g

Package Dimensions: 8.13 x 14.73 x 14.99 cm
