Item Descriptions:

size:

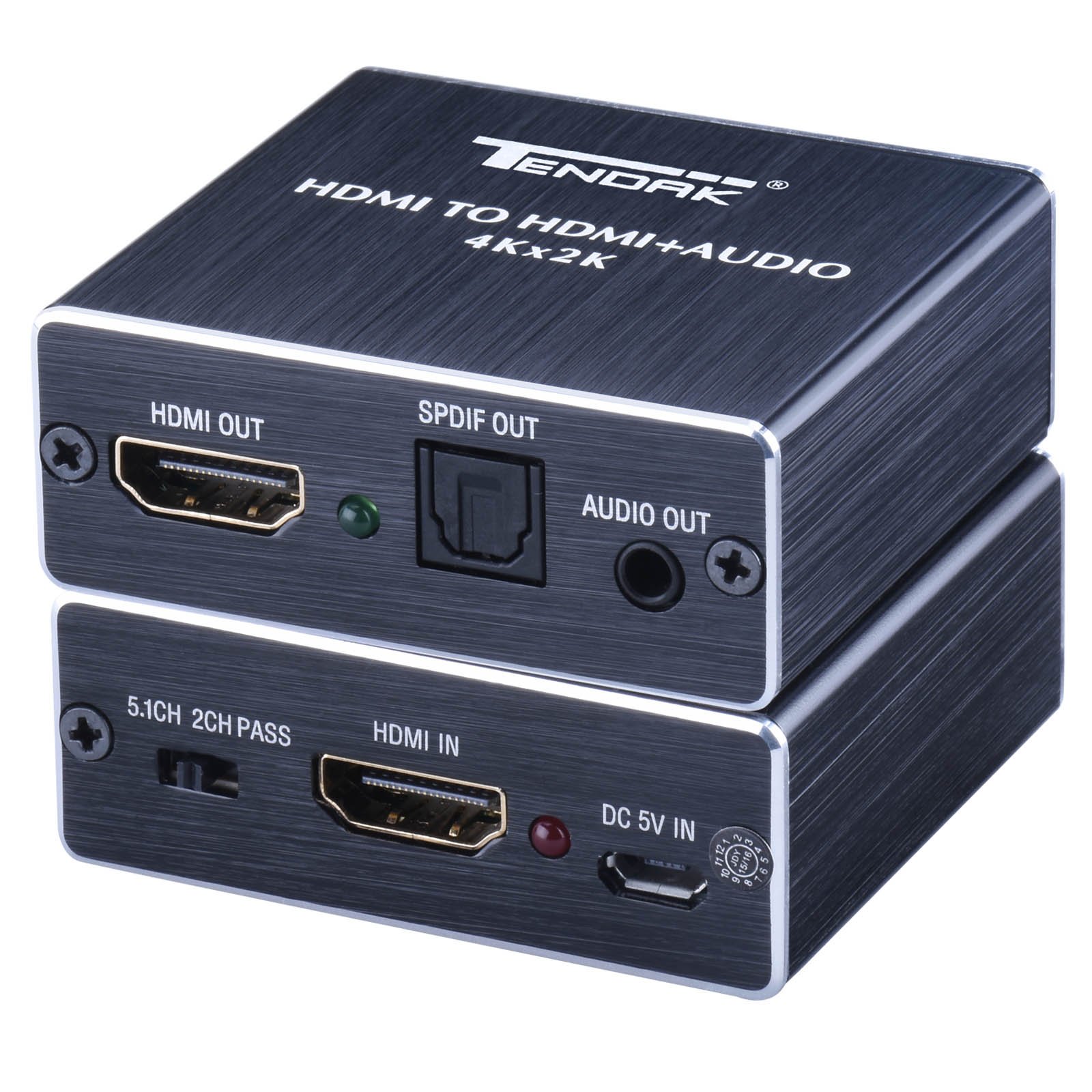

HDMI audio separator

specification:

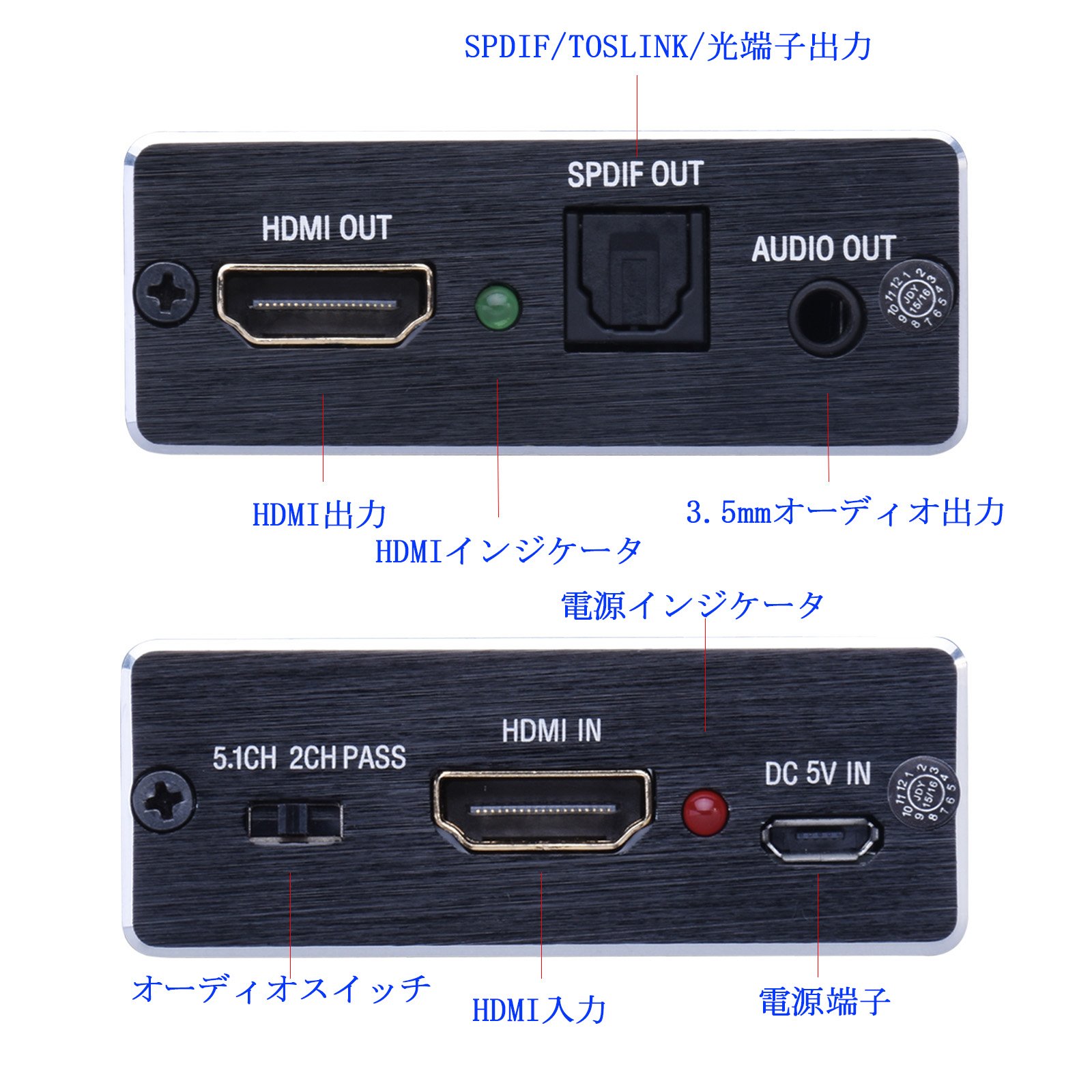

Input port:

1 x HDMI, 1 x Micro USB charging port, 3 x EDID audio (Pass / 2 CH / 5.1 CH)

Output port:

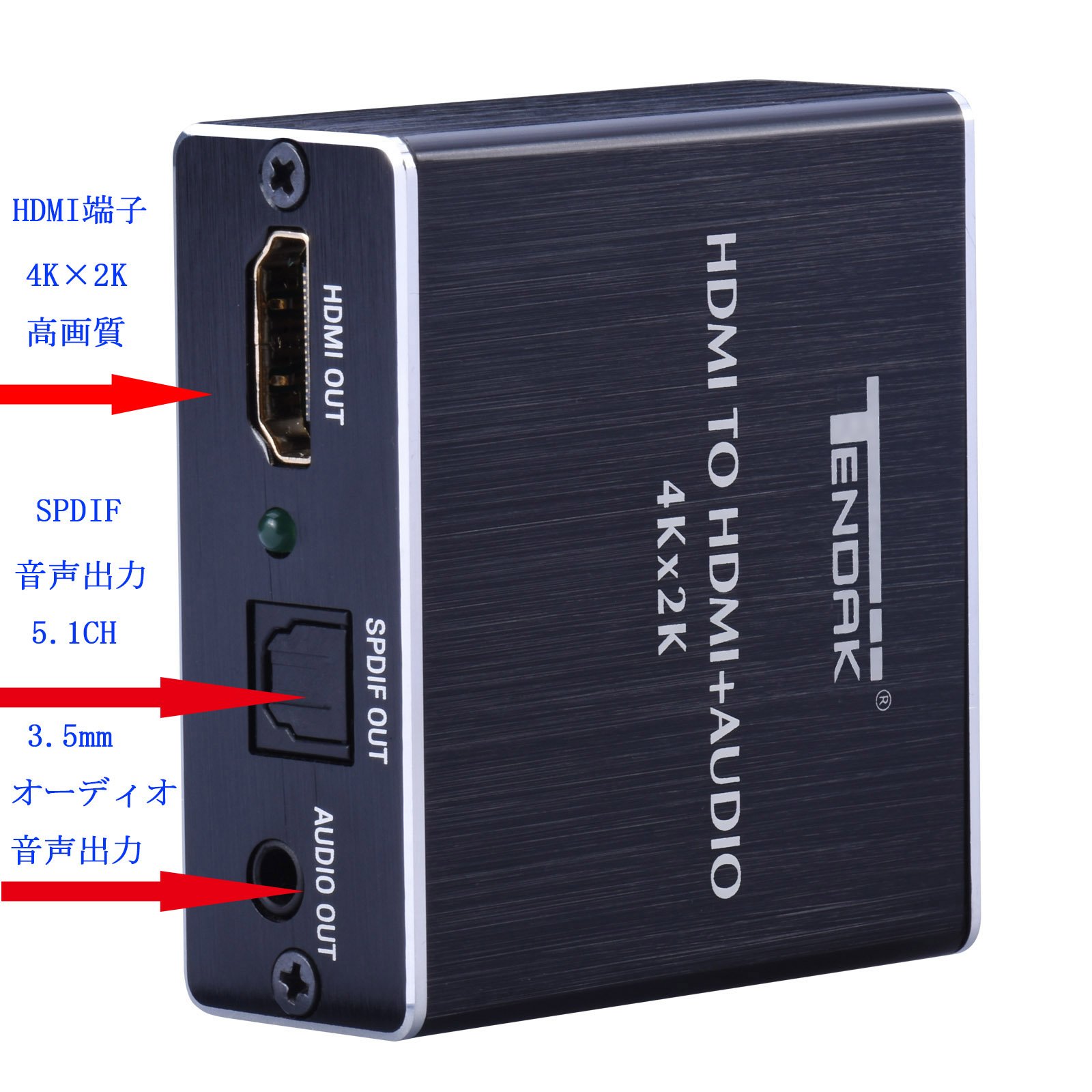

1 x HDMI, 1 x SPDIF (optical digital), 1 x 3.5 mm audio port

HDMI resolution:

4K x 2K, 24/50 / 60fs / 1080P / 1080i / 720p / 576p / 576i / 480p / 480i

HDMI input resolution:

4k * 2k, 1080P / 60HZ, 3D / 24HZ

HDMI 1.4

Video color format:

24bit / 30bit, 36bit

Maximum bandwidth:

225 MHz

Maximum baud rate:

6.75 Gbps

Working current:

190 mA

Operating temperature range:

0 - 40 ° C

Working humidity range:

5 - 90% RH (no condensation)

Input cable distance:

≤ 15 m AWG 26 HDMI standard cable

Output cable distance:

≤ 20 m AWG 26 HDMI standard cable

EDID set:

Pass:

HDMI pass mode. Its audio and video can be output from the HDMI port, but SPDIF / L / R can not output sound

2 CH mode:

Digital 2CH PCM from HDMI input Derive stereo audio signal and convert it to analog stereo audio output through RCA L / R analog output and support 5.1CH AC3, DTS 5.1CH

5.1 CH mode:

5.1 HDMI / SPDIF is output through Dolby Digital / DTS

4K × 2K high quality picture

1080P

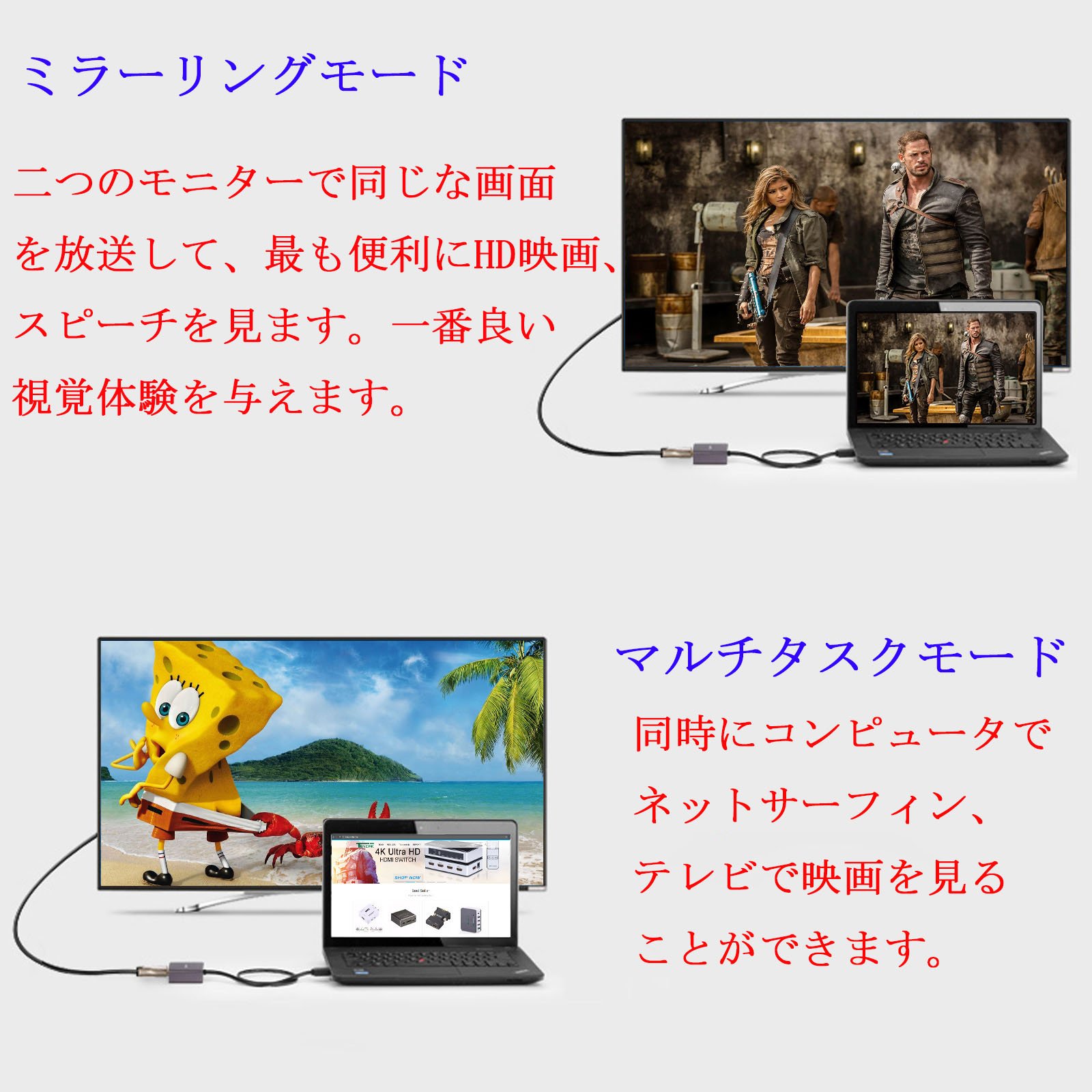

Two usage modes

Separation of voice and screen is possible

It corresponds to 5.1 CH

3.5mm audio sound output

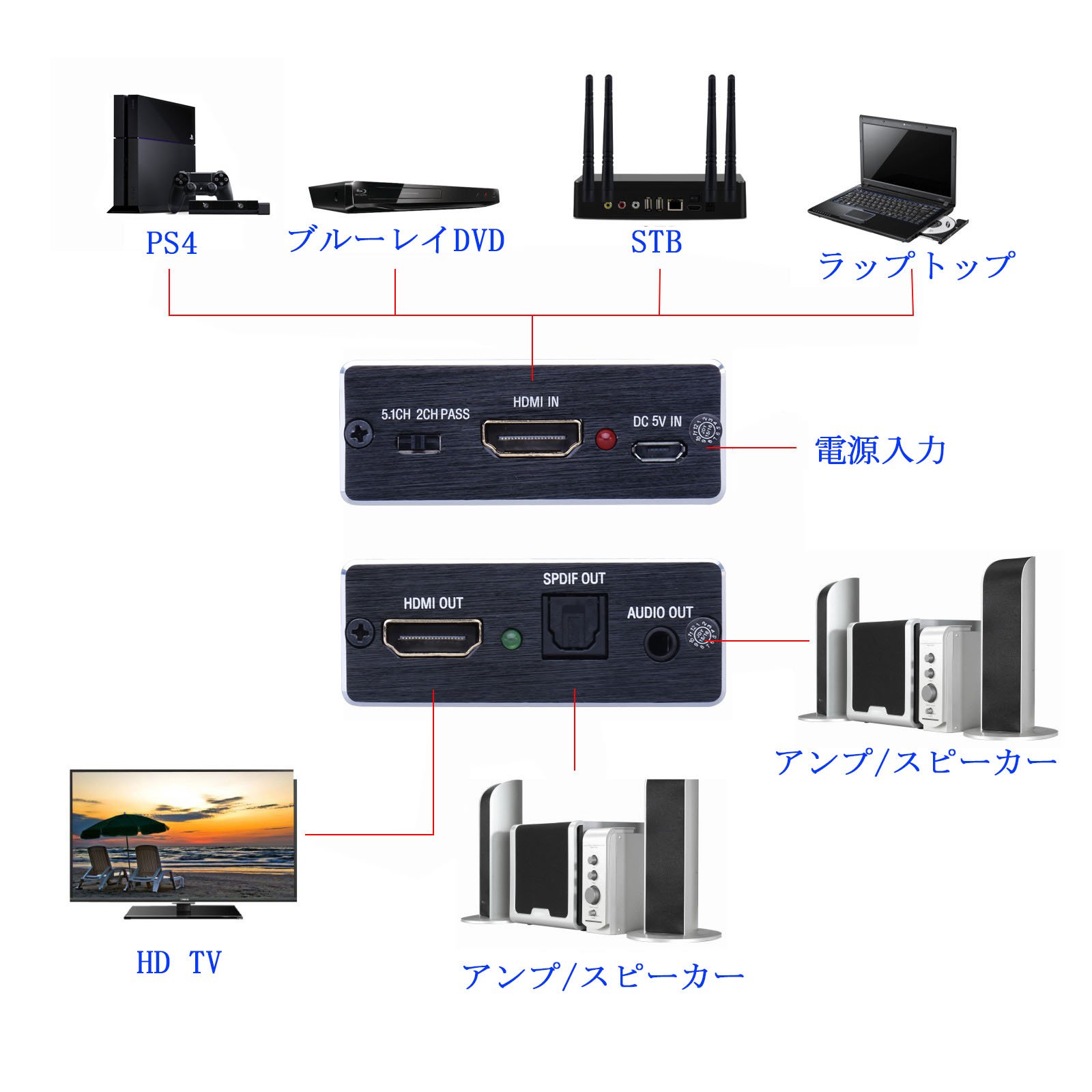

Can be used in various places

It can be used in a place such as home theater, conference speech and classroom.

This is the best interactive screen.

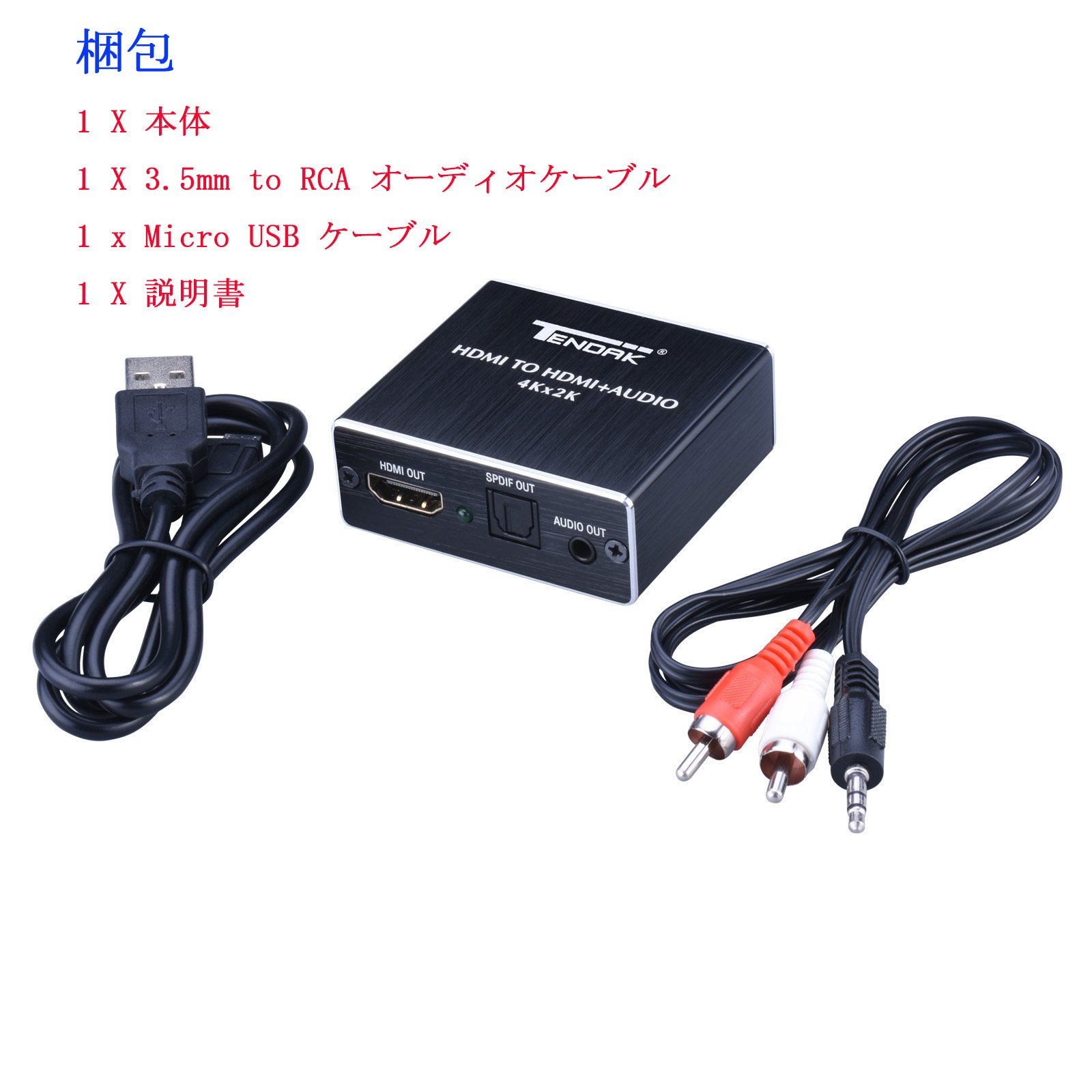

Package list:

1 X body

1 X 3.5 mm to RCA audio cable

1 x Micro USB cable

1 X Instructions

Note:

Although the Tendak HDMI conversion adapter is in normal operation and an AC adapter is not necessary, when this converter box is connected to a nonstandard HDMI interface or HDMI cable, 5 V / 500 mA external power supply is required

Features:

• Please enter model number Confirm this is compatible:
• "Hdmi sound separation terminal": 1 input 1 output + sound separation.
• 1 input: HDMI, 1 video output: HDMI.
• Three kinds of sound separation mode: SPDIF & 3.5 MM audio (sound signal 2.0 CH or 5.1 CH).

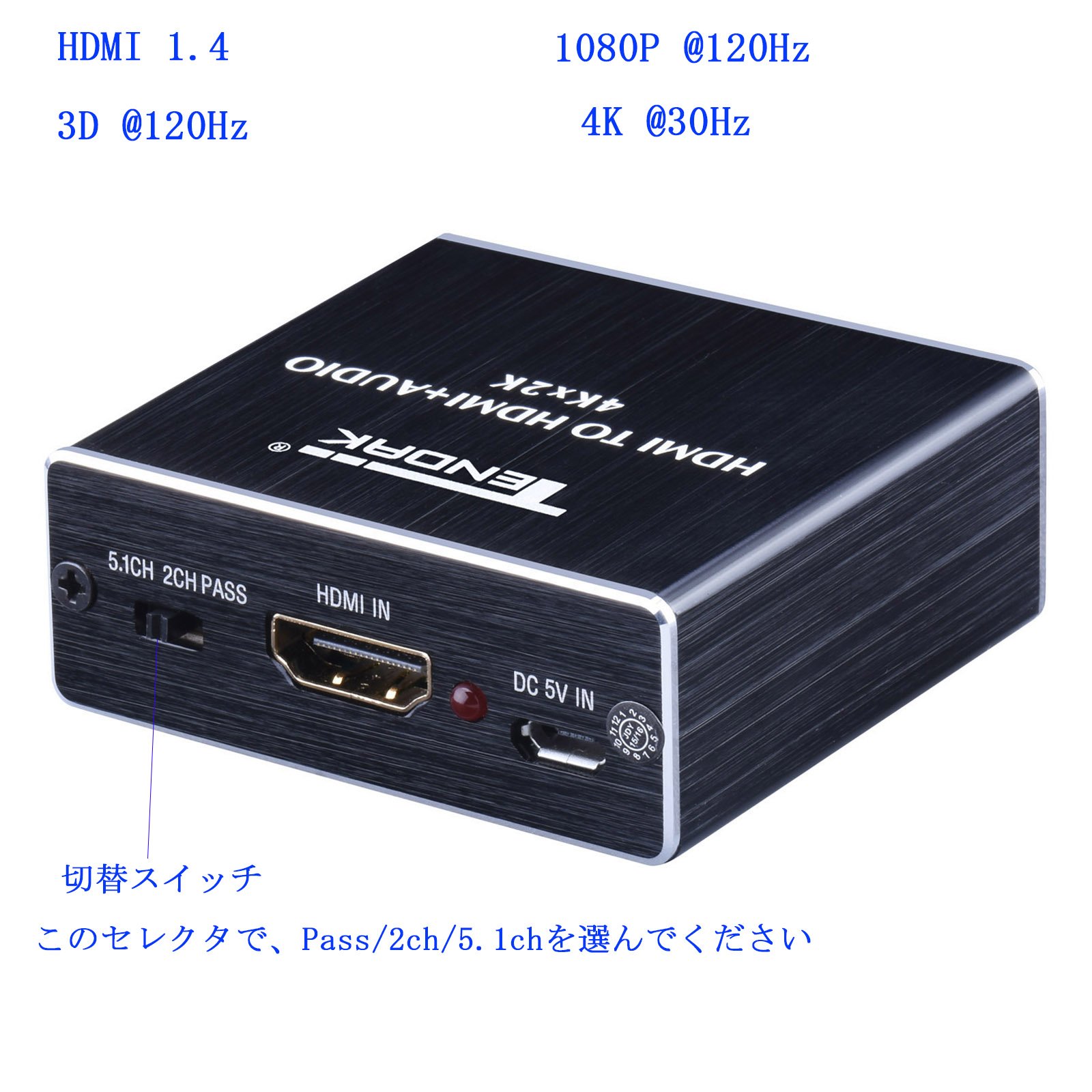

• PASS, 2 CH, 5.1 CH can be selected and output by the switch.
• It applies to the output with 3.5 MM headset.
• Synchronization of HDMI audio signal separation is realized
• "Resolution of hdmi audio separation": HDMI resolution: 4 K x 2 K, 24/50/60 fs / 1080 P / 1080 i / 720 p / 576 p / 576 i / 480 p / 480 i.
• 3.5mm audio output: 2CHPCM stereoscopic audio SPDIF output 2CH PCM, 5.1CH Dolby Digital, DTS audio
• "3D 4K × 2K high-quality image": 4K2K (4096 × 2160) @ 30Hz 1080P 24/50 / 60Hz It corresponds to high resolution and can create more realistic screens.
• No audio delay
• "No power supply required and Micro USB cable": Micro USB cable is provided so that incompatibility problems can be solved.
• Please connect the Micro USB cable when meeting incompatibility problems and low resolution problems.
• Or if you are using low-power HDMI equipment, there is a possibility of power shortage, so connect with a Micro USB cable and supply auxiliary power.
• "One year warranty": Our products are guaranteed for 1 year, if you have any problems, please do not hesitate to contact us.
• Be sure to provide the best countermeasure

Product information:

Shipping Weight: 176 g

Package Dimensions: 5.31 x 11.81 x 14.71 cm
