Digital Surveillance Recorder 8-Channel HD-TVI 1080p H.264 True-HD DVR with Pre-Installed 1 TB Hard Drive Playback Internet & Mobile Phone Accessible HDMI TVI/Analog/IP Smart Recording Real Time for CCTV Camera Home Office Security System Network (Only wo[Product Information]- Enter your model numberto make sure this fits.
- 8CH HD DVR w/ 1TB HDD. DVR can connect 8 HD/SD cameras by using wired cable with BNC connectors and 2 IP Network cameras by using IP address. Triplex: Live / Playback， Record， Network. Standard H.264 Video Compression with low bit rate and better image quality. Support 1 x SATA HDDs (Each HDD can up to 6TB Storage Capacity). Exceptionally strong password and anti hacking protocols to increase privacy and security. Snapshot， and Email notifications for real time protection.
- Pre-Alarm Recording and Motion Detection. Motion activated full screen alarm call up protection with optional audible warning. Dual-stream: network video and local recording. CMS and web-based remote monitoring software. Up to 1080P HDMI and 1920 x 1024 VGA Video Output Resolution. USB Backup and USB Mouse.

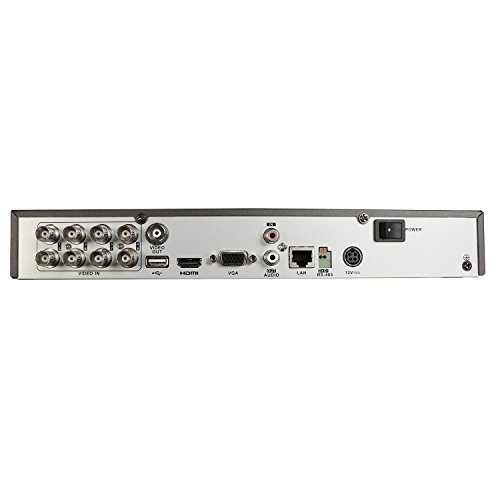

- Multiple video formats output including Full HD/TVI， SD/960H/composite video， and IP/network to work with various existing and new HD surveillance system. Full HD picture quality for solid day & night surveillance applications. Multiple Video Out connectors for extra viewing needs including: HDMI/VGA/IP network video monitoring. DVR is compatible with all ONVIF version IP cameras， including Hikvision brand.
- User friendly setup instructions including QIG (Quick Installation Guide) for PC based VMS/CMS integration. Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding， and real time Snapshot alarm notification. There are options to show 1， 4， 8， and 16 cameras simultaneously on both the mobile APP on cell phone and also the Central Monitoring Software (CMS) on PC.
- Recording Resolution:1. Regular Mode:a. 1080P resolution can only up to 12FPSb. Other resolution (720P/under) can up to 30FPS 2. 1080P Lite Mode: a. 960x1080 (1080P Lite) resolution can up to 30FPS b. Other resolution (960*720 (720P Lite or under) can up to 30FPS， US Local Support (Office Hour 8:00AM - 5:30PM， Mon to Fri， Pacific time). 3 Years Manufacturer Warranty. We are the sole distributor of 101 AV Inc products. There are no authorized 3rd party resellers of our products.
